thewishman
Member
Great mod! The links were great, too. Looks like another way to justify getting a metal lathe.
Wood grip for MAGLITE- mini tutorial
- Thread starter rherrell
- Start date
Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad
Woodlvr
Member
I agree Chris. Thanks for the link John I knew there was one out there.
hebertjo
Member
Awesome job and thanks for sharing the how-to. I really like the food color dye job.
What do you think the wall thickness was of the aluminum after being turned down and the thickness of the wood that was left on the barrel? I am guessing both were pretty thin. Also, how strong is the flahlight now? I would not think people are going to hammer nails with one of these but do you think it will hold up if dropped?
Thanks,
What do you think the wall thickness was of the aluminum after being turned down and the thickness of the wood that was left on the barrel? I am guessing both were pretty thin. Also, how strong is the flahlight now? I would not think people are going to hammer nails with one of these but do you think it will hold up if dropped?
Thanks,
NewLondon88
Local Chapter Leader
Got to agree .. the color looks superb.
Talk about "pop" ..
Talk about "pop" ..
1080Wayne
Member
NewLondon88
Local Chapter Leader
Great mod! The links were great, too. Looks like another way to justify getting a metal lathe.
Hold on .. hold on ..
Am I reading this right?
Is this one guy taking away another guy's excuse to buy another tool????
Who is this really? Mrs. Wayne? :tongue:
jleiwig
Member
I've heard that can get you banned in some states. It's similar to castration as far as I'm concerned :biggrin:
Great mod! The links were great, too. Looks like another way to justify getting a metal lathe.
Hold on .. hold on ..
Am I reading this right?
Is this one guy taking away another guy's excuse to buy another tool????
Who is this really? Mrs. Wayne? :tongue:
moyehow
Member
nice job
Canedriver
Member
That looks sweet. Having been a truck driver for years and carrying a maglite in a holster on my belt I know what project i want to work on now.
Darn lathe projects are going to bankrupt me
Darn lathe projects are going to bankrupt me
Crashmph
Member
That is a wicked cool idea! And very well executed too!
Bree
Member
You never know what people on this system are going to come up with next! That's just incredible. Blows me away. Great job!
marter1229
Member
:good::good::good:
Grizz
Banned
- Joined
- Oct 26, 2007
- Messages
- 917
Your not kidding and a cheaper version of it at that!
oops I mean "a cheap version of it"... meaning really poor quality.
RyanNJ
Member
Awesome idea, can you inform me about the turning process (what chuck was used etc)
rherrell
Member
Ryan, I made my own pin chuck to hold it and I held the pin chuck in a Beall collet chuck. Nothing special after that, just be careful because the wood is VERY thin around the aluminum body.
RyanNJ
Member
ok.
sorry for all the questions but how would i go about making a Pin Chuck
sorry for all the questions but how would i go about making a Pin Chuck
rherrell
Member
I used a metal lathe and a milling machine to make mine but if you don't have these machines try this http://content.penturners.org/articles/2008/pinchuck.pdf
Also, there's a plastic lampholder in the front that has "DO NOT REMOVE" on it. I chose not to remove it but Hans said he did and it was not a problem. If you remove it then you can turn the body between centers and you won't need a pin chuck.:wink:
Also, there's a plastic lampholder in the front that has "DO NOT REMOVE" on it. I chose not to remove it but Hans said he did and it was not a problem. If you remove it then you can turn the body between centers and you won't need a pin chuck.:wink:
Rcd567
Member
You've got some real talet. That flashlight is awesome.
rherrell
Member
THANKS Bob!:biggrin: They're really not that hard but having a metal lathe is a big advantage. I'm sure it can be done without one but it would take a little longer.
RyanNJ
Member
So all I would need to do is make a set of bushings with a 60 degree hole so that I can turn between centers.
I will ask my buddy with a metal lathe and see what I can come up with.
What size was the blank you used?
I will ask my buddy with a metal lathe and see what I can come up with.
What size was the blank you used?
rherrell
Member
I use a 7/8" blank, 3/4" is just .040" bigger than the finished diameter so you'd need to be DEAD ON to pull it off. I turn the blank round leaving it as large as possible and then drill it. Then you can glue it on the body and turn it down. I also leave it a little long and part it off at the end.
You can make your own centers out of just about anything. Try using a hardwood, they won't last forever but after every couple of lights you make you can trim them down and they're like new again.:wink:

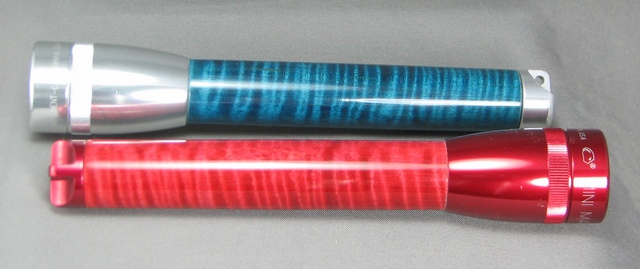

Here's a couple more I just finished.......................
You can make your own centers out of just about anything. Try using a hardwood, they won't last forever but after every couple of lights you make you can trim them down and they're like new again.:wink:
Here's a couple more I just finished.......................
Attachments
Rfturner
Member
I love the idea I have ben wanting to make some flashlights and I think I just found out another future project
FrankG
Member
Very nice. I especially like the effect of the food coloring.
jason_r
Member
So has anyone asked Mag if they'd make us kits?
Varinokid
Member
oh this would be PERFECT for my dad...his birthday is coming up in Jan.
He loves all the pens I make, but he will drool over having a flashlight with "wood" handle.
I do not have a metal lathe, just wood lathe....so I guess I'm gonna have to find out about the file scrapper!
Did it work? or I should use a different tool? Let me know!
He loves all the pens I make, but he will drool over having a flashlight with "wood" handle.
I do not have a metal lathe, just wood lathe....so I guess I'm gonna have to find out about the file scrapper!
Did it work? or I should use a different tool? Let me know!
