WIP - Clock Parts and Aluminum

[MIKL]

well here is a WIP on how i make a clock parts and Aluminum Tape blank, it actually takes 2 - 3 nights to get the point of the last photo, mainly due to waiting for paint to dry

Step 1 - for this blank i have selected a Siera, rough up the Brass tube with sandpaper and cut a piece of HVAC aluminum tape the length of the tube

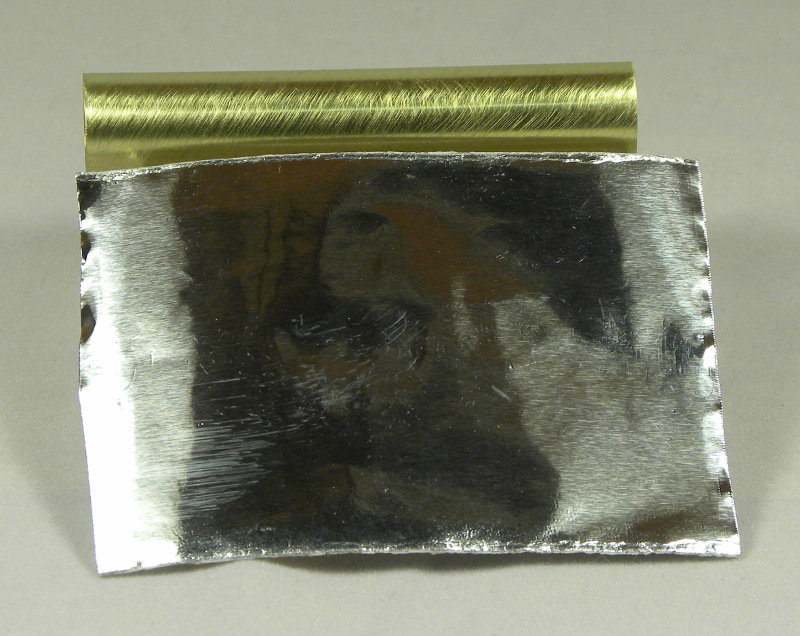

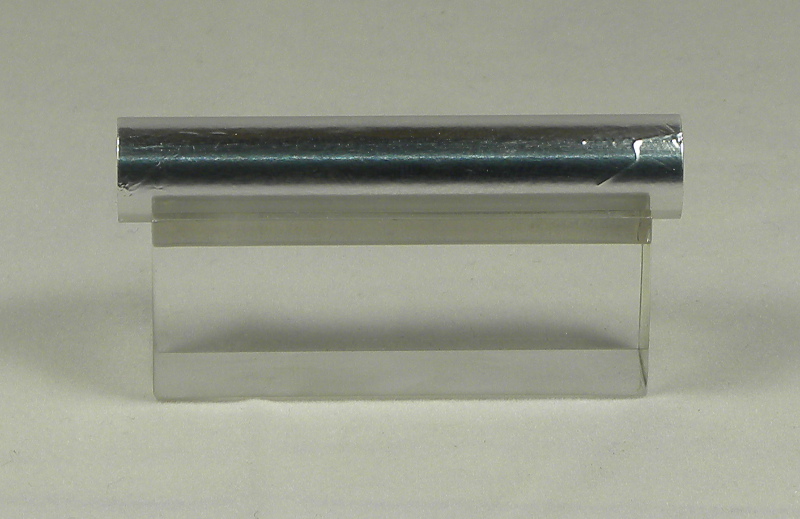

Step2 - You then peel off the backing and wrap the tube, i always try to keep the tape smooth, no wrinkles

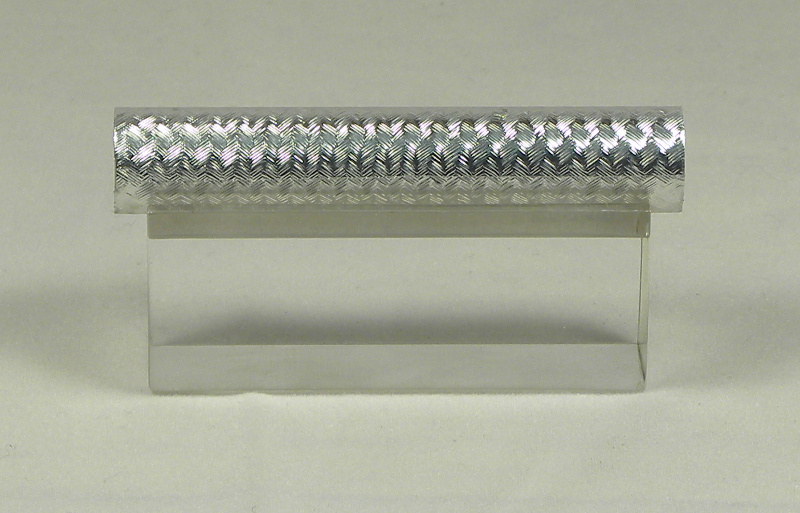

Step 3 - i then emboss the tube, the method i use gives it the look of Checker Plate not quite but has a great effect

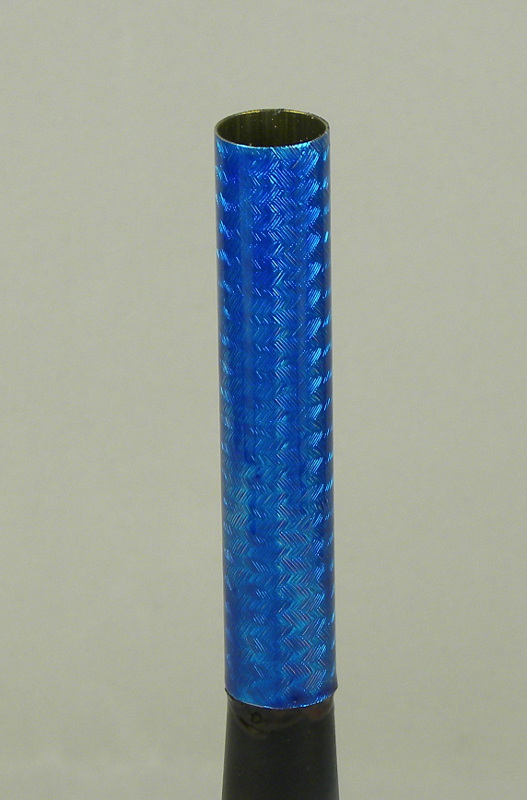

Step 4 - Painting, i use a metallic model paint which is quite transparent so the marks show through, now for the first waiting period, 24 hours to make sure the paint has completely dried (worse than waiting for the kettle to boil)

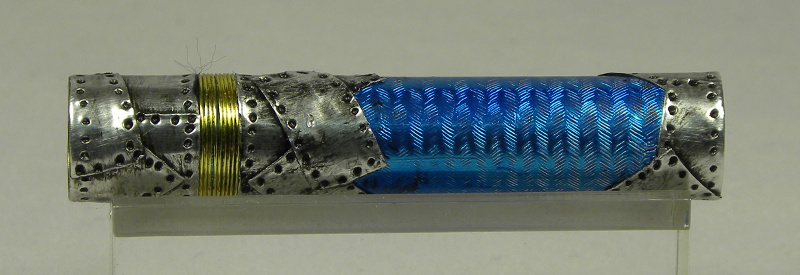

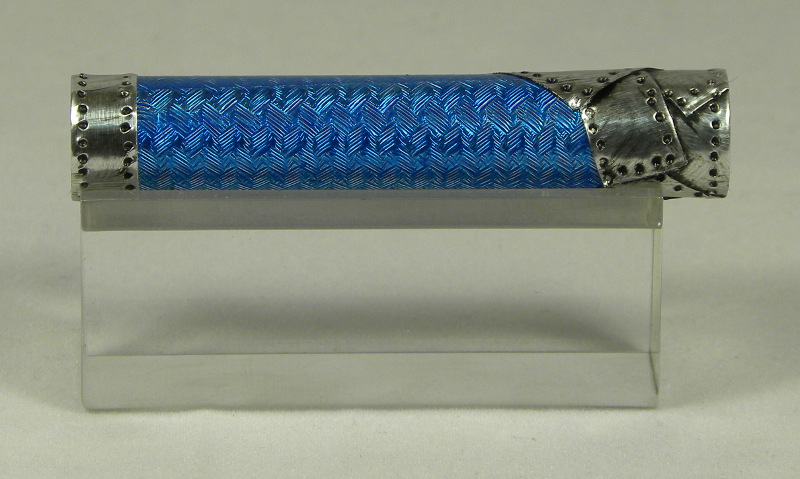

Step 5 - now i add the armor plates to each end, you can see from the pickie that the tape i use for these is much thicker than the HVAC tape, i also punch the rivet holes - one hole at a time. then more painting, again i use model paint to darken (age) the tape, brush on, wipe off before it dries and then allow it to dry

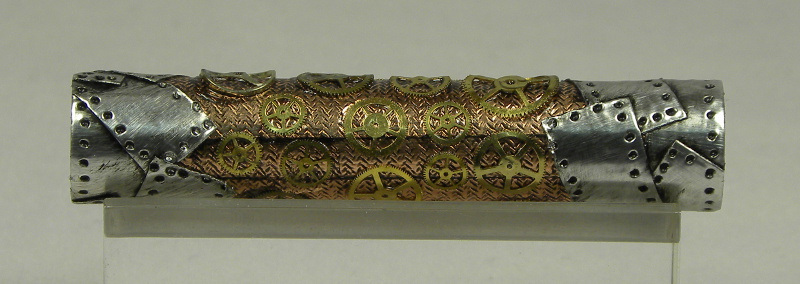

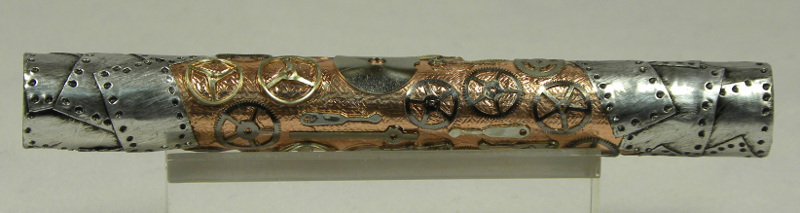

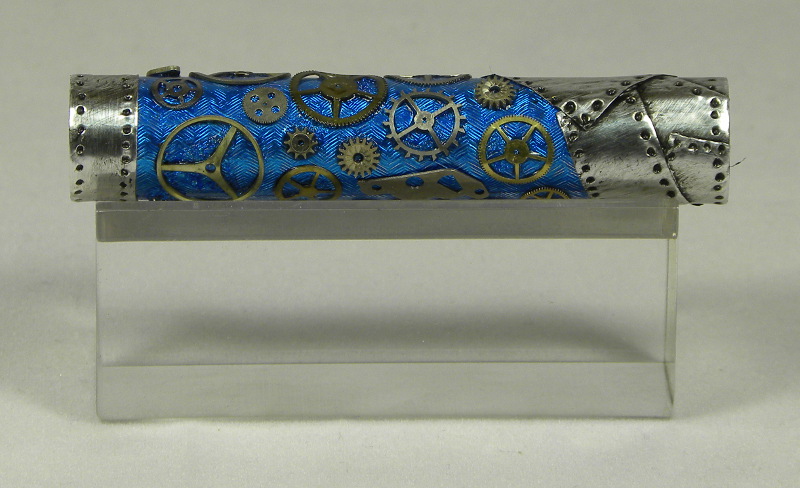

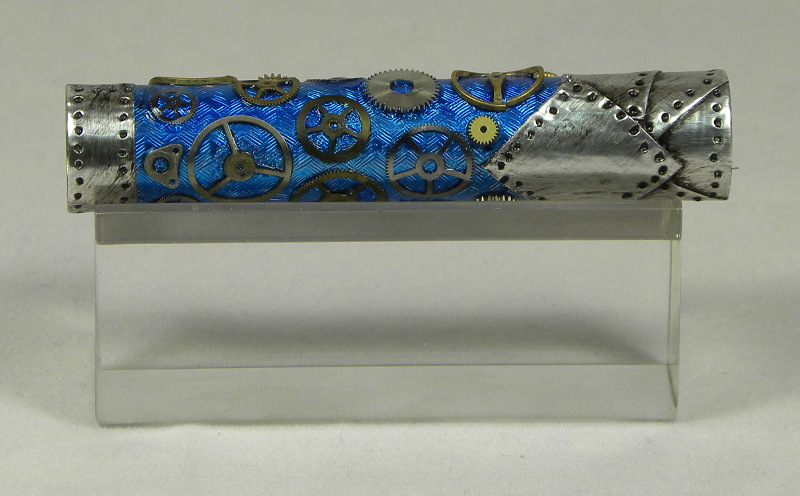

Step 6 - now for the time consuming job of bending the watch parts, 1 small drop of CA where i want the piece added and place it gently on the glue, i usually have upwards of 25 watch pieces on a siera and can take me 2 hours for this one step

its amazing what you can see in a photo that the old eyes don't pick up, in the second last photo one of the gears is broken, but a blind man would be happy to see it:biggrin:

all thats left to do is cast in resin, turn to shape and add the component set, i might get a chance this weekend to complete the project but i am not sure, i will add the rest of the pickies once it is complete

all the best

MIK



[thewishman]

Thanks for showing the steps you use. I bought several of your blanks and sold one to the first person that saw it. I wondered how you got the pierced pieces to look so different - thicker tape makes it look thicker (seems so clear, now).



[Jim15]

Thanks for sharing your process.



[Edward Cypher]

Excellent explanation could easily be a tutorial. Thanks for sharing your process. Very cool.



[MIKL]

thanks for the feedback guys

Thanks for showing the steps you use. I bought several of your blanks and sold one to the first person that saw it. I wondered how you got the pierced pieces to look so different - thicker tape makes it look thicker (seems so clear, now).

hiya Chris, i am glad that you had success with the blanks, pretty much everyone has said that they sold straight away, which is great

the main reason i did this was to show the blank pre-cast, the pictures of the turned pens don't show the real character that the pen has in the hand

i think from now on i will take a pickie of the blank before casting

all the best

MIK



[BSea]

I understand everything except how you emboss the tube. That looks so much like carbon fiber.

Great blanks BTW. :good:



[MIKL]

I understand everything except how you emboss the tube. That looks so much like carbon fiber.

Great blanks BTW. :good:

Thanks for the comment Bob

the embossing is what makes these blanks truly my design so i am sorry to say i wont be sharing that part, i have shared every other thing that i do and all the bits that i use

some things must remain a mystery

all the best

MIK



[BSea]

I understand everything except how you emboss the tube. That looks so much like carbon fiber.

Great blanks BTW. :good:

Thanks for the comment Bob

the embossing is what makes these blanks truly my design so i am sorry to say i wont be sharing that part, i have shared every other thing that i do and all the bits that i use

some things must remain a mystery

all the best

MIK

Yes, I already saw the same response in the WoodWorks forum.:frown:

But I understand, and don't blame you. Still, thanks for sharing everything else. :good: Great Blanks! . . . . . . . hmmm, I'm repeating myself.



[vtgaryw]

Way cool, I love the blue herringbone pattern.

How do you get the bends in the watch parts so perfect? I've been working on this, and find that a lot of the parts don't bend easily.

Thanks,

Gary



[triw51]

Awsome workmanship and your creativity is way outside the box........
Great job and thanks for sharing



[MIKL]

Way cool, I love the blue herringbone pattern.

How do you get the bends in the watch parts so perfect? I've been working on this, and find that a lot of the parts don't bend easily.

Thanks,

Gary

Thanks Gary

i made a tool out of the wire which runs around the top edge of a mattress, it is SO HARD, i made a wooden handle for it and sharpened one end to make the rivet dots on the blank. i also use this tool to bend the gears, just by gentle pressing while moving them across the wire, but some i can't bend yet like you said too hard, i need a friend with a mill to make me the next tool that i need

all the best

MIK



[neubee]

That looks really cool. I like your use of the aluminum tape it adds a lot to the design.



[vtgaryw]

Thanks. I was considering making a small die set like set up to press them on a small arbor press. Not sure if in the grand scheme of projects I have on my plate that I'll do enough of these to move it up the priority list.

Gary



[MIKL]

That looks really cool. I like your use of the aluminum tape it adds a lot to the design.

thanks mate, the pens have sold really well

Thanks. I was considering making a small die set like set up to press them on a small arbor press. Not sure if in the grand scheme of projects I have on my plate that I'll do enough of these to move it up the priority list.

Gary

i tried making one out of hard wood, but the thicker metal gears just end up embedded into the wood, a half round swage block and some doming tools is what you need, i can't find any here in OZ and due to weight the postage from OS is too expensive

all the best

MIK



[MIKL]

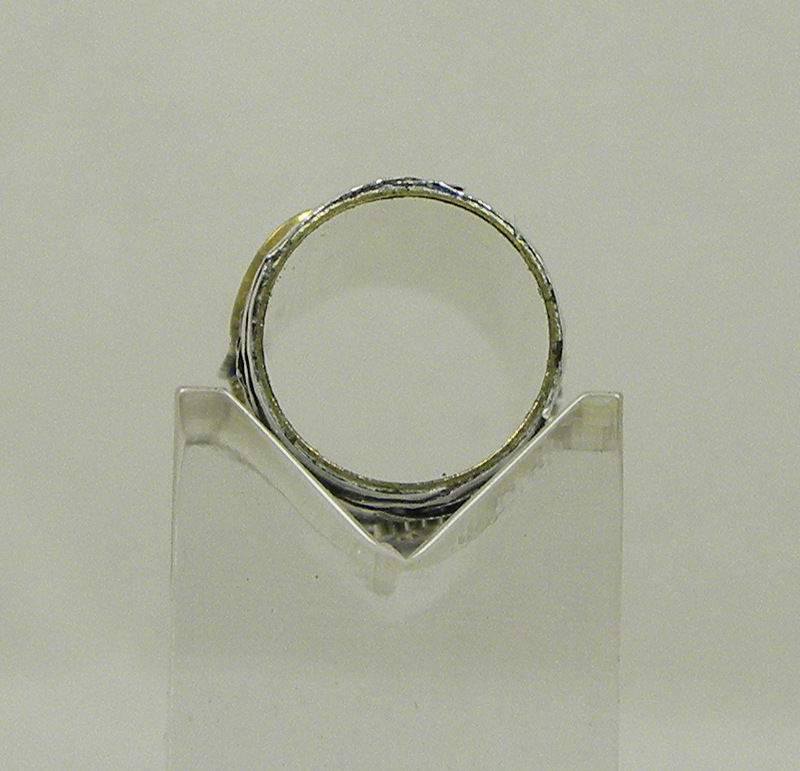

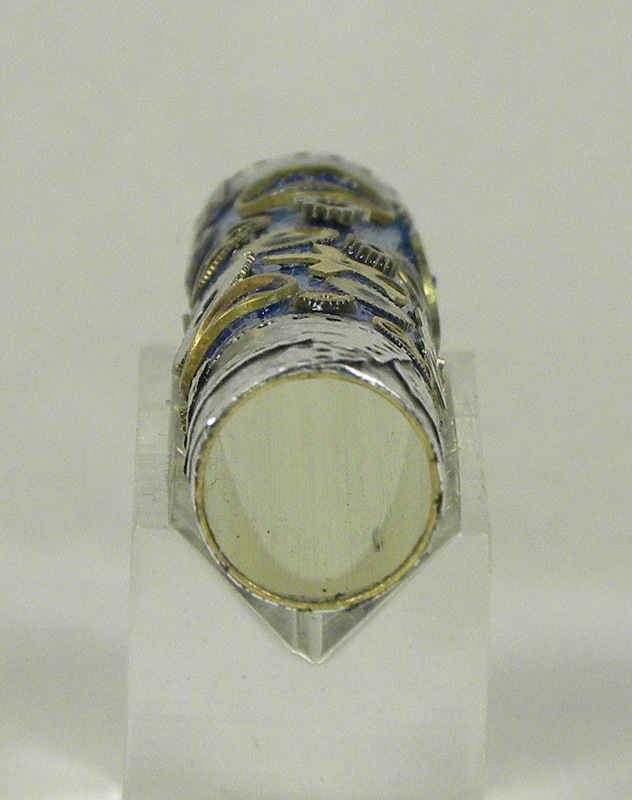

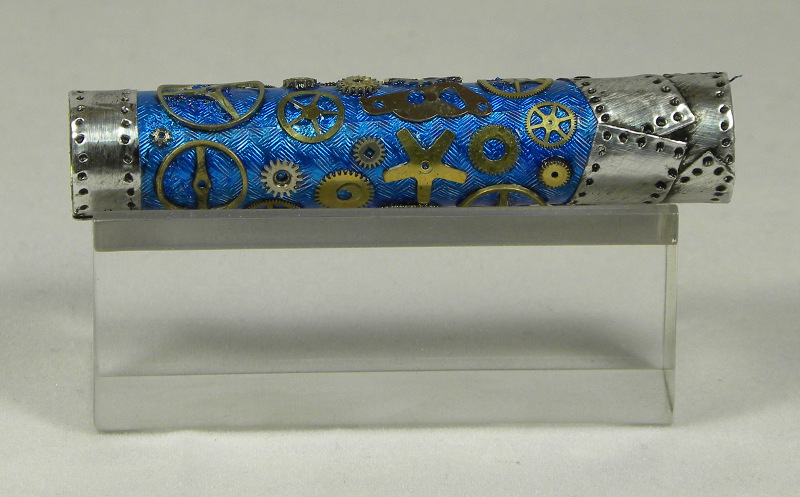

here is a pickie of the end, as you can see the thicker aluminum tape is not very thick, i just looked it up and its only 0.12mm which includes the adhesive backing

some of the watch parts are much ticker than the tape, this barrel will have to have a little bit of shaping to it, not to the bulbous stage though

i think the black paint gives it the added depth creating an optical illusion

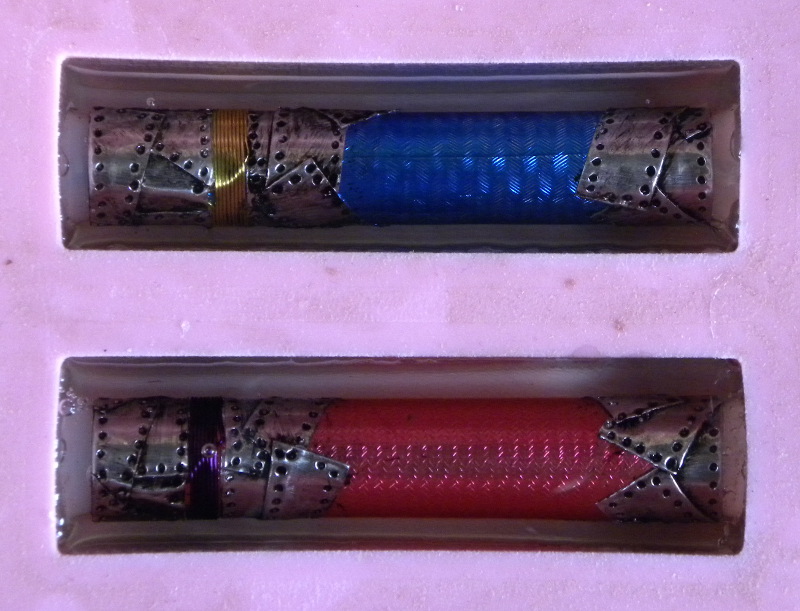

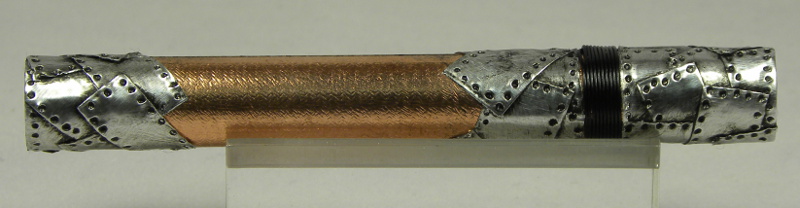

i have also added some pickies of other precast blanks, i am totally amazed at how much more you can see with the camera, the 26" monitor also may have something to do with it

all the best

MIK



[skiprat]

I have no doubt that the finished product will look cool, but I think they would look just as nice or perhaps even better if you left the watch parts off.
The ones with the textured coloured foil and the boiler plate ends, are in my opinion, already stunning.
For me, the watch parts don't add anything, and perhaps even give it some sort of identity crisis. Just my own opinion.:wink:



[MIKL]

I have no doubt that the finished product will look cool, but I think they would look just as nice or perhaps even better if you left the watch parts off.
The ones with the textured coloured foil and the boiler plate ends, are in my opinion, already stunning.
For me, the watch parts don't add anything, and perhaps even give it some sort of identity crisis. Just my own opinion.:wink:

thanks for the feedback Skip

i pretty much agree with you, however i use a watch parts pen for work only because i love to see people try and feel the rough parts before they realize they are embedded

i do make them with and without the watch parts, also with and with out the wire, they all sell pretty much as good as each other which is surprising, the 2 pictured above with out the watch parts will stay that way.

mate you should see how many different designs i have sitting in the tub beside me ready to be cast and i still have more ideas flowing, don't you hate it when real work gets in the way of play time:biggrin:

all the best

MIK



[Dan Hintz]

Love the blank... and this has given me a really good idea for a specific look I didn't know how to achieve until now (not what you have, mind you, but the idea was a good tipping point)



[MIKL]

Love the blank... and this has given me a really good idea for a specific look I didn't know how to achieve until now (not what you have, mind you, but the idea was a good tipping point)

Thanks Dan, i am glad that this has given you some inspiration, i hope it turns out better than expected

MIK



[MIKL]

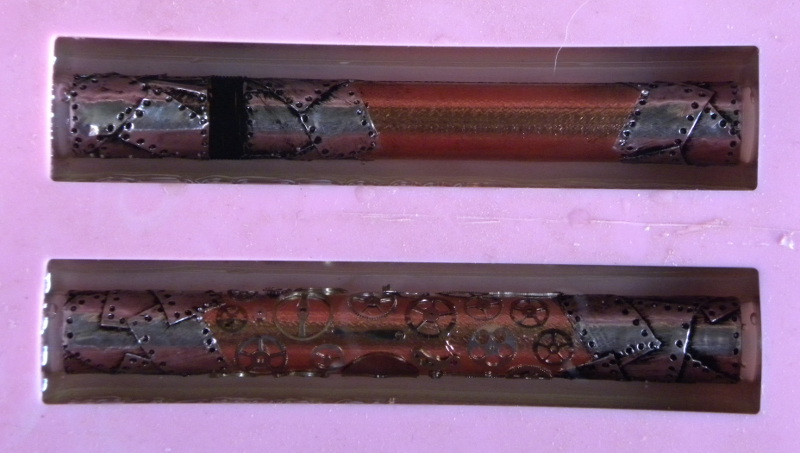

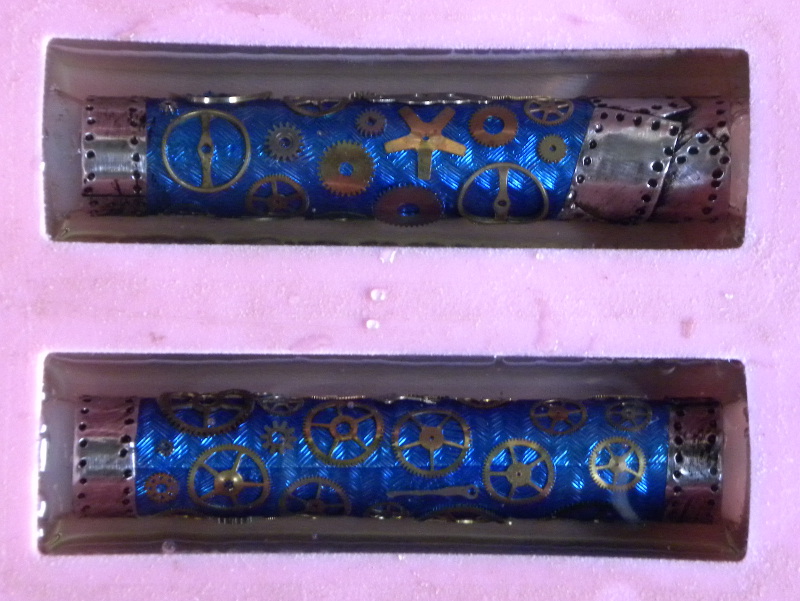

well they are all in the mold, resin warmed, catalyzed, poured and on the cure

should be all good by tomorrow

there are a few bubbles visible in the pickies but they are all on the surface, can't see the bottom though

all the best

MIK



[MIKL]

well the TIME has arrived, the MOMENT of truth... thats all the clock references i can think of that apply

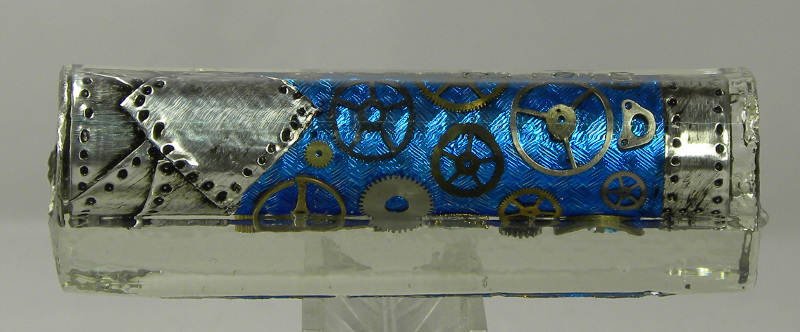

casting was completed and the blank came out the mold beautifully, i am always worried about bubbles underneath the blank where they can't be seen

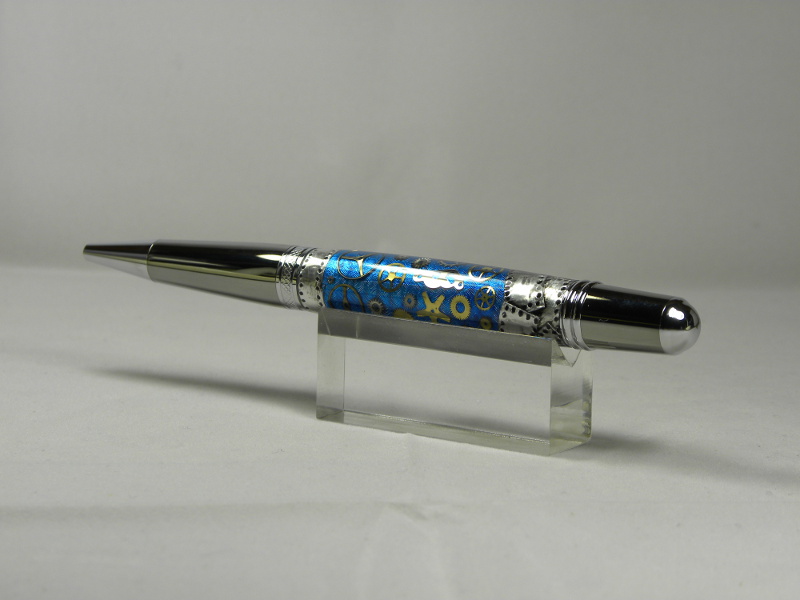

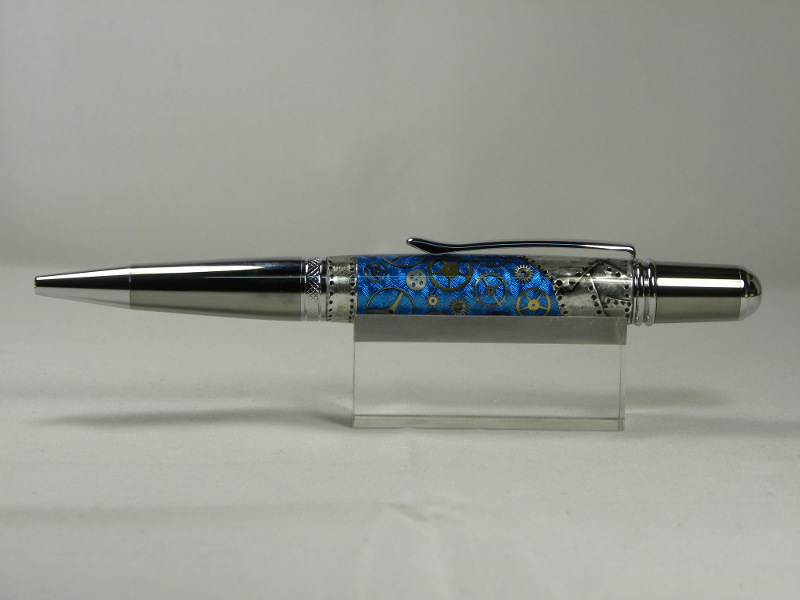

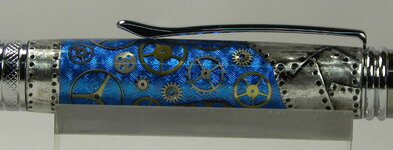

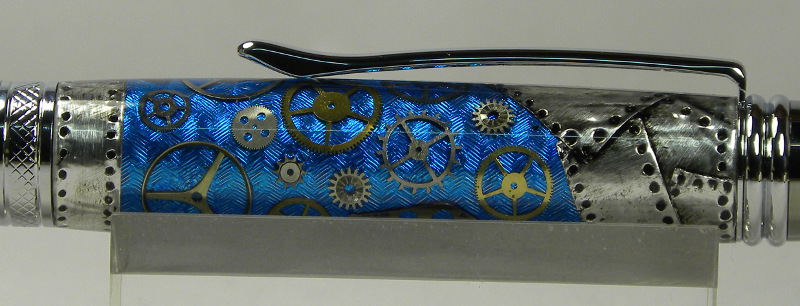

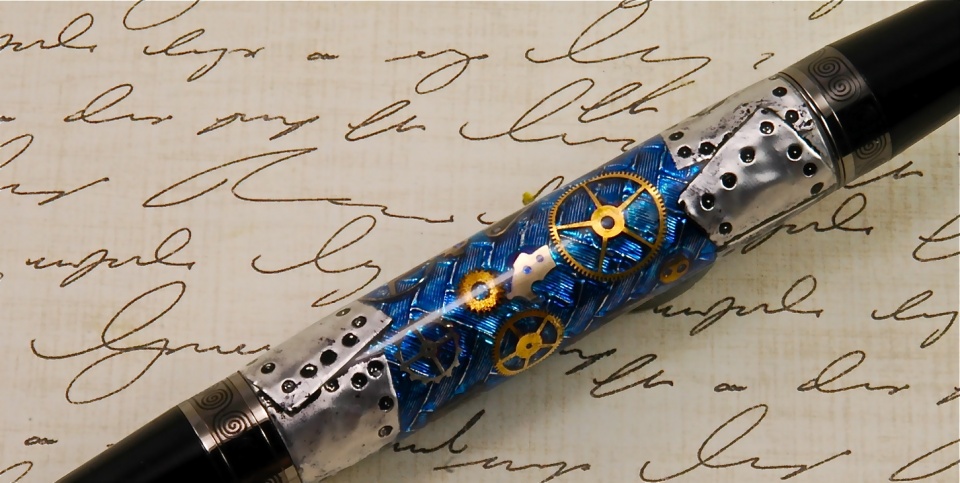

pictured below is the finished product, hopefully this one lasts as long as rest have
