What thickness of material for segmenting

Signed-In Members Don't See This Ad
Lew

Lew

Member
Joined
Oct 28, 2020
Messages
467
Location
Fair Oaks Ranch, Texas
I have tried to find references on IAP for the thicknesses different turners use for segmenting. I am specifically interested in adding some bands of metal or plastics. I saw one reference to using 10mil or 30 gauge metal. Is that the standard? Would it be the same for plastics? In Don Ward's book, Modified Slimline Pens, he talks about using plastic bottle caps. I'm interested in trying something in segmenting but I'm unsure of how to proceed. Thanks for any information.

Signed-In Members Don't See This Ad
Hi Lew. There is no real standard. I've used everything from colored construction paper to store bought aluminum and brass sheeting. The thickness all depends on your design and the desired effect. Also price plays a role. Look around the house and shop. You can use aluminum soda/beer cans, plastic coffee containers/lids, old gift/credit card, old note book vinyl covers or anything that is recyclable.

I find myself looking at things and wondering, can I make a pen with that.

When you say 10mil, do you mean 0.010" ? .... Sorry, I am not really a machinist ! . I think that 0.010" would be too thin.

But when it comes right down to it, it is whatever you think looks good in your particular design ..... I have used an aluminum thickness of about 1 mm or about 0.040" quite often because that is what I seem to have readily available.

For plastic, I think it should be thicker, but not sure why I say that . . I use plastic for end caps (about 3 - 5 mm thick) but not much else.

Most of my segmentation efforts have been with a variety of wood layers, not all the same thickness, but in the 2 mm - 4 mm thickness range.
I don't follow any particular style .... mostly fairly random. . I tend to like the randomized styles of IAP member "wood128" (Joe Schneider) which are for sale sometimes on ExoticBlanks but I don't see any of those at this time .... he has some work there but not the randomized layers that I like.

If you can describe (or picture) examples of the styles you like to make, that would help in responding.

When you refer to bottle caps, are you thinking of metal ones ? . Plastic caps would be hard to use, in my opinion.

There are no hard and fast rules. Whatever you can find or make is fair game. The only real requirement is that it be strong enough to work with, soft enough to turn and be able to stick it together with some kind of glue. So for most people that rules out marshmallows, stainless steel and teflon.

"that rules out marshmallows, stainless steel and teflon" ....... Come on, Curly ...... can't you adapt ? ..... LOL !! ... :D

"cut your segmenting material the same width as your saw blade." ....... A VERY GOOD POINT, Tony !!!

magpens said:
"cut your segmenting material the same width as your saw blade." ....... A VERY GOOD POINT, Tony !!!
Click to expand...
Not sure what that means but there are no rules to thickness of segmenting material used or material it self. Take a look through this thread and see some of the various style pens made from all kinds of materials and segmented. This applies for wood acrylics and metals and whatever you want to use.
https://www.penturners.org/threads/no-comments-just-post-new-segmented-pens-and-likes.111419/

jttheclockman said:
Not sure what that means but there are no rules to thickness of segmenting material used or material it self. Take a look through this thread and see some of the various style pens made from all kinds of materials and segmented. This applies for wood acrylics and metals and whatever you want to use.
https://www.penturners.org/threads/no-comments-just-post-new-segmented-pens-and-likes.111419/
Click to expand...

John ..... refers to doing Celtic knots and similar when you may need to match thicknesses to saw blade kerfs for "best" appearance.

I make all my segmented blanks as square as I can get them, usually they are within .010. This means the segments have to accommodate that. If I'm putting in a three color band into a bandsaw cut, then my segments have to be approximately .016, depending on the design. Some designs require the infill to match kerf, others do not. My table saw kerf is .102 so same considerations, just different numbers. The question you asked, in reality, has no cut and dry answer. It's pretty much all design driven. I know this isn't much help but the more segmenting experience you get, the more this will make sense.


Sent from my iPhone using Penturners.org mobile app

KenB259 said:
I make all my segmented blanks as square as I can get them, usually they are within .010. This means the segments have to accommodate that. If I'm putting in a three color band into a bandsaw cut, then my segments have to be approximately .016, depending on the design. Some designs require the infill to match kerf, others do not. My table saw kerf is .102 so same considerations, just different numbers. The question you asked, in reality, has no cut and dry answer. It's pretty much all design driven. I know this isn't much help but the more segmenting experience you get, the more this will make sense.


Sent from my iPhone using Penturners.org mobile app
Click to expand...
Ken, that's pretty much the answer I was looking for. Obviously, I need to spend yet more money to buy a thin band saw blade and a thin table saw blade (I never realized how expensive this hobby was going to be!). I tried bands with a standard table saw and bandsaw blade but they were so large they didn't look right. A celtic knot I did with the bandsaw worked out ok though. Thanks.

Glad you have an answer but had you been more specific in your first post the answers given would have been more focused. I thought the question had more to do with glueing up Gisi style, chevron, stacked type of work which is done with a variety of materials and thicknesses, not cutting and replacing saw kerfs in the blanks.

Lew said:
Ken, that's pretty much the answer I was looking for. Obviously, I need to spend yet more money to buy a thin band saw blade and a thin table saw blade (I never realized how expensive this hobby was going to be!). I tried bands with a standard table saw and bandsaw blade but they were so large they didn't look right. A celtic knot I did with the bandsaw worked out ok though. Thanks.
Click to expand...

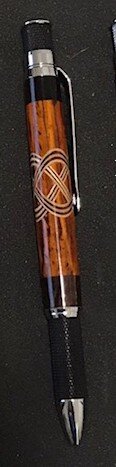

Celtic knots made with a table saw, look better if you cut them at a larger angle than 45 degrees, I usually cut mine at 55 degrees and to take it a step further, you can glue thin strip together to make up the saw kerf. I have some with 5 bands, that look amazing, in my case I need infill at .020 or slightly under to accommodate glue. Here's an example.
