Vertical tube in casting

[jeneuer]

I am looking for information about vertical tube in casting. I understand there is a tutorial, but am having no luck finding one.



[NotURMailman]

Did you try here:
http://www.penturners.org/forum/f139/iap-library-casting-79502/



[panamag8or]

Did you try here:
http://www.penturners.org/forum/f139/iap-library-casting-79502/

It's in a post, not the library. I told her I saw it once, but I can't find it, either. Also, DO NOT google "tube in casting"... DAMHIKT.:redface:



[Russianwolf]

I have some pics and info from JohnU (who collaborated with CaptG I understand). Let me see if they are opposed to it being on site.



[seamus7227]

no offense, but you havent even introduced yourself. I see that from this being your first post. Welcome to the group from wichita falls,tx! How much casting experience do you have?



[Cabhog]

Here's one from fool4peppers
Pen blank casting - YouTube
Hope I get this right, never posted a link here before



[jeneuer]

Seamus- Thanks for the prompt. I placed an introduction on the introductions page.
I have been casting in a pvc pipe, as the video in the post above shows, but I do love the idea of using a glove finger to close the pipe. I have been using blue painters tape.
I want to cast tube-in in a pvc pipe. At this point my plan is to get a large stopper that will close the end of my 3/4 inch pvc and carve the short end of the stopper to plug my pen tube. I will update the thread with results



[longbeard]

I use corks from lowes to plug the end with, just get the right size for your pvc.
Shop The Hillman Group 2-Pack Corks at Lowes.com=



[seamus7227]

take the corks out of the picture cuz they will hold air, unless you are using pressure, but i would recommend using a silicone plug instead or what about a pvc cap?



[longbeard]

take the corks out of the picture cuz they will hold air, unless you are using pressure, but i would recommend using a silicone plug instead or what about a pvc cap?

Yep, i use a pressure pot.



[navycop]

take the corks out of the picture cuz they will hold air, unless you are using pressure, but i would recommend using a silicone plug instead or what about a pvc cap?

I use plugs not corks. Similar to the plugs that Fred (Ptownsubbie) uses in his molds.



[Russianwolf]

okay, John gave me the go ahead.

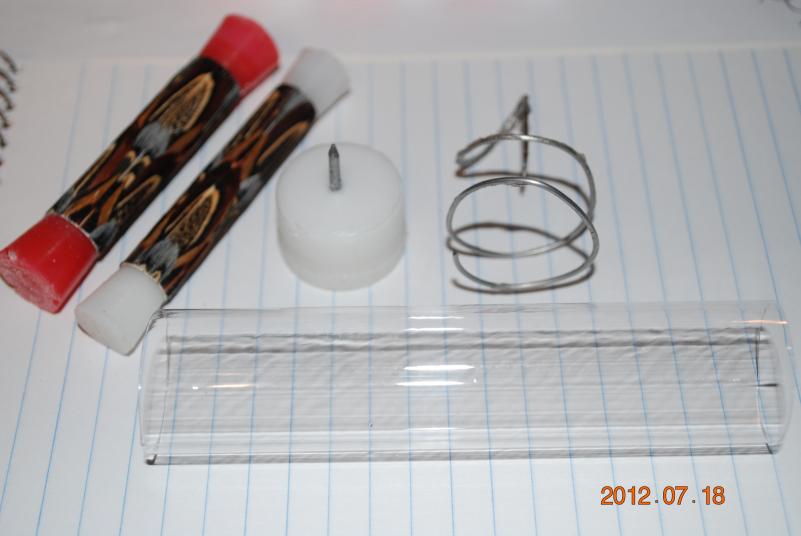

Attached are his pics which are pretty self explanatory.

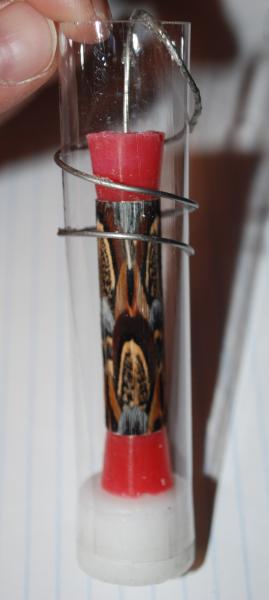

Two silicon plugs in the end of the tube. He uses a delrin plug for the outer tube with a nail to hold the base silicon plug centered. I made my plugs from silicon putty which bonded with the silicon tube plug. Then the wire to hold the top silicon plug centered.

John orders 1 inch clear tubes, I grab T-8 bulb protectors from Lowes which are about 1.25 inch.

Have fun.



[qballizhere]

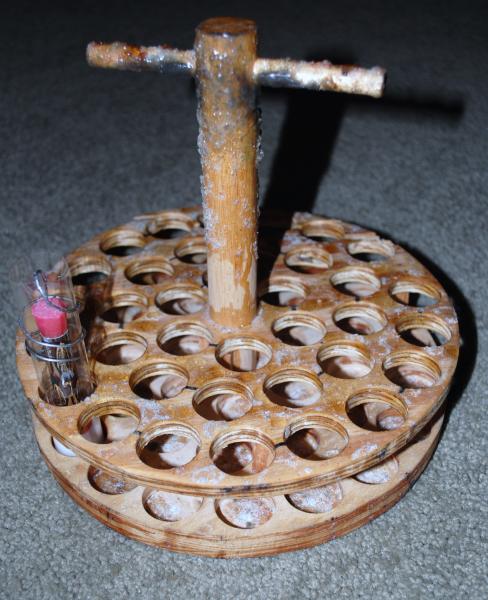

Its good to see that my wooden holders are not the only ones covered in PR



[JohnU]

My set up was all CaptG. Gary is the Master! I just came up with the wires to stop the tubes from falling over in the tubes.

Its good to see that my wooden holders are not the only ones covered in PR

Lol, yep, what you can't see is that I stepped on it and broke part of it but CA glued it back together. Someday I'll find time to remake one.



[jeneuer]

Thanks for the info. I got some stoppers like pk uses in his molds big ones to stop the bottom of the pvc mold and little ones to plug the pen tube. when the latesst pen kit order comes in I will test the set up out.



[philb]

Bit of a thread revival, just wondering what material the clear tubes are that are shown in the pics? Have silicon corks, just can't work out a suitable clear tube!!



[panamag8or]

Bit of a thread revival, just wondering what material the clear tubes are that are shown in the pics? Have silicon corks, just can't work out a suitable clear tube!!

They are flourescent light bulb protector sleeves, we got one at the big blue home improvement store. There are two sizes, we got the thinner one.

To further update the thread, Jen hasn't tried anything with this yet.
