Turning chisel - New design

[wood-of-1kind]

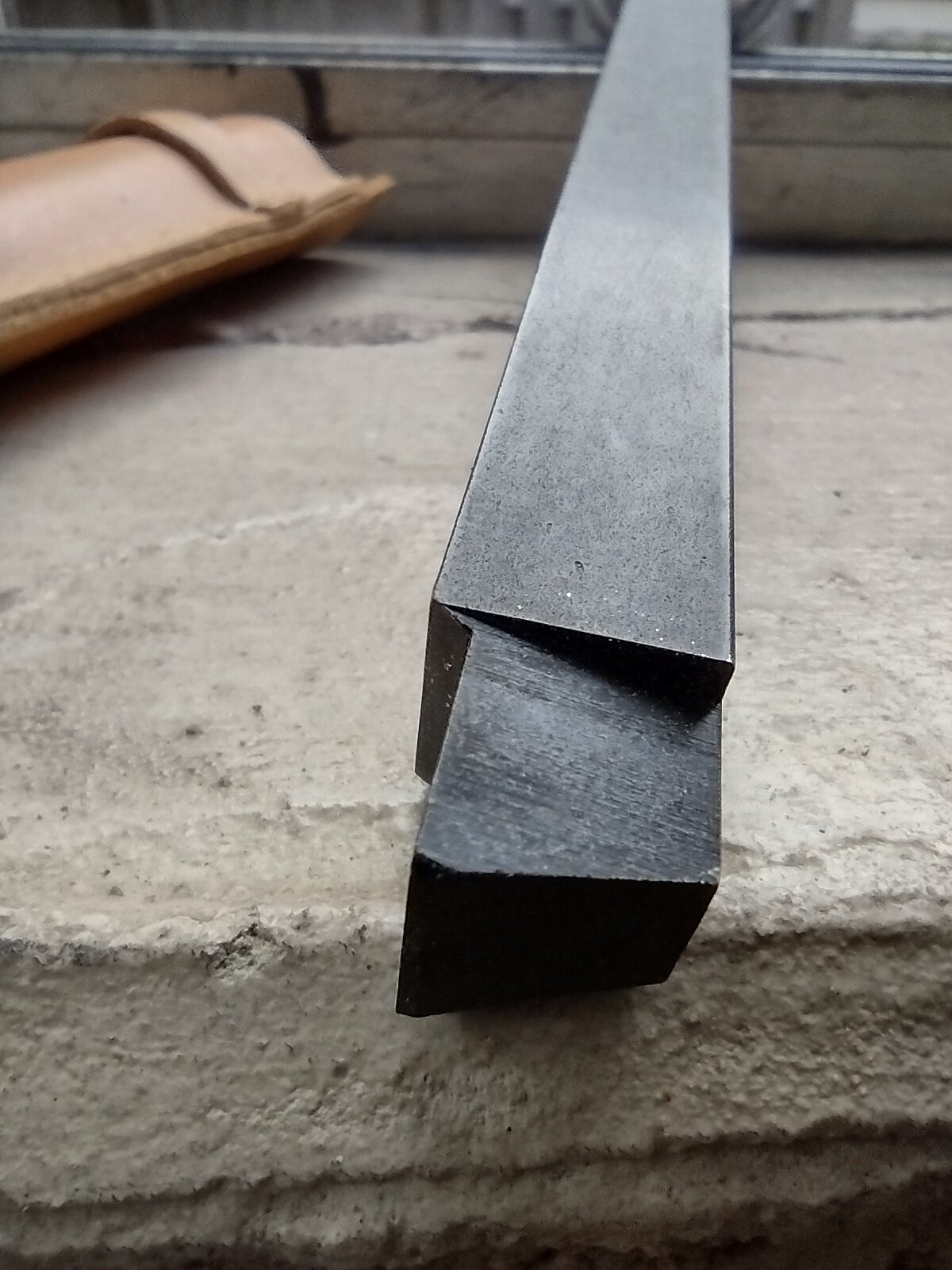

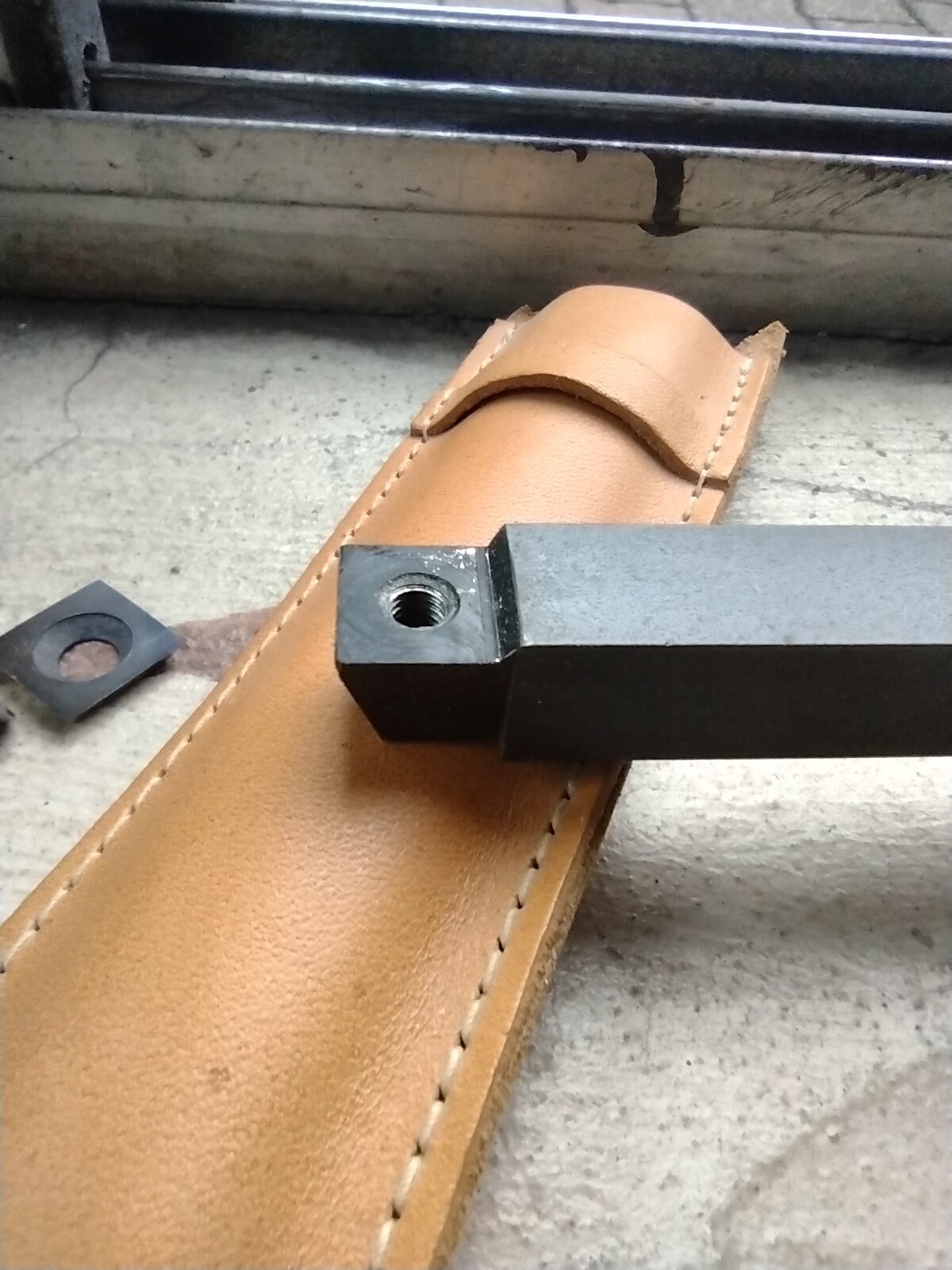

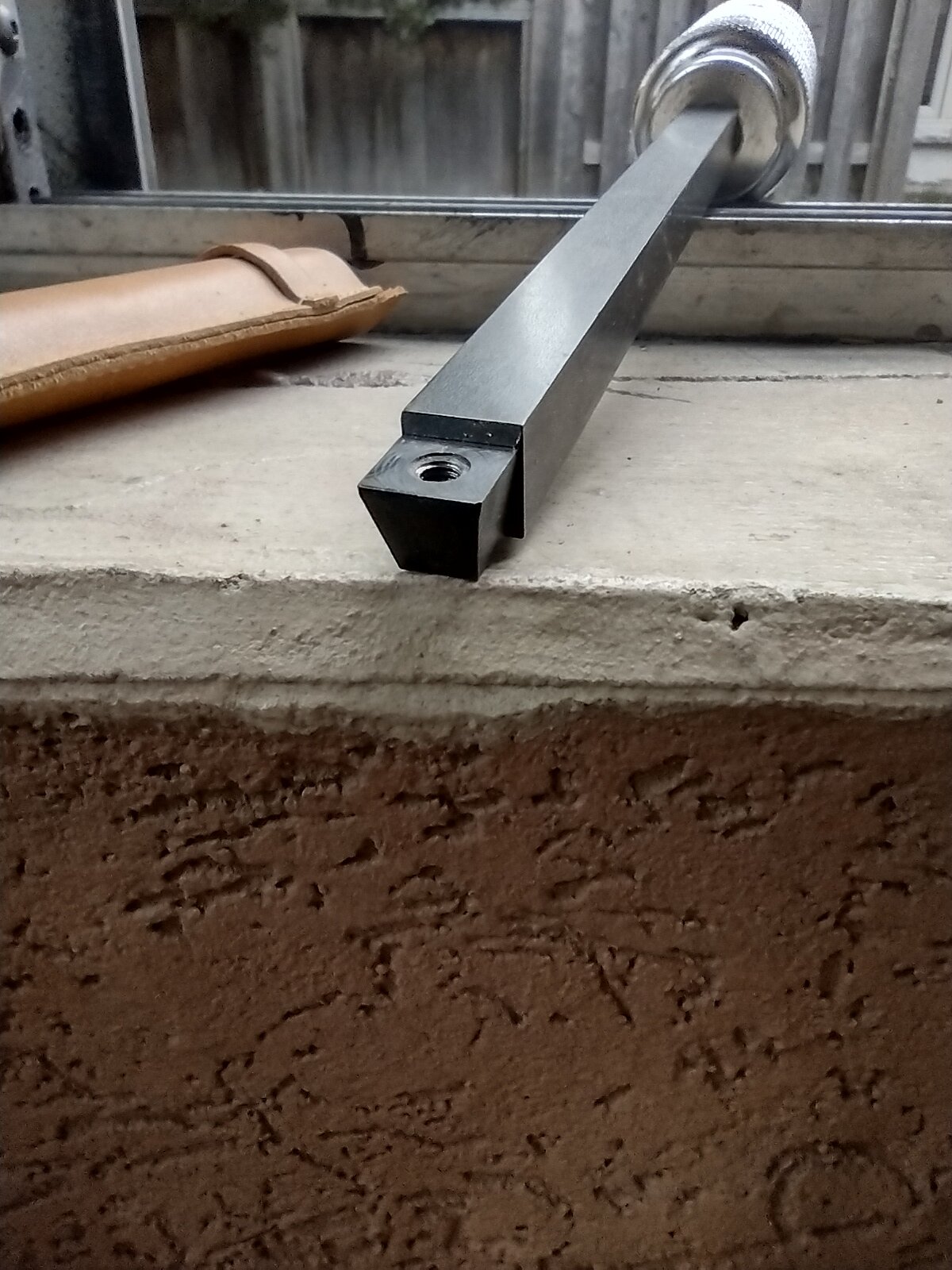

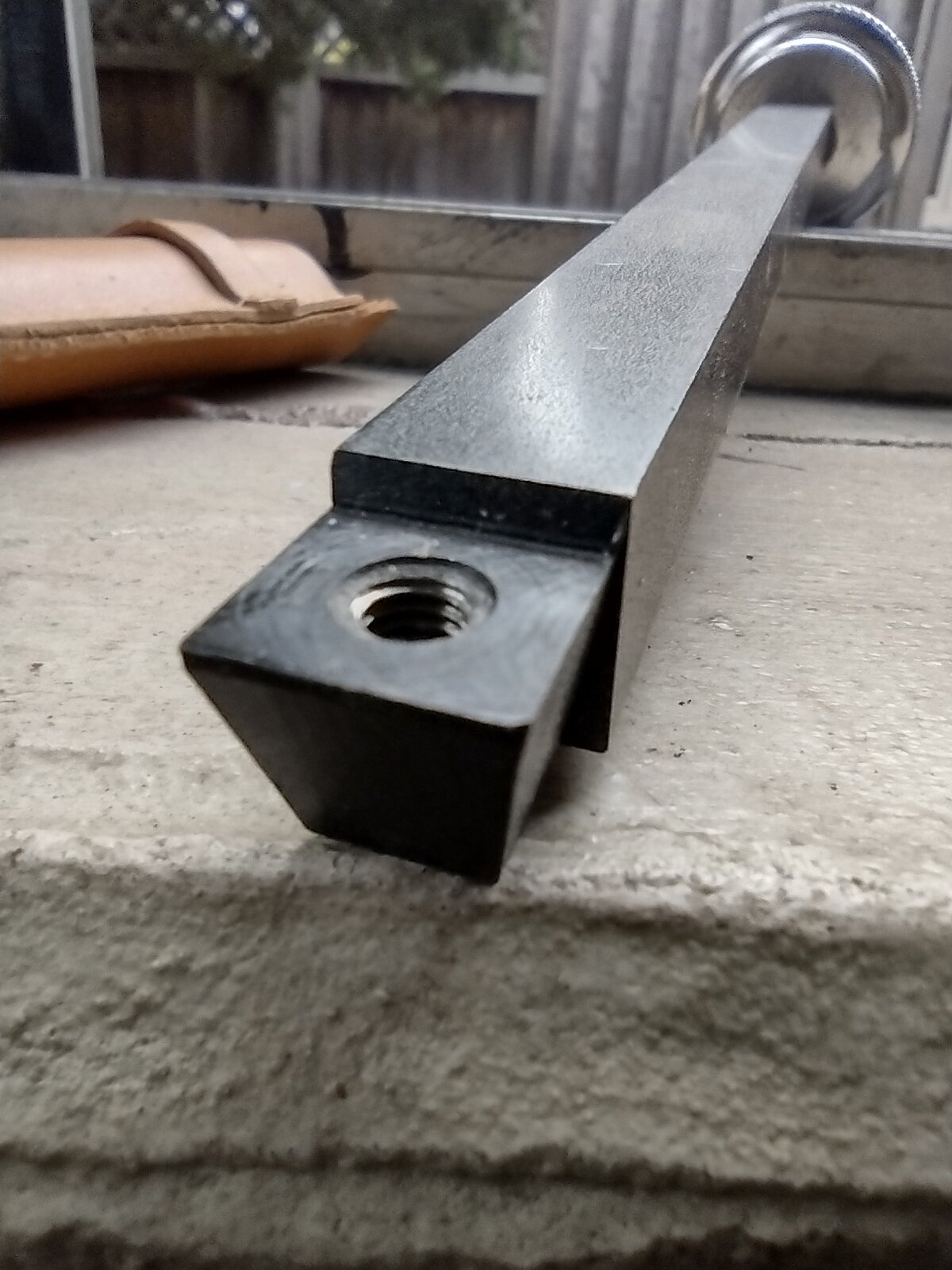

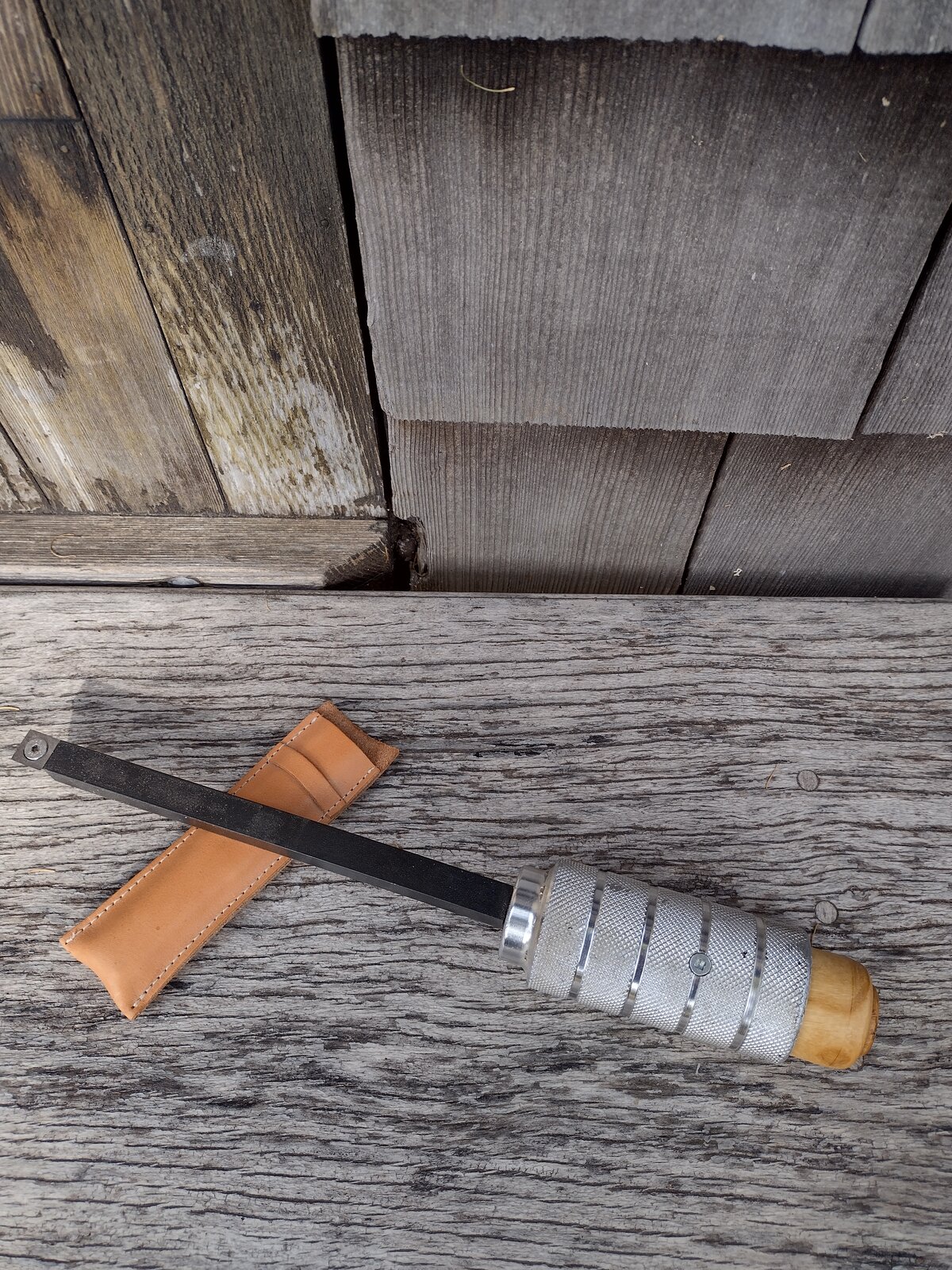

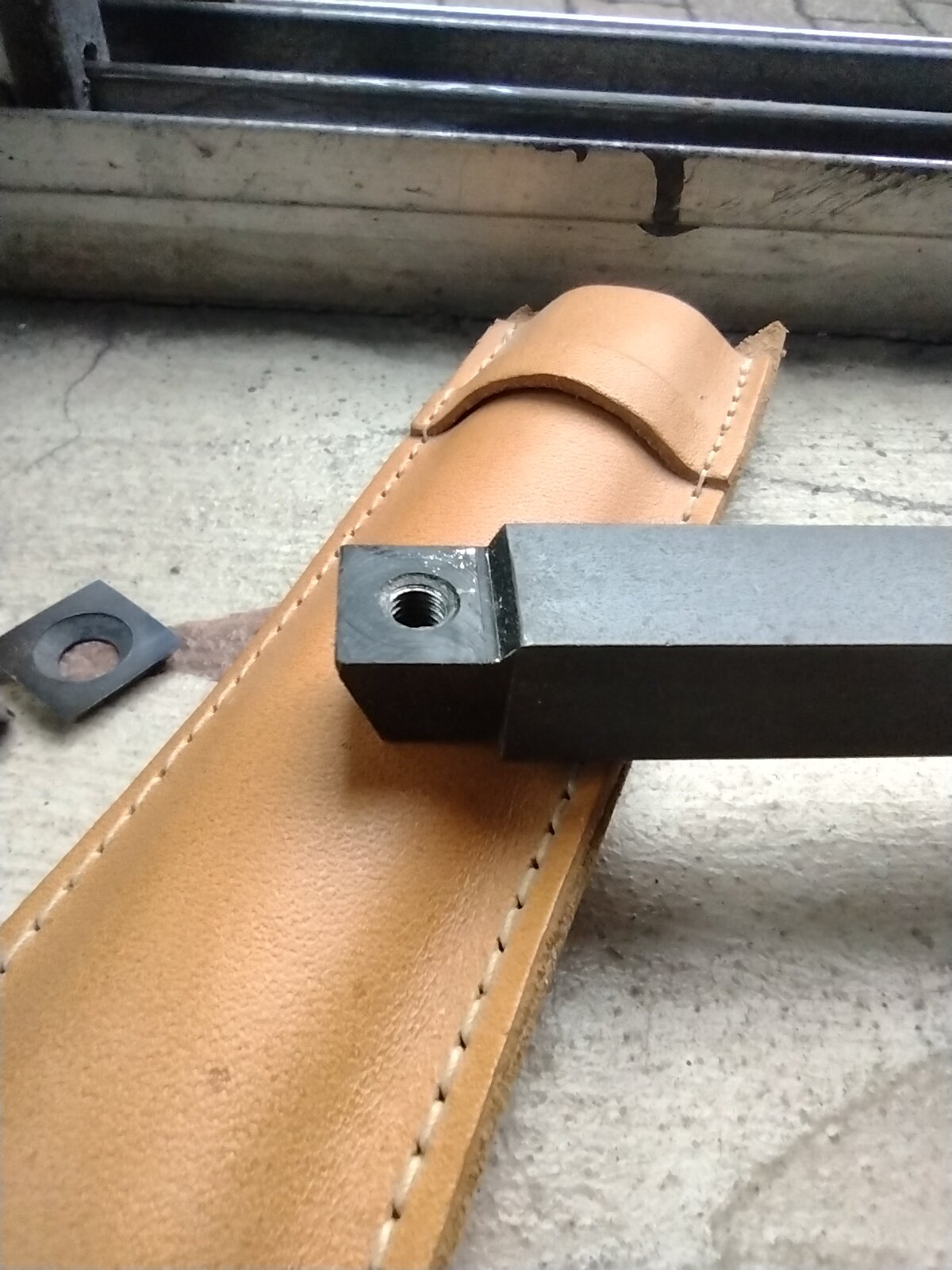

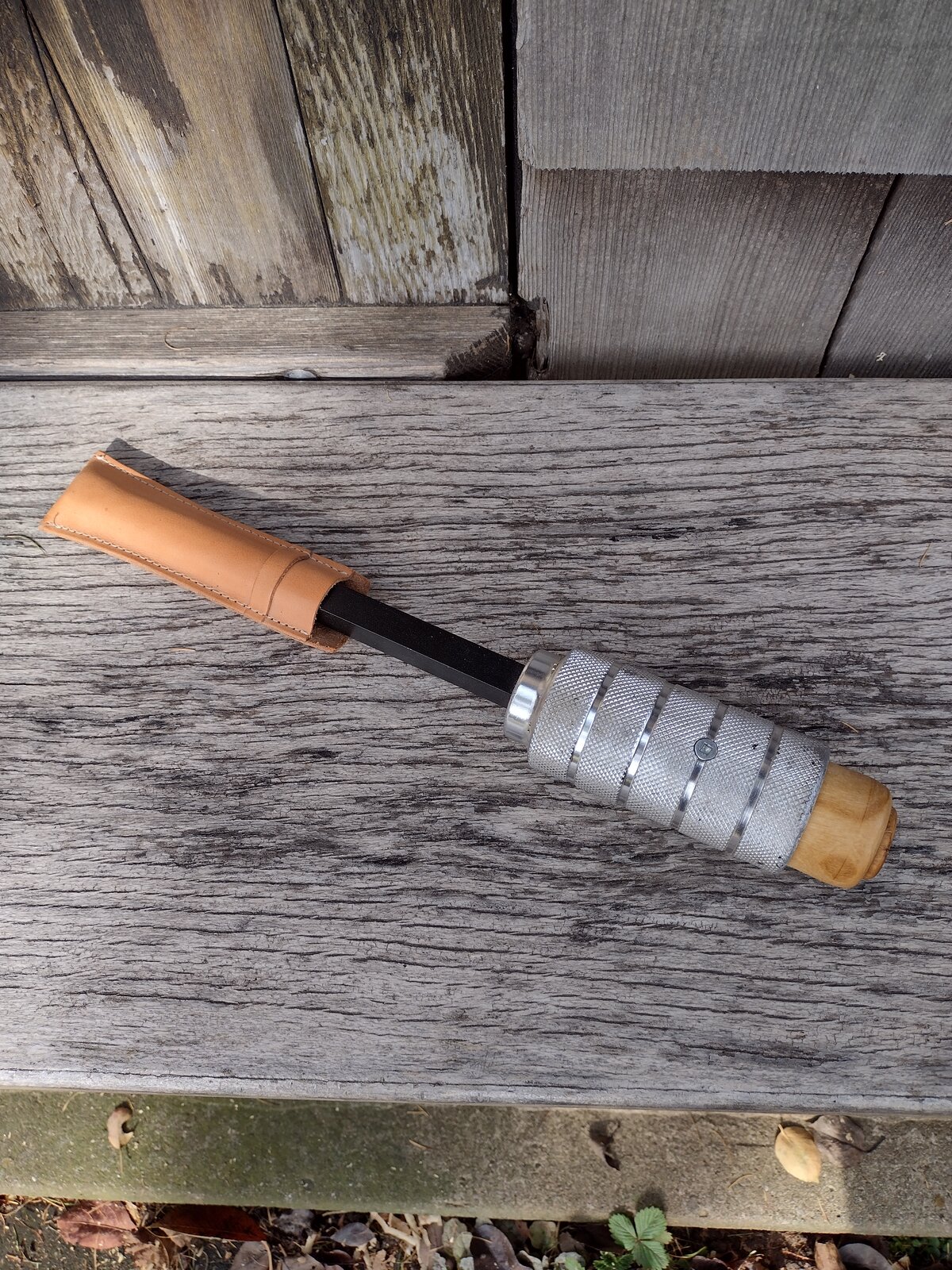

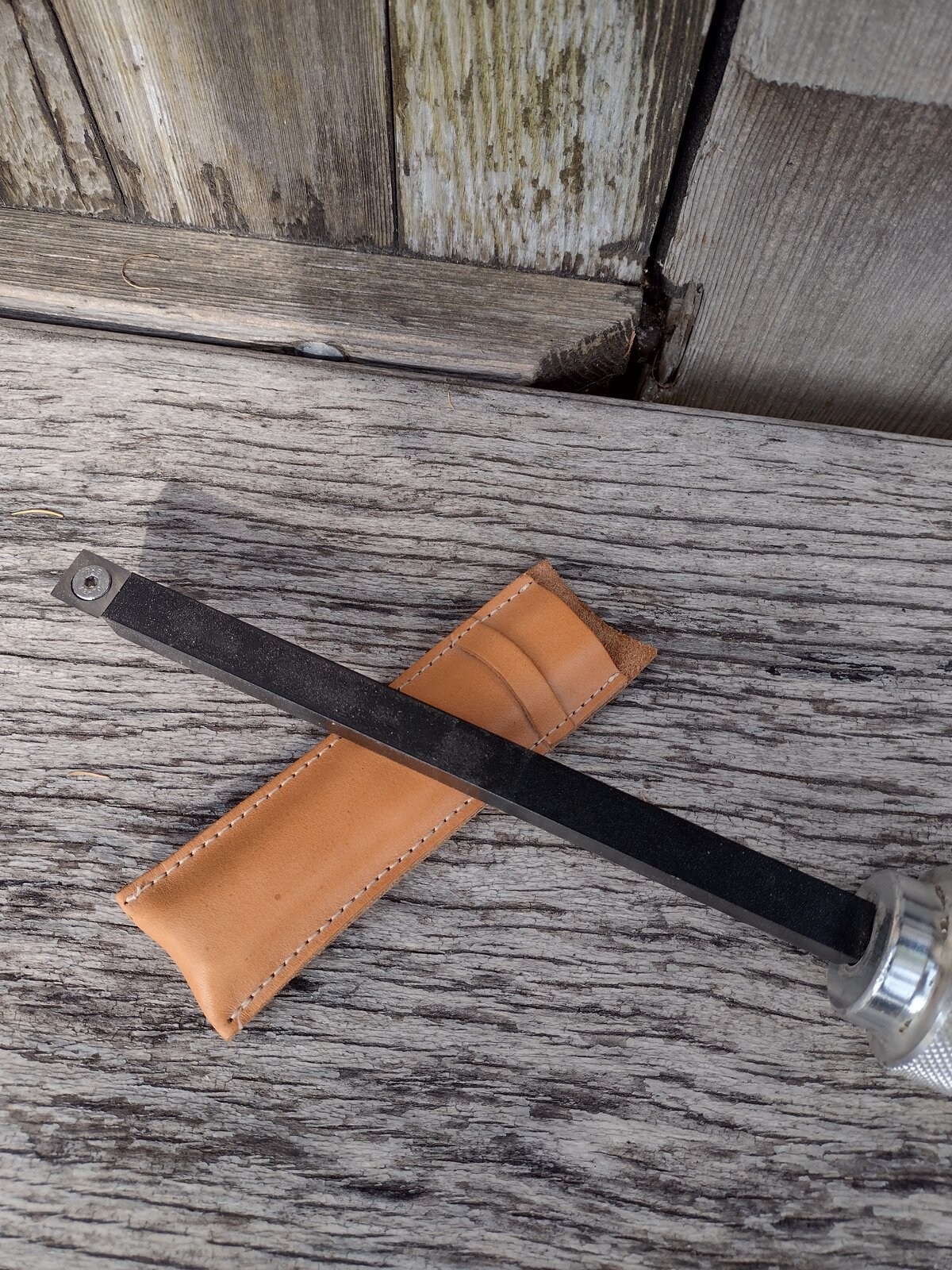

I recently completed this personal carbide turning chisel. Utilizing 15x15 mm R6 solid carbide insert that is mounted on a machine tool (black oxide)

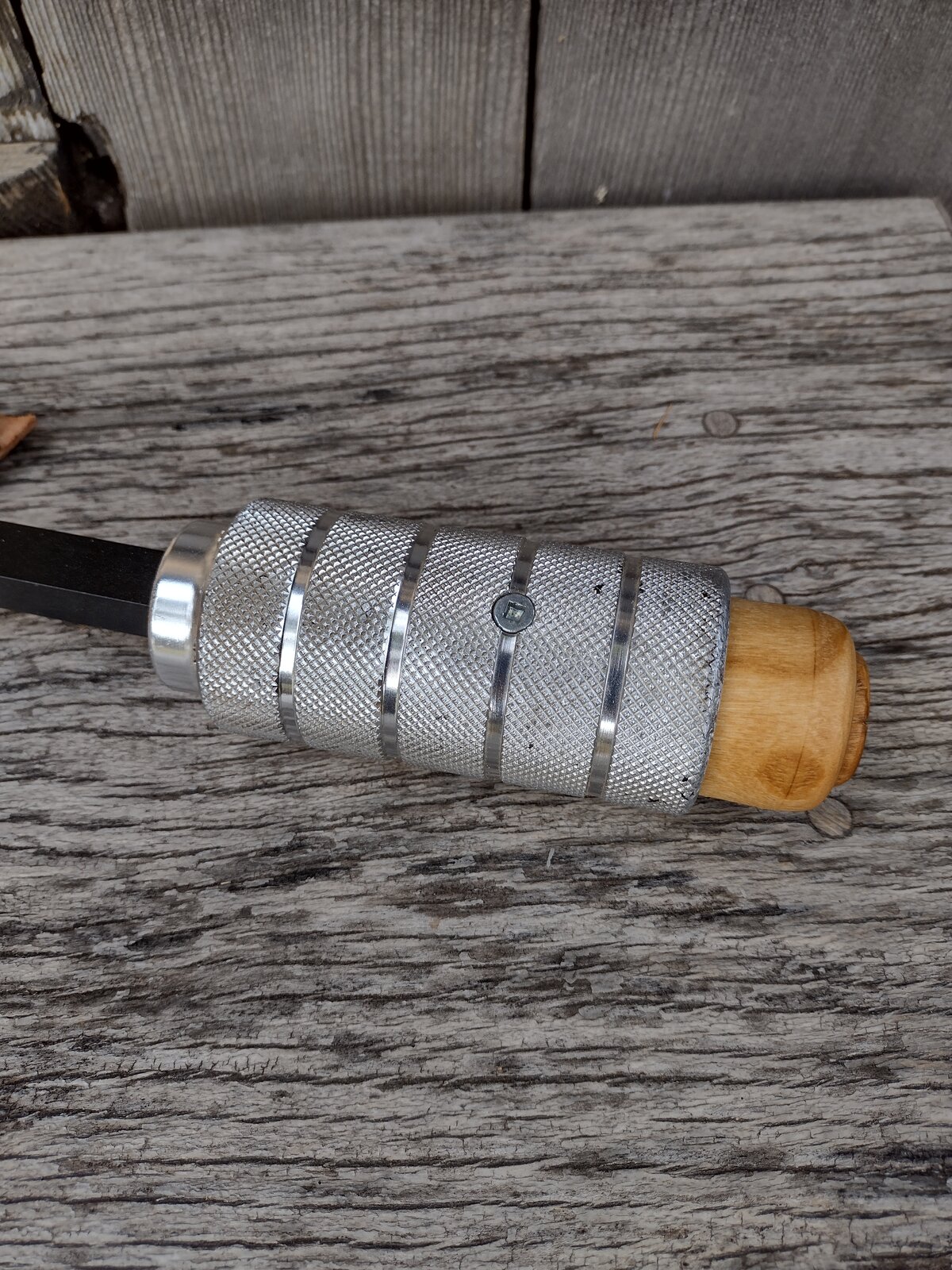

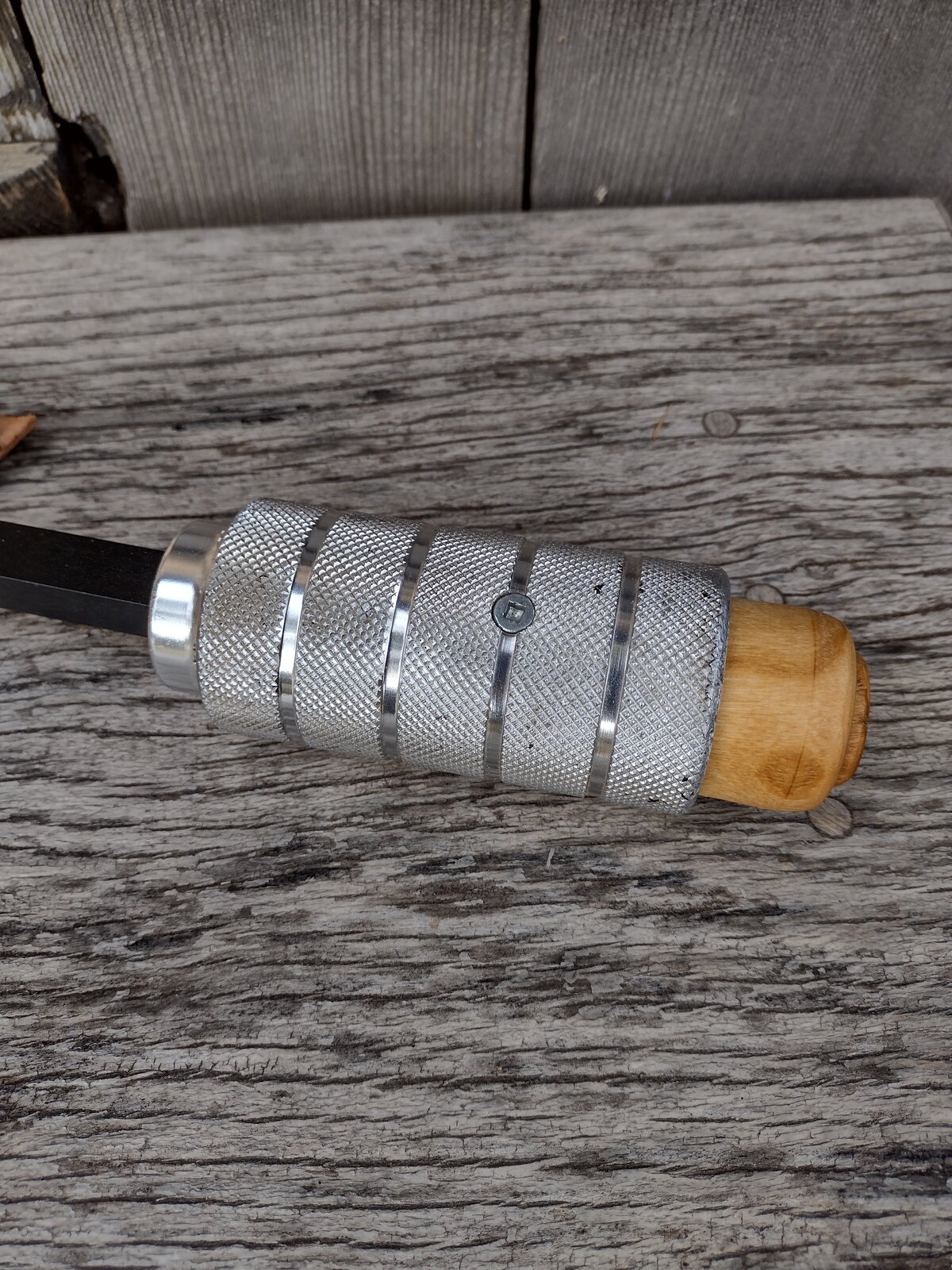

frame. You will notice the textured aluminum oversized handle and the interior mounted wood turned handle. What I have done is basically created a
handle within another handle. This was done to minimize or at least reduce tool vibration, especially when turning larger spindles. For a larger tool, it is not very heavy but still feels solid. Feel free to ask questions or simply leave a comment if you care to. Thanks.



[Curly]

What is the overall length? It looks a little short but maybe it is the picture. I have always used traditional tools at around 18" long give or take.



[howsitwork]

interesting idea.I have seen people use lead shot inside a hollow handle to reduce vibration by dampening.

Not tried it yet though as I can generally get away with changing tool angle or lathe speed to remove it ( chatter)



[wood-of-1kind]

What is the overall length? It looks a little short but maybe it is the picture. I have always used traditional tools at around 18" long give or take.

Pete, overall length is 14"



[sorcerertd]

That handle has a pretty large grip surface. It should certainly be easier on the hands. If my trigger thumb doesn't ease up, I might make some different handles to see what works for it.



[MedWoodWorx]

I recently completed this personal carbide turning chisel. Utilizing 15x15 mm R6 solid carbide insert that is mounted on a machine tool (black oxide)
frame. You will notice the textured aluminum oversized handle and the interior mounted wood turned handle. What I have done is basically created a
handle within another handle. This was done to minimize or at least reduce tool vibration, especially when turning larger spindles. For a larger tool, it is not very heavy but still feels solid. Feel free to ask questions or simply leave a comment if you care to. Thanks.

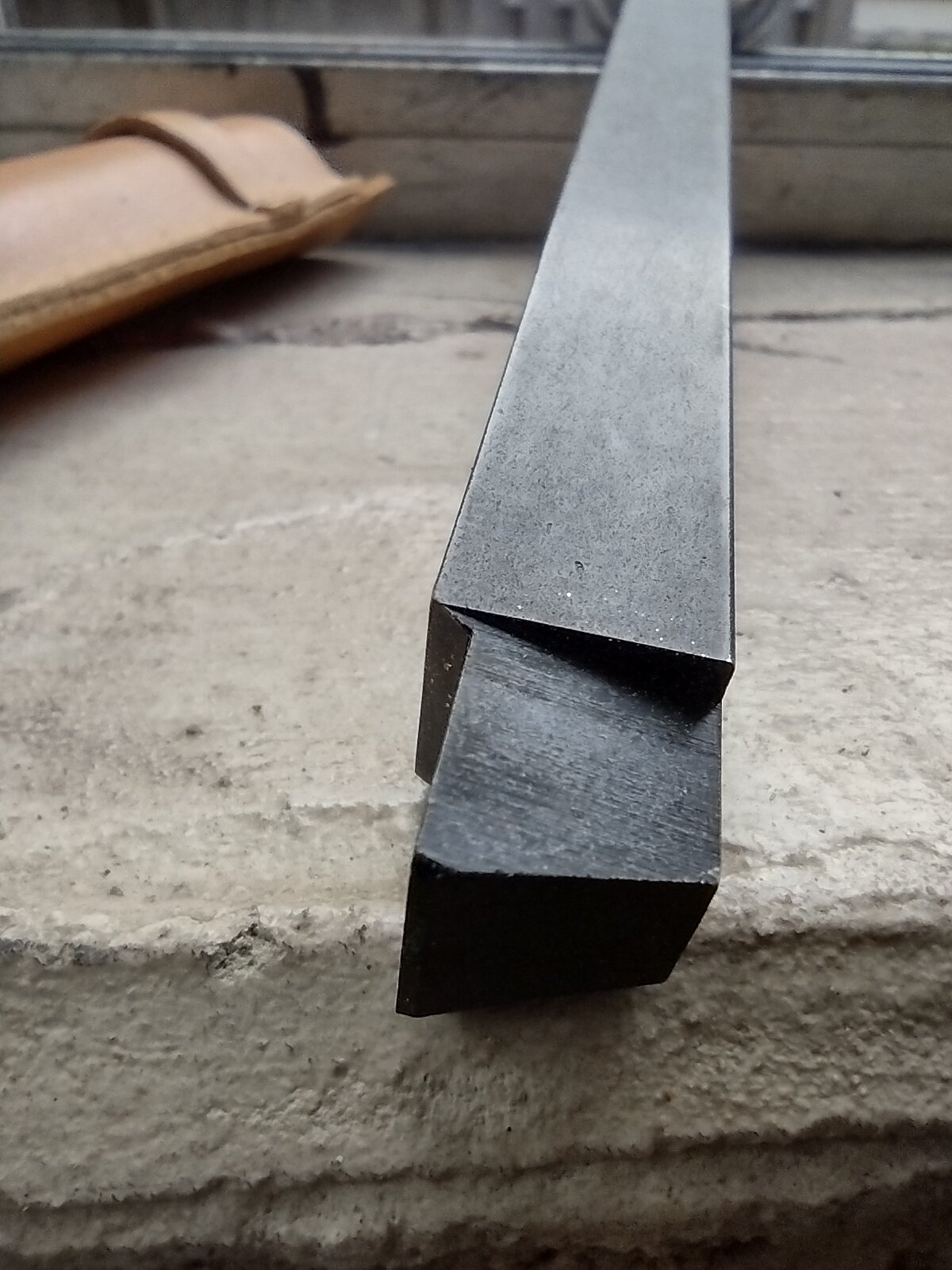

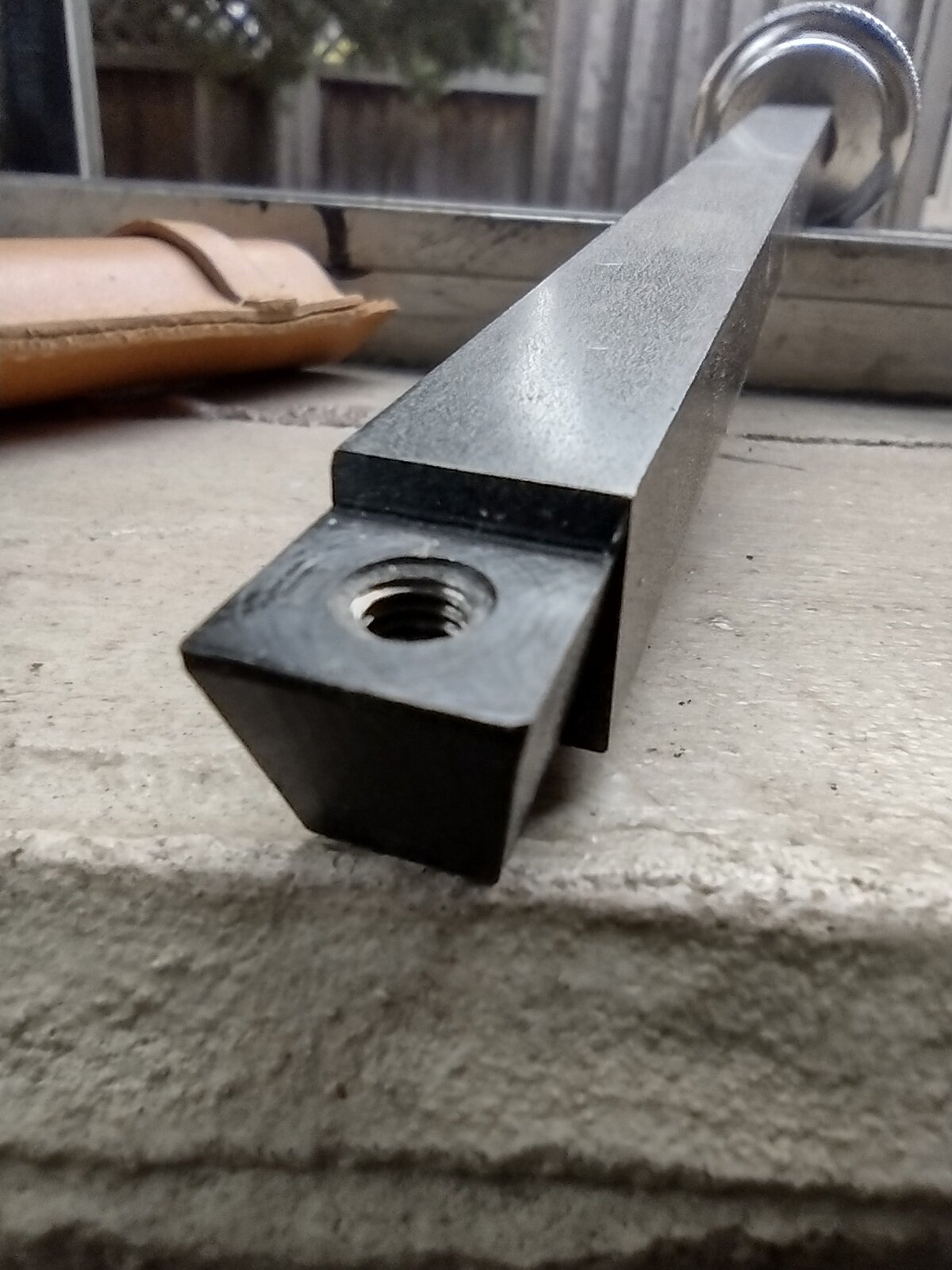

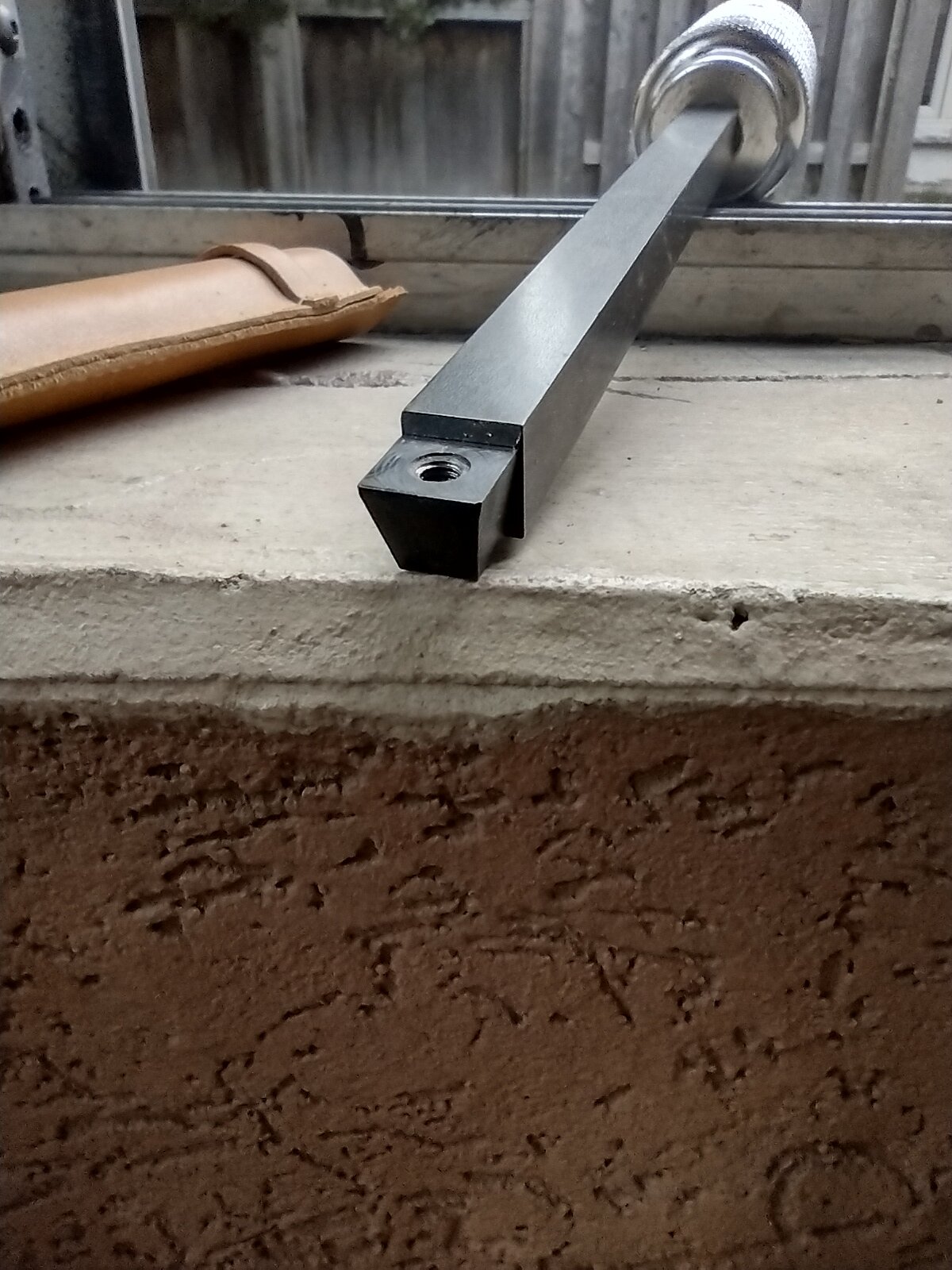

Can you show a close up of the tools tip? I would like to make a similar carbide holder but i am thinking about inox steel. Is ordinary steel better for this?cheers
