The pen that was not meant to be..

[Scruffy]

I decided to push the envelop.

Try a third segmented pen. sigh I should have opened a beer.

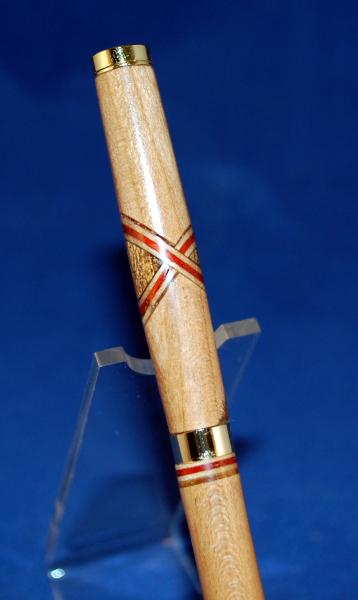

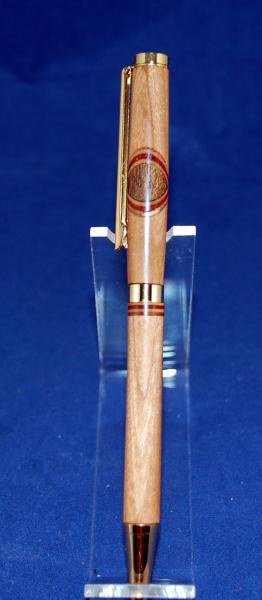

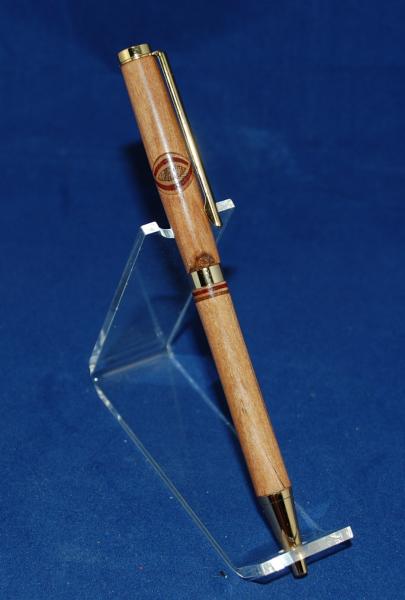

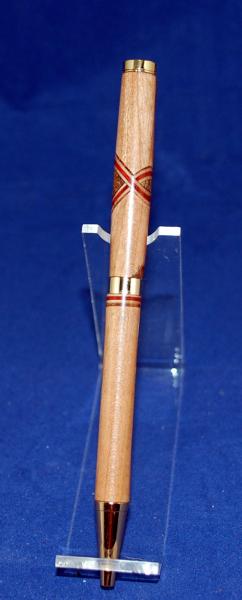

As you can see we had a few problems.

1. Pen was as not drilled correctly
2. Small blow out I tried to fix.
3. As I turned, a hole was revealed in the cherry next to the center.
4. When I assembled, a crack appeared near the nib.

sigh... Did you know I always wanted a house pen that looked exactly like this. (Extreme case of rationalization).

Well I, the first two were a good proof of concept. This open a learning experience. Any words that can help improve will be greatly appreciated.



[mikespenturningz]

If a crack appeared near the nib then use your parting tool and cut it down and add another segment to it. You can use your mandrel as a clamp if you want to. I really like that top segment it looks great.



[Sandy H.]

I also like the pattern at the top. If that is the result of the off center drilling, then I wouldn't be offended at all by that. I think the proportion looks good.

I think your 'bad' one looks about as good as the upper end of my typical, so I have some more work to do!

Sandy.



[BSea]

I have a truck pen that's similar. (same extreme rationalization ). The thought of turning an oops band is a good idea, but slimlines are really hard to disassemble. Mine is a slimline too.

As far as drilling on center, have you seen the video on drilling antler? I use that method when I want to ensure a perfect centered hole?

EDIT: Here's the video: http://www.youtube.com/watch?v=SAEEaF8z2jM



[walshjp17]

As far as drilling on center, have you seen the video on drilling antler? I use that method when I want to ensure a perfect centered hole?

Great idea Bob. I'll have to investigate that myself.



[Scruffy]

Thanks, Bob.

The Video was great. I always learn something here.

I also looked around after viewing the video you suggested.

There was another about drilling using the lathe, same idea a little different.

Drill on the lathe.wmv - YouTube

Thanks again
