Tap and Die set
- Thread starter ranchonodinero
- Start date
-
- Tags
- tap and die
Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad
RobS
Member
Good morning, would you mind clarifying something for us:

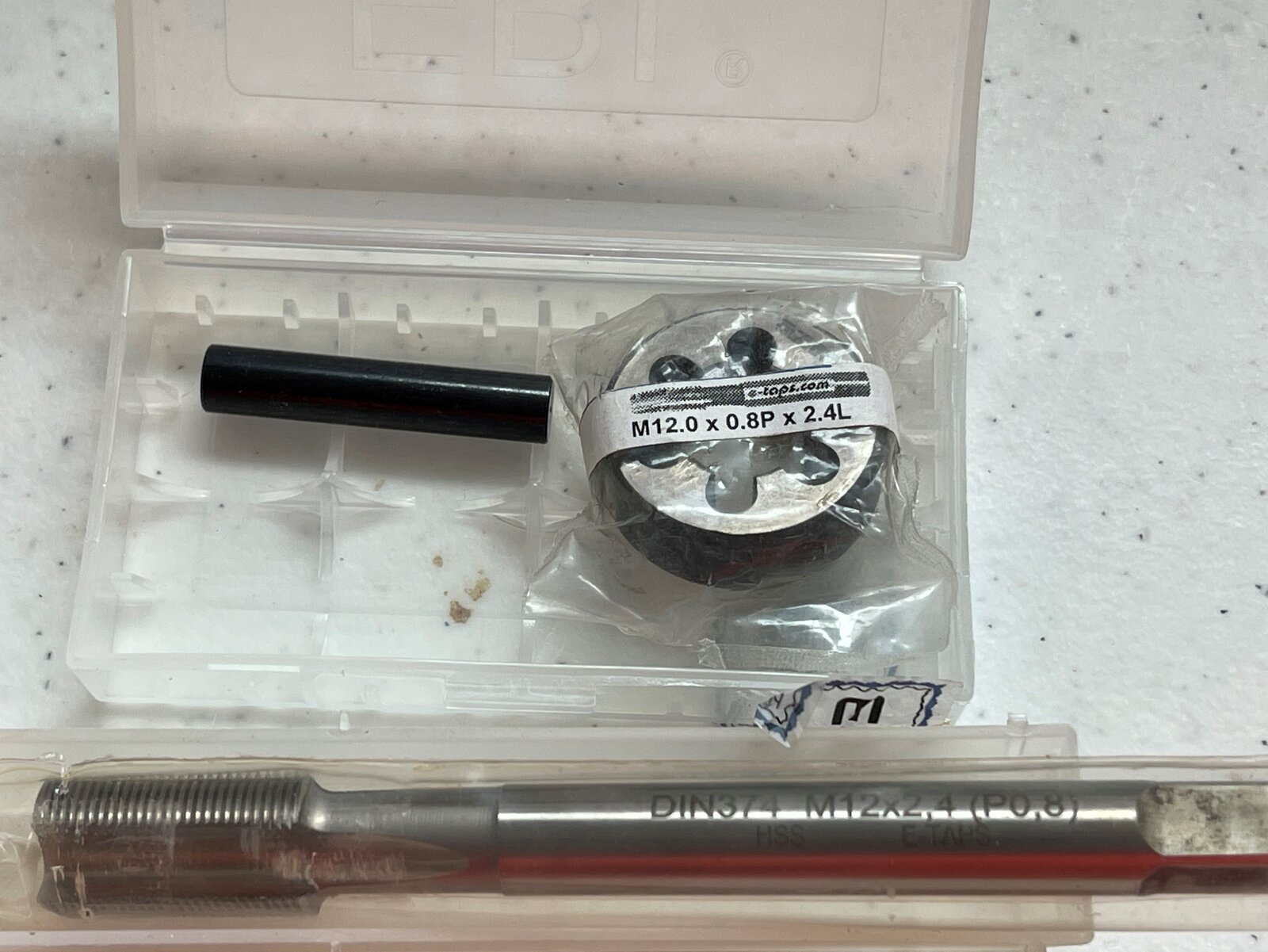

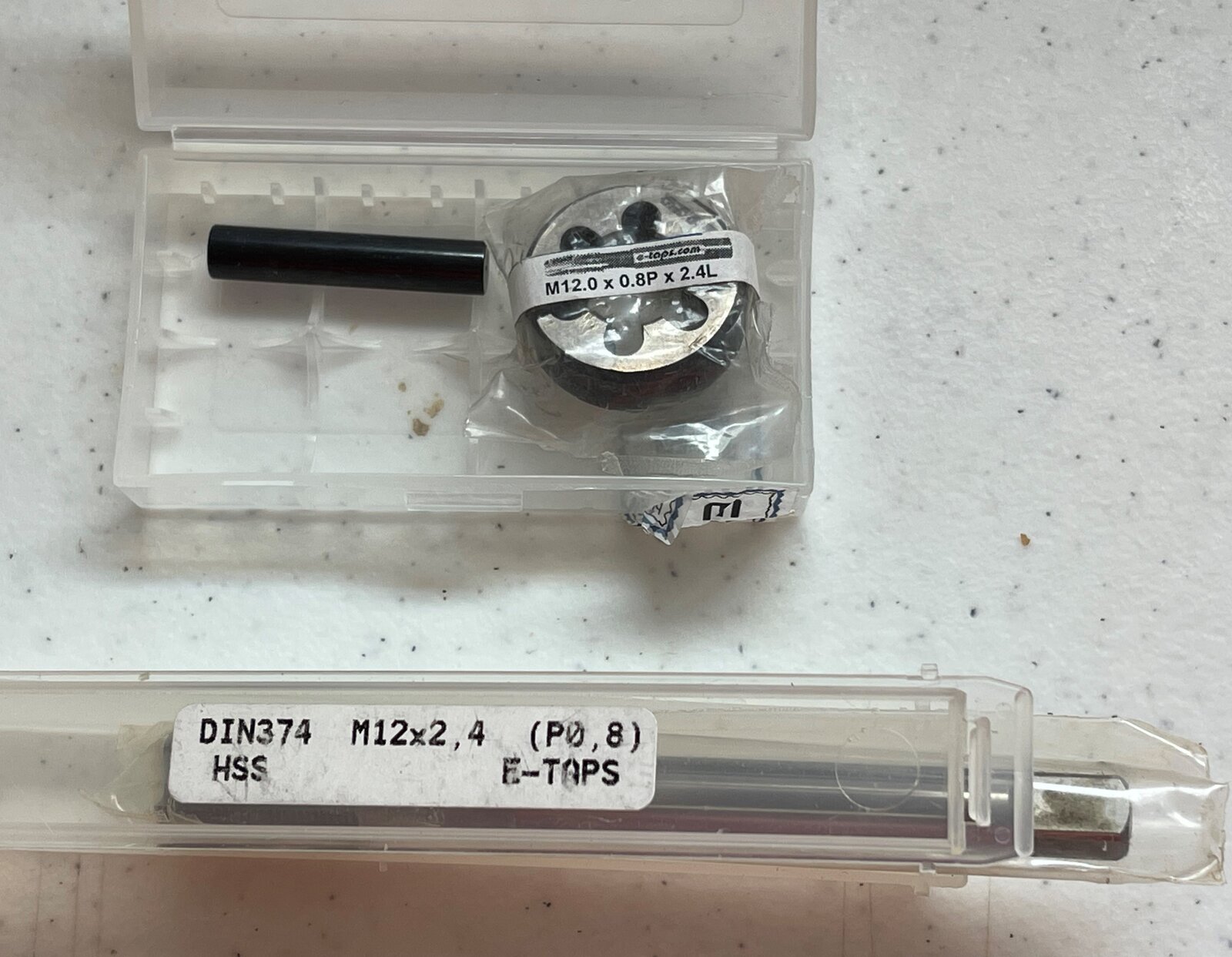

M12x.8Px2.4L, My apologies I do not know how to read this:
M12 = 12mm OD
X.8 = 0.8 PITCH
2.4L = ??? (What does this part mean, I'm used to this being a 2 or 3 for double or triple start).
Thank you
M12x.8Px2.4L, My apologies I do not know how to read this:
M12 = 12mm OD
X.8 = 0.8 PITCH
2.4L = ??? (What does this part mean, I'm used to this being a 2 or 3 for double or triple start).
Thank you
ranchonodinero
Member
I do not know the answer to your question. Yes, they are triple start.
Marty
Marty
Last edited:
Bats
Member
I believe that "L" refers to the lead, which is similar to the pitch (in that it's a distance from one thread crest to another), but it's the distance from one start to the next, or the travel a hypothetical nut makes in one revolution - so Pitch * Starts = Lead, or, in this case, 2.4mm Lead / .08mm Pitch = 3 Start.
(had to dust off some embarrassingly rusty CNC knowledge to come up with that one, so I apologize in advance if I mangled any of the details. I've been neglecting my machining for pens far too much lately)
ranchonodinero
Member
Thank you for that clarification. The set was purchased and never used. I've sold most of my turning gear and have bits like this and turning stock that I'll start selling.
Marty
ranchonodinero
Member
Got it Mark-thank you!
ranchonodinero
Member
Be sure and PM me your shipping please.
