Dieseldoc
Member

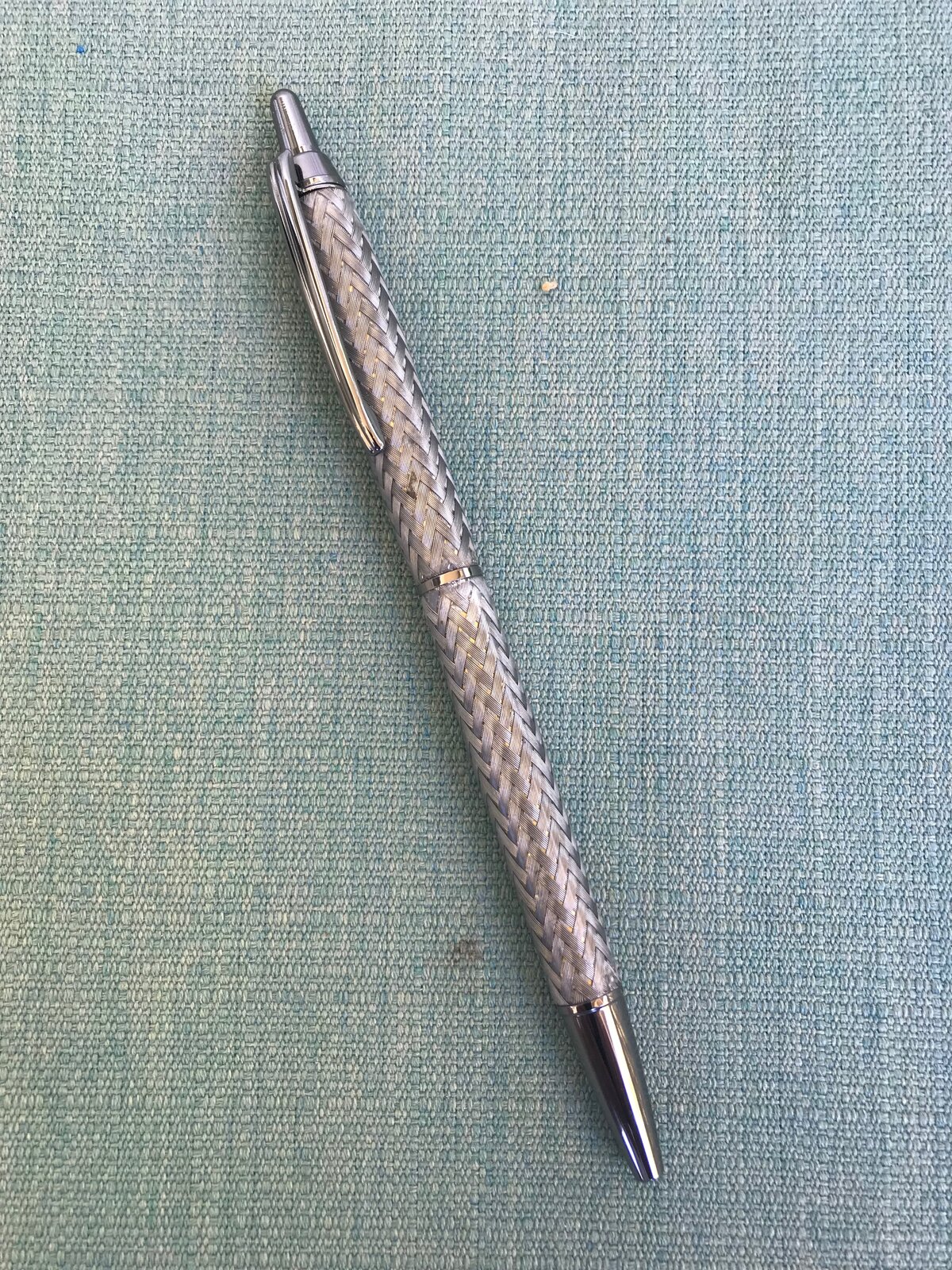

Use SS braid to make blank and Groove Gun Metal kit.
SS braid Groove
- Thread starter Dieseldoc
- Start date
Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad
Kenny Durrant
Member
Sweet! I like that. I might have to give it a try. Well done.
mark james
IAP Collection, Curator
A very attractive pen Charlie. Nice to see your work again.
penicillin
Member
- Joined
- Feb 27, 2019
- Messages
- 1,036
That's brilliant!
jttheclockman
Member
I always liked working with braided materials because they look classy and this is such a case. Nice job. Question what resin did you cast in?? Thanks for showing.
Dieseldoc
Member
Alumlite clear
Dieseldoc
Member

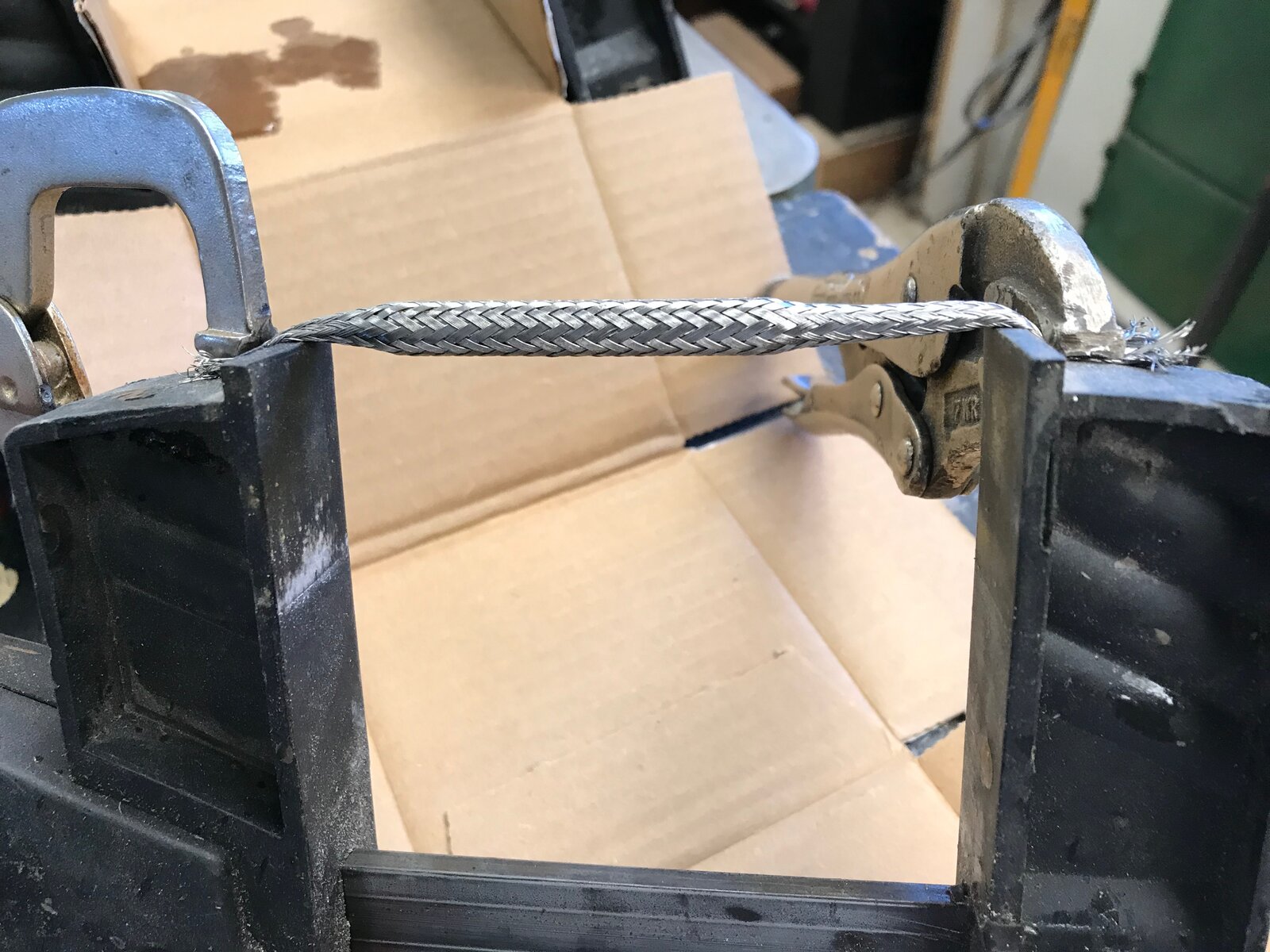

Had to make way to pull tight the braid on the tube. Use a pull clamp with couple vice grips, it worked but need to be improved .

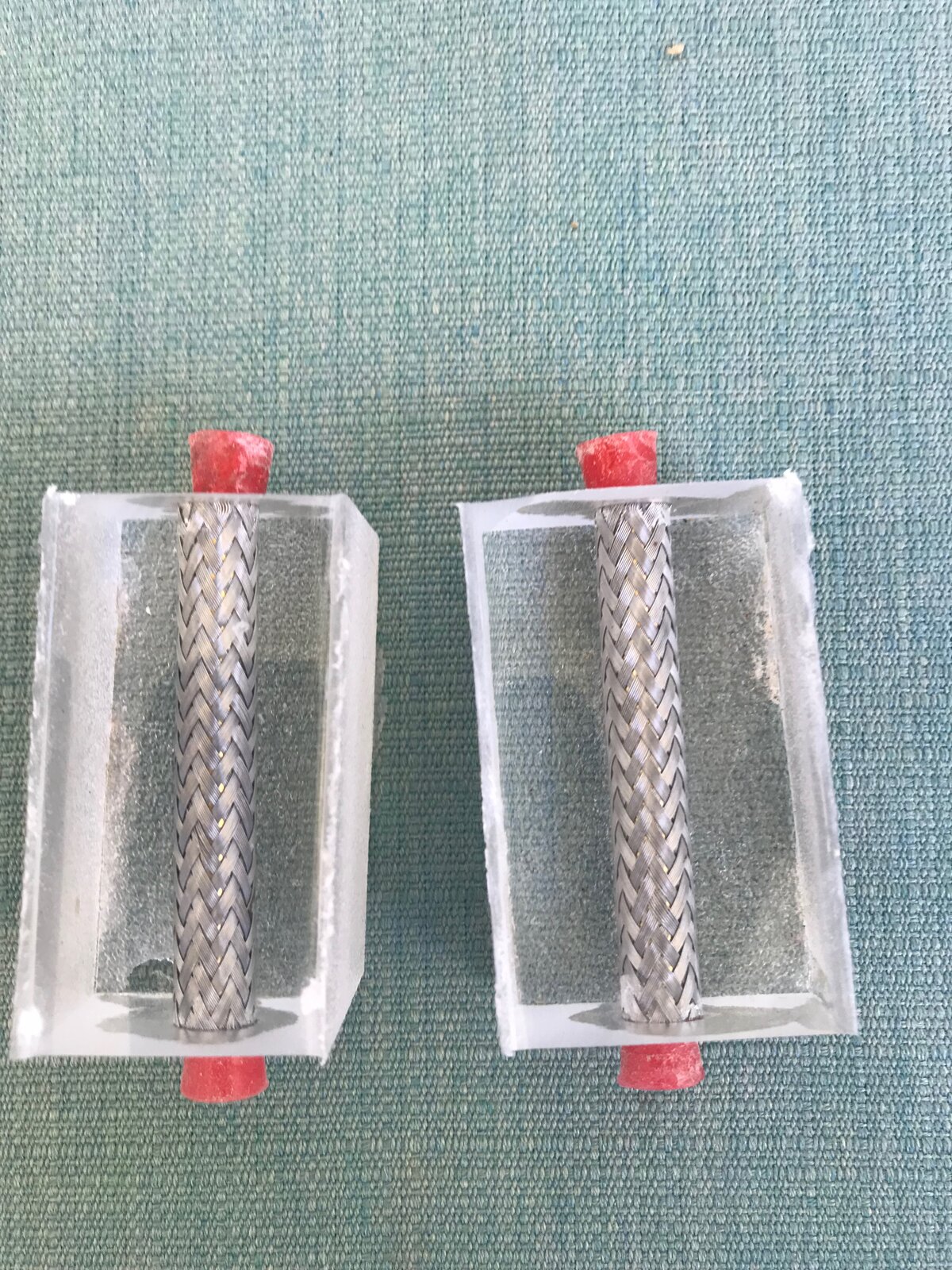

Tube is .266 and nib and center band is .328 so you don't have much left with braid pulled very tight and a coat or two of thin CA , blank is at .318 before casted in Aumlite clear. Another thing is the tube, even with braid pulled very tight the brass tube shows a little in the back round, that is why I was was looking for nickel tube, which I found from my good friend Warren White as he has some in his stash.
At first I tried to just use CA to coat the braid blank but results was not even and that is why I casted with alumlite clear.
Tube is .266 and nib and center band is .328 so you don't have much left with braid pulled very tight and a coat or two of thin CA , blank is at .318 before casted in Aumlite clear. Another thing is the tube, even with braid pulled very tight the brass tube shows a little in the back round, that is why I was was looking for nickel tube, which I found from my good friend Warren White as he has some in his stash.
At first I tried to just use CA to coat the braid blank but results was not even and that is why I casted with alumlite clear.
Attachments
Last edited:
jttheclockman
Member
Not sure what braiding you are using but have since switched to the plumbers flex hose stuff. It does 2 things. It is a tad thinner and also has a nice gloss coating on it that when cast it really shines. I too use nickle tubes when I can or spray paint a gloss silver. It does show through the weave. The one that I have no problems with is copper braiding. That stuff is real thick weave and no show through so just use brass tubes.
dozuki
Member
That looks great. Good work.
johncrane
Member
great job! looks very classy.
Old Hilly
Member
Way back in my youth we used to work with coaxial cable which has a braided copper wire outer shield, Being copper, the brass inner tube wouldn't show through as much. Hmmm, RG8U co-ax could be about the right size. Hmmmmm.
PenPal
Member
Classy result Charlie worth the effort.
Peter.
Peter.
Lew
Member
Beautiful pen and it's obvious you put a lot of thought into making the end result spectacular
