I recently built PSI's one handed pepper mill. I have a chef in the family and I want to get her opinion. I absolutely love the finished product. She hasn't received it yet. But I had a big challenge. I have only made pens. The main part of this kit has a 9/16 hole down the middle--way larger than any pen mill that I'm aware of. I didn't have anything on my PSI jig that was big enough to really square it up on the sander, either. In the end, I sort of "guessed" on the sander and got very close. I could tell it was off just a bit, but I'm sure my daughter-in-law won't be able to tell.

How to you square up a blank/tube when they're that large?

Kit can be found here: https://www.pennstateind.com/store/PKGRIND8.html

Signed-In Members Don't See This Ad
Interesting challenge, Steven.

My mind goes to doing the squaring on the lathe before drilling, and immediately follow that by drilling without removing the blank from the chuck. . Follow that with sizing and shaping while turning between centers.

However, the length of the blank could pose a problem for drilling.

Put the blank between centers rough it to round and make a tenon. Then throw that into a chuck and square with your tool of choice. get a set of machinist squares to verify. don't know if that's the preferred way but it works for me, and I hope it helps you out.

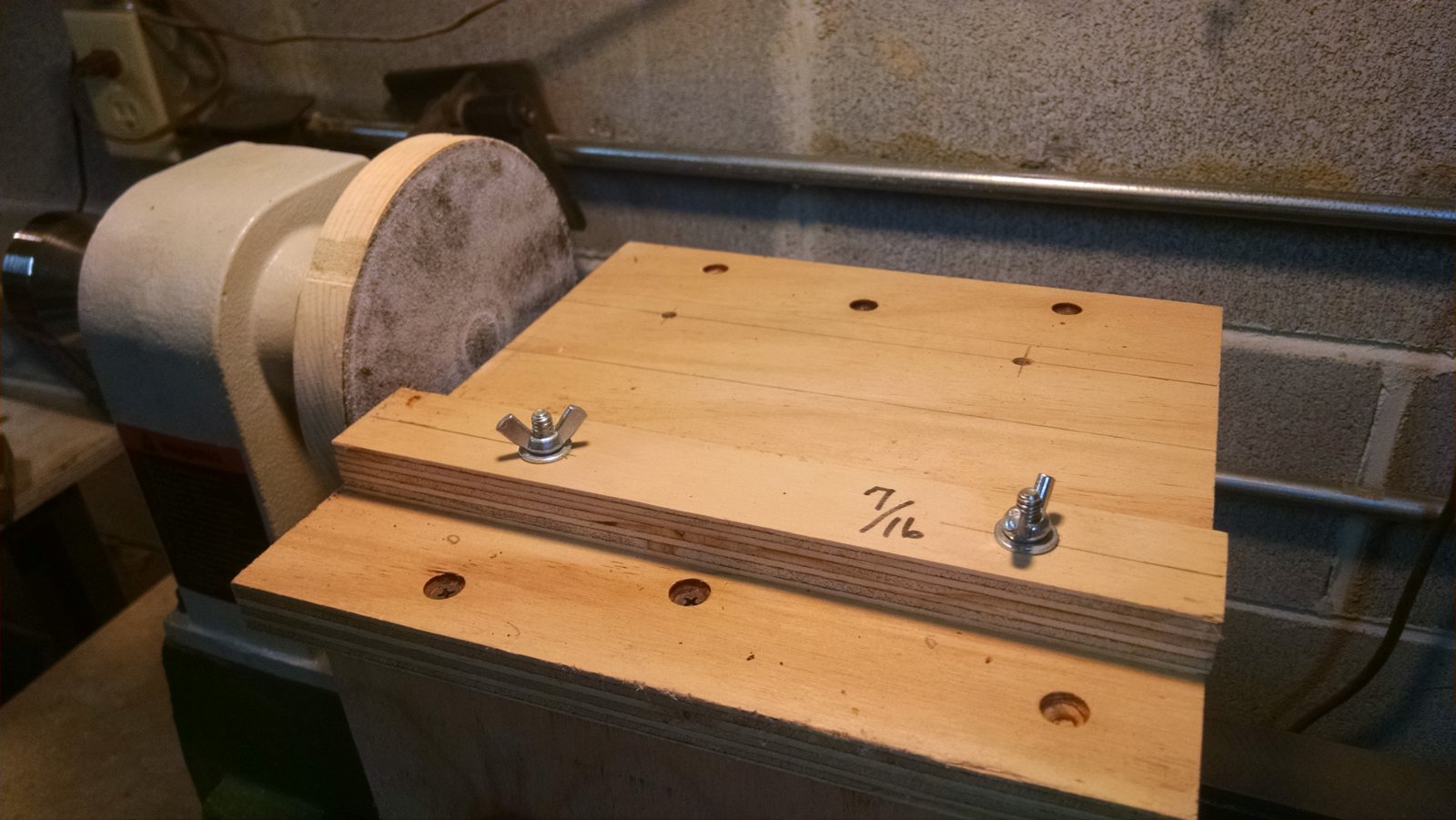

It would seem to me that it would be possible to make a long jig which would set on top of the lathe bed and squared up using a piece of wood to hold it in the slot where the tool rest slides. Then by adding a strip of wood or maybe a piece of aluminum angle along one edge would give you a jig with that is square to a sanding disc with a flat surface to slide the blank on. Then just make a flat disc with some pressure sensitive adhesive sanding discs and a face plate and you should ready to go.

I'm not sure why you'd have to square it up beyond what you can achieve by using a skew or gouge to make a nice clean cut across the end, provided you are turning the spindle between centers it's guaranteed to be uniform around the diameter. I generally make a very slight undercut, so the parts mate at the outside edge with no gap.

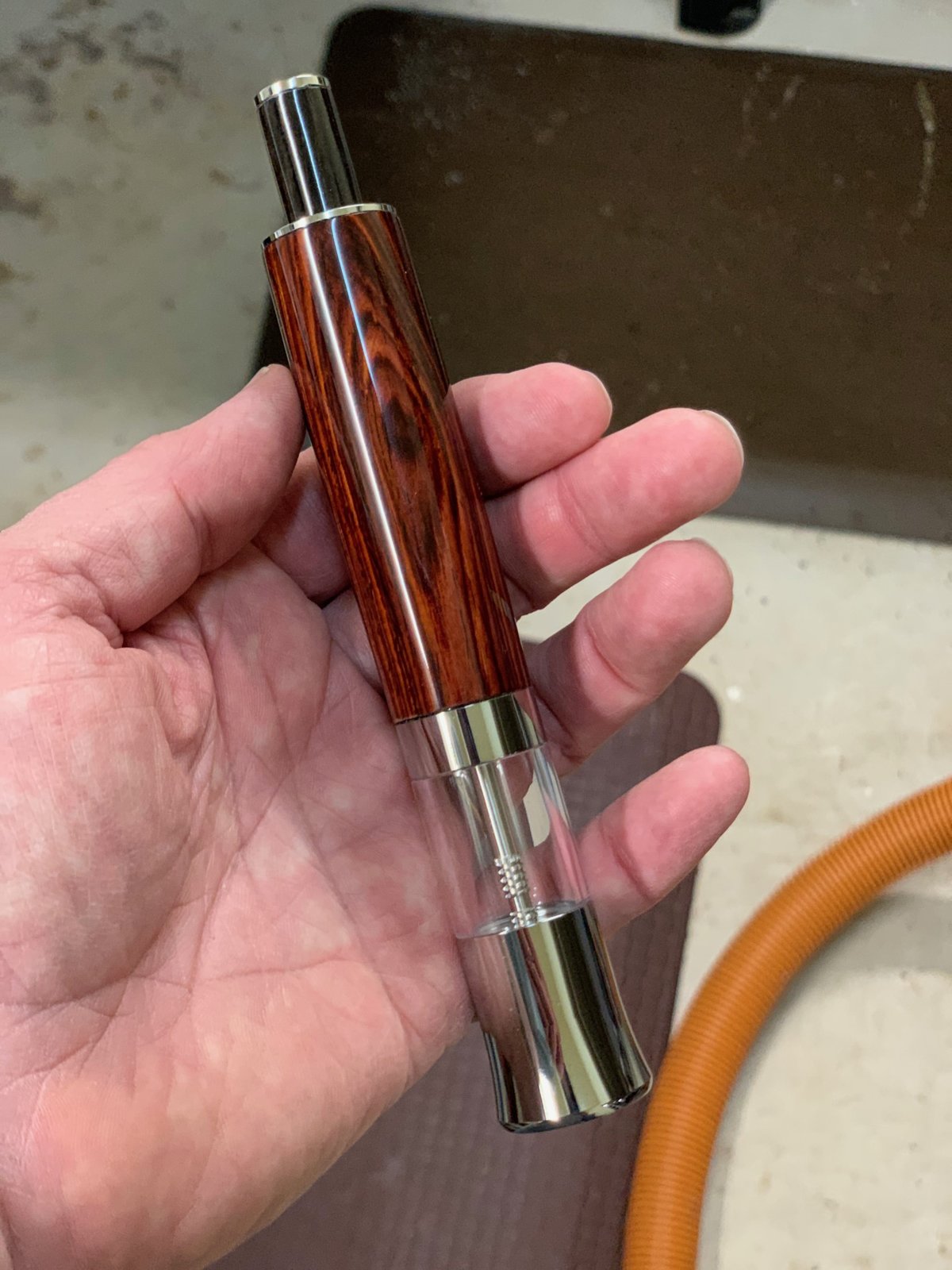

By the way, here's a picture of the finished project. Cocobolo body and African blackwood plunger. The challenge is that the kit is built like a giant pen in a way. There is a stainless steel tube that inserted in the cocobolo blank after drilling a 9/16 hole all the way through the blank. So it needs to be trimmed/squared up like a pen. You can see I'm off a little at the bottom where it contacts the big chrome piece.

I bought two kits so I might try some jig ideas mentioned here. Would love an easier solution if it exists. I think a one-handed pepper grinder would be very well received.

maybe like this...the transfer punch doesn't have to be the same size...just use the largest you have and hold pressure in one direction...


For that particular type of blank, I use a disc sander that I got for about $30 at Menards. It works quite well, actually. Just have to be sure you have a straight side to work with on the little slide thingy.

Yeah. I had to get something that fit between my lathe and assembly station, given I have limited room. Let me get my hands on a heated outbuilding and just watch how much motor driven junk I'll accumulate...

could you not just turn a mandrel ( a rod that fits fairly tightly in the bore ) and then use a spindle gouge or skew chisel point to square it? Drill it a bit over length so you have some " wiggle room" the. square up between centres on a mandrel in the lathe.

Nice looking gadget !
