Spiral Clear Casting with a Blank Drying Motor

[Bob in SF]

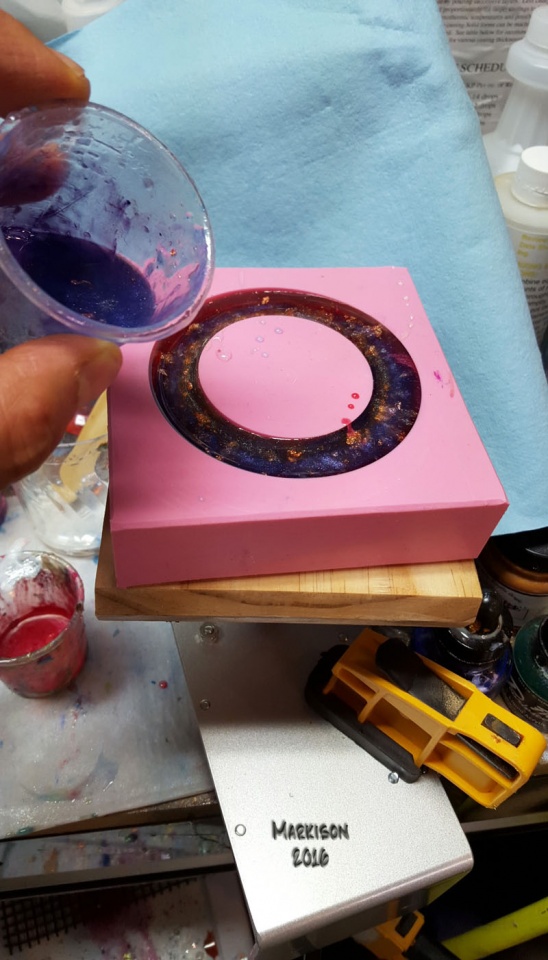

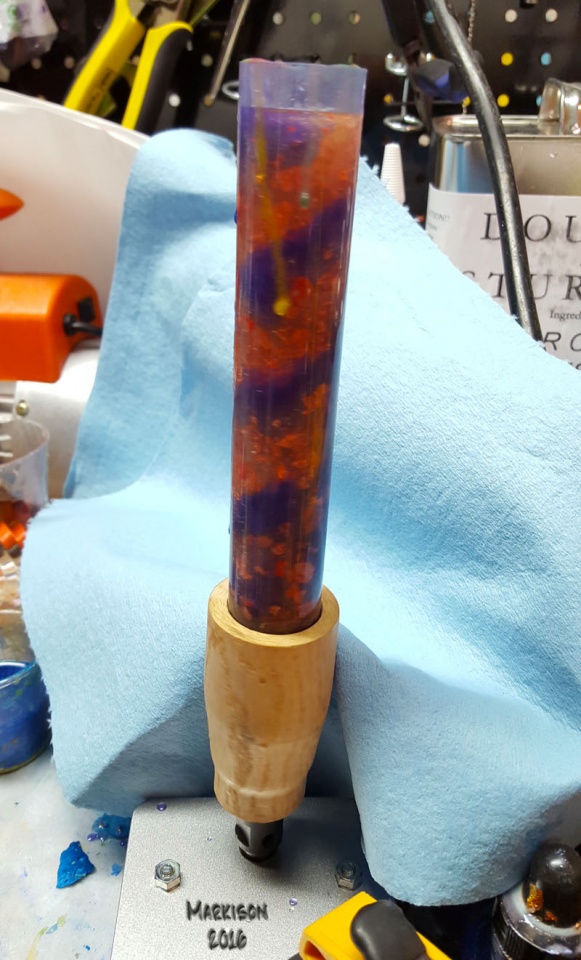

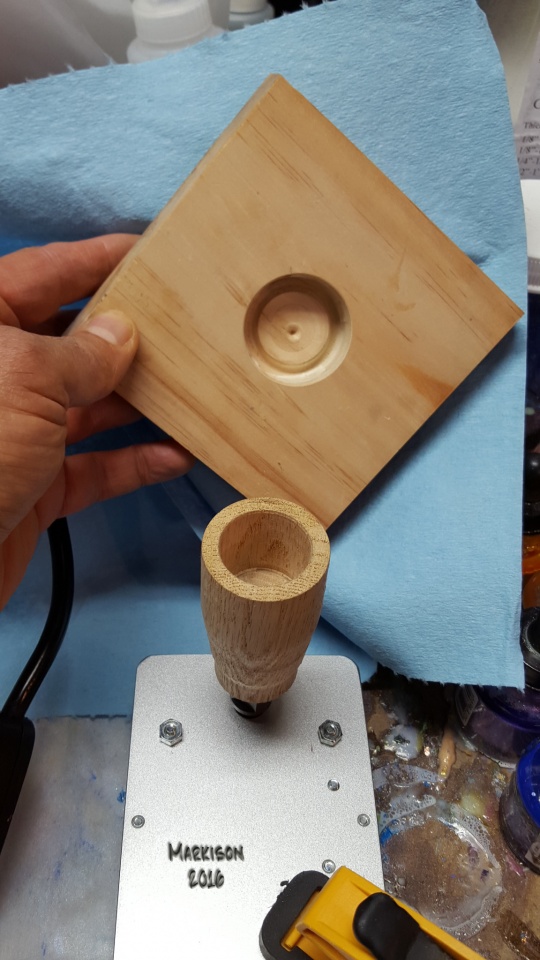

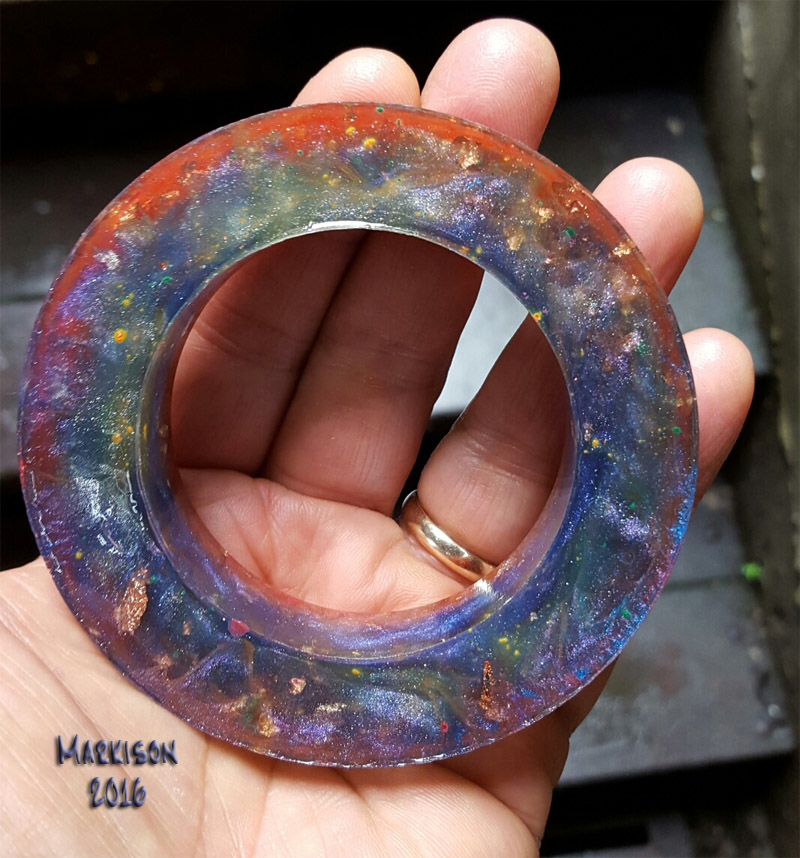

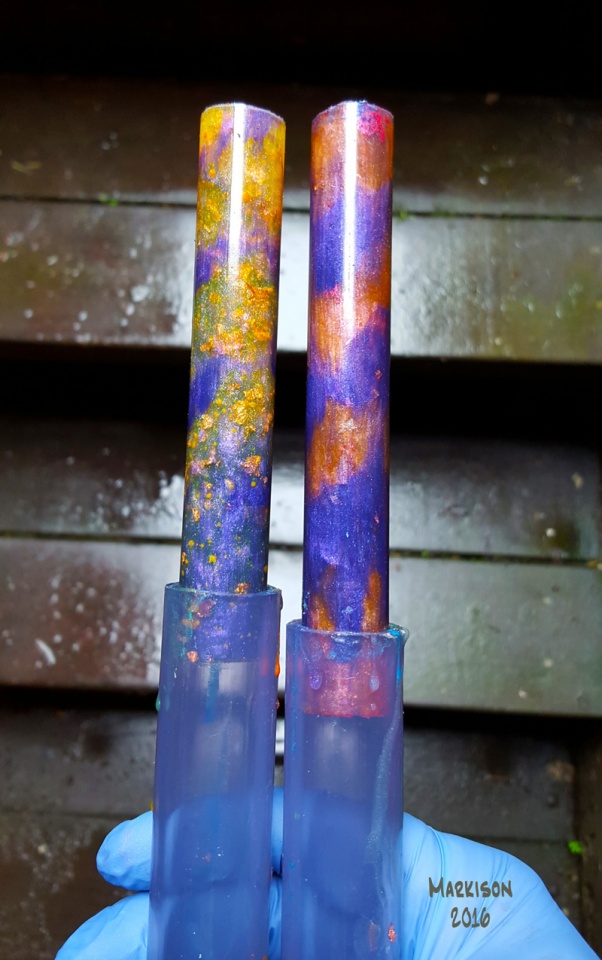

I'm enjoying my clear PVC pipe casting, but wanted to add controlled color spiraling throughout the blank - so I got a PennState blank drying system; clamped the (nice and slow 3rpm) motor to my bench with shaft facing upright upwards; drilled/tapped/turned a PVC pipe mold holder on the lathe, and screwed it onto the shaft; then lathe-bored the bottom of a wood square to serve as a platform for bangle mold rotation; poured a couple of color mixes into the slowly rotating mold; and to my surprise and pleasure, the simple system works, and the motor turns bi-directionally - stop it for a moment, and it turns the opposite direction for more possibilities; too much fun not to share; pix:

- Bob



[Charlie_W]

Bob, You are having fun with your toys!...cool blanks!

Don't you like it when a plan comes together? (A Team)



[Bob in SF]

Thanks, Charlie!

This one is a keeper.



[kruzzer]

way cool idea. the blanks look great



[Bob in SF]

Correction: the motor turns at 20 (and not 3) rpm still nice and slow.

- Bob



[Bob in SF]

Thanks, Rich - far from rocket science - but opens up some fun possibilities.



[Charlie_W]

If you sit a cat on the revolving platform, it can keep a 360 degree watch on your shop for mice and not have to turn it's head!!!:biggrin:



[Bob in SF]

If you sit a cat on the revolving platform, it can keep a 360 degree watch on your shop for mice and not have to turn it's head!!!:biggrin:

Great idea, Charlie - wonder if kitty will be compatible with the dog on the neighboring platform...opens up a menagerie of possibilities:wink:



[furini]

neat idea...might have to look out for an old record player at boot sales!



[CREID]

neat idea...might have to look out for an old record player at boot sales!

would you use 33 1/3 or 78. :tongue:



[magpens]

Cool, Bob !!!! . Looks like you put your name on everything you own, even your "rubber" gloves !!!



[Charlie_W]

Cool, Bob !!!! . Looks like you put your name on everything you own, even your "rubber" gloves !!!

And his Hand too!:biggrin:



[Douglas Feehan]

Great idea, the motor looks alot like a rotisserie motor for a grill. I have a couple in the shop may give it a try.



[GaryMGg]

Well done; the blanks look very nice.
Looking forward to seeing them as pens.



[Bob in SF]

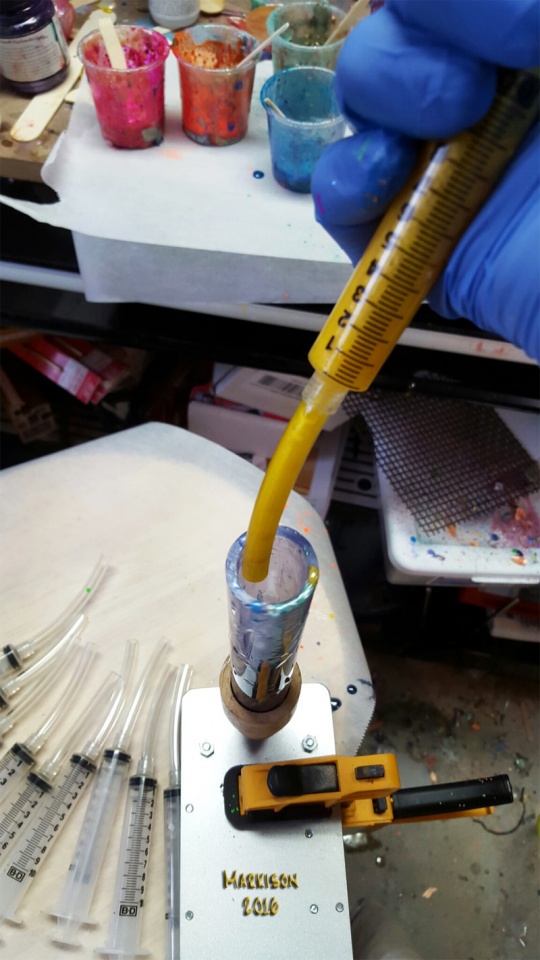

Today's refinements - single (10cc + aquarium tubing) syringe and/or double

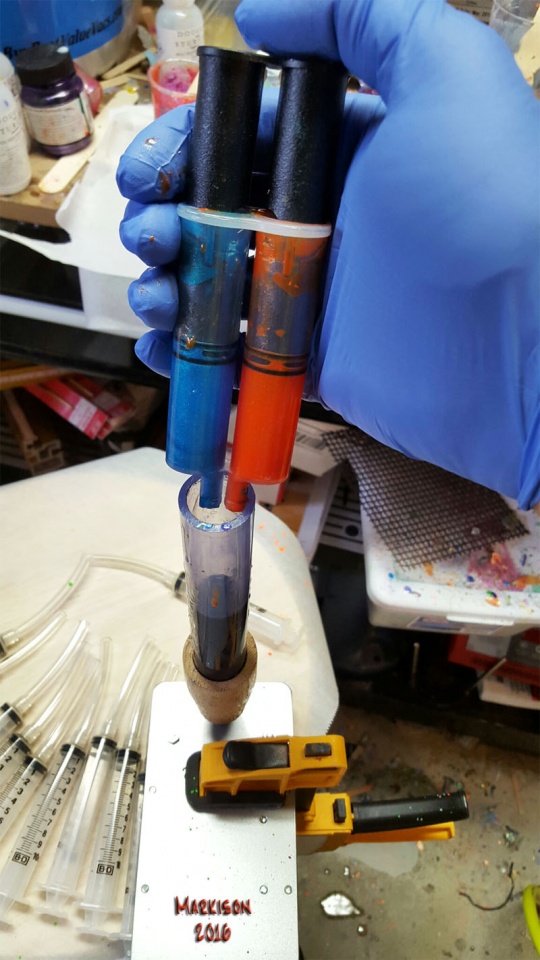

(25ml Empty Double-Barrel Cartridge/Syringe with Plunger (1:1 mix ratio) - AmLee Epoxy Supply) syringe in hopes of spiraling into tighter control:

Douglas - rotisserie (or any other slow-geared) motor should work fine - and it just takes a few minutes to turn a wood fitting to mate your PVC tube/stopper to the motor shaft.

(sorry about name-on-everything - old habits die hard:wink

Warm regards, Bob
