Some process photographs

[Alan Morrison]

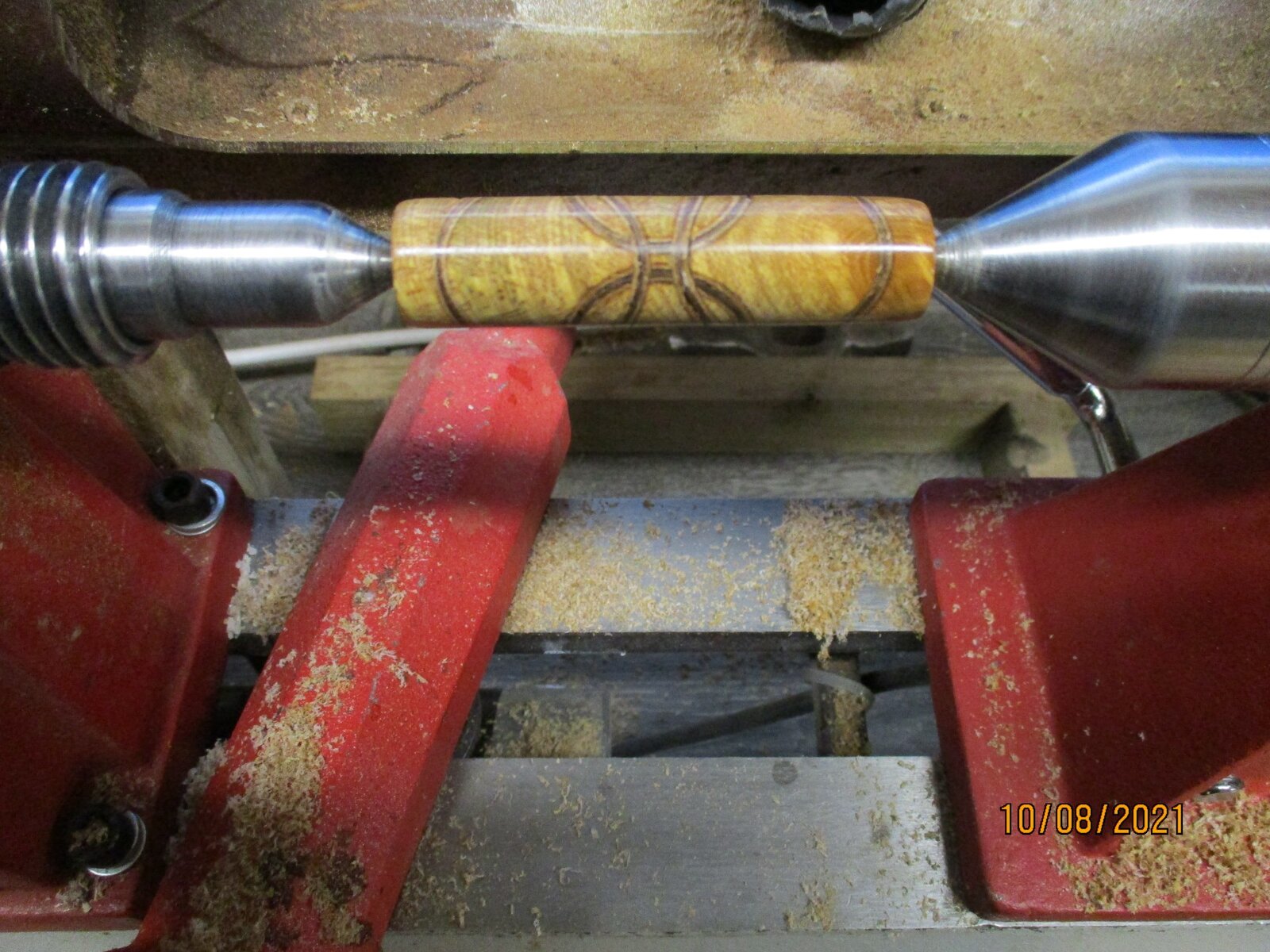

These are some photographs of the way that I made the ' Knot ' pen that I posted recently. I made the blank up quickly so excuse the rough and ready nature.

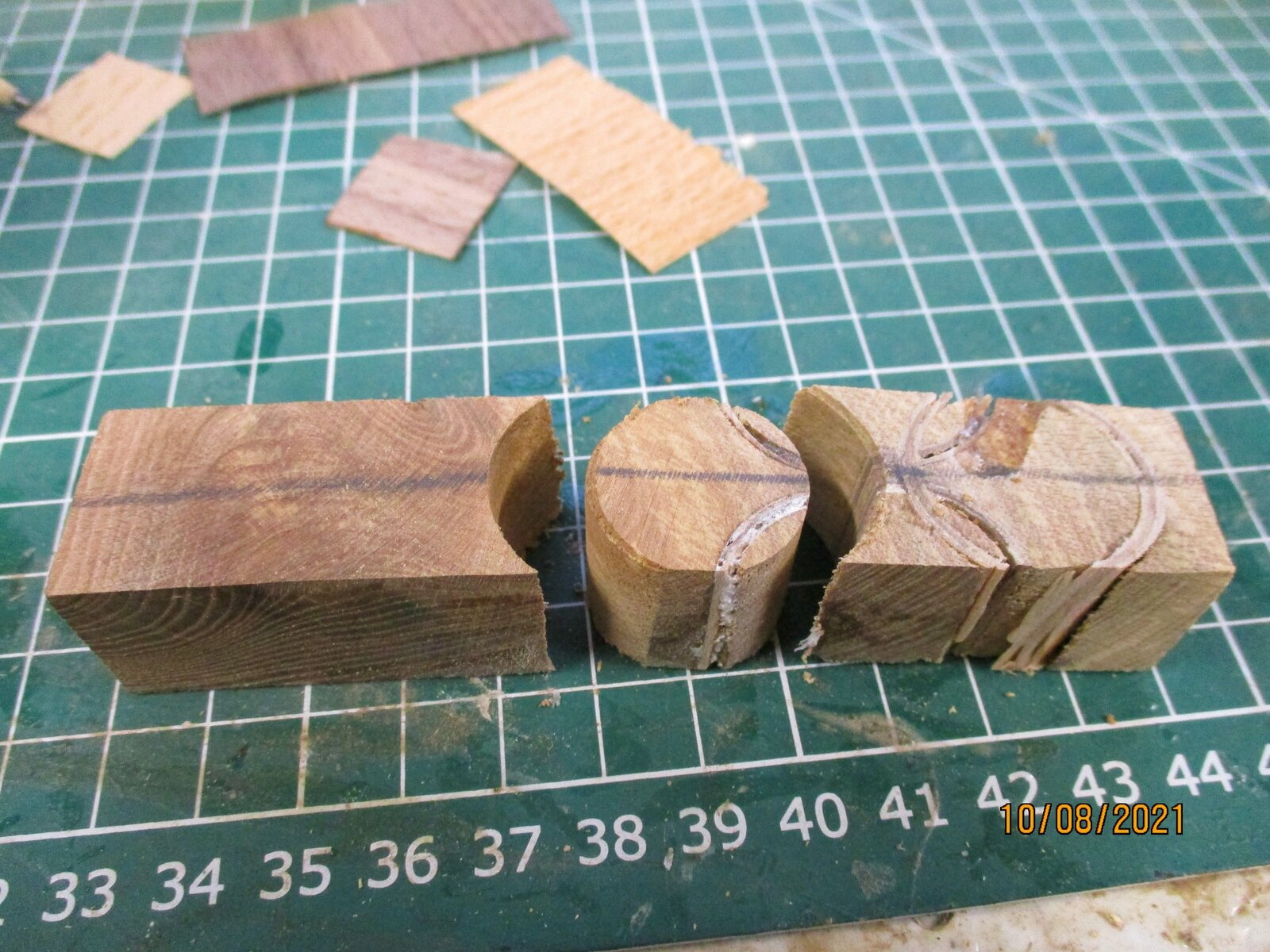

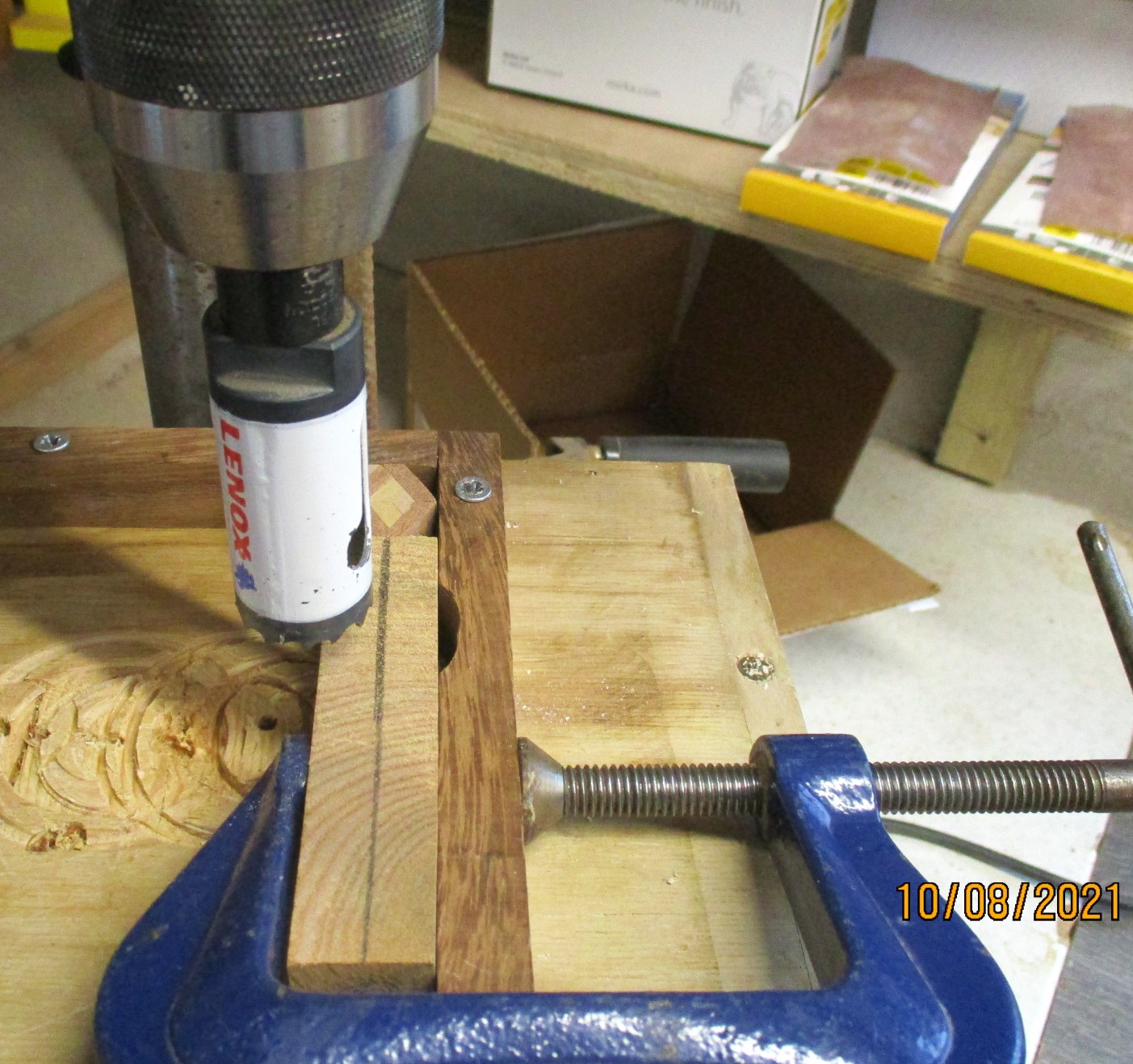

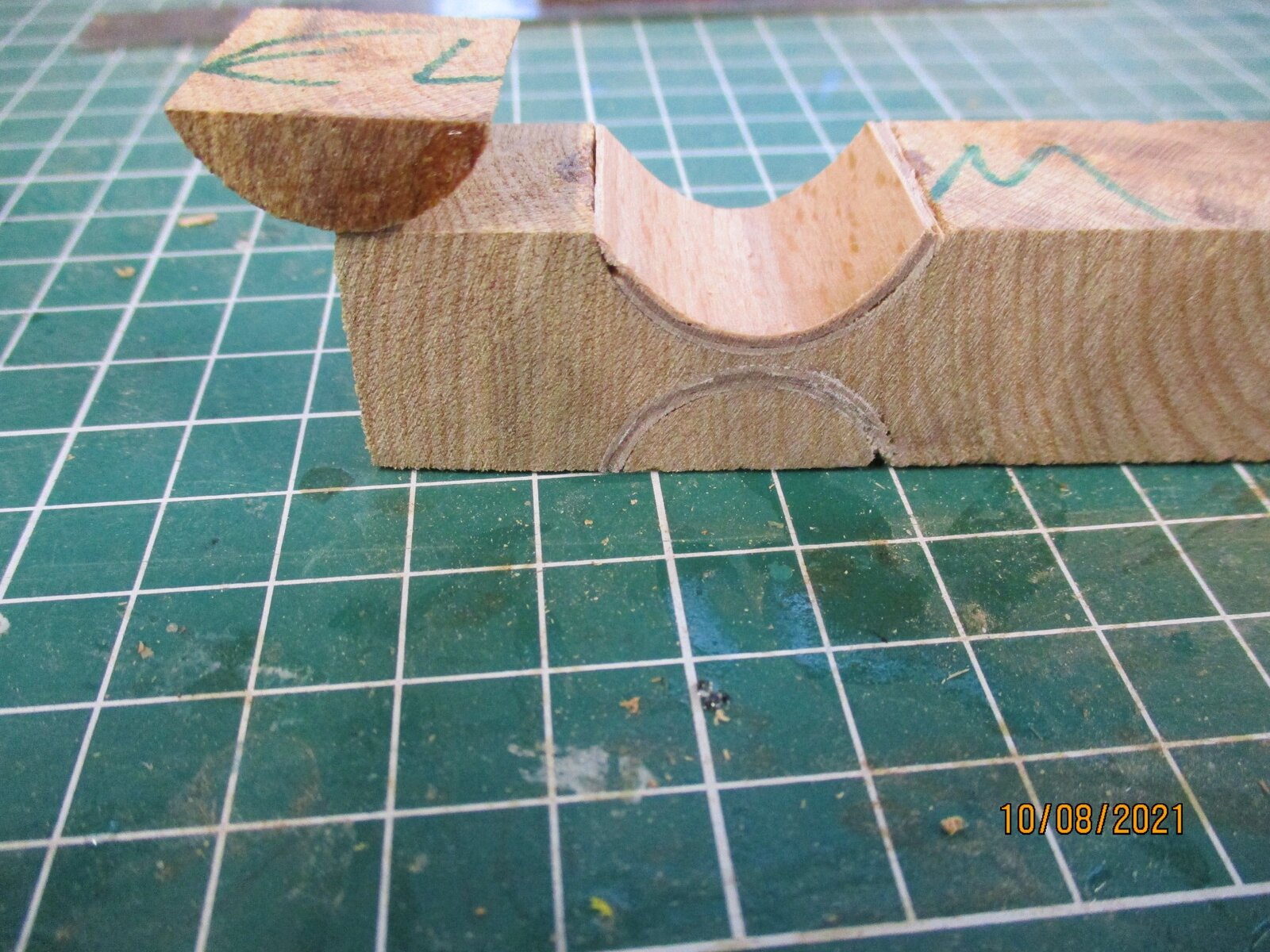

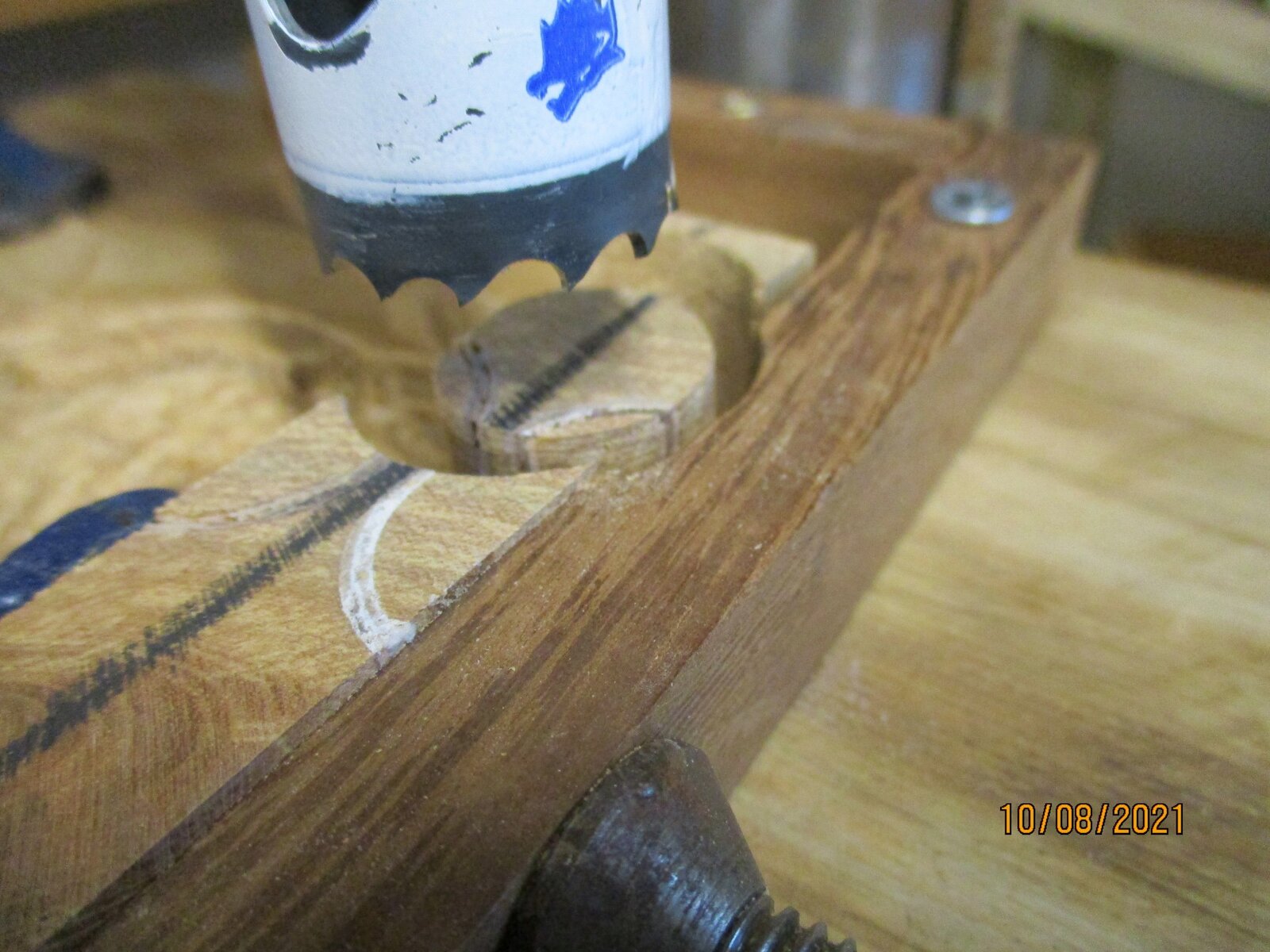

There were 4 cuts made with a 25mm hole saw and the kerf filled with 3 layers of veneer.



[Jim15]

Thank you for sharing.



[magpens]

@alanemorrison

Those pictures above help a lot, Alan !! . . . Thank you very much !!!

Good-night !! . . . Sleep tight !! . . .



[mark james]

I LOVE pictures!!!!!! Well done Mate. It turned out nicely and was a great design. Nice segmenting.



[leehljp]

I really like the way segments of different kind change to magnificent designs when turning the blanks. I love the surprises!



[magpens]

I really like the way segments of different kind change to magnificent designs when turning the blanks. I love the surprises!

Yes, indeed !!

If often takes some careful thought to see how the turned end result relates to the starting segmentation !

I, too, was somewhat surprised by this design of @alanemorrison first shown in its final, turned form here:

Sort of a Knot

This is the result from playing around with a hole saw and a piece of maple. Etesia pen kit.

www.penturners.org



[TDahl]

Thank you for sharing.



[papaturner]

Thank you !



[RichAldrich]

Thanks!



[twelverobots]

Thanks for sharing this. I am attempting it right now.



[twelverobots]

Thanks for sharing this. I am attempting it right now.

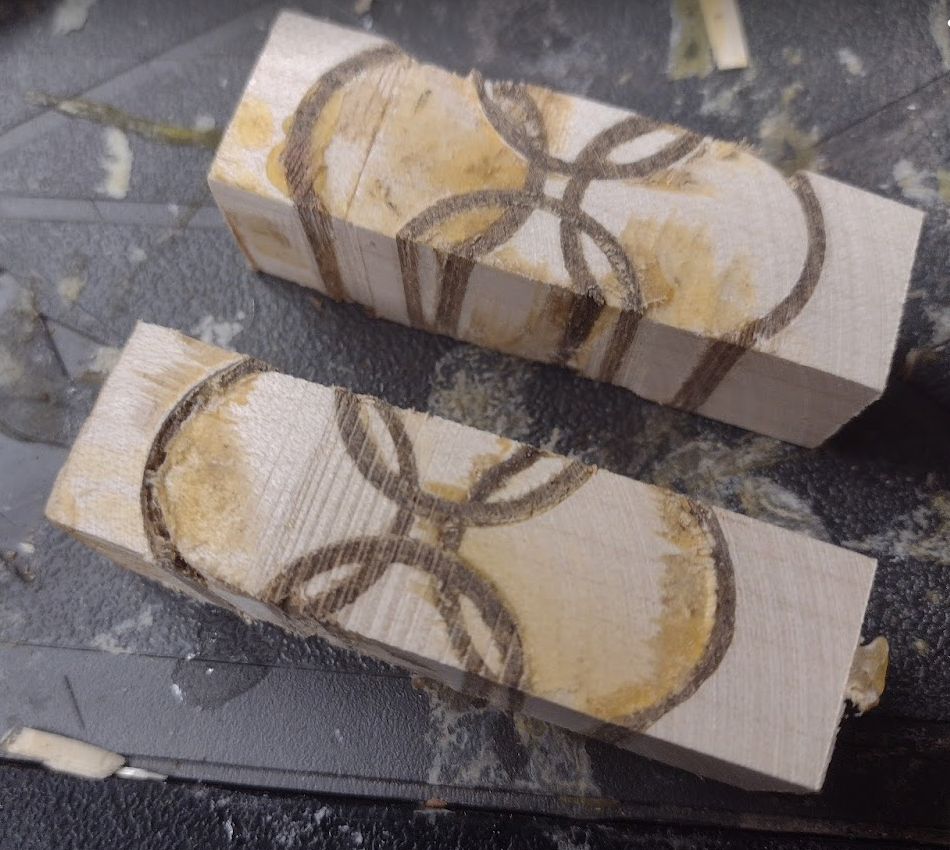

My attempt.

I hope they survive turning.

Jason



[leehljp]

Jason, They should survive. Looks great. Can't wait to see the results!



[Alan Morrison]

Thanks for sharing this. I am attempting it right now.

Very accurate positioning, Jason. A lot better than my first tries.

Alan



[twelverobots]

Very accurate positioning, Jason. A lot better than my first tries.

Alan

Actually, this was my second attempt. Positioning was off in the first.

Jason



[Alan Morrison]

Actually, this was my second attempt. Positioning was off in the first.

Jason

When are we going to see the pen, Jason?



[twelverobots]

When are we going to see the pen, Jason?

Oh man, I totally forgot.

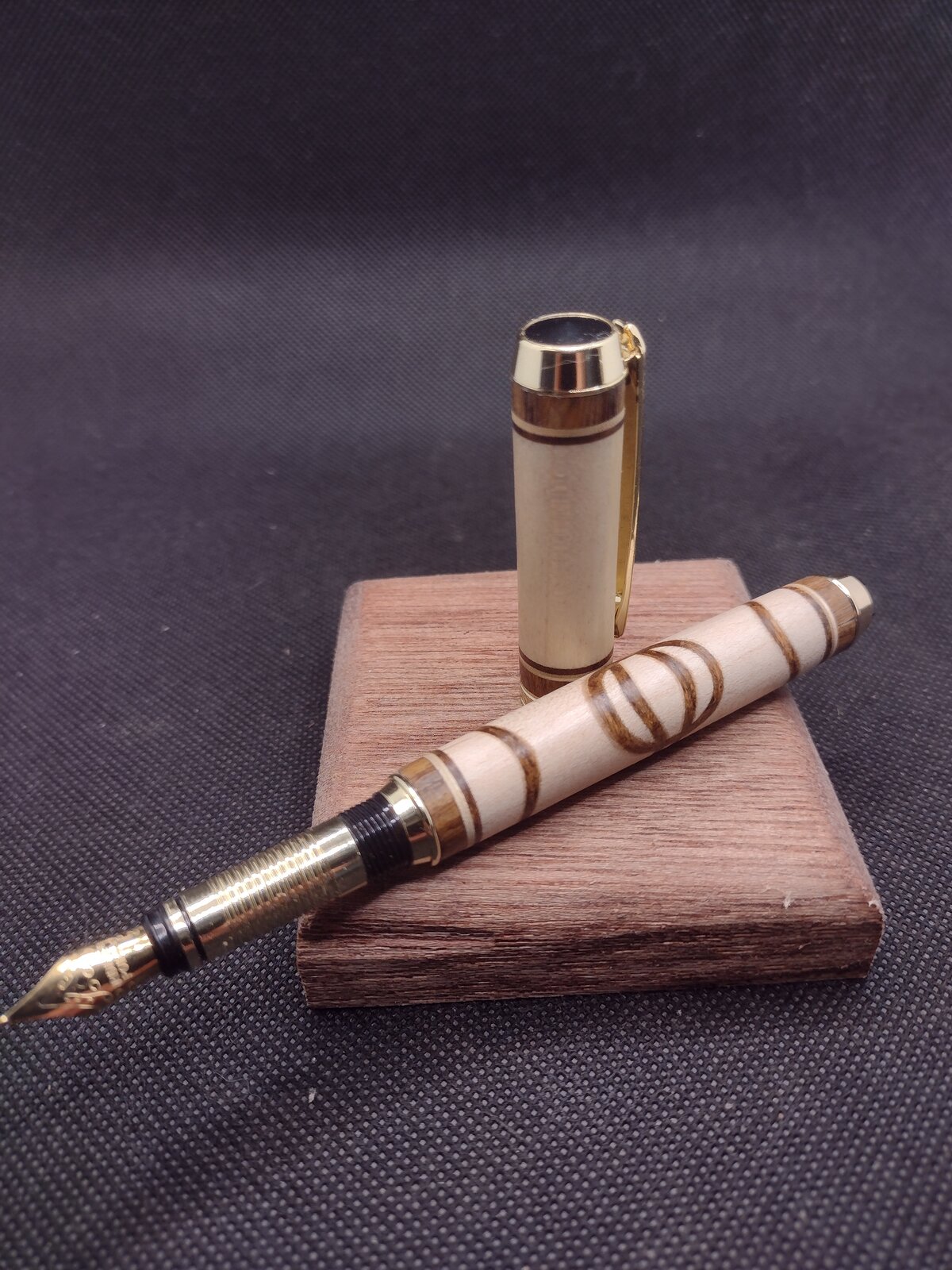

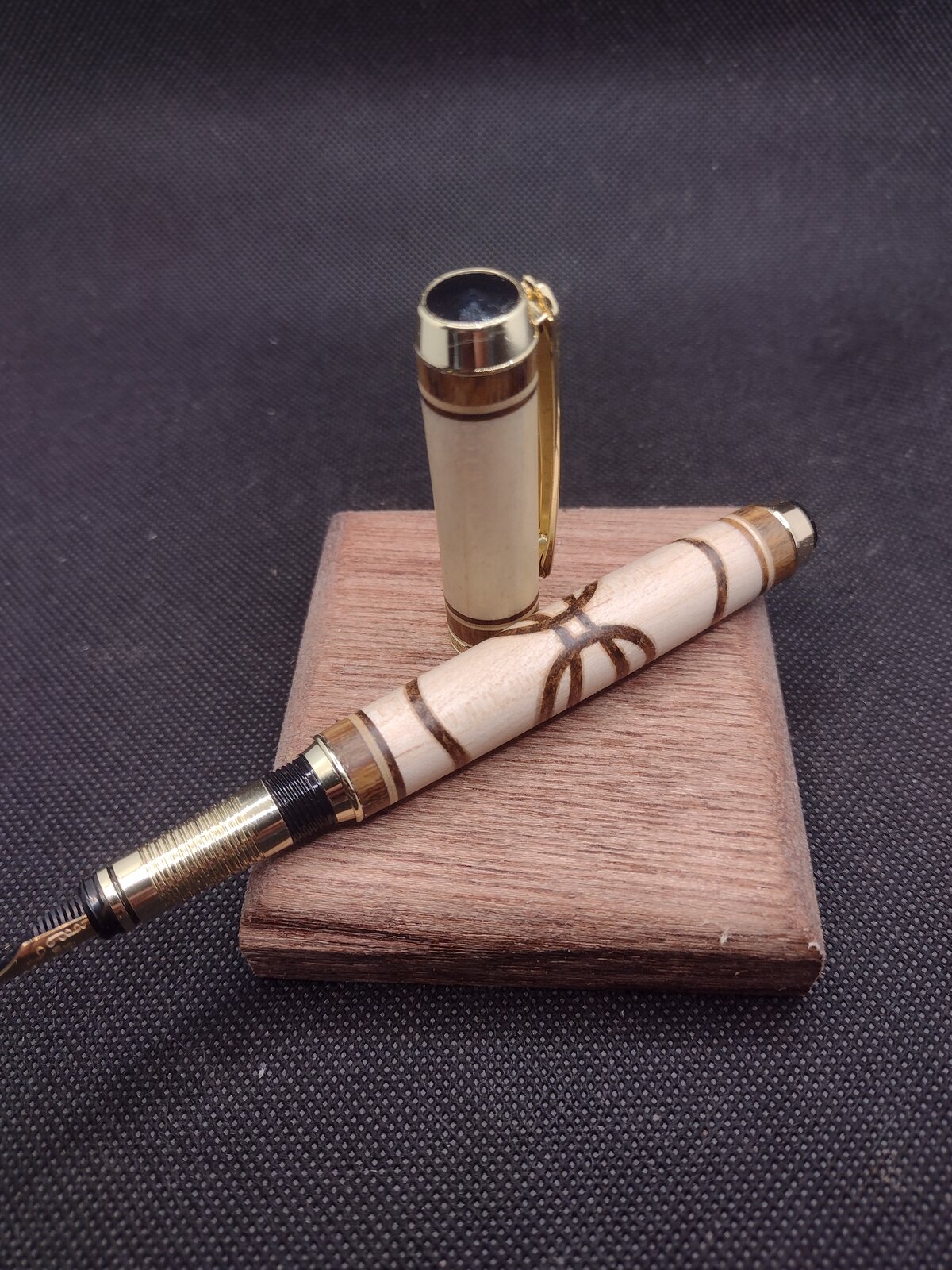

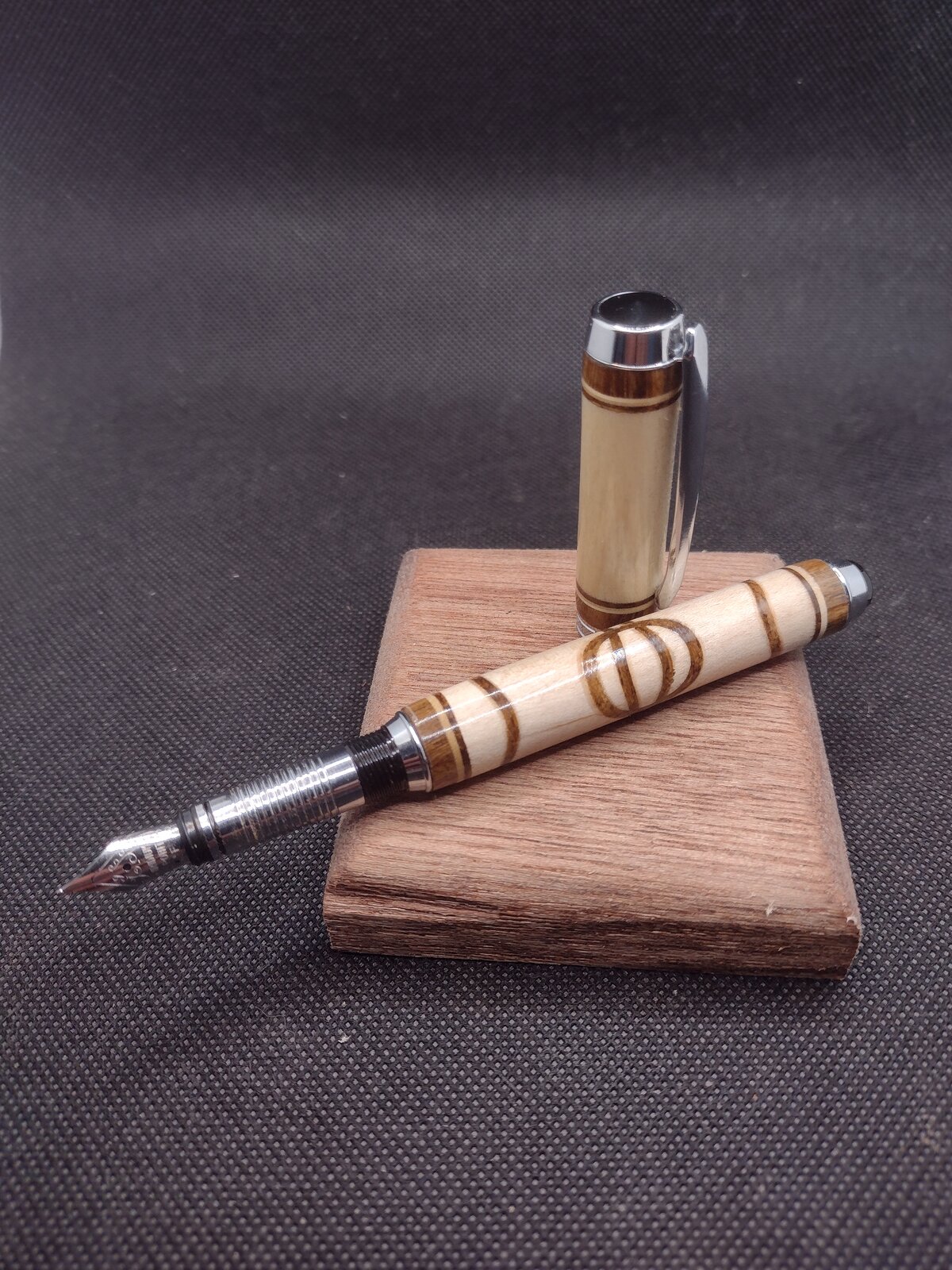

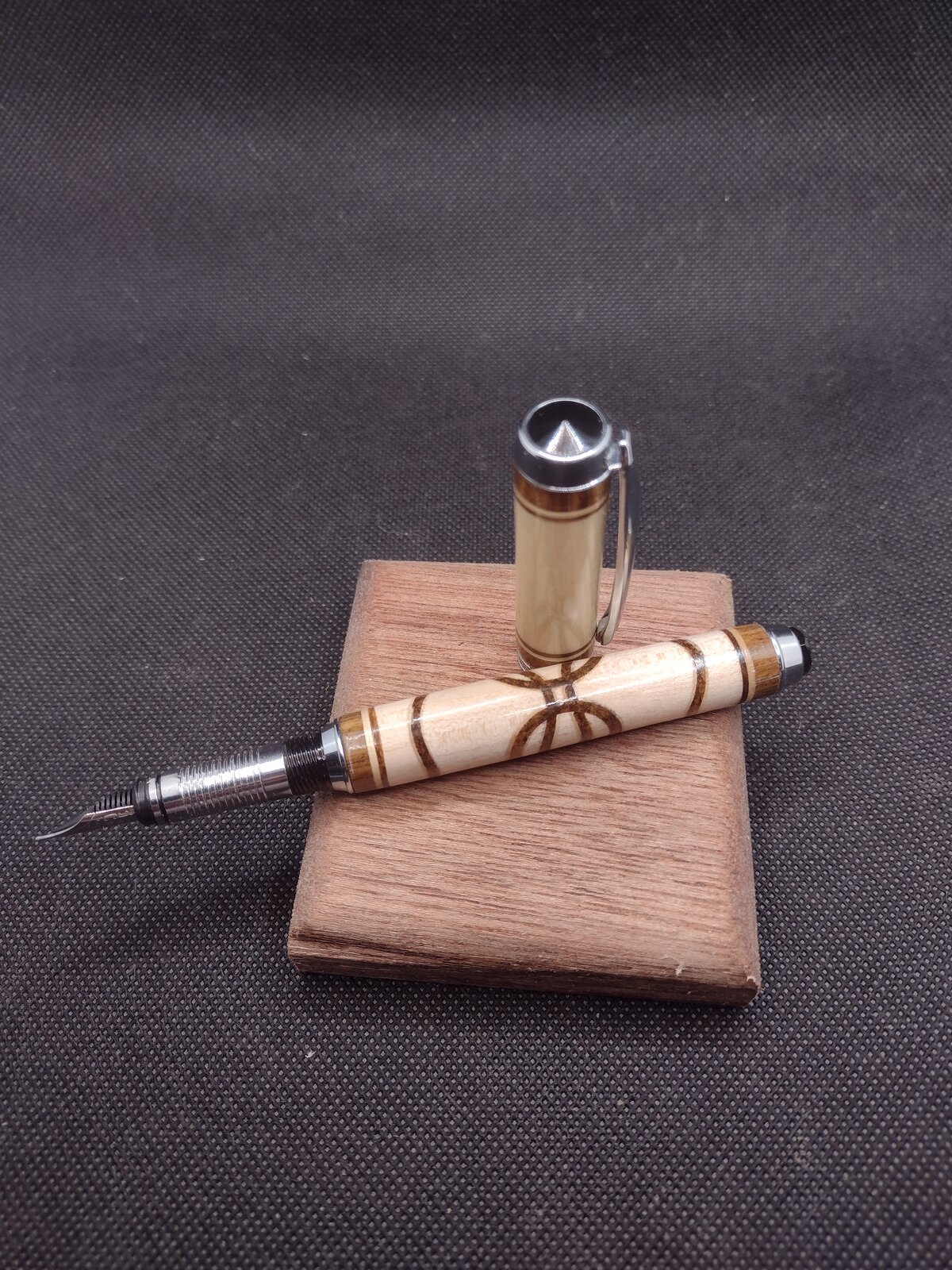

I made two Orion fountain pens with the blanks, one in gold, one in chrome. They survived the turning, but they could be better. I learned a lot in the process.

Thanks for asking,

Jason



[Alan Morrison]

Oh man, I totally forgot.

View attachment 332954View attachment 332955

Your pen looks great, Jason. Well done.
