Some more mods.

[KBs Pensnmore]

Some more mods, this time not for pen use but for making tractor (the kind that pull ploughs) wheels.
The gear arrangement on the top left side are 12 and 60 teeth gear joined together, drilled, fitted with a slimline tube to act as a bush

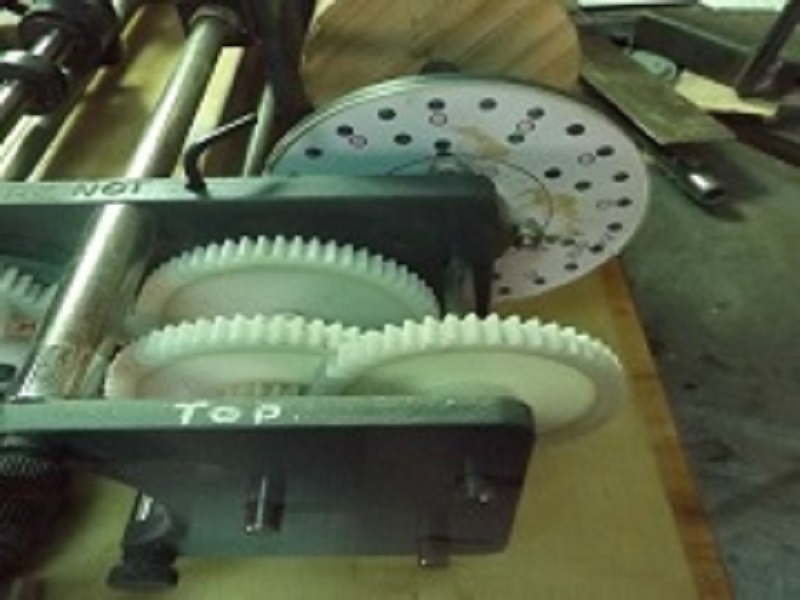

Placing the end plate round the wrong way, made me mark the top so that it went on the right way round, also note the holes drilled for the Allen keys

Set up with a Makita Laminate trimmer, I found the Dremel too small to do this job, unless I went over it 6 times, which took toooo long.

A close up of the tread cutting

My home made wheel cutter, the blades can be replaced with different shapes and sizes, up to 90 mm or 3.5"


All the gears and std components were supplied by JR Beall and modified by me. For more info send me a PM. Comments and criticism welcome
Regards and Enjoy
Kryn



[dogcatcher]

Good info, but how about some larger pictures, these are too small to see the details.



[KBs Pensnmore]

Good info, but how about some larger pictures, these are too small to see the details.

Sorry Folks, I'm still learning how to load photos. Need to work out how to get them as a thumbnail I think it is.
Regards
Kryn



[KBs Pensnmore]

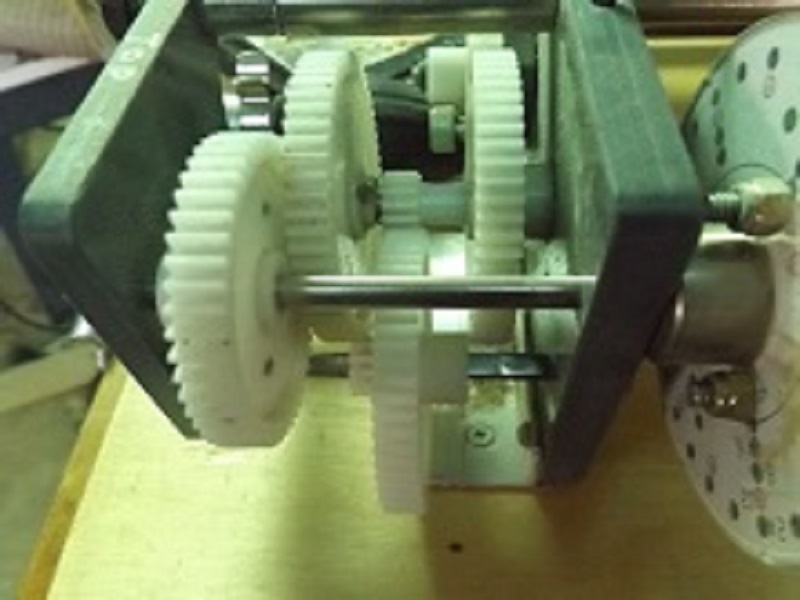

Showing extra gearing

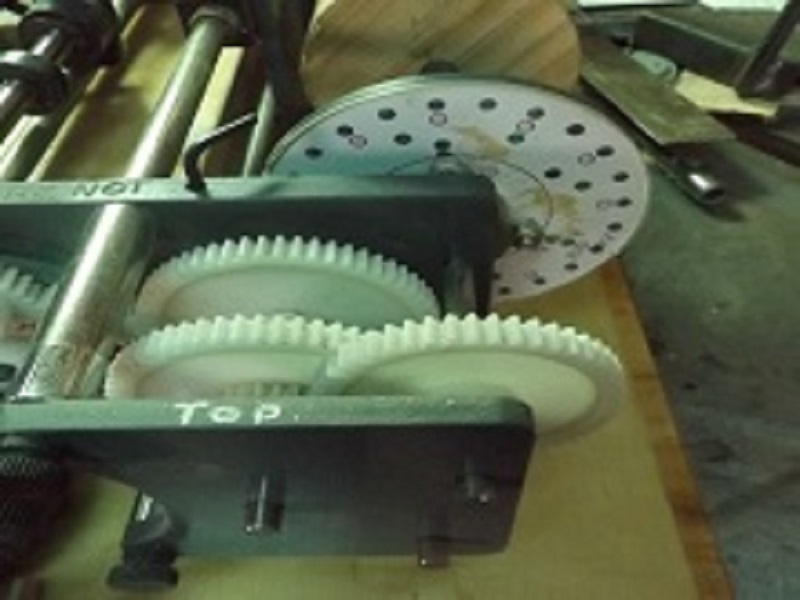

Extra 12 and 60 t on left top shaft

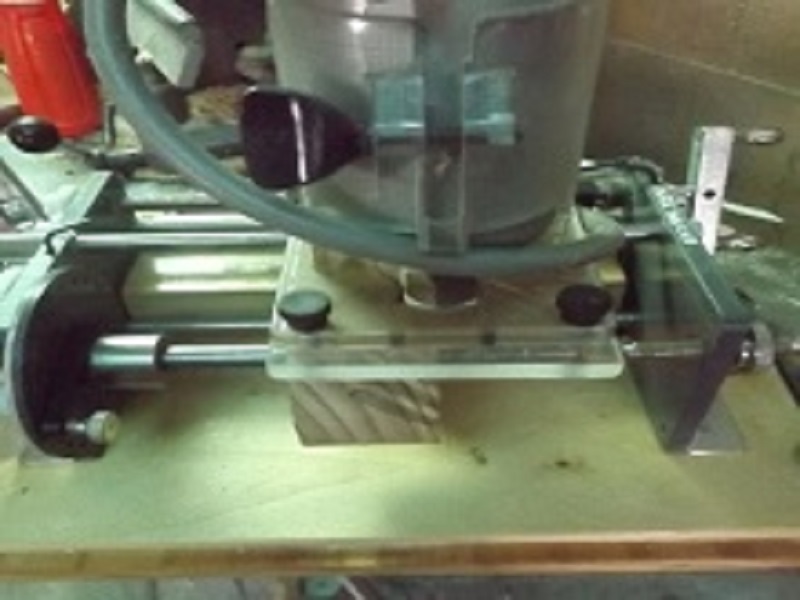

Laminate trimmer cutting tractor tread

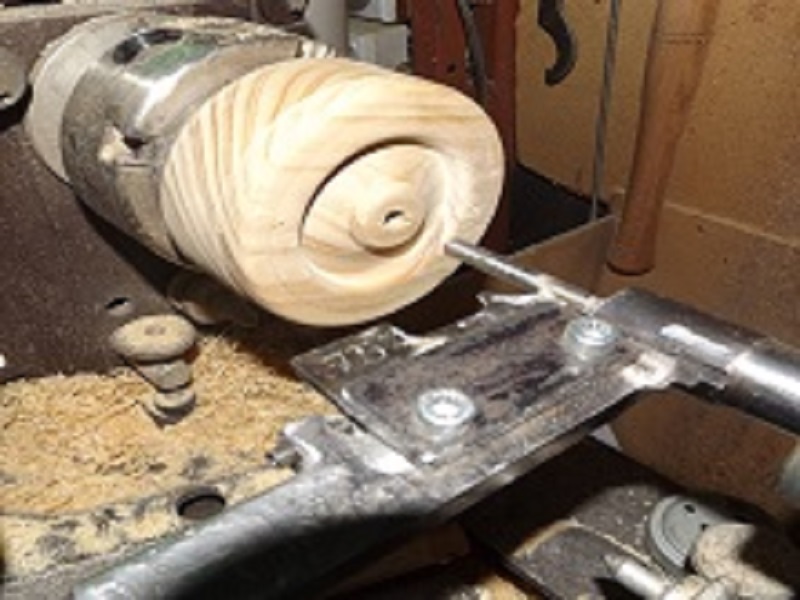

Showing wheel cutter

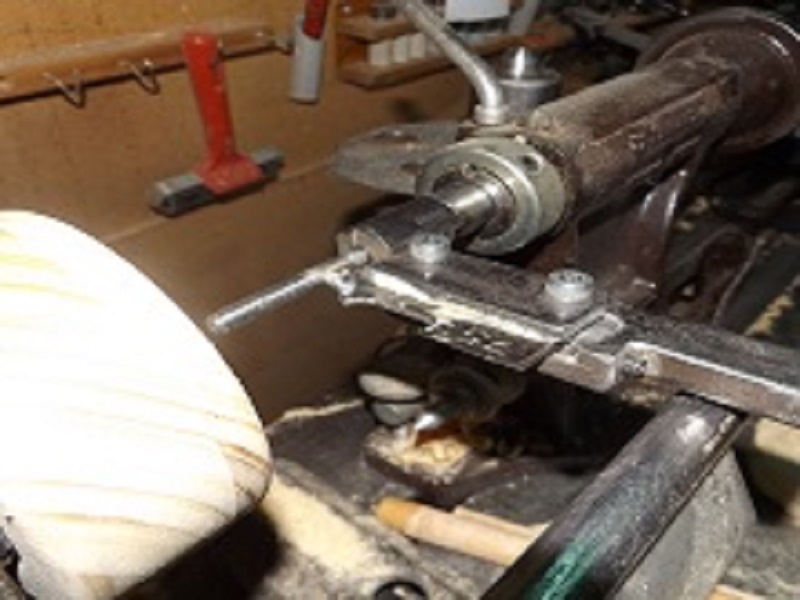

Close up of wheel cutter, this is my own invention, the cutting edge is replaceable, for different types of wheels, up to 31/2"

Now just have to learn how to take pics with out being pix-elated :frown:
Will post more details of trimmer mounting blocks etc tomorrow. For details of Mods send me a PM and I'll put them here.
Kryn



[dogcatcher]

I like the wheel cutter, a friend made me one years ago to use on the drill press. Since then I have made a couple of my own. One of those I have to do this moments that worked out.
