Qestion: two-part epoxy for acrylic pen tubes?

Signed-In Members Don't See This Ad
SCjim

SCjim

Member
Joined
Apr 20, 2017
Messages
63
Location
Asheboro, North Carolina
So here is the question: Can I use a two-part epoxy as a satisfactory bonding agent for inserting tubes in acrylic pen blanks. I do not turn many pens anymore, but I got an order from a South Carolina County Sheriff department for quite a few pens.

Since I have eye surgery, I cannot take the CA flumes anymore.

Signed-In Members Don't See This Ad
Absolutely yes you can. A five minute 2 part epoxy is all I use on acrylic and other synthetics as well as wood. One thing to note: let the "five minute" epoxy cure for about 12 hours. I recommend that you rough up the tube with 120 sandpaper before you glue it in the blank.

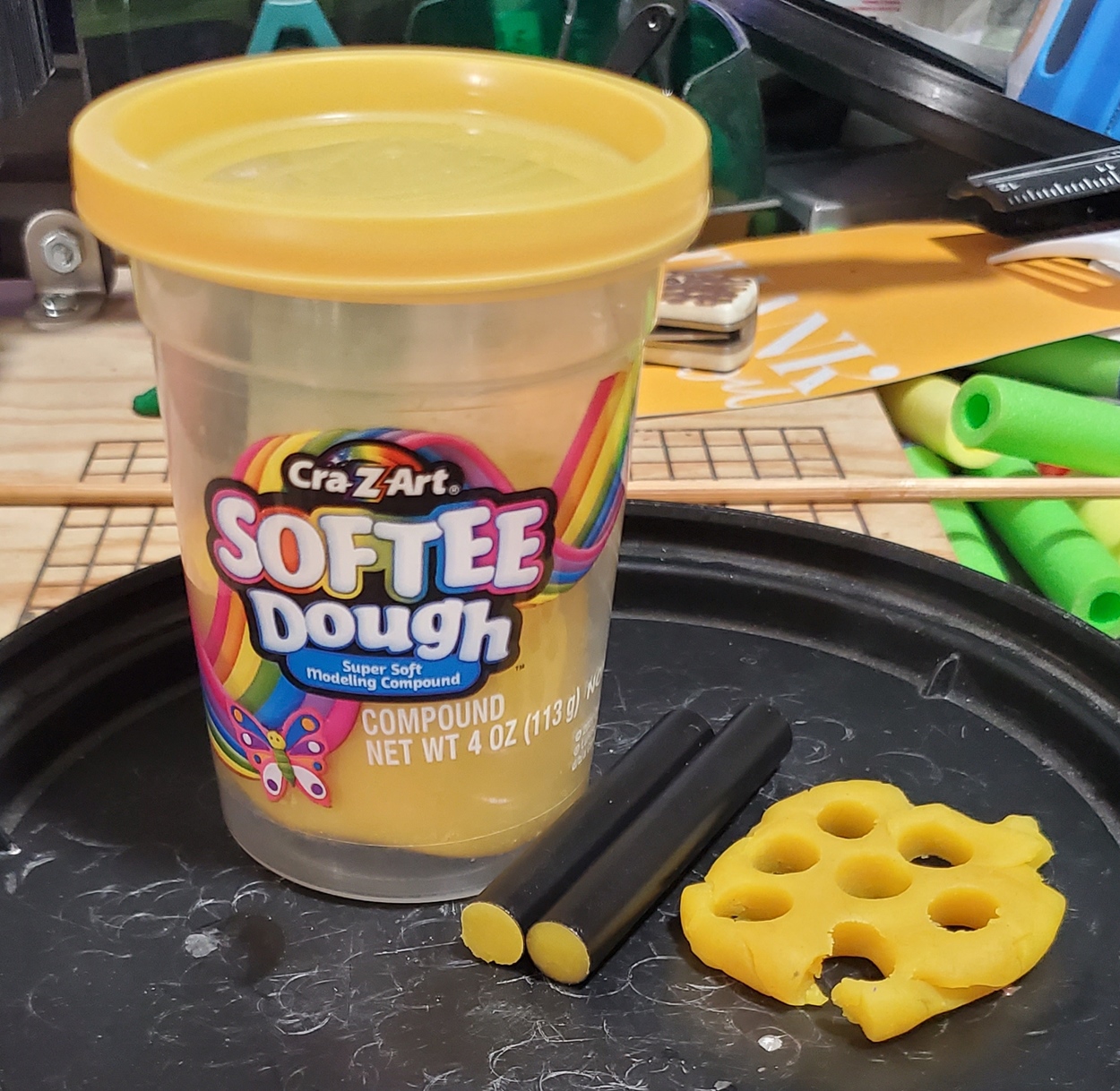

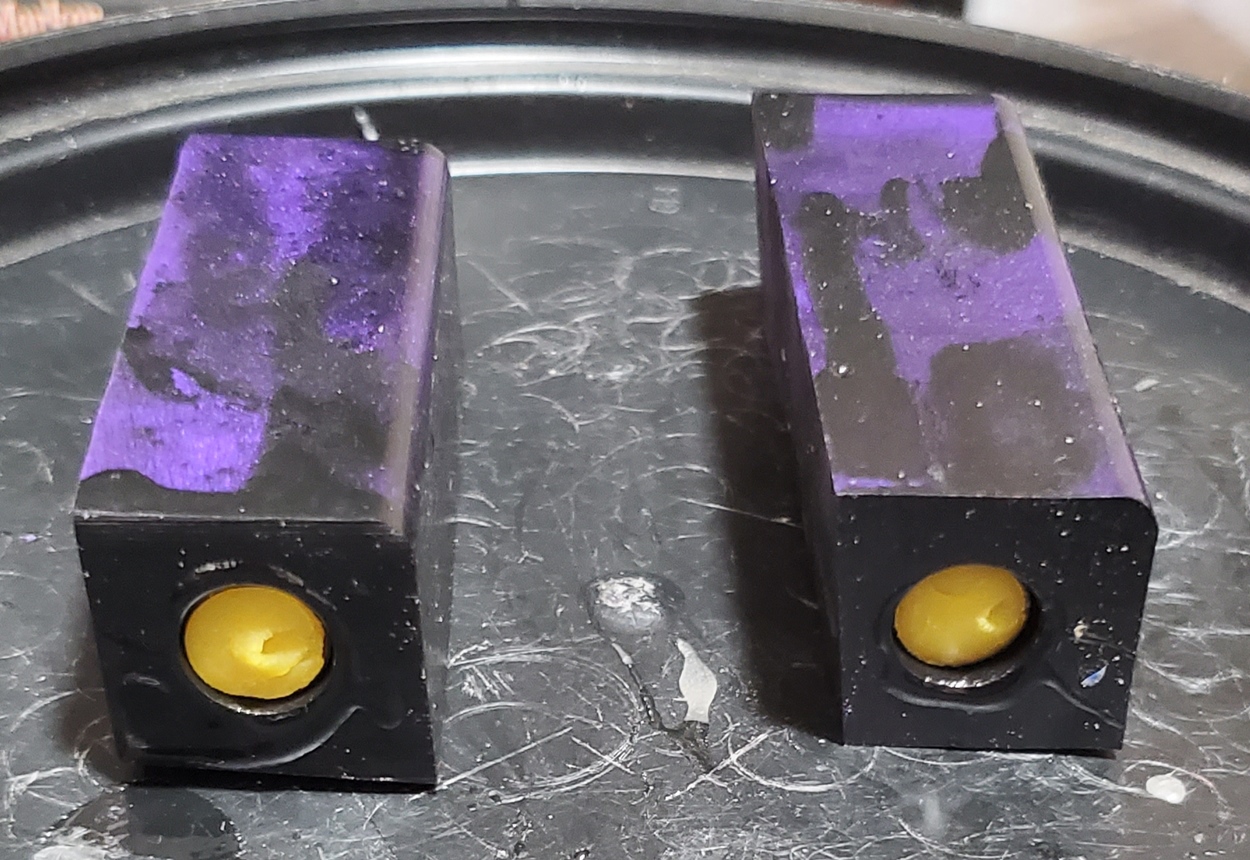

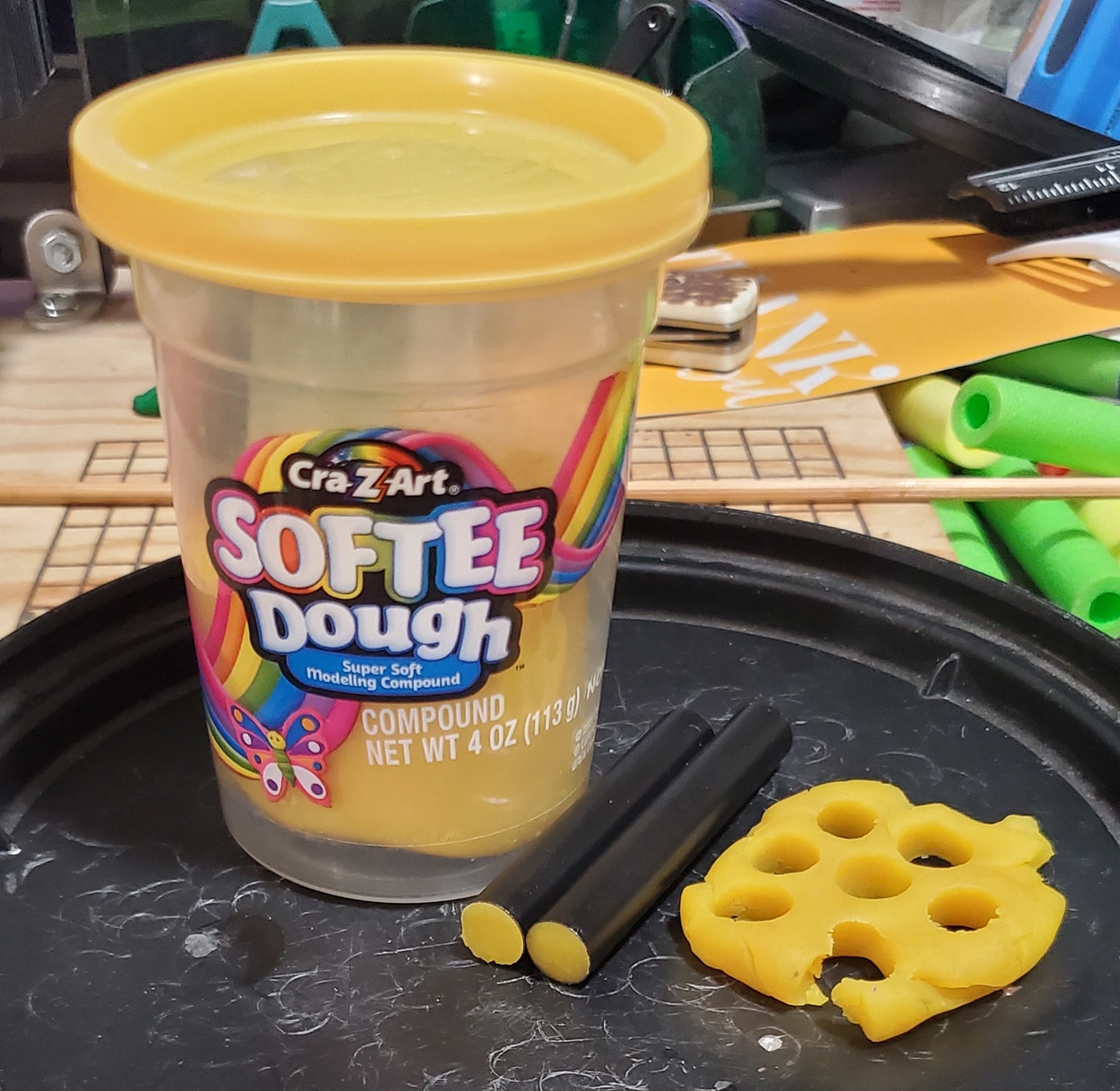

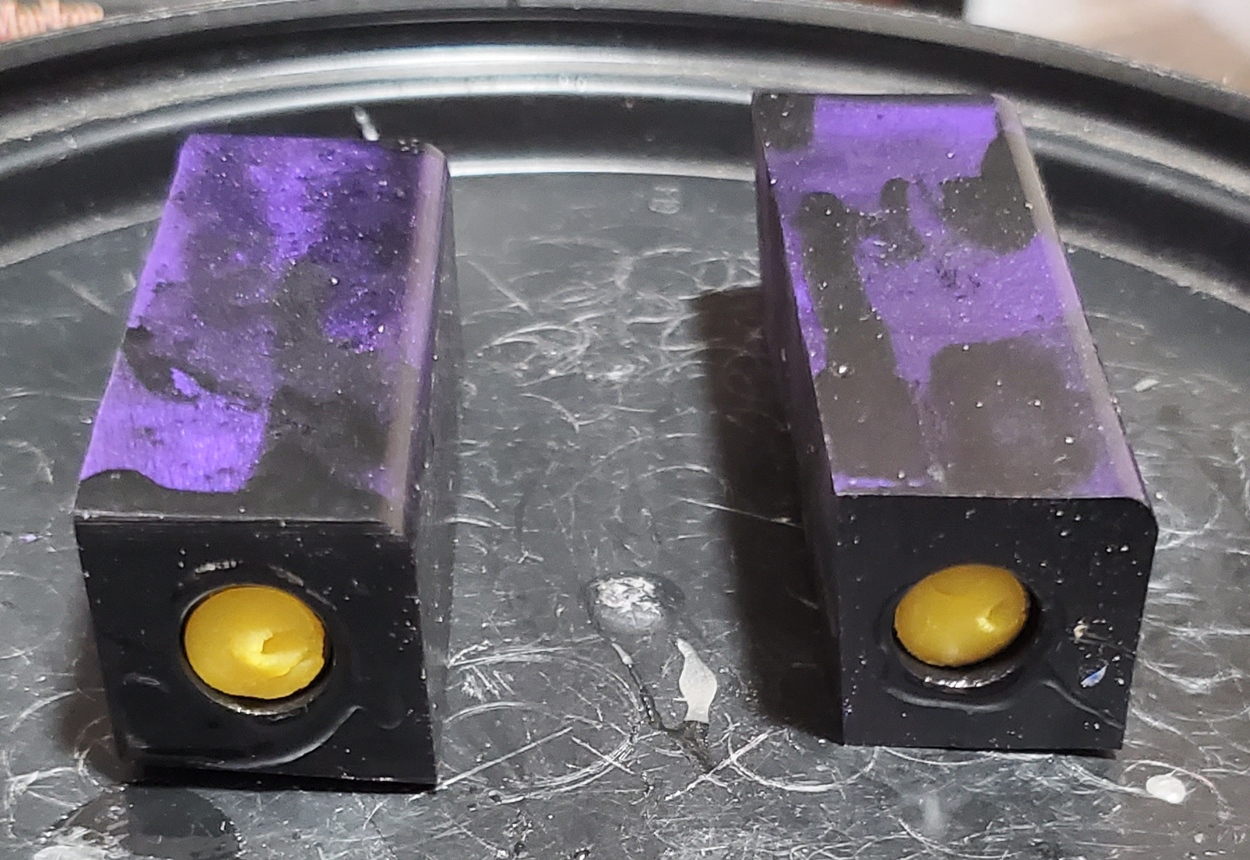

I don't use CA on tubes anymore. Two part epoxy will allow you to accurately set the tubes to the desired depth within the blank. I would use some kind of putty or clay in the ends of the tubes to avoid getting epoxy inside.

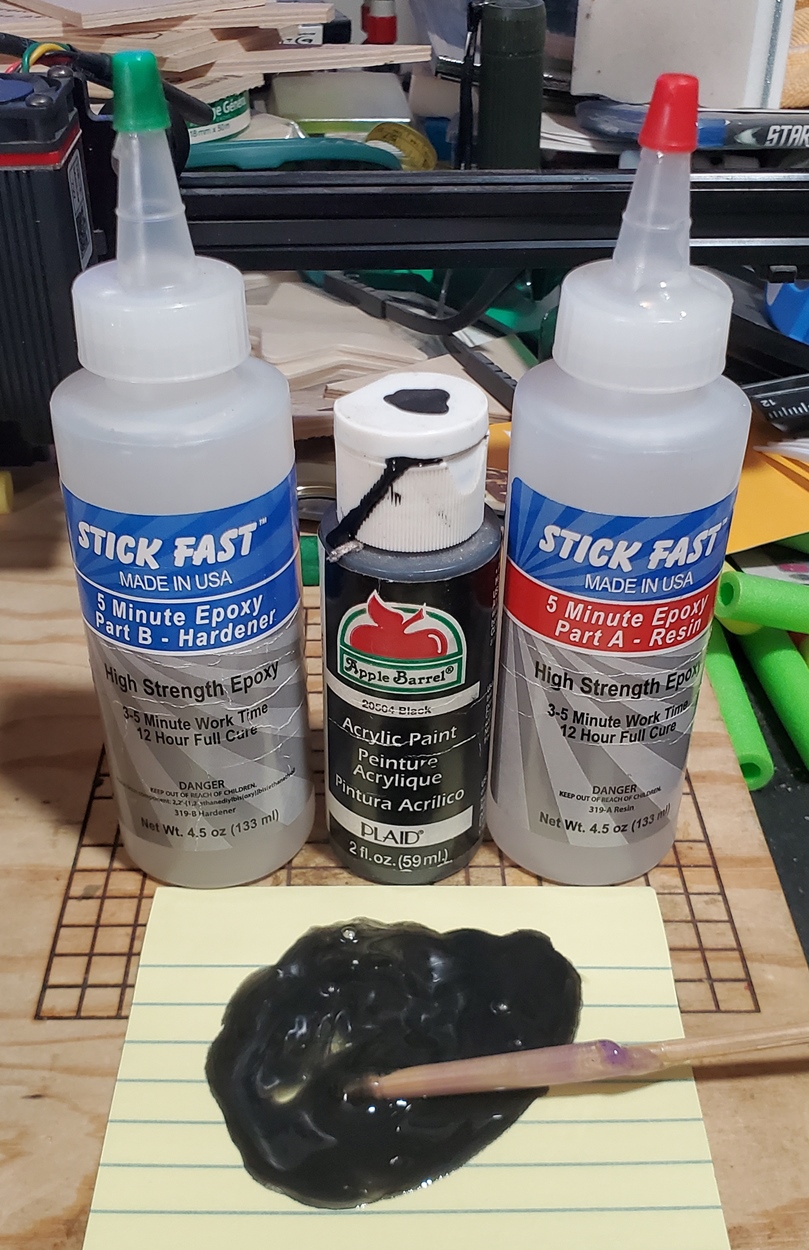

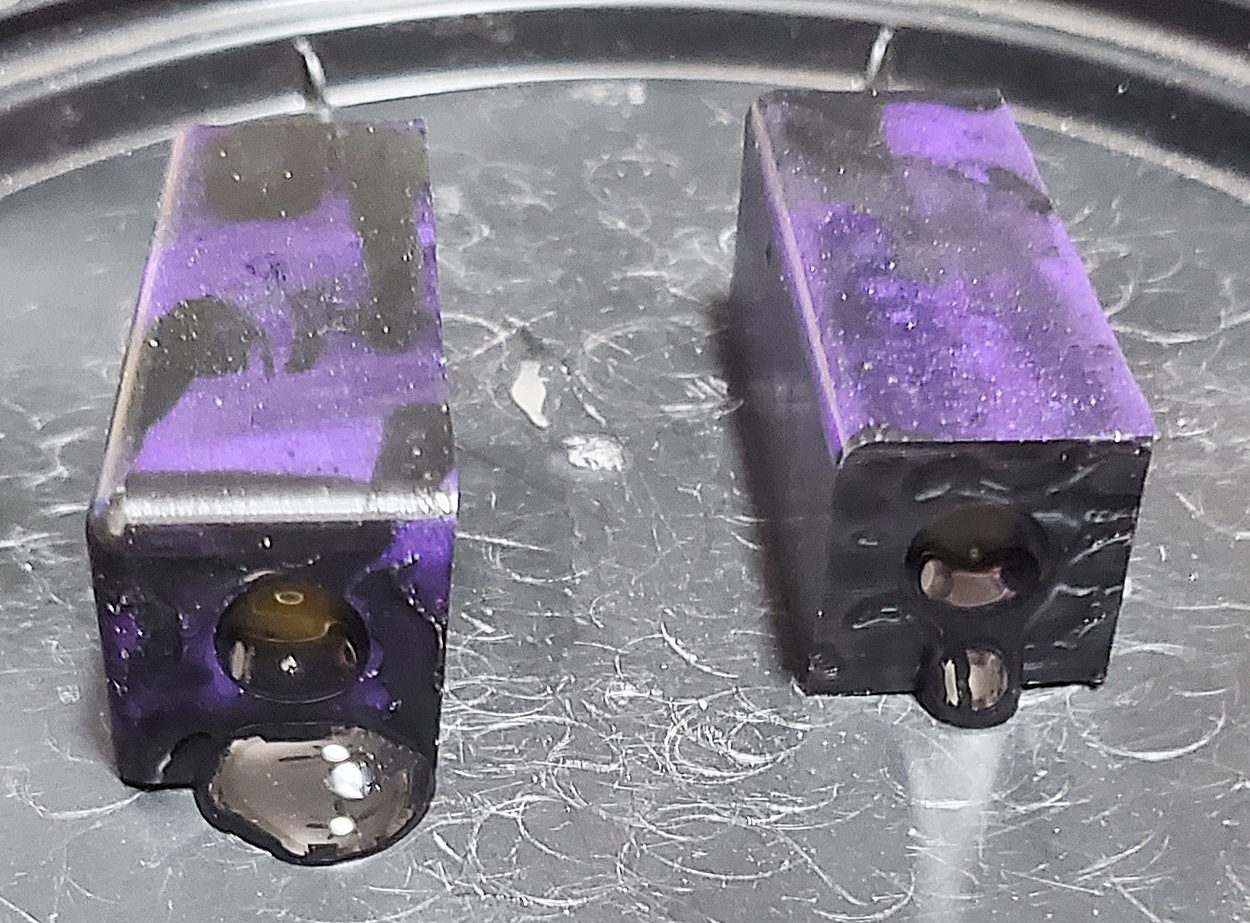

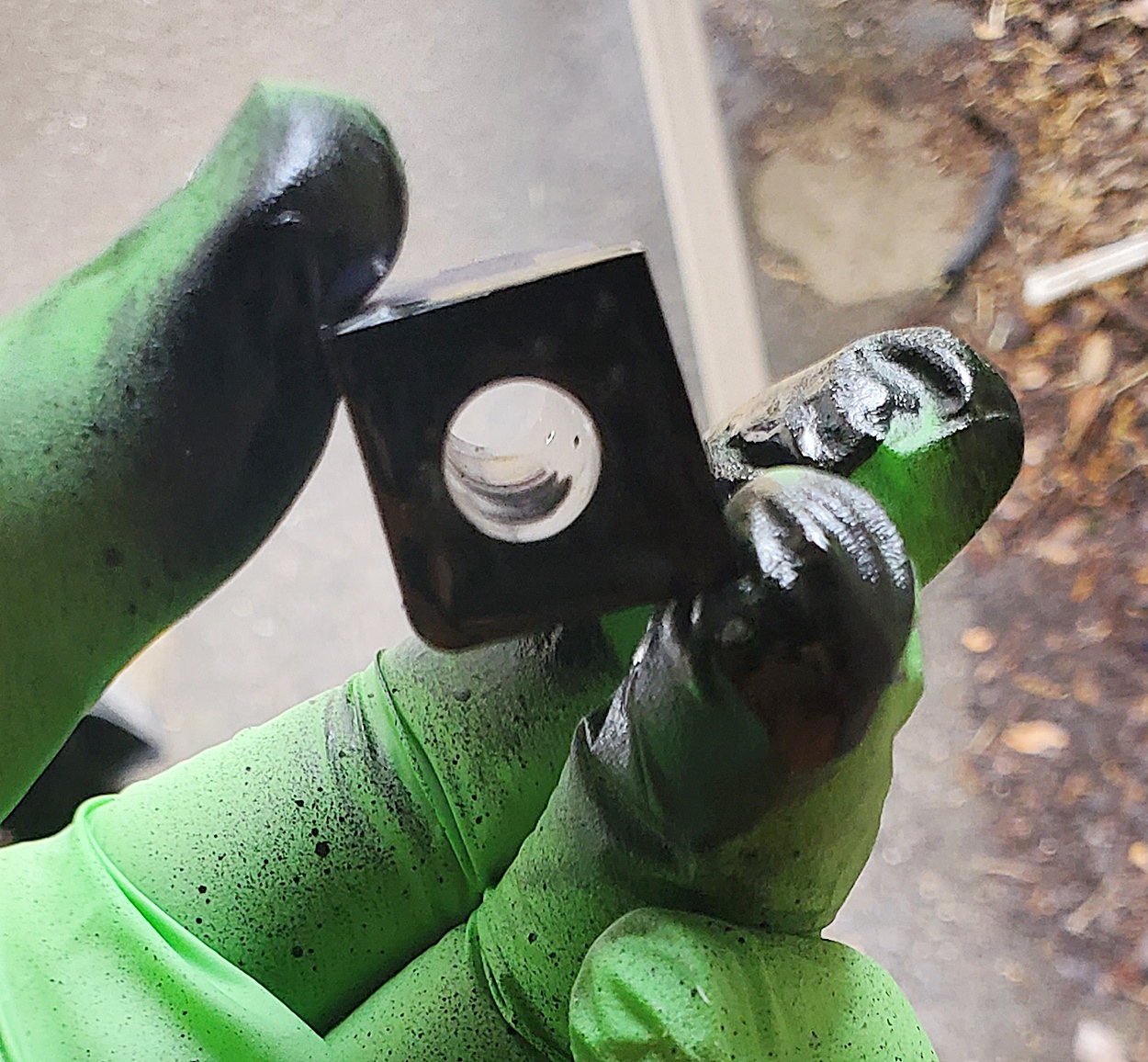

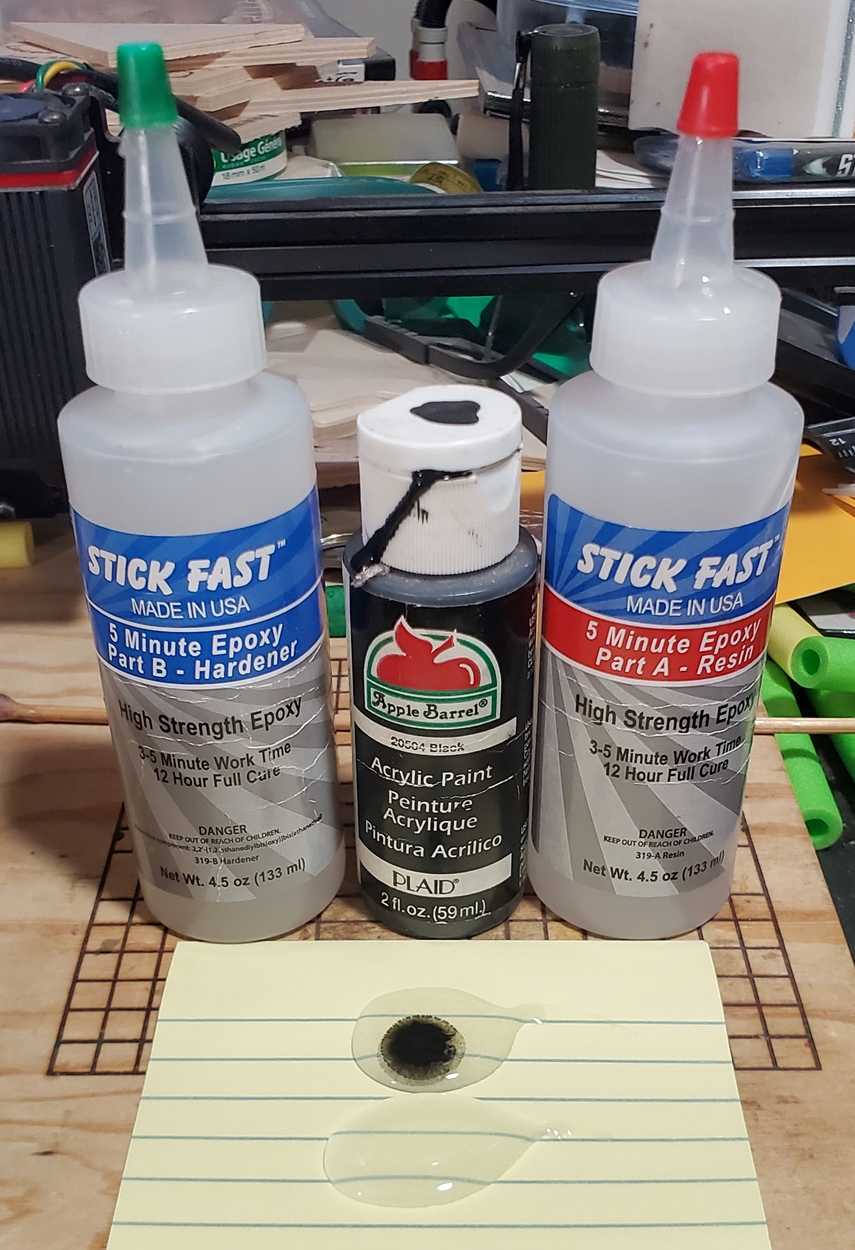

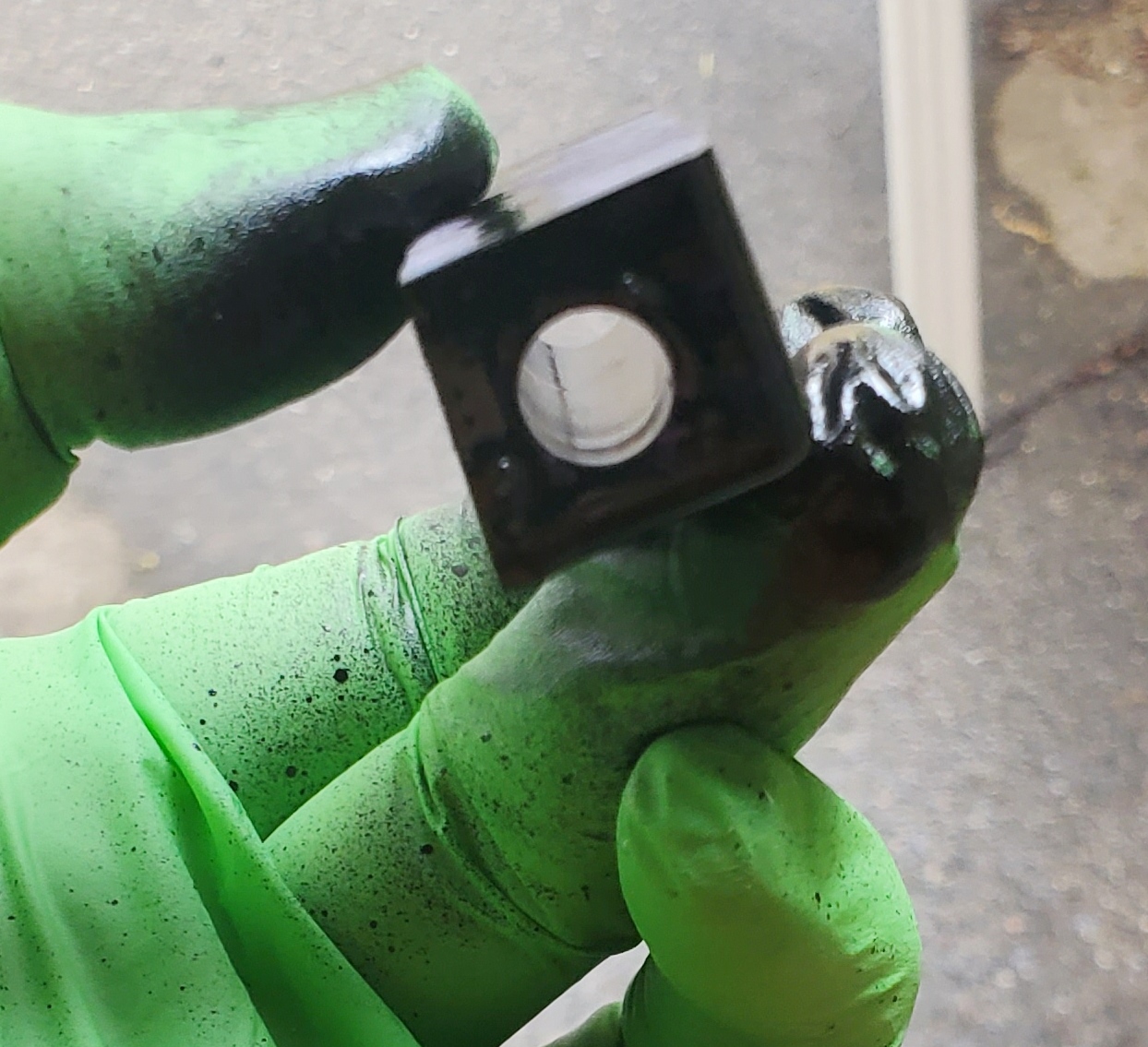

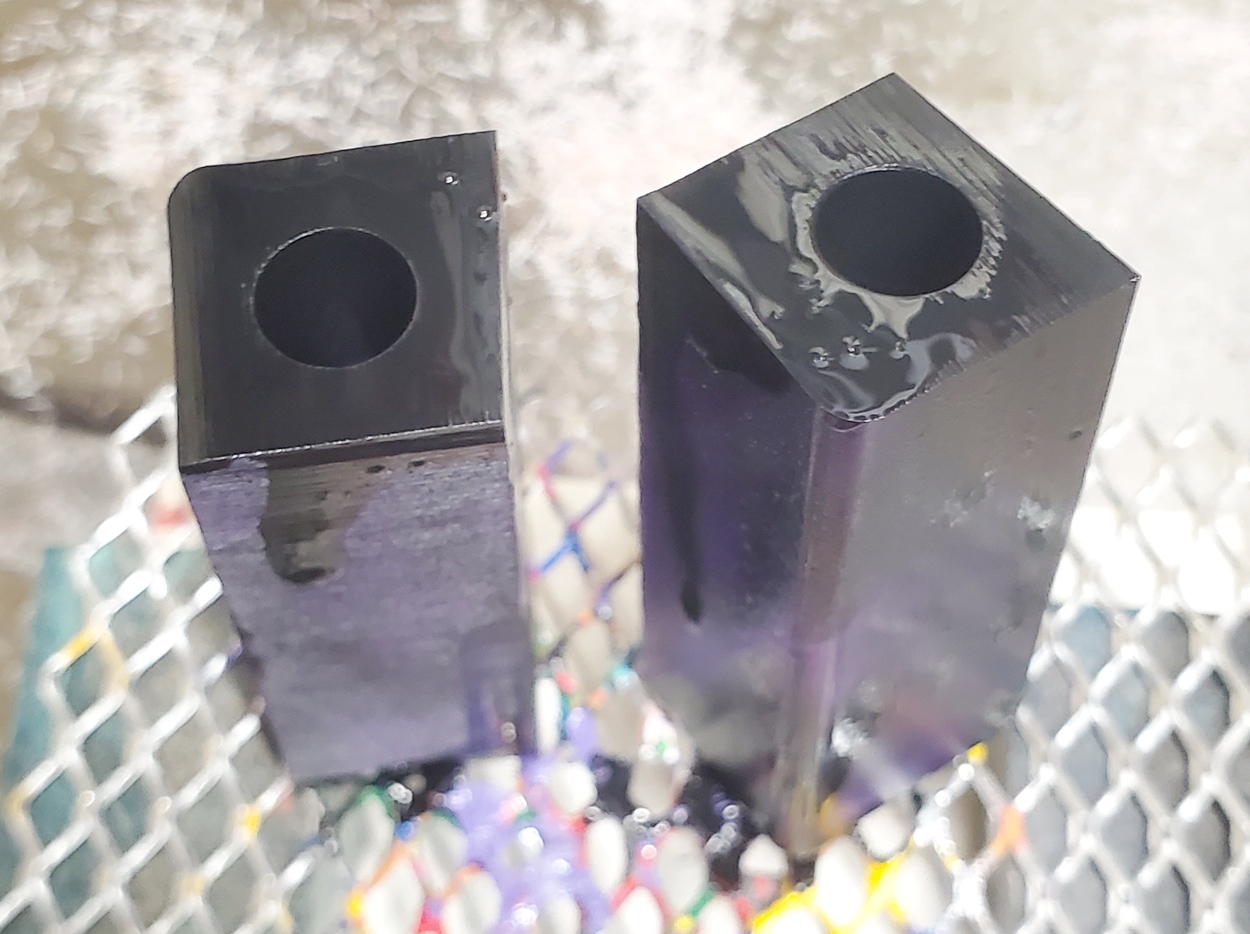

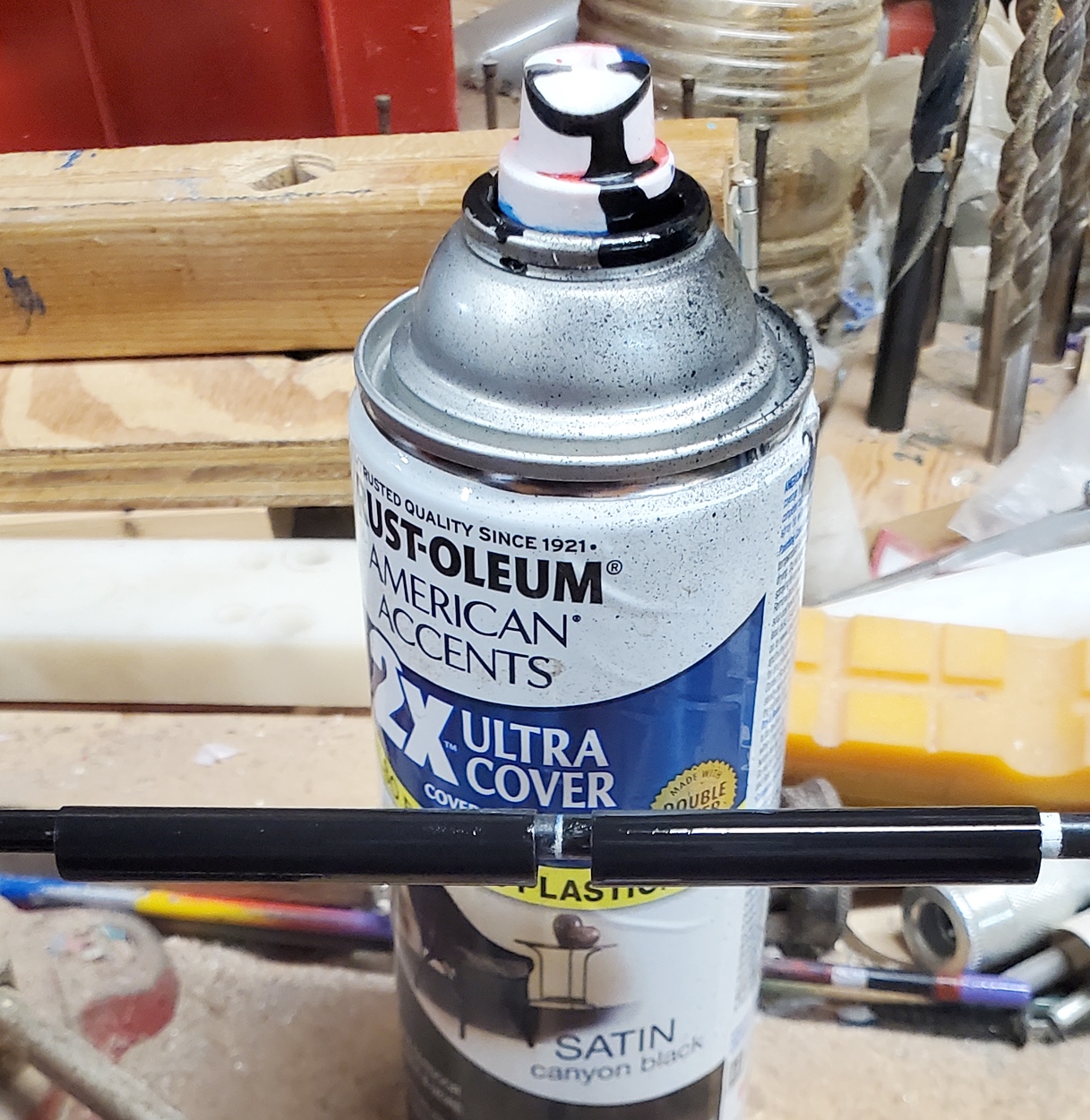

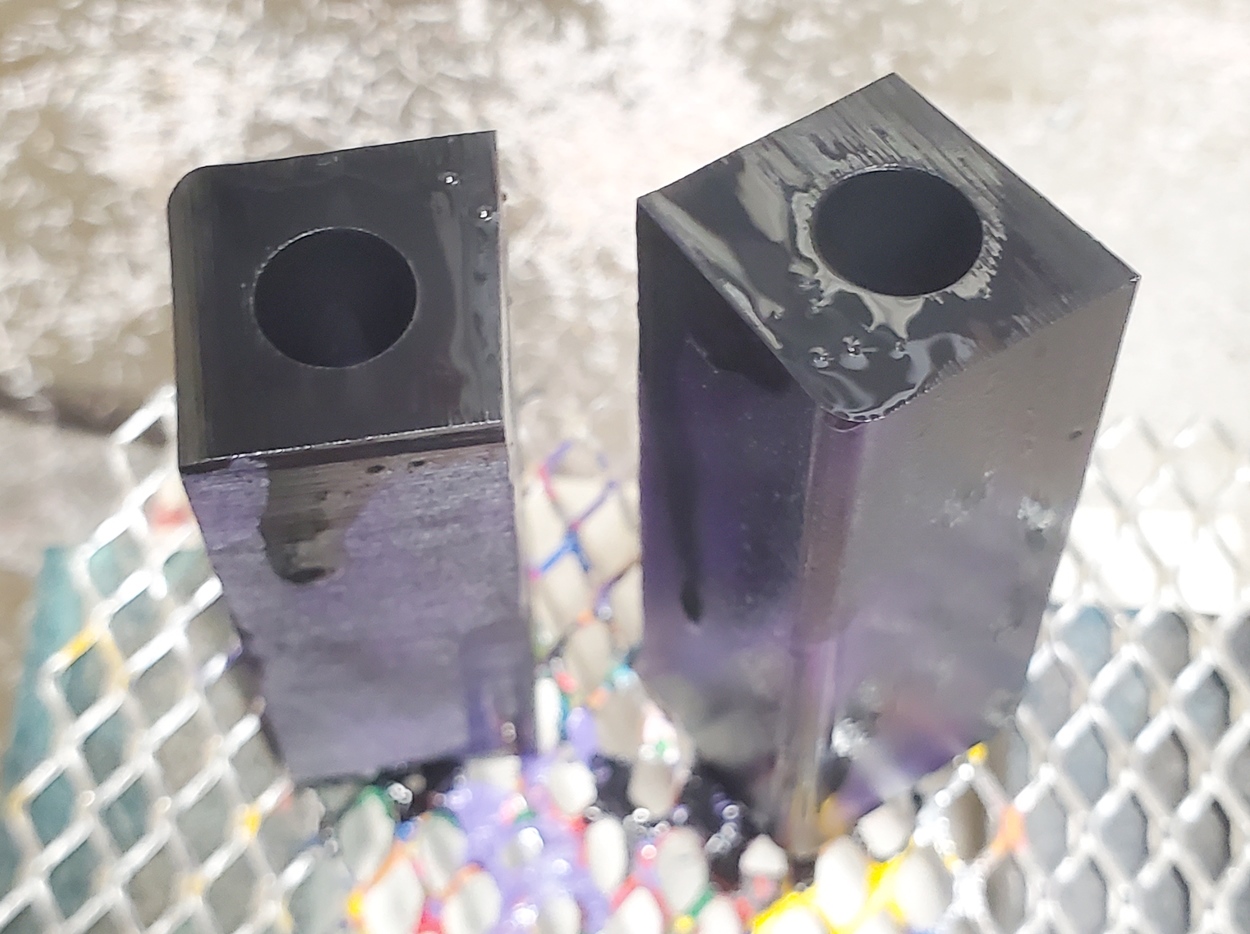

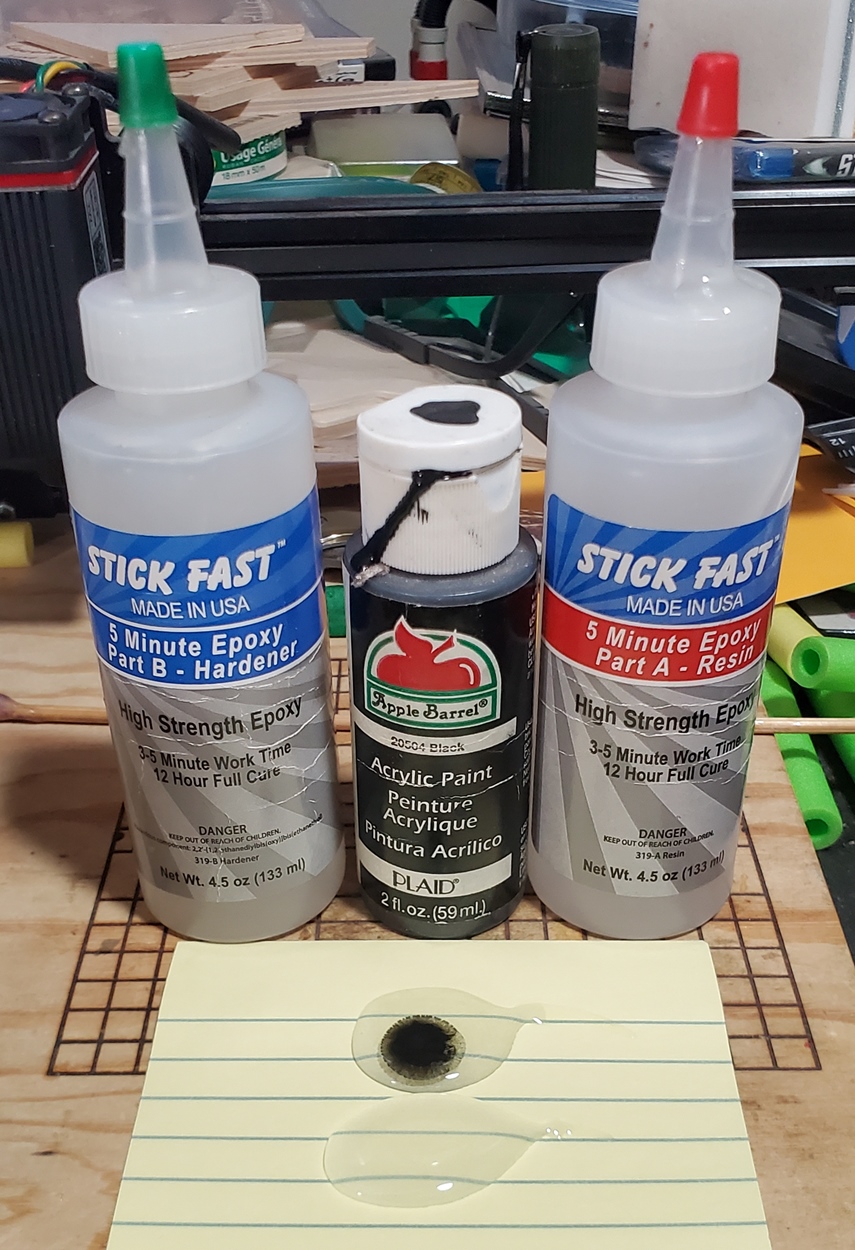

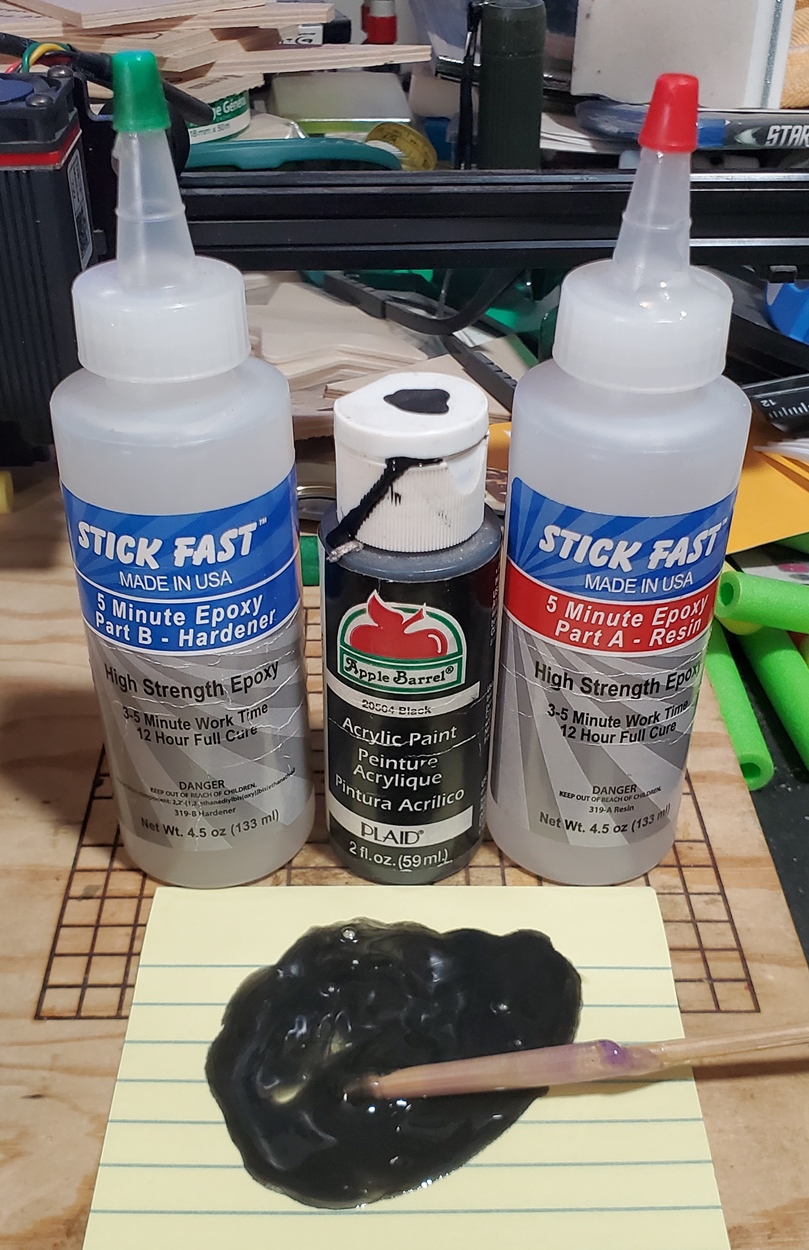

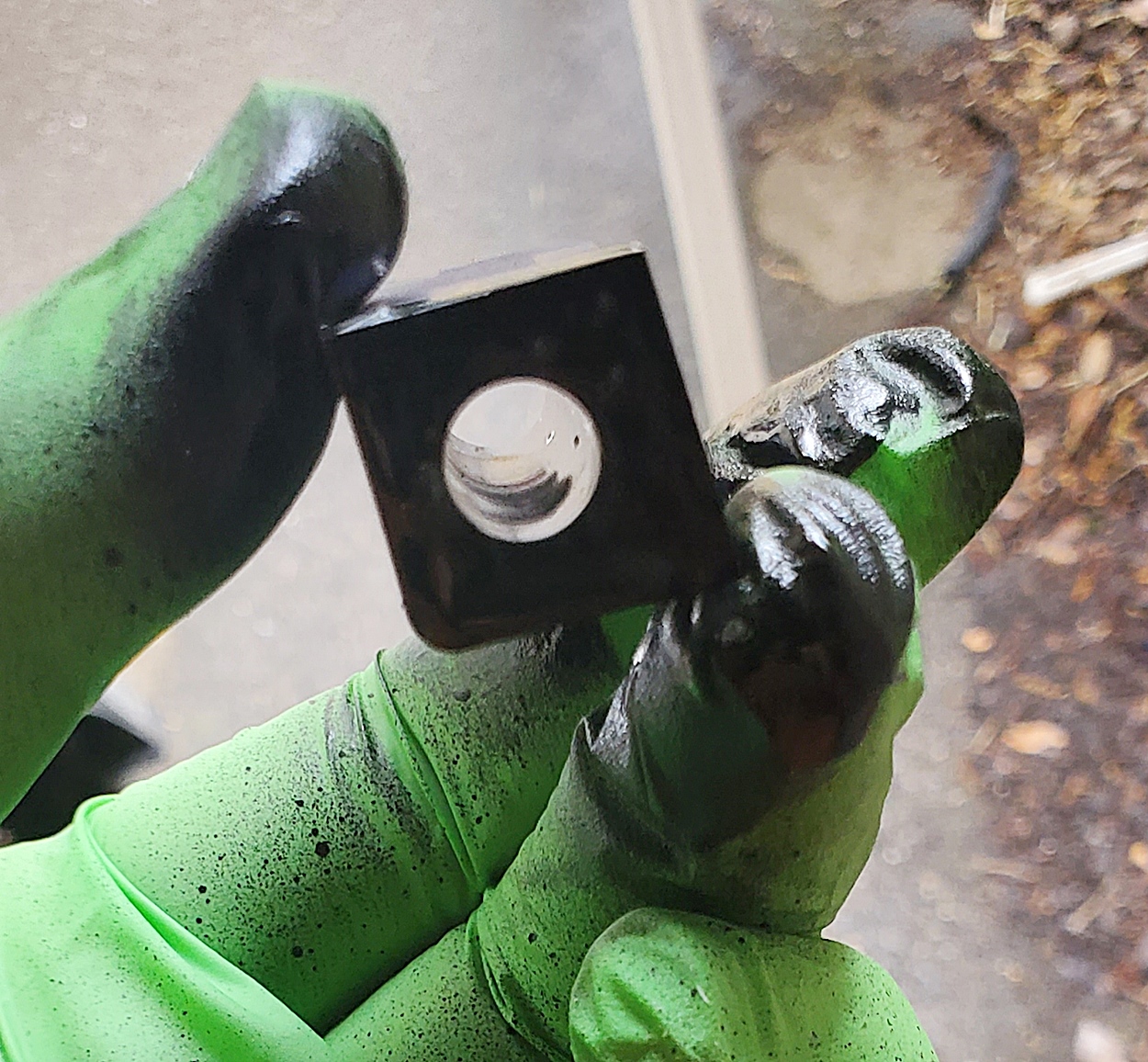

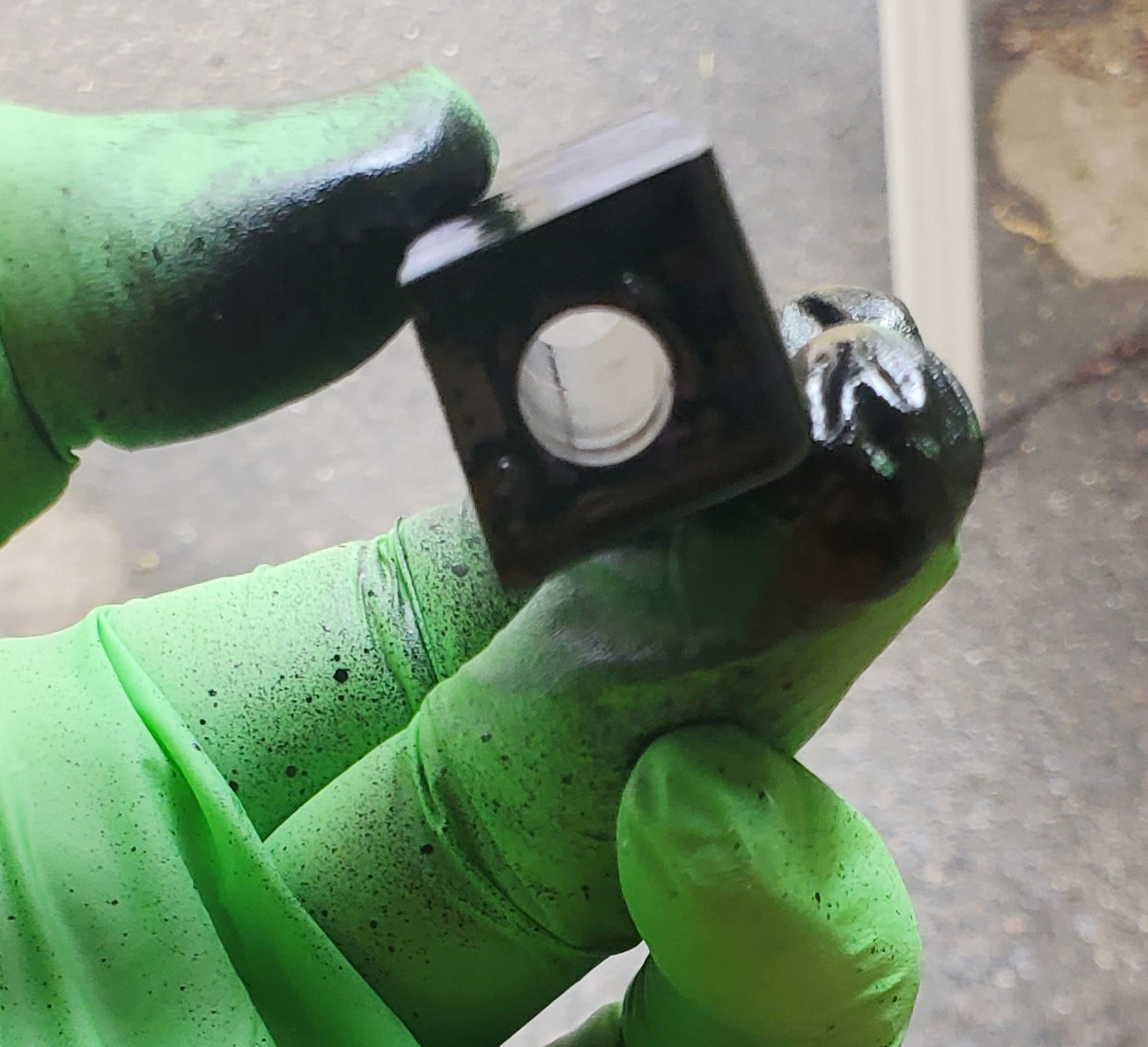

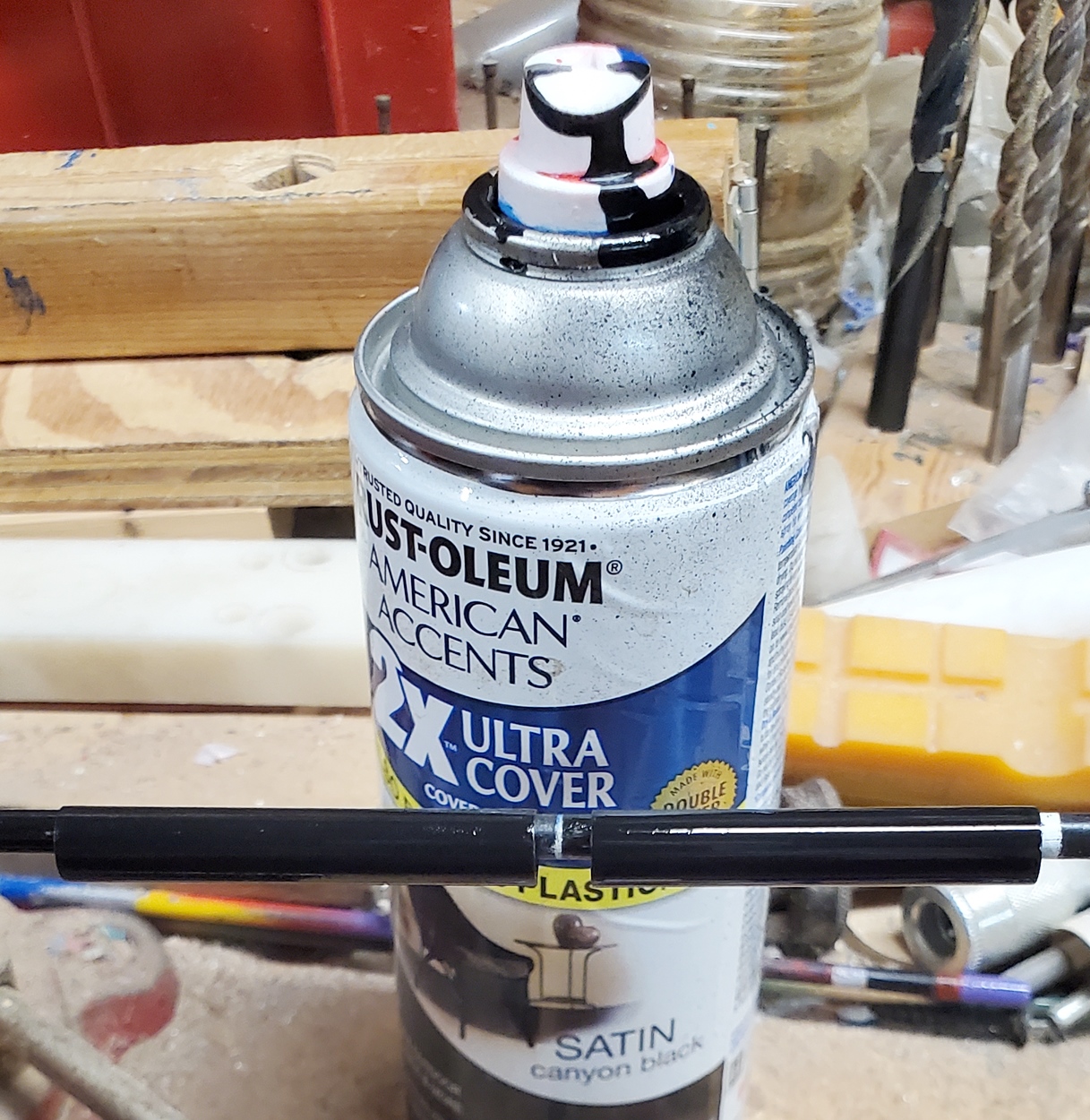

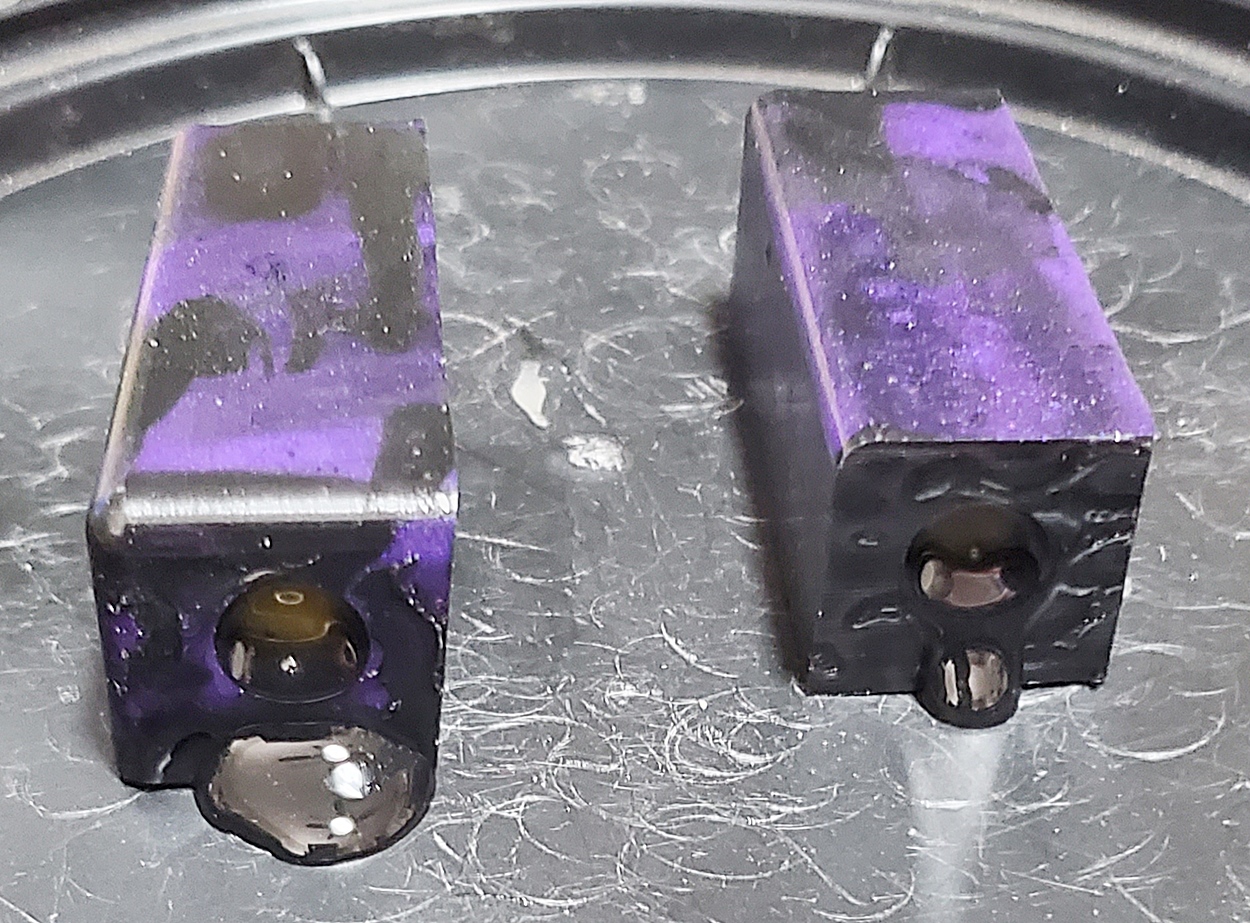

I never use CA. I've been using two-part epoxy for over 20 years. I normally use 5 minute, but if I'm gluing multiple pens I'll use 15 or 30 minute epoxy to give me more time. I paint almost all acrylic blanks so the brass tube doesn't show through. I paint inside the hole in the blank and the brass tube. I also color the epoxy, which you can't do with CA. One or two drops of acrylic paint is all it takes.


Attachments

  • 032.jpg
    656.2 KB · Views: 71
  • 033.jpg
    464.5 KB · Views: 70
  • 034.jpg
    358.9 KB · Views: 71
  • 035.jpg
    647.5 KB · Views: 80
  • 036.jpg
    583.4 KB · Views: 66
  • 037.jpg
    444.5 KB · Views: 82
  • 038.jpg
    436.2 KB · Views: 77
  • 039.jpg
    477.1 KB · Views: 67
  • 040.jpg
    609.9 KB · Views: 78
If you are making several pens, 5 minute epoxy will require either working fast or multiple batches. I built custom fishing rods. I almost didn't get the grip set in place with 5 minute epoxy. I went with 2 Ton Epoxy which gives a work time of 30 minutes, enough time to do several blanks and tubes.

For many years, I've used nothing but BarrelBond from System 3. It's a 5 minute Epoxy that comes in tubes like toothpaste so it doesn't dry out. I've never had a glue related failure since I started using it. Woodcraft & Rockler both carry it.

I've just used a shop paper towel to wipe off any excess and a q-tip to remove any glue from inside the tube. There's many ways to keep glue out of the tube. You just don't want any to harden inside of the tube.
