Charlie_W

Charlie_W

Member
Joined
Nov 16, 2011
Messages
5,918
Location
Sterling, VA USA

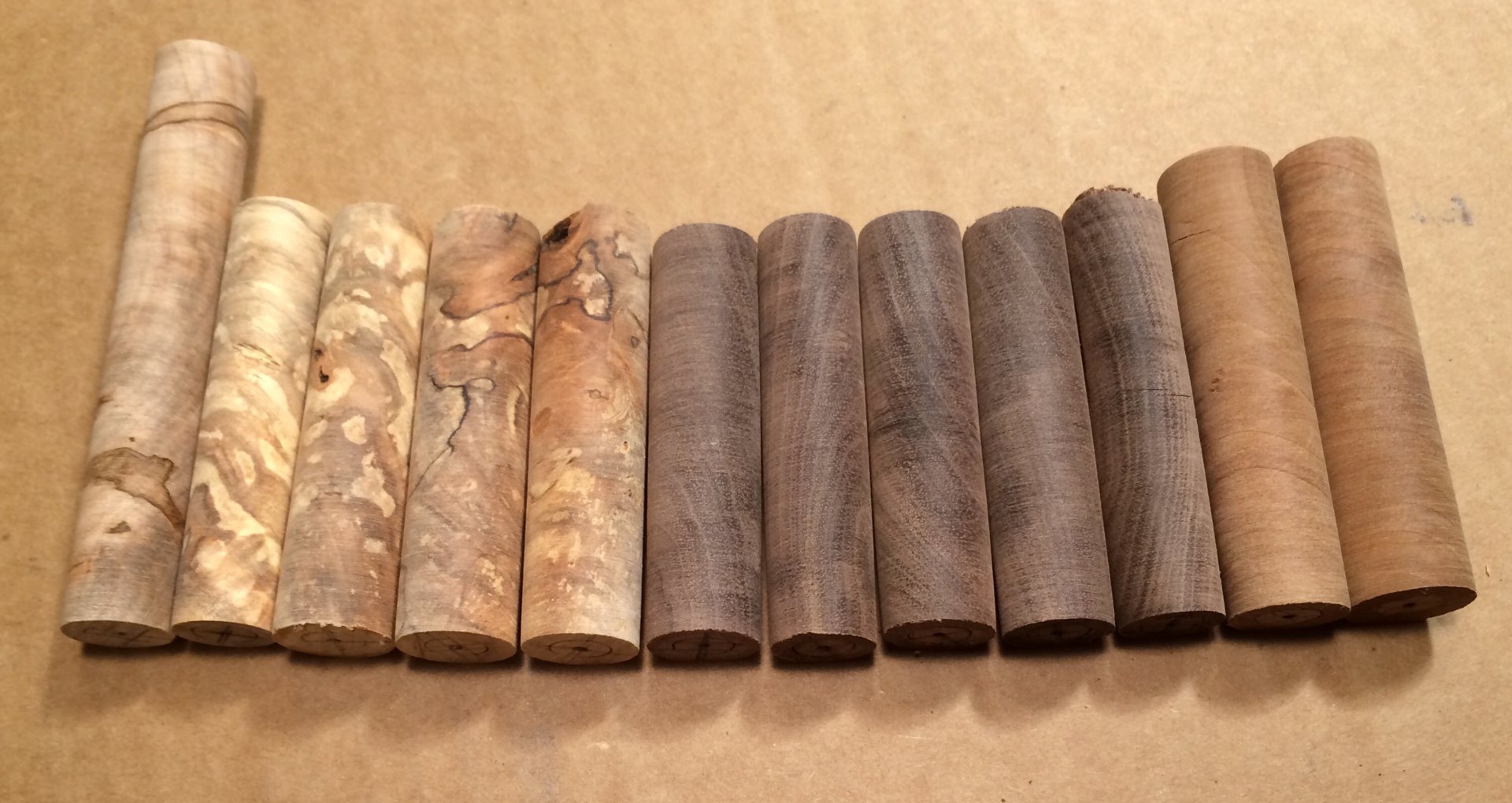

I had a handful of cross grain blanks and decided to prep them and see what I had. These are Ambrosia and Spalted Maple, Walnut, and Cherry. As they were rough cut on a Bandsaw, some weren't square or straight(parallel) and would be a challenge to hold for drilling on the lathe so I decided to turn them round first.
I cut the corners off with the bandsaw and then turned them round (between centers) with a skew. Then gave them a coat of thin CA and followed up with a quick sand with 80G . They are now ready to be drilled and cut to length when they find a kit they like. A couple had cracks which may or may not show when turned to size.


Signed-In Members Don't See This Ad
Charlie_W said:
I had a handful of cross grain blanks and decided to prep them and see what I had. These are Ambrosia and Spalted Maple, Walnut, and Cherry. As they were rough cut on a Bandsaw, some weren't square or straight(parallel) and would be a challenge to hold for drilling on the lathe so I decided to turn them round first.
I cut the corners off with the bandsaw and then turned them round (between centers) with a skew. Then gave them a coat of thin CA and followed up with a quick sand with 80G . They are now ready to be drilled and cut to length when they find a kit they like. A couple had cracks which may or may not show when turned to size.

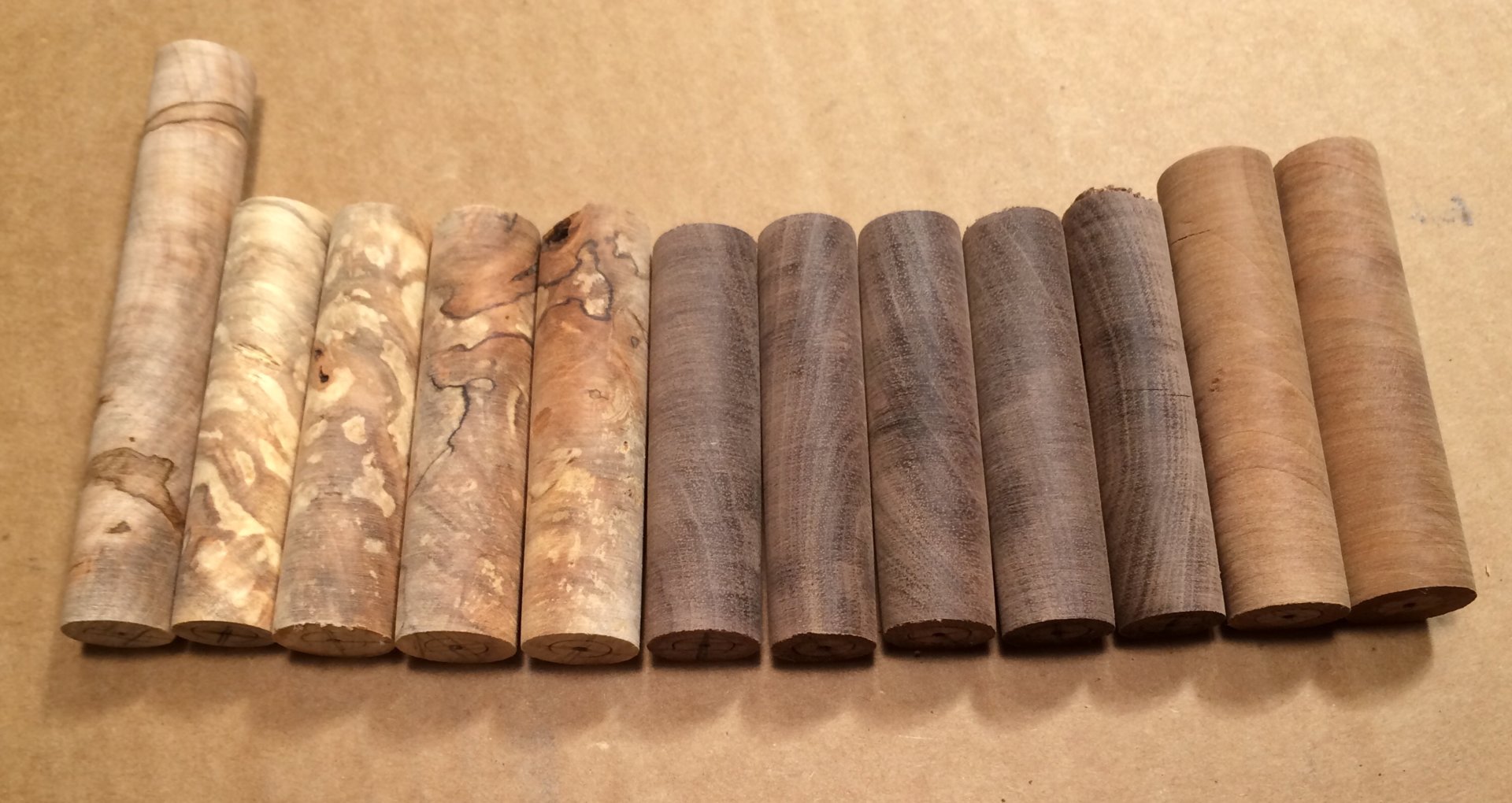

View attachment 220636
Click to expand...
Well done, as always, Charlie. hope to see you soon.
P.S. I had a similar issue with old teak recently. I did the same - CA over all cracks until satisfied they wouldn't shatter while turning. End product worked out nicely.

Woodchipper said:
Interesting as I never thought of cross grain blanks.
Click to expand...

John, Cross or diagonal grain orientation can give a whole new look to many woods. Note that the blank is more susceptible to chipping and tear out while turning. That is why I first beveled the corners and used a skew to turn these.
Also, use care when drilling as grain can separate if there are too many chips in the hole as you withdraw the bit.

Charlie, I know you know this, but I would to pass it on to others, Most woods expand and contract with humidity swings (wood moves) across grain more than longitudinal. Cross grain and diagonal grain - to the uninformed will be more susceptible to cracks 4 to 6 months down the road than others.

A few of you might remember Chris "Chriselle" of Shizioka back when I was in Japan also. He had some glass display cases and lots of sunshine through windows. He had a few obvious cracks in the pens he had for sale. Of course, Shizuoka is basically on the coast and has humidity swings. Making sure the blanks are down to 10% or less is important. It is good to google online the specific wood you use in cross cuts to find out its expansion/contraction rate with humidity swings. Hoadley's book on "Understanding Wood" deals with this issue in more detail.

Cross Cuts and diagonal cuts need to be as dry as possible before gluing the tube in and finishing; don't wet sand them and put moisture back in.

leehljp said:
Charlie, I know you know this, but I would to pass it on to others, Most woods expand and contract with humidity swings (wood moves) across grain more than longitudinal. Cross grain and diagonal grain - to the uninformed will be more susceptible to cracks 4 to 6 months down the road than others.

A few of you might remember Chris "Chriselle" of Shizioka back when I was in Japan also. He had some glass display cases and lots of sunshine through windows. He had a few obvious cracks in the pens he had for sale. Of course, Shizuoka is basically on the coast and has humidity swings. Making sure the blanks are down to 10% or less is important. It is good to google online the specific wood you use in cross cuts to find out its expansion/contraction rate with humidity swings. Hoadley's book on "Understanding Wood" deals with this issue in more detail.

Cross Cuts and diagonal cuts need to be as dry as possible before gluing the tube in and finishing; don't wet sand them and put moisture back in.
Click to expand...

Hank, Thanks for adding that info. I suppose stabilizing or at least flooding the blank inside and out with thin CA would be a wise option.

Charlie_W said:
I had a handful of cross grain blanks and decided to prep them and see what I had. These are Ambrosia and Spalted Maple, Walnut, and Cherry. As they were rough cut on a Bandsaw, some weren't square or straight(parallel) and would be a challenge to hold for drilling on the lathe so I decided to turn them round first.
I cut the corners off with the bandsaw and then turned them round (between centers) with a skew. Then gave them a coat of thin CA and followed up with a quick sand with 80G . They are now ready to be drilled and cut to length when they find a kit they like. A couple had cracks which may or may not show when turned to size.

View attachment 220636
Click to expand...
Hello Charlie, Denis Boarder here. I am new to pen turning but doing a lot of practice with the COVID lock downs in Australia, Thanks for the tips on prepping. I have seen some articles on stabilizing the wood before turning and someone suggested using a stabilizing solution?

Wood Stabilisers, Fortifiers and Seasoning Sealers - The Wood Works Book & Tool Co.

An independently owned supply company specialising in fine hand tools and woodworking books. Our web site is one of the richest sources of woodworking information available, with more than 8,000 items.
www.thewoodworks.com.au www.thewoodworks.com.au
...

POLYCRYL FORTIFIER

It's somewhat expensive so I was wondering if there is a cheaper option. (CA Glue on the inside seems a good option) but does complete immersion make it 'foolproof approach'?

I am using Australian timber burl blanks such a Tiger Myrtle.

Thanks Denis

Denis,
Many folks use Catus Juice which is a stabilizing product which is used with a vacuum chamber for better penetration than simply dunking the blanks in a solution. These are baked to cure after the vacuum process. This is especially good to do with punky, troublesome woods.
google Catcus Juice. Curtis Seabeck sells this along with the stabilizing chambers.
