Hi all,

A fellow penturner and I just took possession of our new Beall Pen Wizard. We went in together and are trying out a co-op arrangement. I went to the IAP library and printed the template for the index wheel. The trouble is it prints out almost twice the size of what is needed. The index wheel is about 3-1/2" diameter and the template prints out at 6" in diameter.

Can anyone help?

Very excited to get started with this new tool.

Signed-In Members Don't See This Ad
Congratulations on your purchase. When you go to print it out you should be able to resize it.
When I first got mine I did all the mods that was suggested mounting it on a solid base with angle to support it. There is a lot of good advise here. Another mod I did was to mount a small drill chuck to be able to hold lace bobbins and other small items. We have a distributor of the PW in AU that has a 3 jaw chuck similar to the Nova G3 that allows larger items to be mounted, it's made by Proxxon Part no 21-114 $115.95AU available from http://www.cwsonline.com]. Carroll's Woodcraft Supplies.
When you have got it set up, put some scrap blanks with 1/4" bore in there and make alterations on the gear ratios and mark them on the different blanks, so that you will be able to show clients the different patterns available and have the gear ratios to replicate them easily without having to trial and error them.
ENJOY
Kryn

Last edited:
Thank you Kryn and Grampy122. Kryn is either of the chucks in links that Grampy122 posted familiar to you?

Kryn, I've purchased a small 1/4" trim router to mount on the Pen Wizard. Do you have any experience with this?

Thank you both,

Mark Elmer

gmcnut said:
Thank you Kryn and Grampy122. Kryn is either of the chucks in links that Grampy122 posted familiar to you?

Kryn, I've purchased a small 1/4" trim router to mount on the Pen Wizard. Do you have any experience with this?

Thank you both,

Mark Elmer
Click to expand...

Hi Mark, one of the chucks is a micro chuck, that is used for holding very small drill bits, the chuck I used is a 3/8 capacity chuck, that was fitted to the indexing block, by drilling and tapping it to suit the chuck, and using a cut off bolt.
I used a Makita trim router. Will load details and pictures tomorrow.
Kryn

Hi Mark here are some pictures of the drill chuck set up

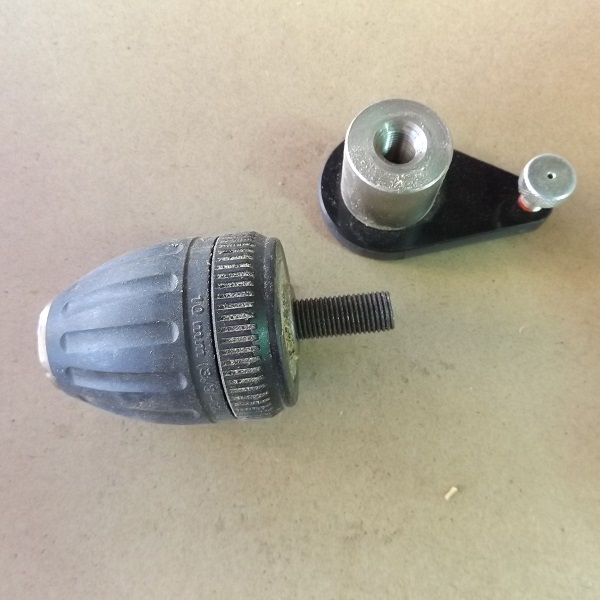

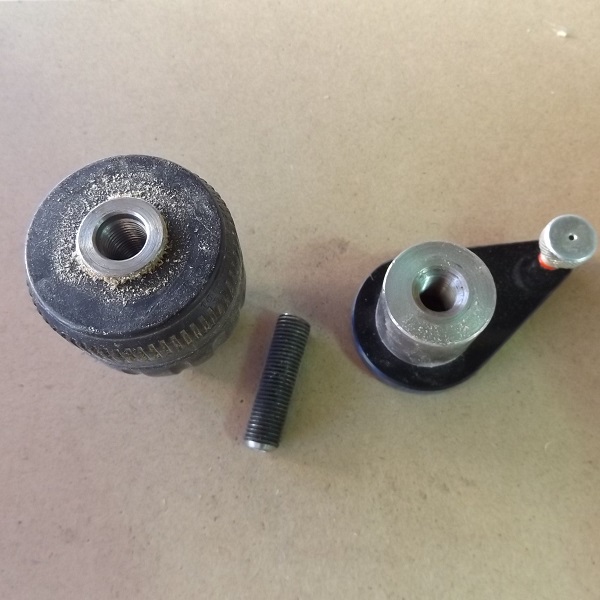

Drill chuck showing 3/8 UNF threaded bolt adaptor, and modified engagement block

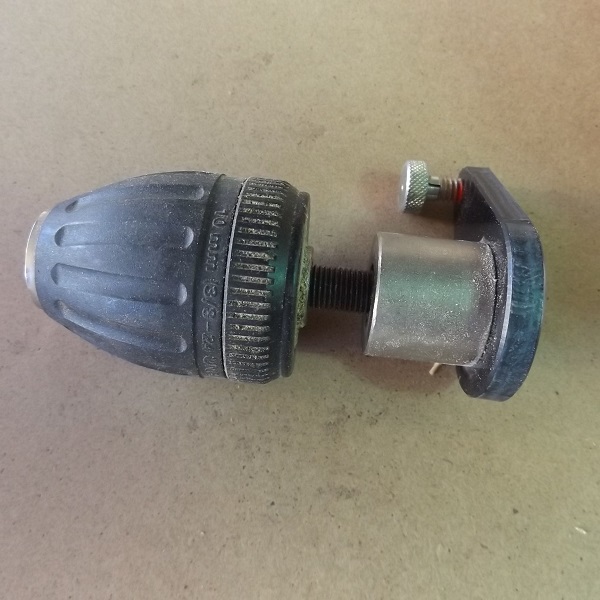

Partly assembled
chuck 1.jpg
Assembled ready for tightening.
chuck 2.jpg

Kryn

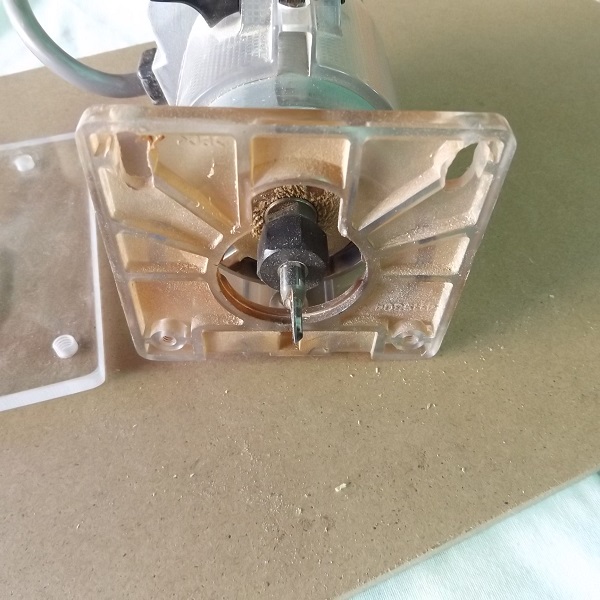

Showing laminate trimmer mounting set up.

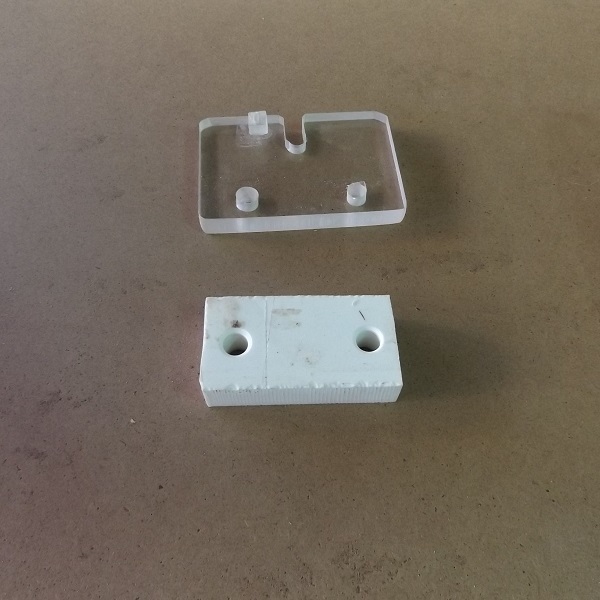

2.75" X 2" X 5/16" clear perspex adaptor converter block and 2.25" X 1.25" X .5 Corian spacer Block
Showing assembly of plates, large plate 5.25" X 3.5" X 5/16" clear mounting base plate.

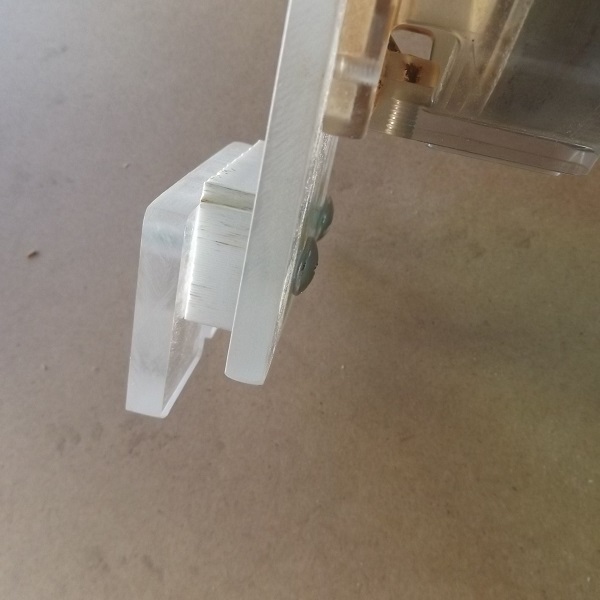

Trimmer mount slotted 5/8"

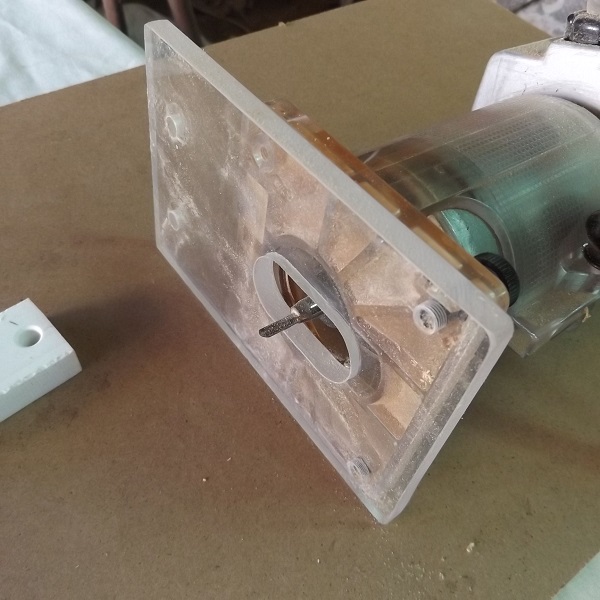

Trimmer mount attached to base plate

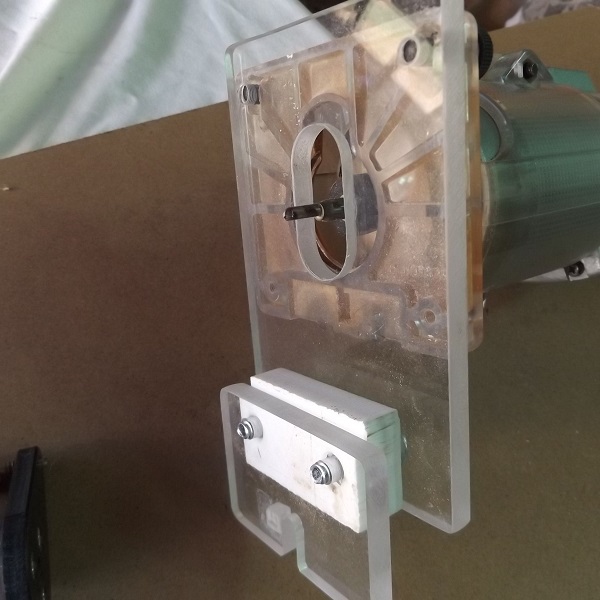

Showing complete set up ready to mount to PW using 1.25" X.25" UNC Bolts. Ideally bolts could be 1.375" X .25" (13/8" X 1/4")

Hope this helps. If you want more details I'll try to do a drawing plan.
Kryn
