Overhead dust collection boom?

Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad
It seems like I have seen a bunch of those recently in the magazine. I looked at one recently, I don't know where..its tough getting old..that was plumbed for air, vacuum, and elec that used barrel bolts for locking. It was hinged both on the wall and the arm, and the arm was fitted with barrel bots on the middle hinge. It was set up for festool's dust extraction hose tho....


I also use a couple of these at my lathes.
I also bastardized one for my workbench for holding the Festool Dust extractor line
I have two lathes bought two but it was in the way for my metal lathe so I repurposed it.....
The one I do use on my wood lathe is attached to the ceiling.

jttheclockman said:
I just bought this system a couple months ago but have not yet got a chance to set it up. I mainly bought it for my lathe as well as my scrollsaws. I will be drilling some dust acrylic projects on the lathe and need to be able to add more direct dust collection.

https://mullettools.com/?msclkid=64e4e15933a91567df5287b1af5d144d
Click to expand...
I was looking at that just before I posted here. It looks pretty nice but I was hoping to finesse something that would just use my existing 4" hose and fittings. I'll zip tie the hose on, but I can't wrap my brain around how to put a joint in it that will secure in various positions.

sorcerertd said:
I was looking at that just before I posted here. It looks pretty nice but I was hoping to finesse something that would just use my existing 4" hose and fittings. I'll zip tie the hose on, but I can't wrap my brain around how to put a joint in it that will secure in various positions.
Click to expand...
Again because I am a tool nut years ago I bought a system that was designed for over the tablesaw. Now my memory is not what it use to be and I can not even remember where the parts are these days because I never put it together. But it is designed to collect dust on top of tablesaw. May want to look into those type designs. There are different devices out there that can support a 4" hose if you do a search and select images.

https://www.bing.com/images/search?q=mullet+articulating+dust+collection+arms&form=HDRSC3&first=1

https://www.flextraction.co.uk/id/hood-positioning-device-articulated

I bought me of these from the returns section at a Rockler and mounted it to my ceiling. Swing to the left and connected a 4" hose for the lathe. Swing to the right and ran a 2" hose through the baffle for my CNC Router/Laser. Will use it again in the new shop next year.
Dust collection arm

jttheclockman said:
Again because I am a tool nut years ago I bought a system that was designed for over the tablesaw. Now my memory is not what it use to be and I can not even remember where the parts are these days because I never put it together. But it is designed to collect dust on top of tablesaw. May want to look into those type designs. There are different devices out there that can support a 4" hose if you do a search and select images.

https://www.bing.com/images/search?q=mullet+articulating+dust+collection+arms&form=HDRSC3&first=1

https://www.flextraction.co.uk/id/hood-positioning-device-articulated
Click to expand...
That flextraction looks nice, but sounds expensive.
Woodchipper said:
Am I dreaming or did Sawstop offer this setup as an option?
Click to expand...
They did. I believe it was a secondary to catch dust over a table saw in addition to the standard dust port, but I could be wrong.

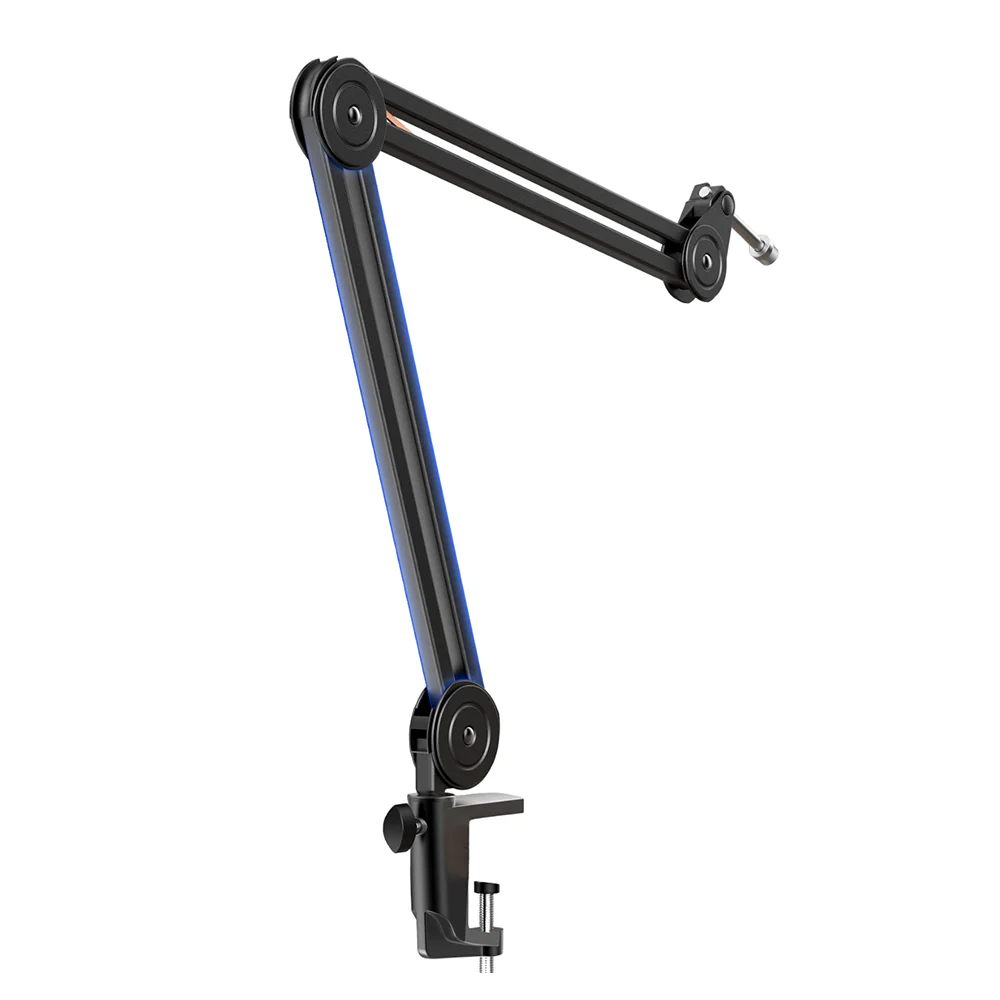

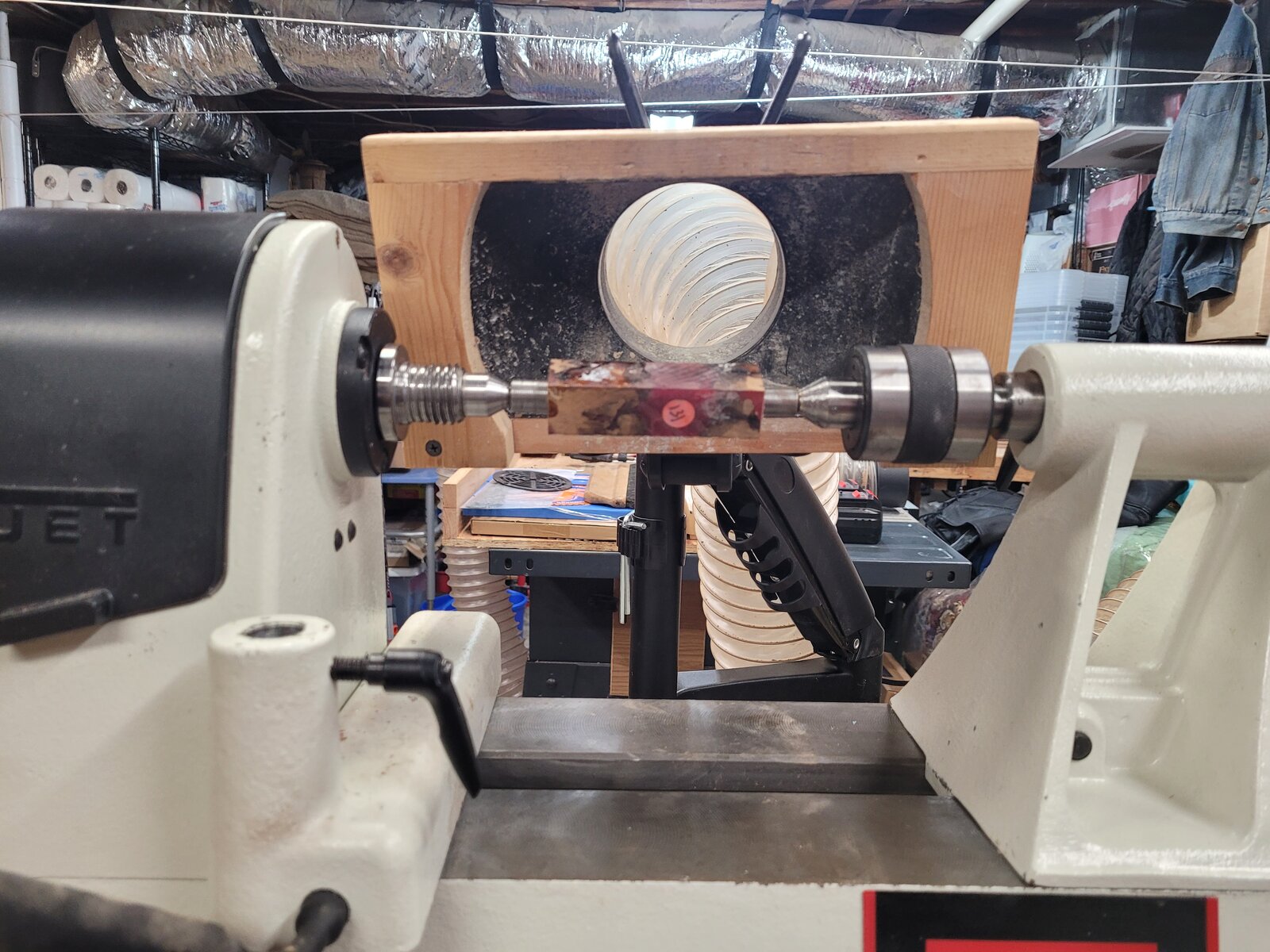

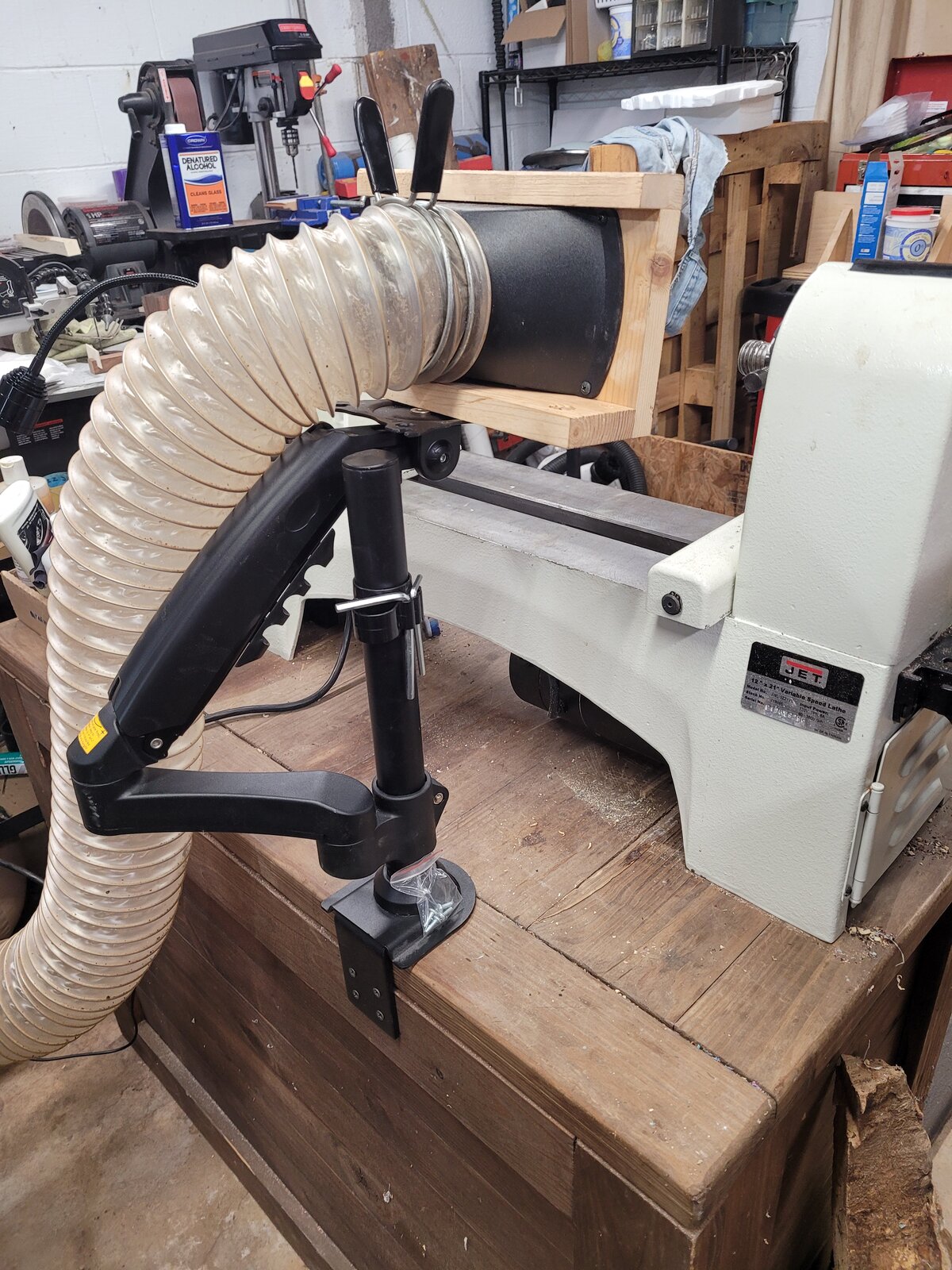

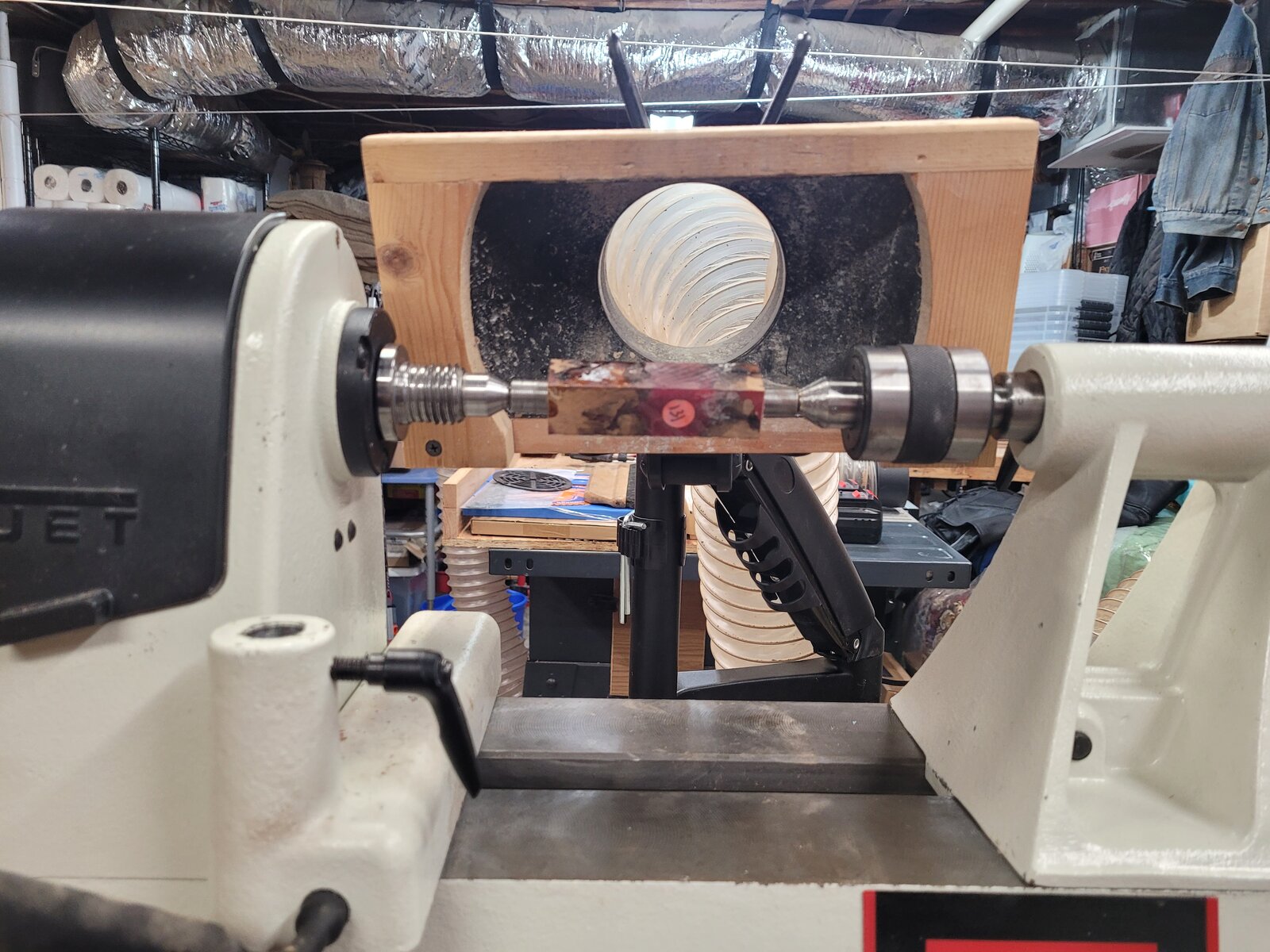

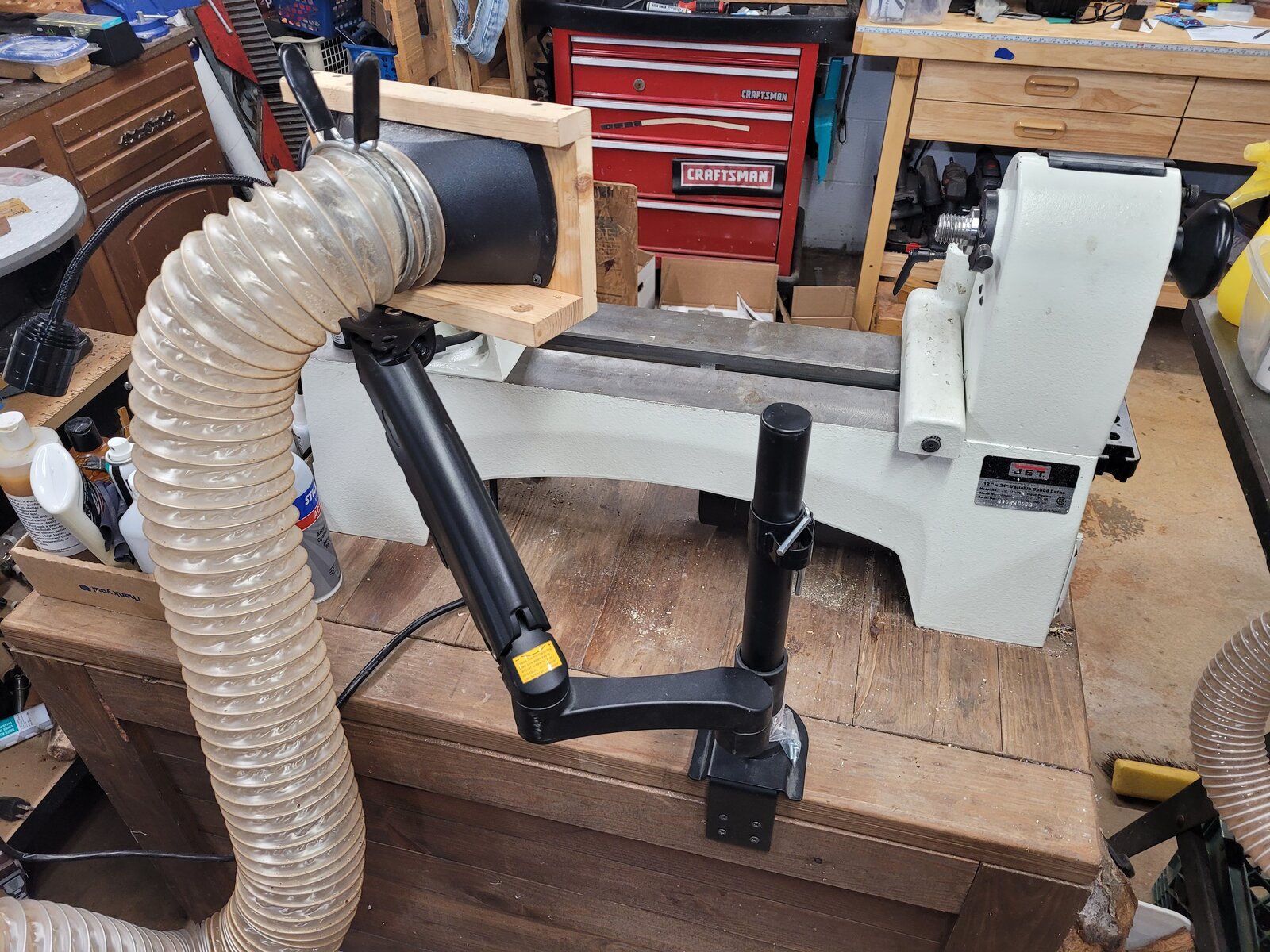

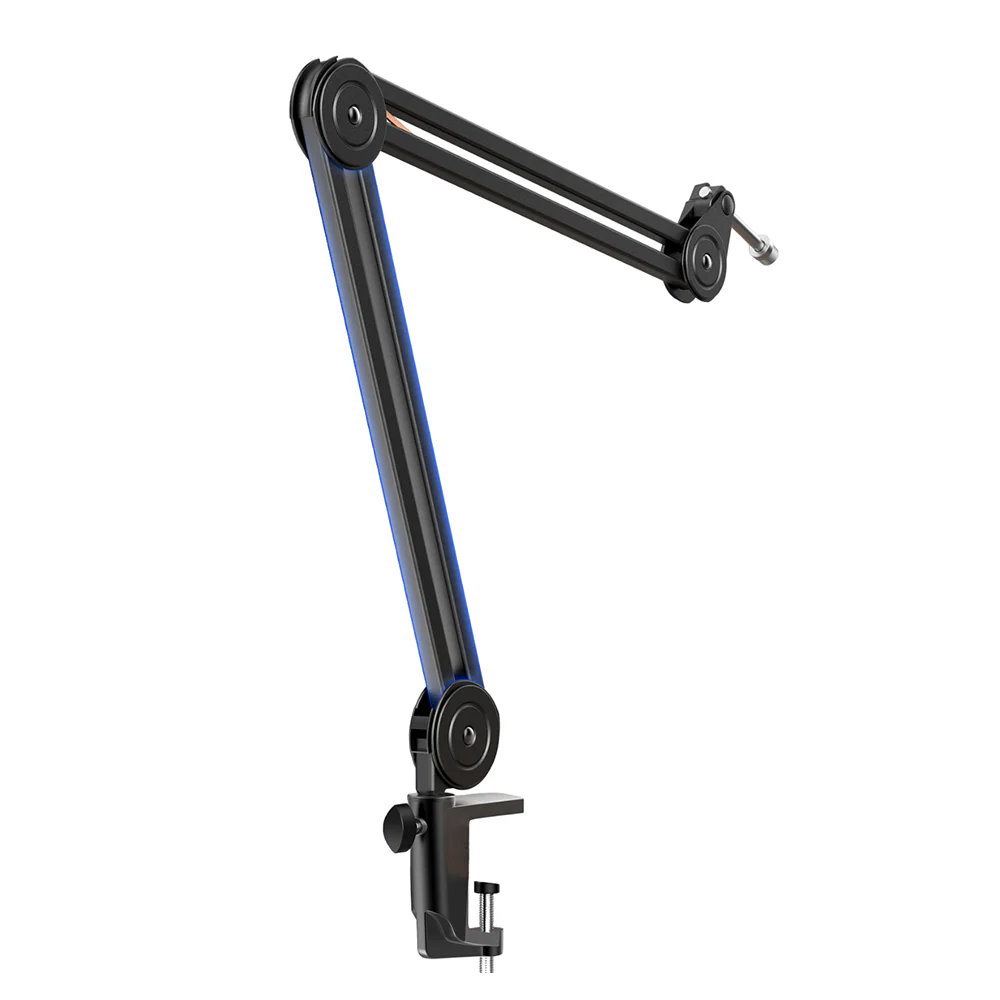

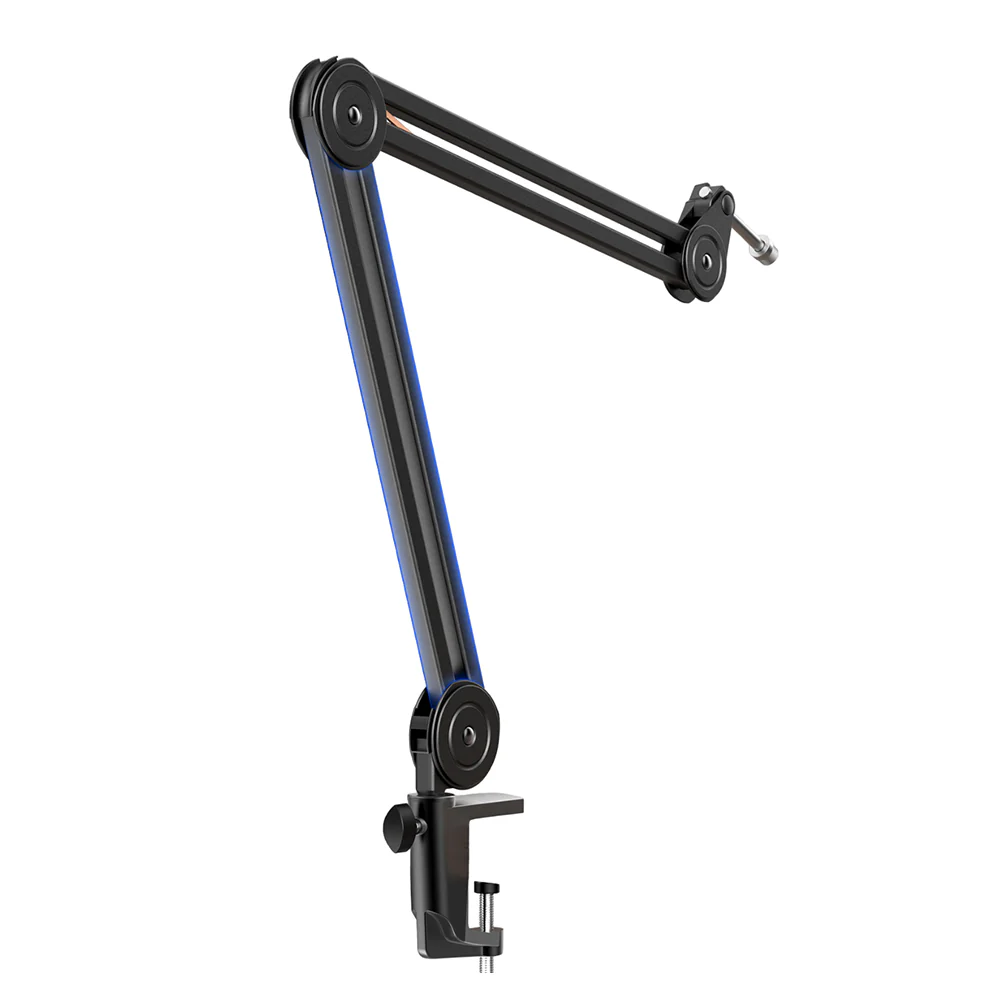

So here's the solution for the time being. It will surely get tweaked while I continue to search for a more versatile option or arrangement. At least it's fairly adjustable. I'll have to add some weight to get the arm to stay down lower since it was made to hold something heavier in place.


randyrls said:
Machinists use an arm with a locking knob in the center. It has two bars, and swivels at the top and bottom. It locks very securely at BOTH the top swivel, bottom swivel, and center joint. It doesn't flex at all. It is used to hold dial plunger micrometers. The mechanism is simple and you can take the thing apart to see the way it works.

https://www.littlemachineshop.com/products/product_view.php?ProductID=4521&category=1310310429
Click to expand...
I was looking for something similar to this, but heavy duty enough to hold the dust hood and hose in place securely and that I can mount to the ceiling. I'm lazy enough that the monitor arm will probably stay there for a long time if it works well. The shop (corner of the garage/basement) is a perpetual work in progress and small enough that I need to move things around to work on different projects.
