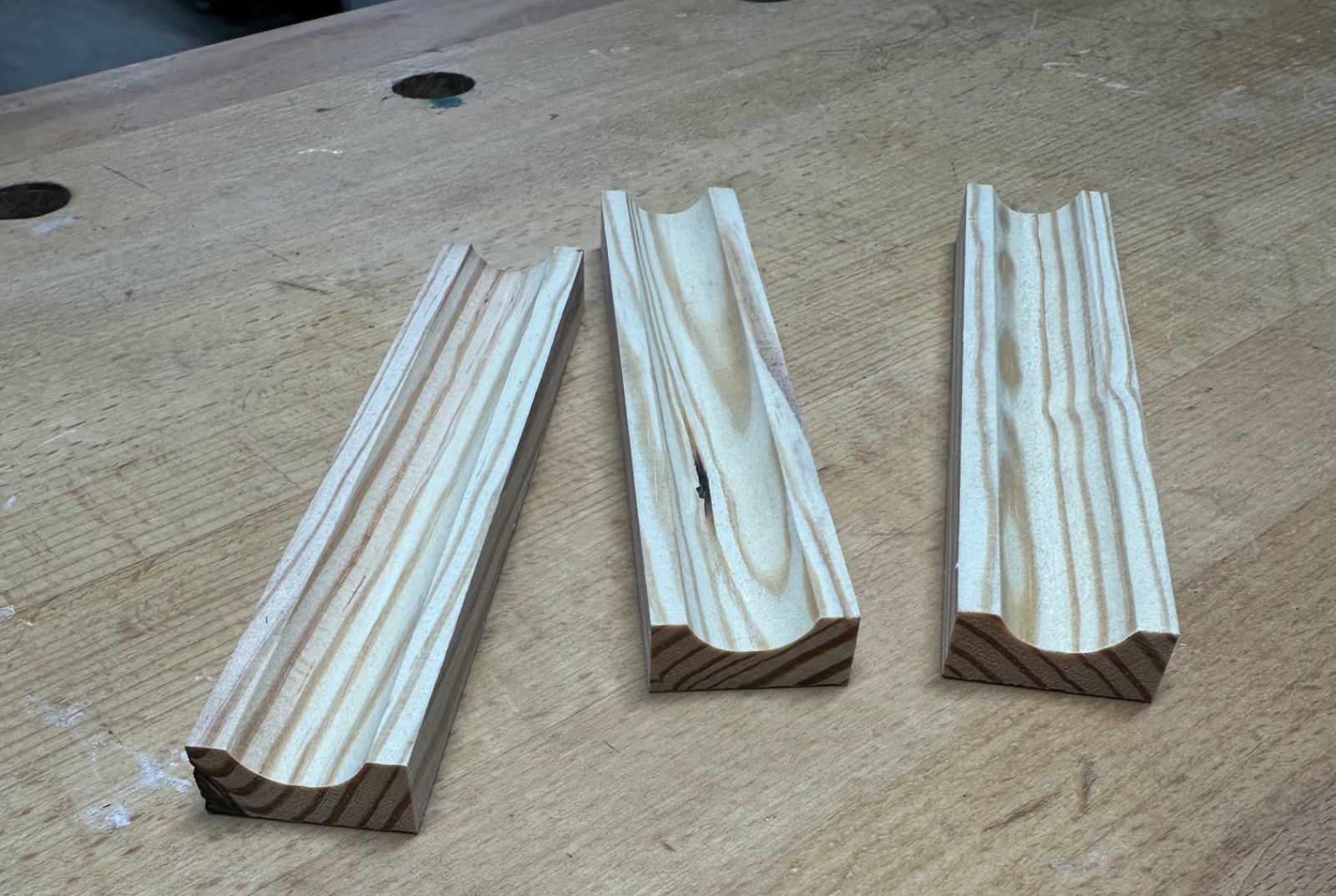

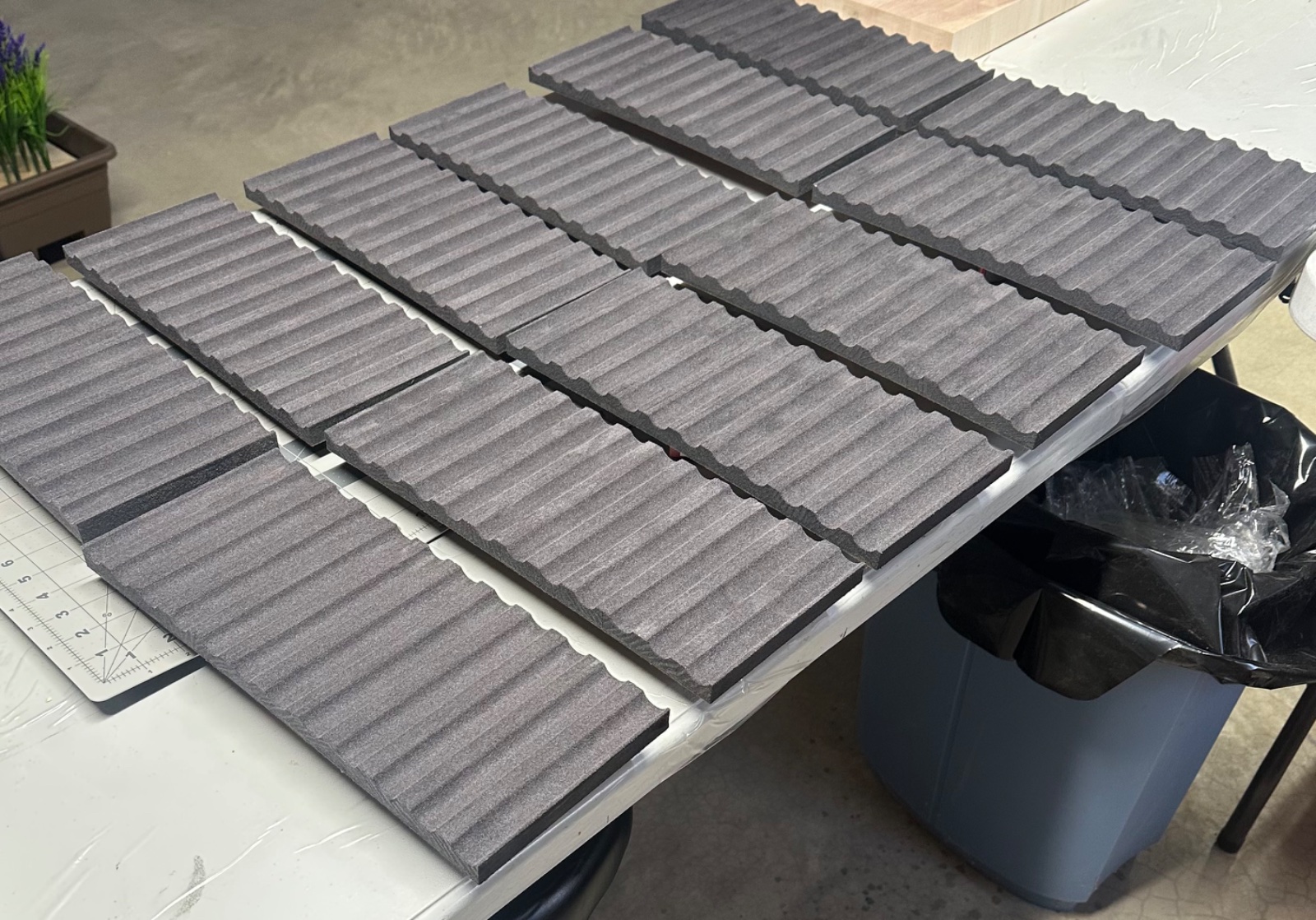

Just getting started on new display trays for pens. I'm making 12, enough for 144 pens. I've made similar ones, but I made them too wide and not enough space between pens. They should fit three deep on a standard craft show table. These inserts were made from 1 1/4 pine with a cove routed on each side and then sliced off. I decided on a final length of 6 inches. Twelve are glued together on a backer board and then flocked a charcoal gray. Next step is to make all the boxes for them to fit into, probably 1 1/2 deep so the pens won't slide off easily. Thinking I'll make those out of maple.
New Display Trays/Boxes
- Thread starter KenB259
- Start date
Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad
MPVic
Member
Very professional looking - the flocking adds a nice backdrop for your pens. How did you set up your router to index each groove?
Didn't have to, the stock was 1 1/4 by about 6 x 13. I routed the 1 1/4 side then cut them off and rerout
I really like what you are doing here Ken!
Are they going to be boxes (w/lid) or trays (open top)? If trays, you might want to think about keying them so that the sticks down past the sides a little bit so that they stack and stay stacked.
Can't wait to see the end product!
Are they going to be boxes (w/lid) or trays (open top)? If trays, you might want to think about keying them so that the sticks down past the sides a little bit so that they stack and stay stacked.
Can't wait to see the end product!
No lids and I've been debating whether to key them or not.
sorcerertd
Member
Gross! Sorry, I couldn't resist.
They look really nice and will certainly be sturdier than anything I have seen available for purchase.
I have thought about making some with fabric and expanding foam using a form, but I'm not super motivated since I don't do shows. There's a thought for someone, though.
