Looking for instructions

[Monty]

I picked up a bunch of pin kits for pennies on the dollar a few weeks ago. One of the kits is an old woodcraft number. It's kit number 123106. It's no longer on the Woodcraft website. Does anybody have instructions for this kit because a lot of the pieces are all mixed up and I'd like to be able to straighten them out and see what I have. Any help would be appreciated. Thank you.



[Darios]

Might want to investigate the 123108 as a possibility.

It /might/ be the same kit with a different plating - at least according to this thread

Need help ID'ing an "American" Pen kit

Recently purchased a used lathe and the owner had 10-15 kits of Woodcrafts "Cl Amr Ballpoint Gold". #123106 It doesn't look like a click pen, I'm fairly sure it's a twist. I cannot find this pen item number on Woodcraft's site. Can anyone help me locate the instructions and bushings for this...

www.penturners.org



[Wayne]

Try Woodcraft tech support.

18005354486



[carlmorrell]

I keep everything. The earliest woodcraft kits, had a part number on them for the directions, but no reference to the kit #. Some later kits did, the closest I could fin is #123108. Do you have a name for the kit? Photo of the parts might help.



[RichAldrich]

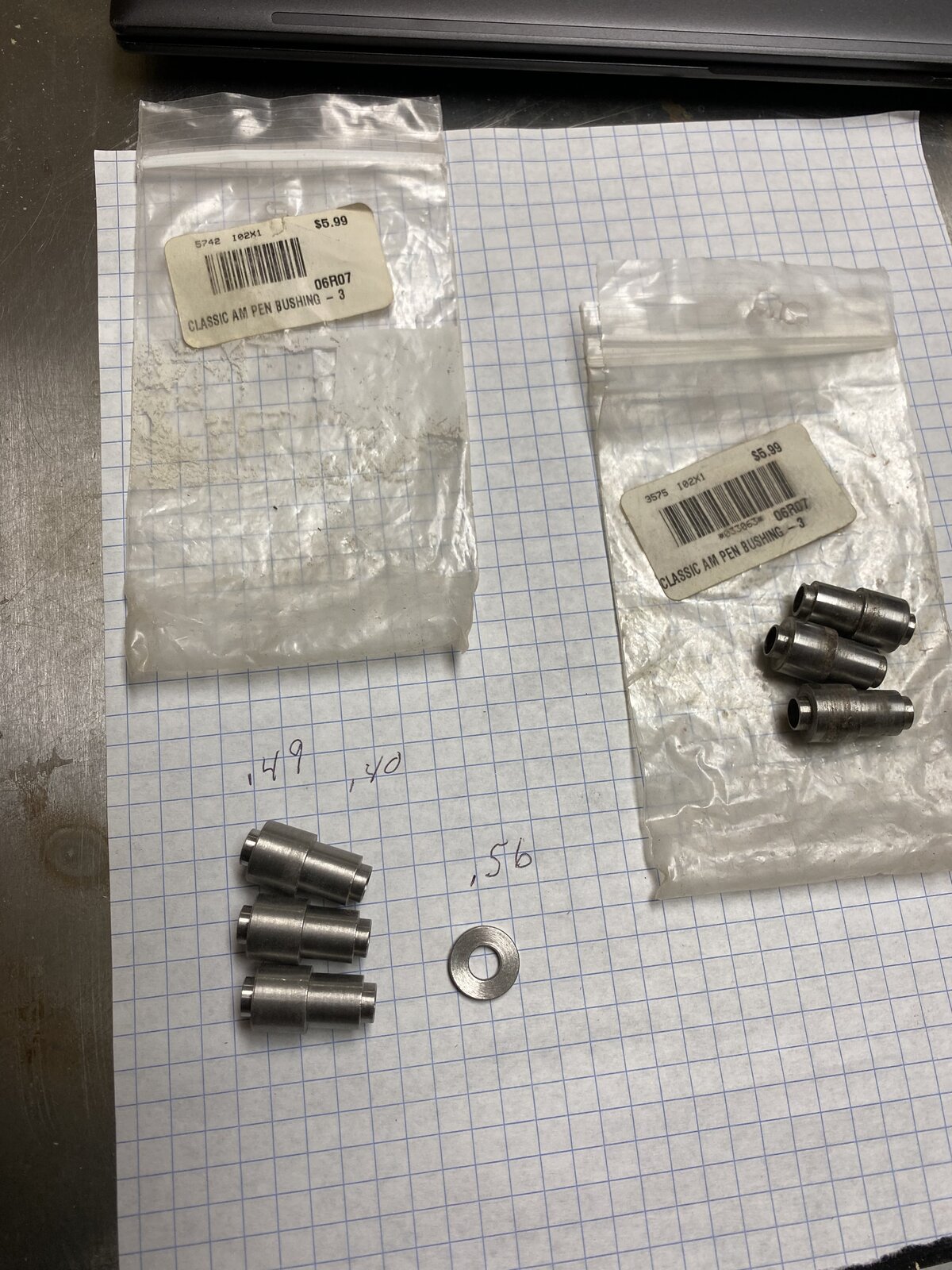

I have the plans for 123108. Do not see a 123106. Bushings for the 123108 are 06r07. Large end .49. Small end .4. Washer is .56. The new set and used set caliperes the same.
