I'm in the process of updating the Suppliers Tube and Bushing PDF Charts for Crooked Mill.

I don't know the manufacturer of these pens, so I can't cross reference them with other suppliers.

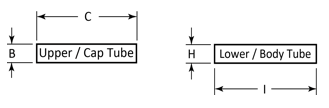

I need most of the tube lengths "C" & "I" for their kits. See below.

Using a caliper measure bushings as 3 place decimals and lengths as 2 place decimals.

Can anyone help me here?


  • Edward Jr Twist BP (Dayacom)
  • Elegant Executive Twist BP - Sierra
  • Fancy Click Pencil
  • Gentleman Jr Screw Cap RB or FP - Large (Dayacom)
  • Hex Magnetic Cap RB or FP
  • Laser Pointer
  • Magnet - Expandable Pickup
  • Magnetic Cap FP
  • Razor - Mach 3
  • Razor - Safety
  • Retro Screw Cap RB or FP
  • Sketch Pencil
  • Slimline Twist BP
  • Steampunk Twist BP
  • Toolbox Pencil - 5.6mm Lead
Thanks,

Last edited:
Signed-In Members Don't See This Ad
I will check to see if I have any. What kit of mini flashlight are you looking for? I think there is a little keychain one and then the pen ones that either click or you press the clip into the body, which are also mini flashlights.

Joe,

Thanks for your reply.

I'm looking for any of the kits above or more.

I do a search on each website for whatever I can find, sometimes I have old kits from a previous search, also on the list, I'll always keep these on the list.

I'm not sure which mini flashlight this is. It looks like a pen size and has a click.

I'll take anything that you can offer.

Hi Wayne; I have not used any of their kits, but they are Dayacom. Have you tried reaching out to them directly? I looked but no dimensions on the site and no instructions either.

I have a few:
Retro Rollerball: 12.5mm tube is 1 7/8" long and 10.5mm tube is 2" long
Nexus: 2 - 7mm tubes, both are 2 1/8" long I
Ornate Pearl: 3/8" tube 2 15/16" long
Ivy Twist: 7mm tube is 2 1/4" long and 8mm tube is 1" long
Officer Twist: 3/8" tube is 2 13/16" long

I hope that helps.
