Craft supply, cigar pen tube info

[zorro9]

Looking to tube size and length as instructions do not have, nor does the bushing spreadsheet.
Thank you



[sorcerertd]

There is some info for the cigars here: https://www.penturners.org/resources/b-t-craft-supplies-usa-bushings-and-tubes-revised-8-13-2022.27/
Apprentice or Artisan anyway.



[Edgar]

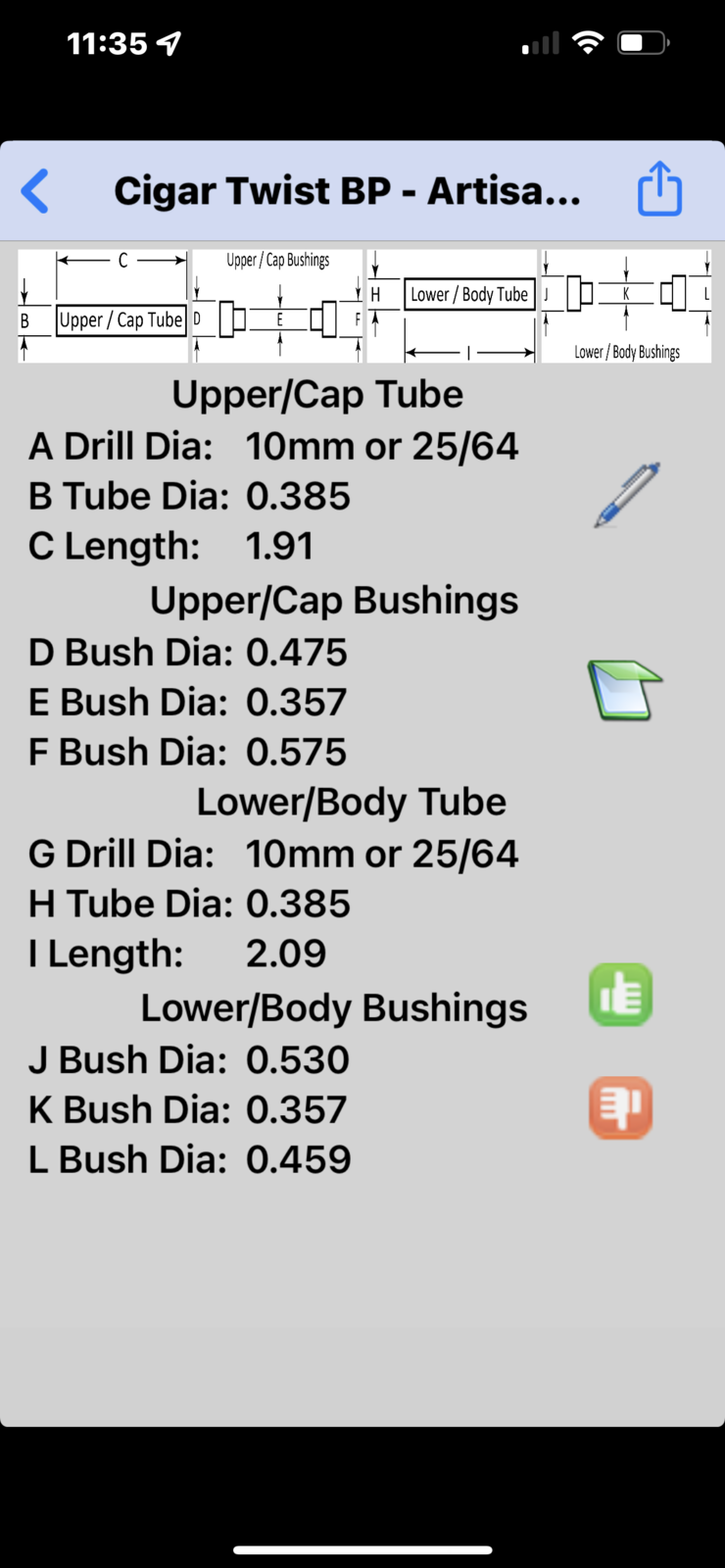

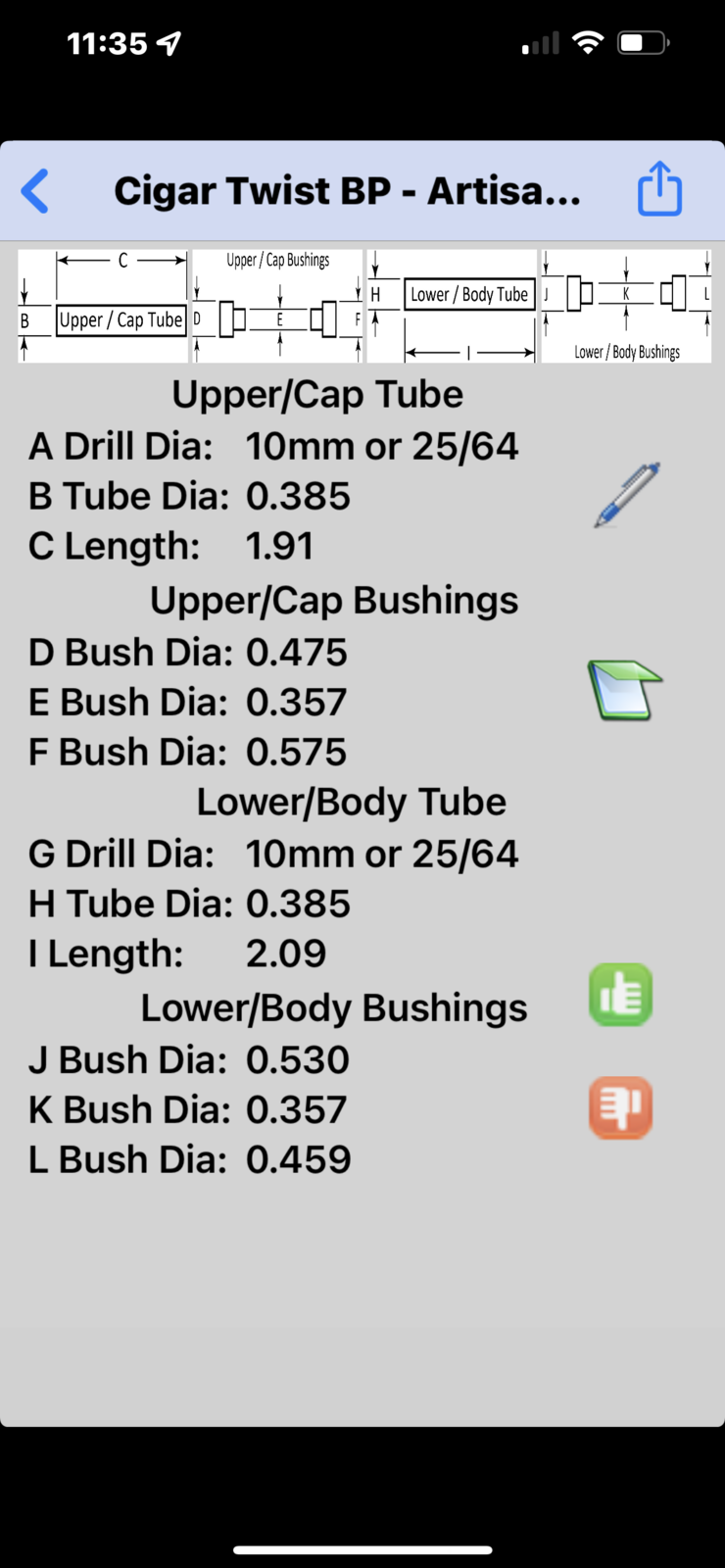

From the Bushings & Tubes app..



[hooked]

I am not sure which kit you have, but I just made one (artisan) and length is dependent on what type of cigar you like. For example, I made my tubes 5.5 inches long total since I know my recipient smokes robusto size. When you press together, the center ring also adds some length.

If you got the same holder, it also requires a 24.1mm (61/64)Forstner bit to bore out for the tube set.



[zorro9]

Thank you all for your help.
