cherry as a pizza oven door?

Signed-In Members Don't See This Ad
GoodTurns

GoodTurns

Member
Joined
Apr 20, 2007
Messages
4,136
Location
Bowie, MD, USA.
A friend of mine has built a professional style pizza oven and needs a door/plug for the chute. The oven fires up very hot, but the end of the chute is not close to the actual fire. I have several nice pieces of cherry burl and would like to make the door from it. Does any know how fire-resistant cherry is in the scheme of things?

Signed-In Members Don't See This Ad
A properly made pizza oven will clock between 1500 to 1800 degrees on startup and should cook somewhere in the 850 to 1000 degree mark. Your cherry will not last very long.

What I have seen done is use a piece of steel, then some fireblanket insulation then your wood. Even then it may not last a very long time, and any finish will not last on it any appreciable amount of time. You'd want at minimum 2" of the insulation blanket between the steel and the wood.

A good forum for that sort of stuff is that may have a better answer than I do.
http://www.fornobravo.com/forum/

I lurk over there and drool and daydream a bit when I'm feeling down.

WARNING...you will spend lots of time and lots of money if you check out this site, it's as bad a pen turning site, but for foodies.

you woudl have to have insulation between the heat and the wood but I know it can be done to where the outside of the oven is only warm to the touch. it is the opening and closing of the oven that would punish the cherry. they use those really long paddles for a reason.

Daniel,
he's done a great job building the oven...it is almost un-noticably warm to the touch after cooking for hours, he spent a lot of time and $$ doing it right. I'm going to listen to Justin and try to find a small piece of fireblanket and steel to insulate the door...don't want to make him a throw-away door!

How big makes a differance You might concider two pc's of stainless stee, with insalation in between them You could mount the wood to it. It could even overlap a little to hide the stainless

Might want to take a look at using 'fire bricks'. They are light as a feather (sort of) and they are easy to cut and shape to the size you need/want, I use them to make my forge.....just stack them and put the 'T-Rex' burner in and fire it up.....the heat stays inside!

I picked up my bricks at a 'Stain Glass' shop.....they have all kinds of stuff for melting glass and all.

Keep us posted and take a picture of the door.......or you know what they say.......it never hapened!!! LOL


Barney

titan2 said:
Might want to take a look at using 'fire bricks'.
Click to expand...

DING DING DING!!! We have a winner!

Ok, I'll second the fire brick. It will insulate a kiln well enough to fire ceramic
on the inside and be warm to the touch on the outside.

I think the challenge would be to find a material to use for screws/bolts etc.
It's all well and good to use an insulating material, but if your screws heat
up on one end, that heat will transfer right through the screws..

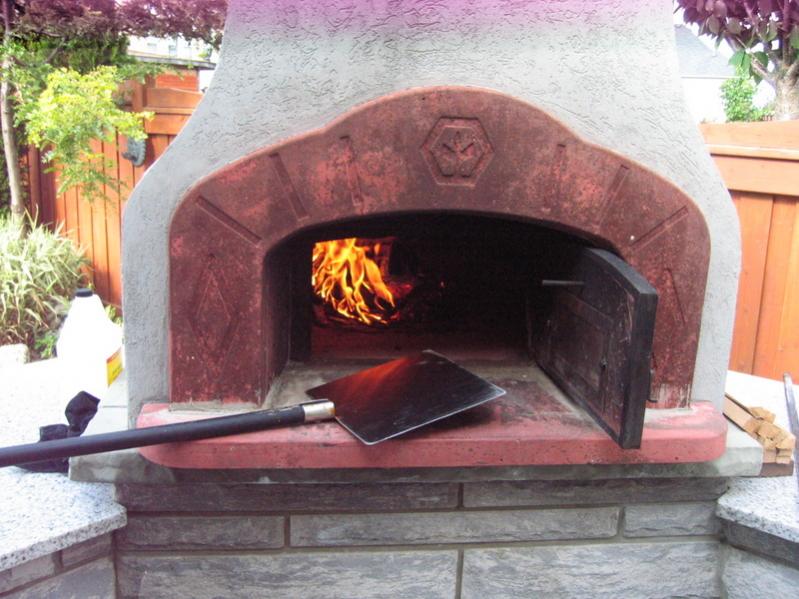

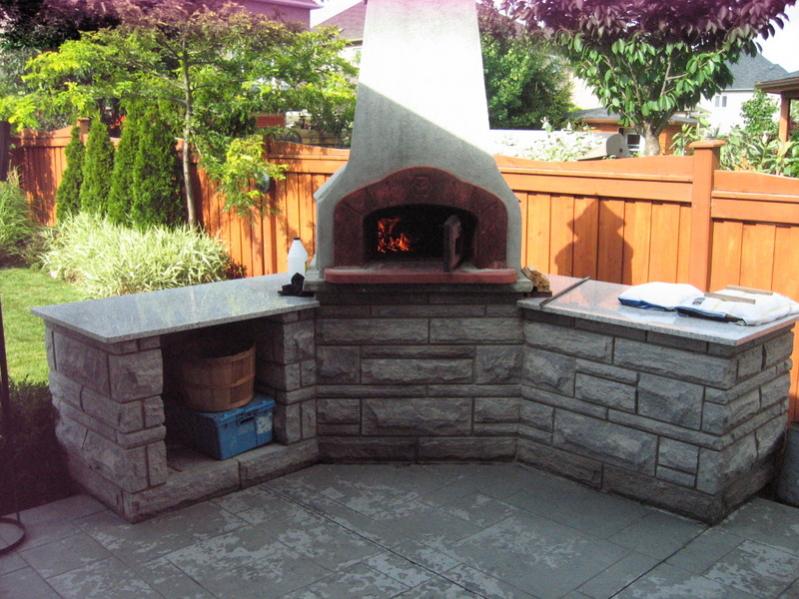

Pizza oven

Steel door is the way to go. It gets "hot", really hot inside. Built this "baby" since there's notin' better than homemade pizza. Door imported from Napoli where they know a thing or two regarding pizza.


Attachments

  • 001.jpg
    85.8 KB · Views: 1,408
  • 003.jpg
    76.3 KB · Views: 1,047
As a stove and fireplace guy, I would recommend all three, use Stainless Steel and bend this into a mold, then you can actually buy a cast-able refractory (sold in a Hearth store...I know of a company named Rutland who makes some ( http://www.rutland.com/productinfo.php?product_id=22 ) This could be the base, then add a foil backed insulating fireproof blanket. I know it by the name of Kao-wool, but it is essentially a ceramic blanket. (Also found in a hearth store) Then use the cherry as a door to "pretty" it up.

Hope it helps :)

witz1976 said:
As a stove and fireplace guy, I would recommend all three, use Stainless Steel and bend this into a mold, then you can actually buy a cast-able refractory (sold in a Hearth store...I know of a company named Rutland who makes some ( http://www.rutland.com/productinfo.php?product_id=22 ) This could be the base, then add a foil backed insulating fireproof blanket. I know it by the name of Kao-wool, but it is essentially a ceramic blanket. (Also found in a hearth store) Then use the cherry as a door to "pretty" it up.

Hope it helps :)
Click to expand...

that's about where I was headed.... a bent stainless shell with the fire brick (but my friend probably has some of the rutland castable left over), then the cherry facing. I'll look for the fire blanket as well.

Thanks for everyone's input!

wood-of-1kind said:
Steel door is the way to go. It gets "hot", really hot inside. Built this "baby" since there's notin' better than homemade pizza. Door imported from Napoli where they know a thing or two regarding pizza.
Click to expand...
Your oven is very beautiful. You did a very nice job of building it. I bet the pizza is real good.
