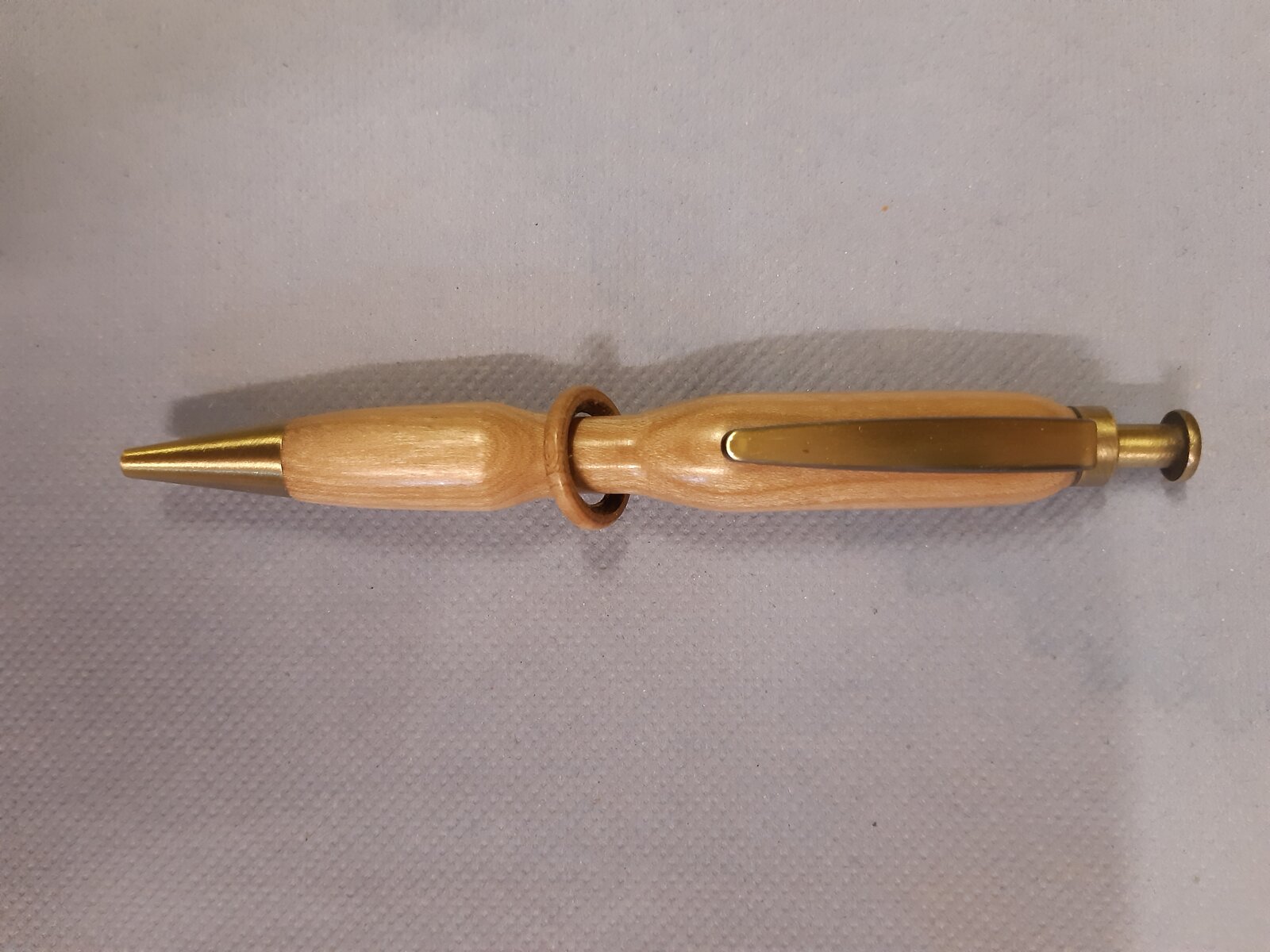

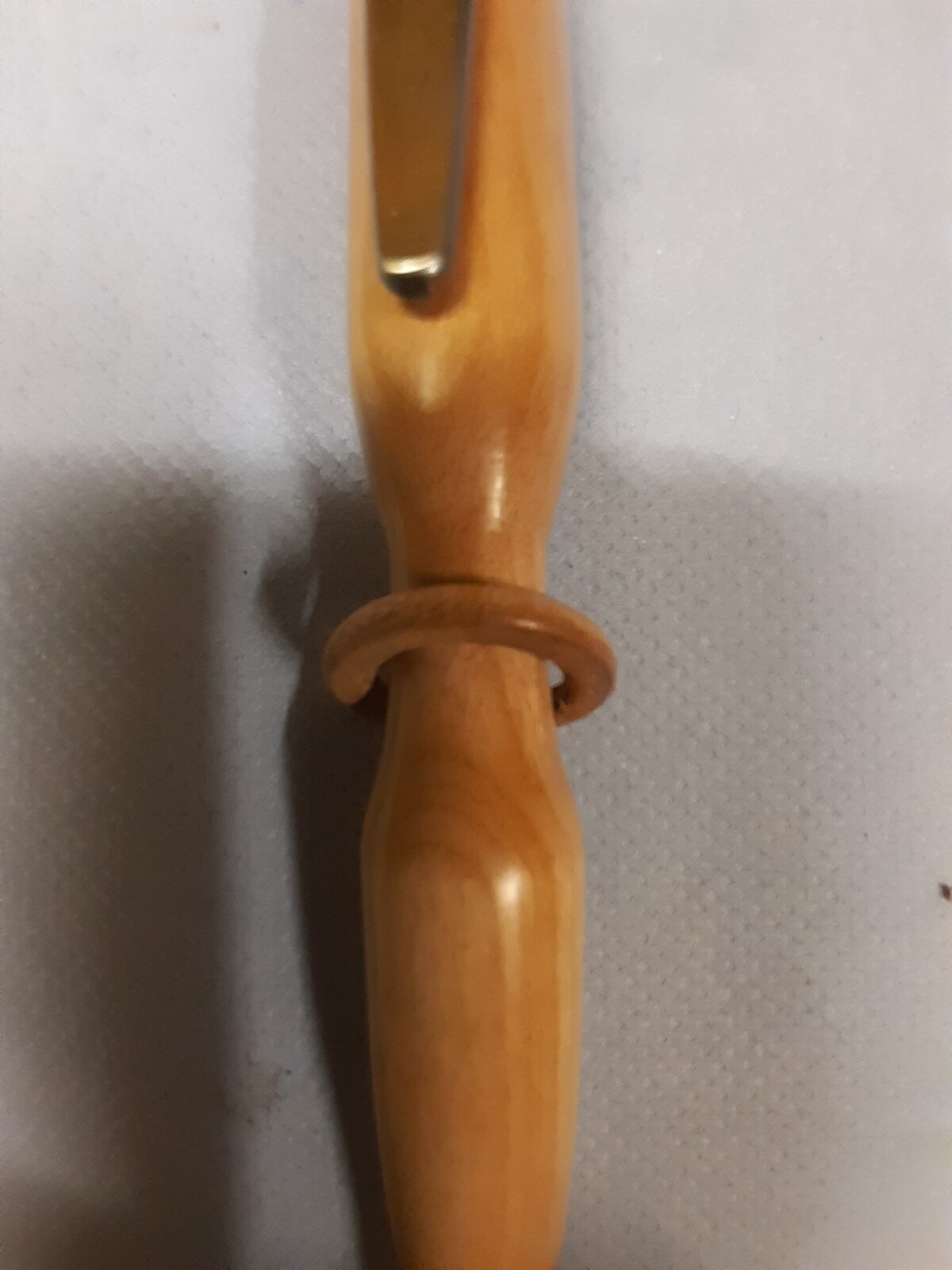

Not the most attractive Pen but a challenge in turning. For me anyway. Don't think it win any design awards and not a very practical Pen,


Attachments

  • 20210129_130905.jpg
    209.2 KB · Views: 257
  • 20210129_131634.jpg
    152.1 KB · Views: 223
Signed-In Members Don't See This Ad
I think it is GREAT !!!! . Well done !!!

But how do you change the refill ?????

The nib screws off no problem. I made my own ring turning tools from Masonry Nails.
When you turn the ring not alot of wood between the tube possibly about 1.5 mm
May make another and try to put a bit more style in it.
Thank you for your comments.

The Kit used is the Atom2 from Prokraft. Living in the UK I use them alot good service. Don't know about getting them in the US.
I expect with the choice you have there is probably a US equivalent.
Thanks again for your comments.

Not a pen but Captive Rings.
Humongous said:
Would you mind showing a photo of your custom tools? I'm intrigued. The ring is very nicely done.
Click to expand...


Attachments

  • IMG_20210115_123029.jpg
    184.1 KB · Views: 152
  • IMG_20210115_123041 (1).jpg
    IMG_20210115_123041 (1).jpg
    159.9 KB · Views: 159
  • IMG_20210129_183741.jpg
    149.3 KB · Views: 147

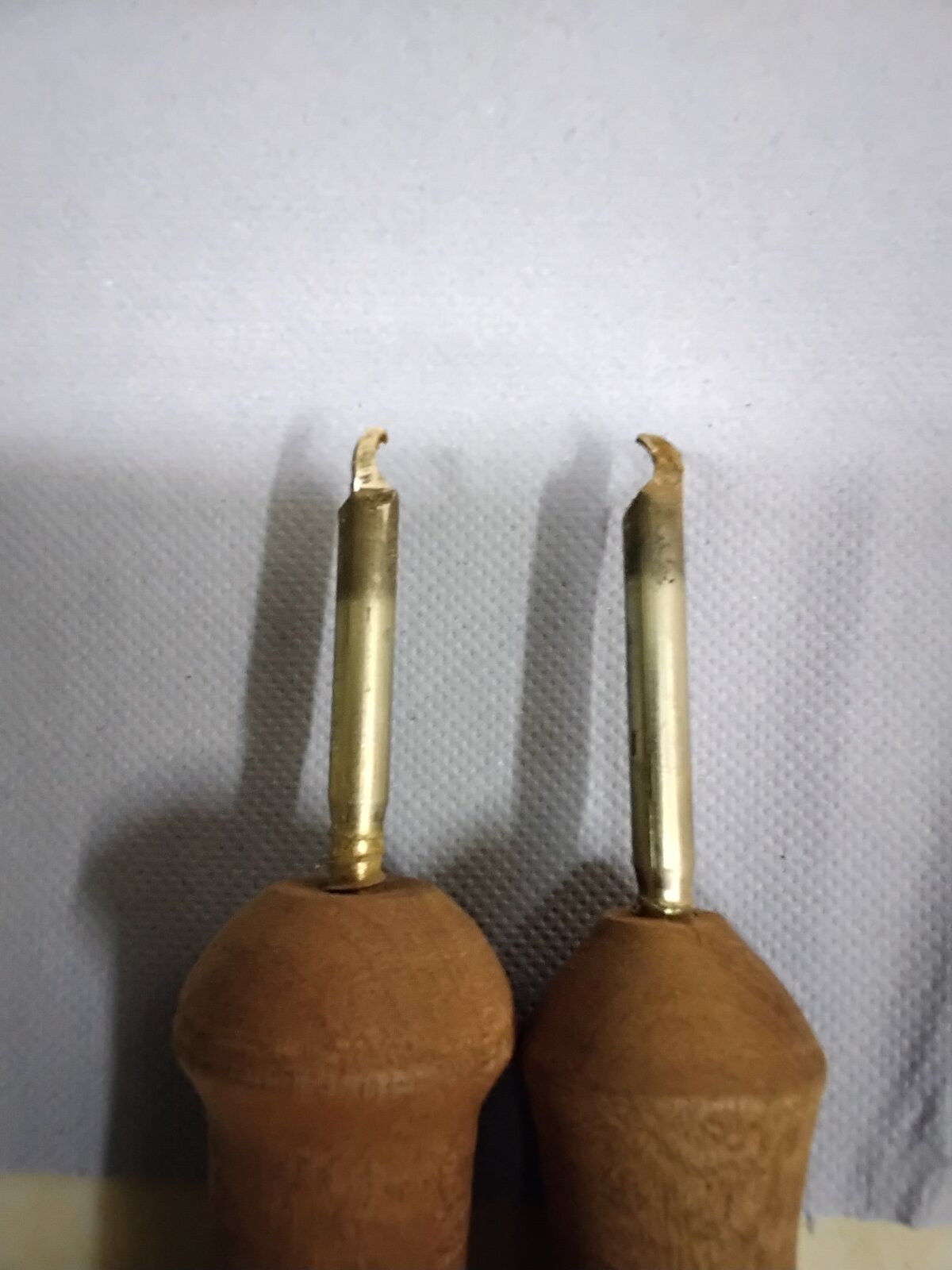

They are quite small and think I used a Masonry Screw but you could form them with any hard material then grind them. I made these years ago hope this helps.
You do need to form a right hand and left hand.
Hope the photo helps.


Attachments

  • IMG_20210129_183741.jpg
    149.3 KB · Views: 135
I am very impressed with the arrow / rings / cup. Steam? Glue? Something I missed?

Would you care to give me a hint (or a web link)? Thanks!

penicillin said:
I am very impressed with the arrow / rings / cup. Steam? Glue? Something I missed?

Would you care to give me a hint (or a web link)? Thanks!
Click to expand...

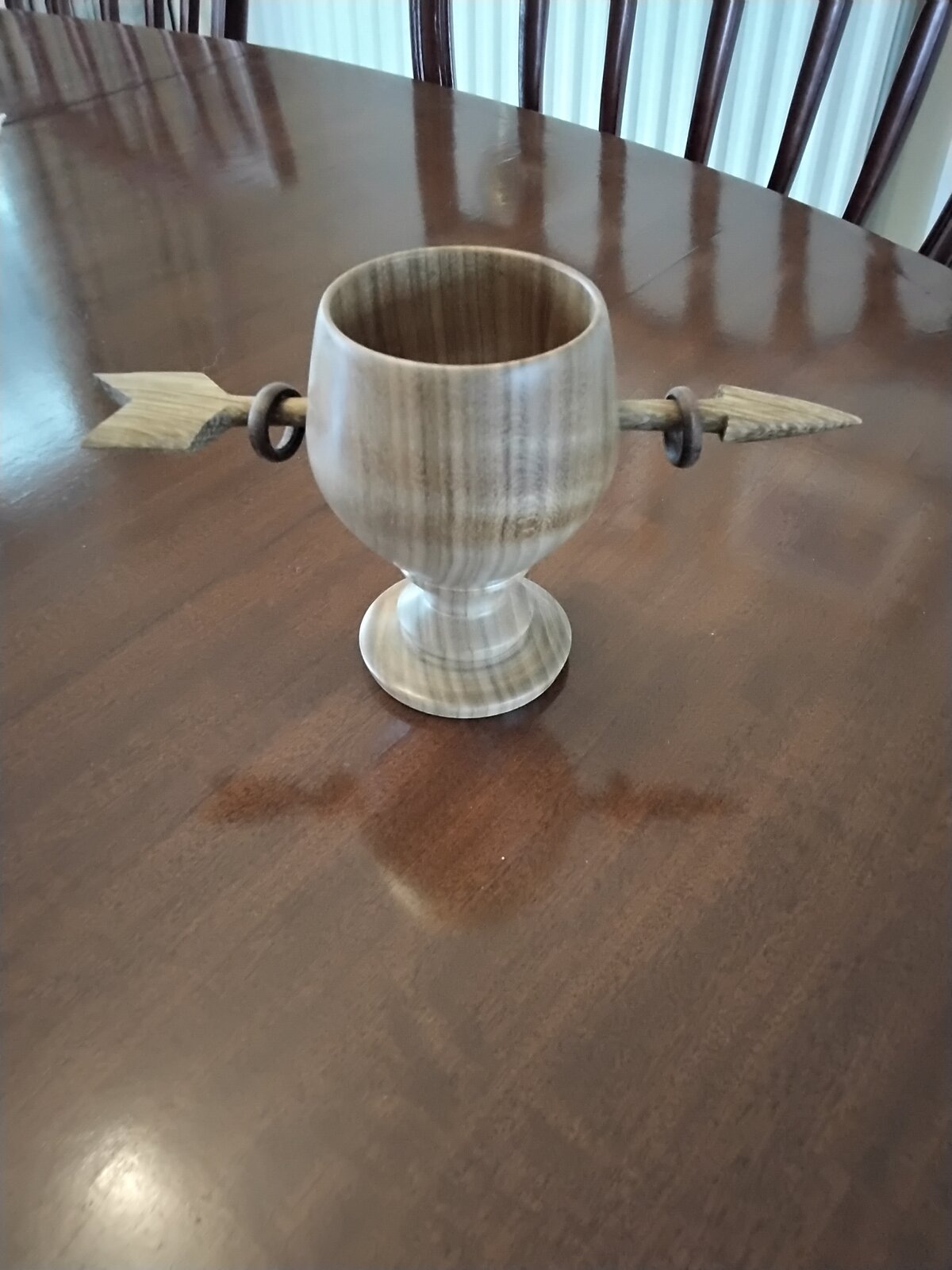

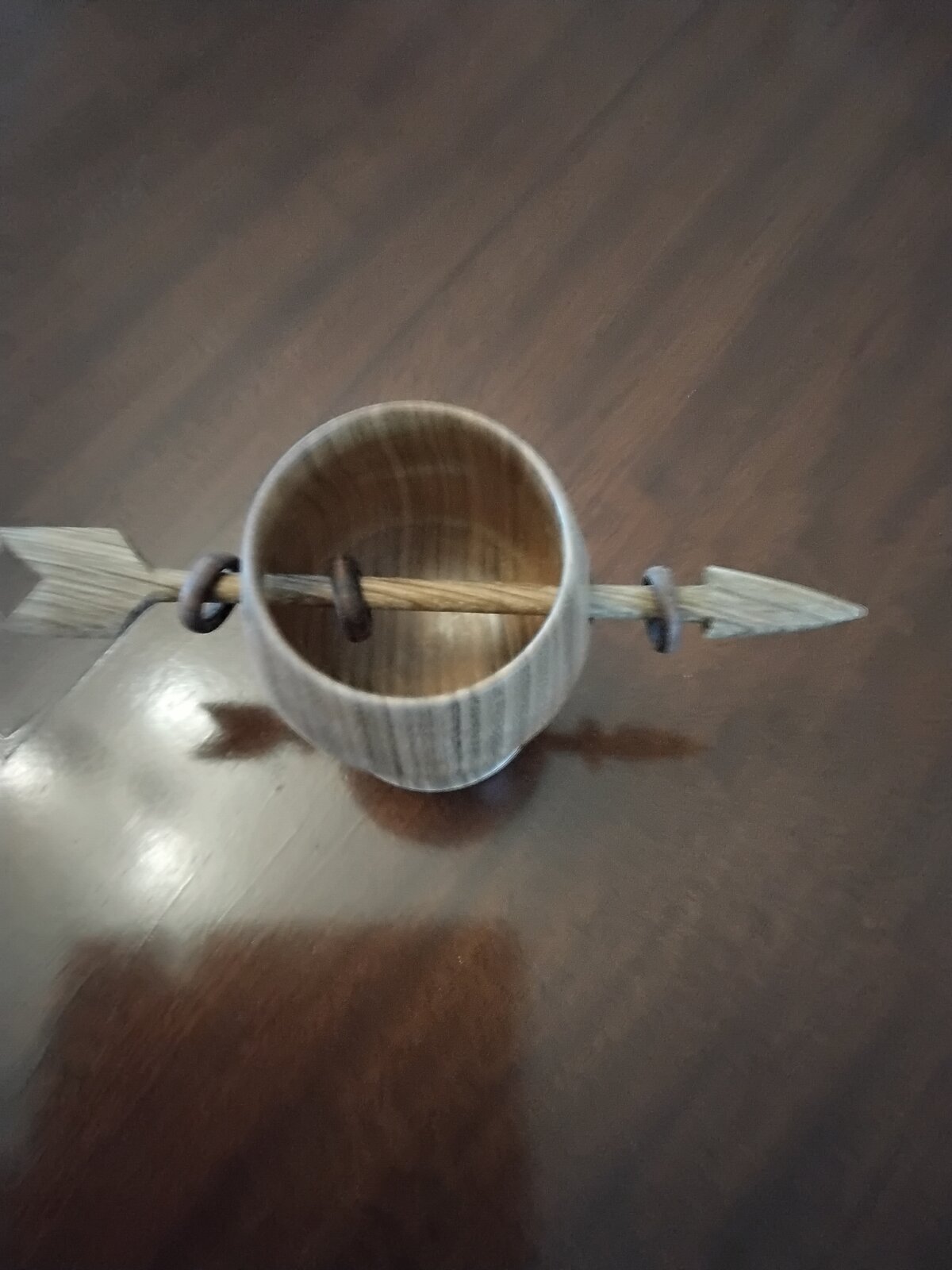

First turn the Goblet and drill two opposing holes. Then turn the Arrow leaving the point not shaped. Place this end in boiling water for about 15 minutes take out and compress in a vice leave overnight. Take out the following day and it should pass through the holes in the Goblet. I turned the rings separately and placed these on the arrow. Now place the arrow tip back into boiling water again for 15 min.
It will then return to shape. Sand the arrow to shape.
Its much easier to do than explain.
Hope this helps and you can find videos on YouTube.
Mike

Kcimdrib said:
Bobby thanks for your comment. I have listened to some of your music and that's what I call cool.
Can I see some of your pens please.
Mike
Click to expand...

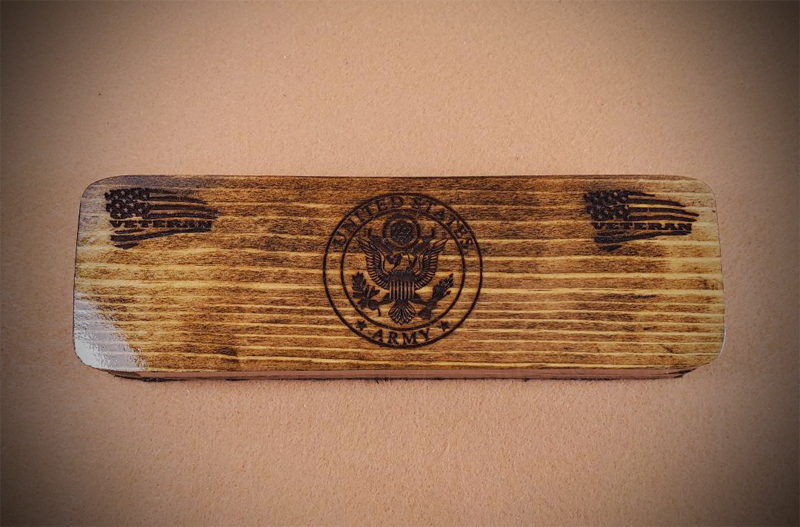

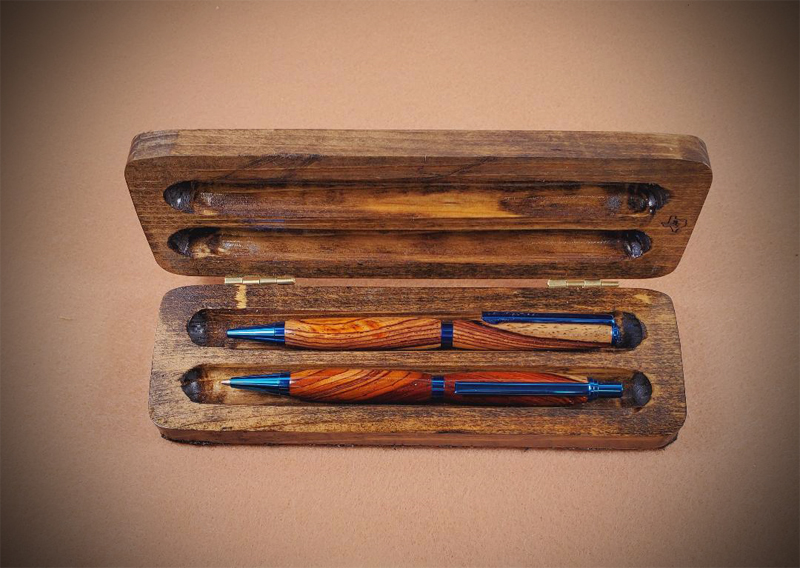

Thanks for listening Mike!. I haven't done much pen turning in a while. Here's a pen & pencil set I did in cocobolo with a pen box made of pine, I did back in Oct.
Box 2.jpg


Kcimdrib said:
First turn the Goblet and drill two opposing holes. Then turn the Arrow leaving the point not shaped. Place this end in boiling water for about 15 minutes take out and compress in a vice leave overnight. Take out the following day and it should pass through the holes in the Goblet. I turned the rings separately and placed these on the arrow. Now place the arrow tip back into boiling water again for 15 min.
It will then return to shape. Sand the arrow to shape.
Its much easier to do than explain.
Hope this helps and you can find videos on YouTube.
Mike
Click to expand...
Your explanation is very clear and easily understood. Thanks for sharing!
