Bushing storage

Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad
I have one of those metal organizers with 10,000 clear plastic drawers. I have the various fittings and toolings (bushings, drill bits, pilot shfts for end-mills, etc., etc), and misc components stored in labeled drawers. It's working well for me so far.

Something like this:

http://www.canadiantire.ca/browse/p...d=1408474396672856&subctgrid=1408474396672976

Prior to that I was using a fishing tackle box (and keeping the stuff in the original bags for identification) but ran out of room fairly quickly.

Cheers!

Gary

Last edited:
I was recently able to get my hands on a few clear bottles with snap lids. I am going to make up bushing storage fixture with them and some oak. I will post when Im done. I can get as many bottles as needed.



Skip_Evans said:
What are you guys using to store bushings? I am thinking about asking the pharmacist to sell me some pill bottles.
Click to expand...

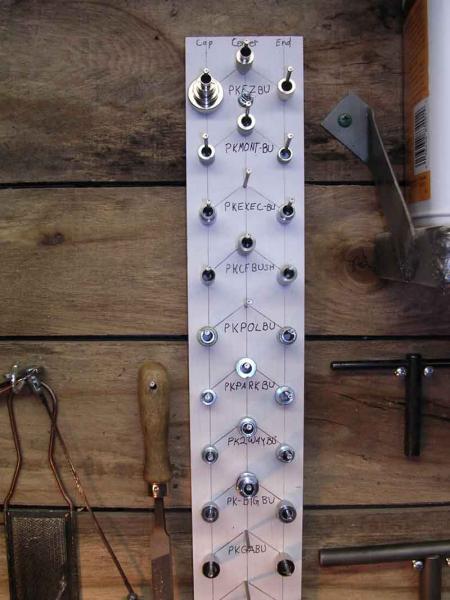

Bushing Board

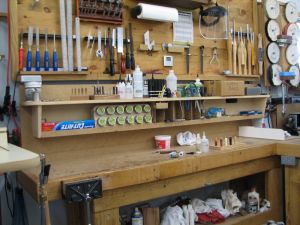

This is what I use, very handy to have it mounted behind the lathe.


Attachments

  • bushings1.jpg
    42 KB · Views: 425

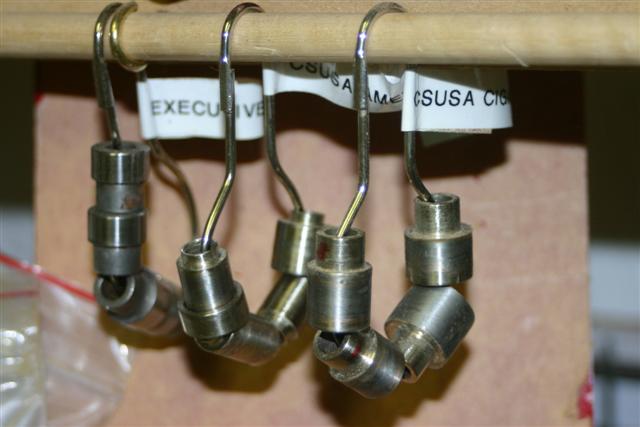

Here is what I use, I hate pill bottles and I also am not a fan of those plastic divided boxes with lids. I suppose I'm not just as organized as some. But these work for me. They hang on the edge of a shelf right in front of my lathe.
Do a good turn daily!
Don


Attachments

  • bushings.JPG
    40.6 KB · Views: 310
I have a 9 month old daughter, so, I am knee deep in plastic baby food containers. I have been using these recently with some success, as long as you don't mind your bushings smelling like squash.

I use plastic boxes with a snap lid and compartments. In there I put the kit parts, drill, bit and the bushings. That way everything is there when I need it. Bottom line I have trouble remembering to do all that.

I have a mandrel setup for each pen kit I make. I keep the individual bushings of each kit on individual mandrels ands store each setup in Plano fishing lure plastic boxes. These are available from Walmart in the sporting goods department. Google Plano and look at their selections.

I use little stainless steel canisters, I got them for about a buck apiece. I put green masking tape on the tops and wrote the name with a Sharpie. They're big enough to hold the bushings and the pen mill sleeves for each pen. I also made a little rack to keep them organized.

Plastic Tubes

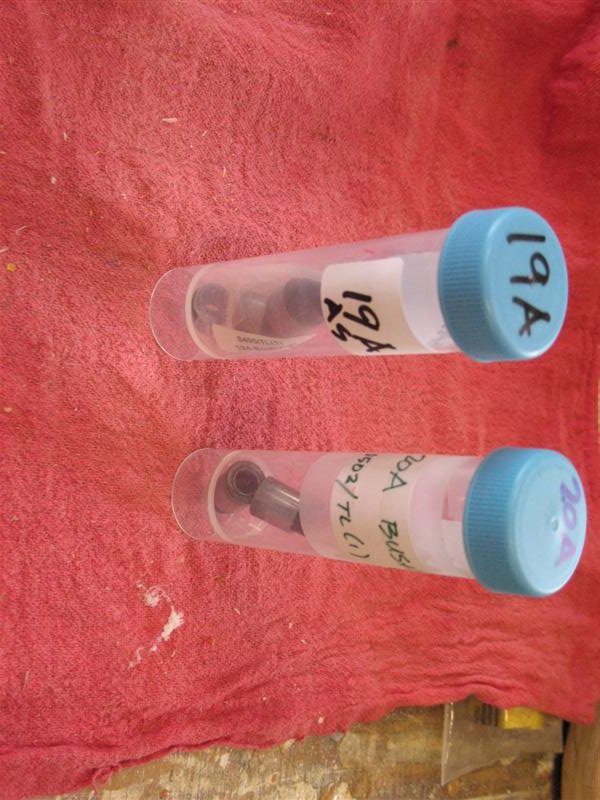

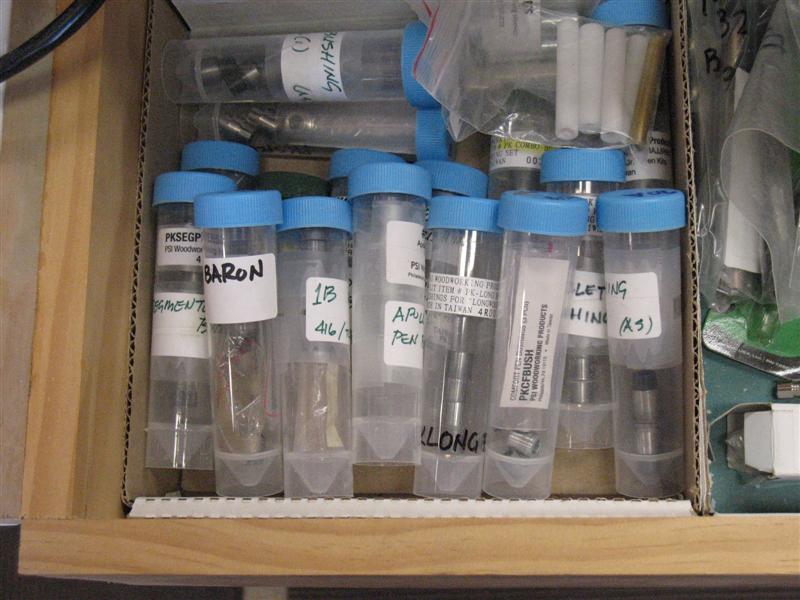

I have access to centrifuge tubes. They are heavy duty, you can write on the top, see through, wont break if dropped. If there is any interest (PM), I can probably order these through my company and resell. They come in boxes of 500. Should be less than $1 each.


Attachments

  • IMG_2010 (Medium).JPG
    IMG_2010 (Medium).JPG
    73.1 KB · Views: 178
  • IMG_2011 (Medium).JPG
    IMG_2011 (Medium).JPG
    95 KB · Views: 221
I use the metal container that Altoids candy come in. I used to eat a lot of these and I kept the containers. They hold the metal bushings and the Delrin bushings. I stick the label off the package of each kit on them. They are thin so they lay in a low drawer.

I store all of my penturning supplies in a large fishing takle box. The takle box has individual spaces and I have a section for each different kit so everything stays neat and organized

Unless those tackle boxes have individual lidded compartments you have a potential problem. Tip over that tackle box when it is open and you have a super mess!!!

jimm1 said:
Here's my contribution:

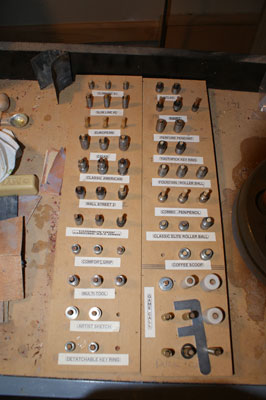

Bushing board, labeled with Brother lazer labels.
3/16" dowels. I used a shelf drilling template to align the holes.
Click to expand...

Whats that F shaped tool thing for ? I see them from time to time and wonder what its used for .

Skip_Evans said:
What are you guys using to store bushings? I am thinking about asking the pharmacist to sell me some pill bottles.
Click to expand...

I keep a coffee mug near the lathe. OR near the table where I assemble.
Or on the table saw. I just dump the bushings in there.

Then, when I need to use them, I dig out the calipers and all the copies
of instructions I can find and try to match them up. Then I go to the
computer and get online to find lists of bushing sizes. Then I get fed up and
go out for a cup of coffee. When I come back, I decide I'll just cut up some
blanks for future use. Then I order more bushings and swear that next time
I'll keep them in the bag they came in.

It looks like a "madison hanger" that it used to mount a switch box in finished drywall. I like the idea of the bushings mounted on the board in the order there used. I would just have to make sure I put them back correct or I would have a mess on the next pen. I have thought about engraving numbers like 1,2,3,4 on them so you don't even have to think about it when you pick them up. Number 1 would be the nib number 2 top of lower section etc. Anybody ever tried that?

I have a very small Plano-style tackle organizer box about six inches by three inches, divided into compartments inside...each set of bushings stays in the bag, and goes into the locking container (so they don't get messed up if it gets tipped over)

Andrew
