Bushing storage

Signed-In Members Don't See This Ad
I

itsonlychris

Member
Joined
Apr 30, 2013
Messages
7
Location
Syracuse New York
Being a relatively new pen turner I am collecting quite a few different sets of bushings. I was looking for ideas or tips on how fellow turners organize or store their sets of bushing?

Signed-In Members Don't See This Ad
There's many wayt to store those things. If you did a search, you'll find a few threads with suggestions. I just use some smaller plastic containers I got from HF.

i take all the things I need to make a pen kit -- bushings, drill bits, pen mills and/or sleeves and the instructions and put them in a small, plastic box. I label the outside with the name of the kit and list the items inside. When I need to turn a pen, I just grab one box and I have all the tools needed for that kit.

if i may throw in may 2 cents worth. i use a fishing tackle box with compartments in it. i keep my bushings in the plastic bags they come in with the description on top and keep them in order of amount of use. works well for me.

I leave them laying all over my workbench and when I need to turn a pen I get out my calipers and start looking for the correct bushings! :biggrin:

Actually, I use the plastic compartment boxes from Harbor Freight however, I can't say that my original comment never happens! :biggrin:

MarkD said:
I leave them laying all over my workbench and when I need to turn a pen I get out my calipers and start looking for the correct bushings! :biggrin:
Click to expand...

And here I am thinking I'm the only one who used this method... :biggrin: :rolleyes:

Currently, I keep them in the bag they came in, and the bags are kept in one of those small parts plastic drawer organizers. This organizer is pretty old (it was my FIL's), and I doubt it came from HF.

This method is a nice one but with so many kits using the same size drill bits and thus pen mill pilots and sleeves there is the possibility of duplicating tooling...maybe several times over...at least for those of us who think we need to have every kit available.:biggrin:
Do a good turn daily!
Don

walshjp17 said:
i take all the things I need to make a pen kit -- bushings, drill bits, pen mills and/or sleeves and the instructions and put them in a small, plastic box. I label the outside with the name of the kit and list the items inside. When I need to turn a pen, I just grab one box and I have all the tools needed for that kit.
Click to expand...

This topic comes up about as often as CA finishes. Doing a search will probably gather enough reading to keep one busy for a few hours. Most methods will work well for some but not for all. What one person considers to be the best method ever others will find cumbersome and vice versa. I don't think there is one way that will service all of us.
Happy reading.
Do a good turn daily!
Don

Everything is stored in the see through plastic shoeboxes, labeled on both ends. The boxes hold quite a few pen kits, the bushings, notes about anything special about them, and the instructions. If I need to make some Sierras all I have to do is pick up the shoebox and find the right blanks for that project. When finished it goes back to the shelf.

Mess up a pen? The left over parts go in he appropriate shoebox. Extra tubes, same way, they go in the correct shoebox. Same for my callmaking supplies, shoeboxes for each style. Same system works for the finished inventory, parts in one box and finished in another. I have a small fortune invested in them, but it sure makes it easy to keep track of what I have in supplies and ready made inventory.

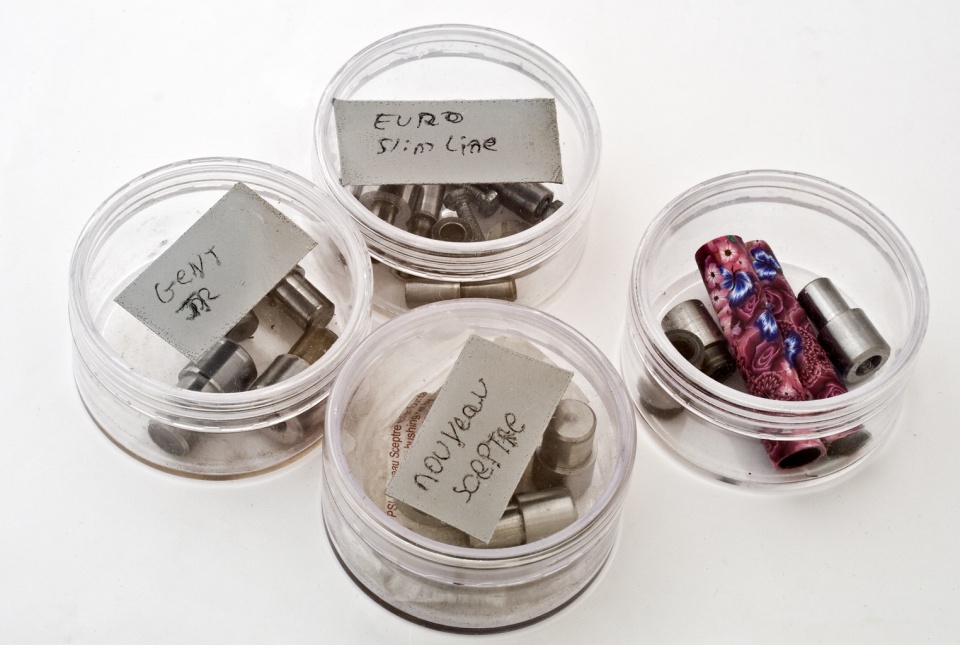

I use these watch maker boxes from Lee Valley to store my bushings.



Wade

There are some great ideas out there. I ended up using a plastic ammunition box I found at the sporting good shop. Each compartment is about 1/2 x 1/2 inch and seems to work pretty well. I printed labels and put them with each bushing set.

I got a parts case from Woodcraft that I use. I label each bin plus keep them in the original package. The case is double sided so it has twice the capacity that shows in the picture.


Attachments

  • image.jpg
    67.7 KB · Views: 389
Last edited:
Although bushings vary by kit, the same drills, sleeves, mills are often used in multiple sets, and I didn't want to duplicate anything I didn't have to. I tried bags, tackle boxes (now for sale :rolleyes: ) before arriving at my current solution.

These little bins are available in strips of 9 and can be attached to the wall above the lathe, or mated (all the strips are the same length) with larger 5 bin units that are the perfect size to hold bagged pen kits, 1 bin per style. The bins tip forward/lift out for easy access or to take to the bench. Lowes uses a ton of these in their hardware department, but they don't sell the bins!!

I get them for $12-18 dollars on ebay with free shipping, but here is a link to the manufacturer:
Bins & Systems | Clear Tip Out Bins (QTB Series) | Quantum Storage

Hope the idea helps:)

Harry


Attachments

  • Bins.jpg
    132.8 KB · Views: 439
I store mine in the bags with labels that they came in, then I put those bags in a box like the one from Woodcraft shown here.

Actually my storage box was from a capacitor company that was used for capacitor samples, it was being thrown out.

Tom

I store all my "extra" tools and drill bits/bushings ect at Jonathons house. He also stores my pressure pots and casting materials for me too..Hes such a nice guy.

Right way

its_virgil said:
This topic comes up about as often as CA finishes. Doing a search will probably gather enough reading to keep one busy for a few hours. Most methods will work well for some but not for all. What one person considers to be the best method ever others will find cumbersome and vice versa. I don't think there is one way that will service all of us.
Happy reading.
Do a good turn daily!
Don
Click to expand...

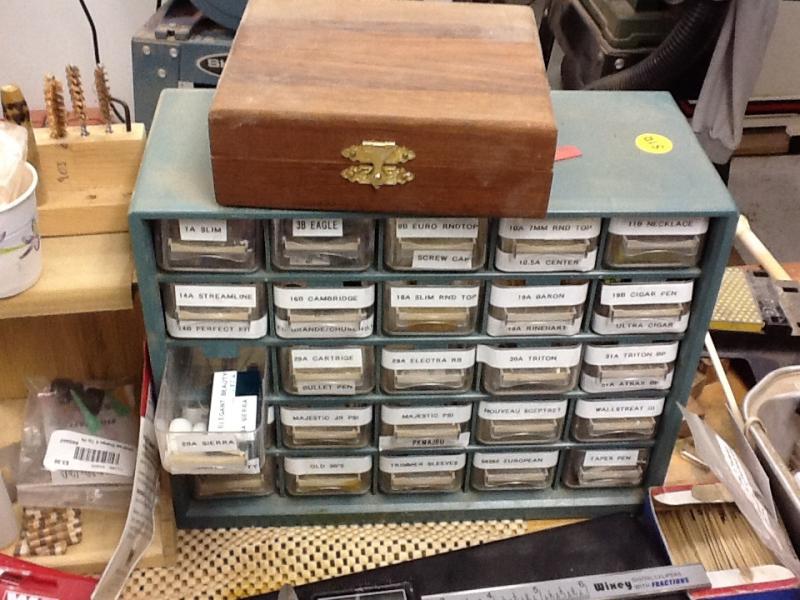

Sure there is!! My way!:biggrin:

Now that everyone is curious as to what the only true right way is...well now you know. Want to know the correct, best CA application methodology? Just ask then we can stop revisiting that topic as well.


Attachments

  • image.jpg
    82.2 KB · Views: 392
A word of warning about a tackle box and similar methods: if the box gets knocked over when the lid is open you have a big job sorting bushings.
I keep my bushings in pen kit bags hung on nails on a wall rack. Each bag has the kit name written in marker on the bag. I also keep my 7mm end-squaring adapter sleeves in the same bag with the bushings.
Cost: free
Ease of finding bushings: very easy

Last edited:
I have used these from Harbor Freight for years and never lost or un-ID'd bushings. Keep a spreadsheet of each bushing by pen and label the little inside boxes. If you knock it over or drop it, they don't get mixed up.
Pretty inexpensive for a 24 storage system and even cheaper with a coupon.
24 Container Storage Box
I also cut the label off the bag they come in and put that in the box with the bushings.
Just my .02 worth. I'm up to three boxes of these sets and may get a fourth one.
gordon

flyitfast said:
I have used these from Harbor Freight for years and never lost or un-ID'd bushings. Keep a spreadsheet of each bushing by pen and label the little inside boxes. If you knock it over or drop it, they don't get mixed up.
Pretty inexpensive for a 24 storage system and even cheaper with a coupon.
24 Container Storage Box
I also cut the label off the bag they come in and put that in the box with the bushings.
Just my .02 worth. I'm up to three boxes of these sets and may get a fourth one.
gordon
Click to expand...

+1 on this. i love the containers. They fit the bushings perfectly and don't take up much extra space. I also right the kit and item number (if possible) on each individual box.

Here's a pic:


flyitfast said:
I have used these from Harbor Freight for years and never lost or un-ID'd bushings. Keep a spreadsheet of each bushing by pen and label the little inside boxes. If you knock it over or drop it, they don't get mixed up.
Pretty inexpensive for a 24 storage system and even cheaper with a coupon.
24 Container Storage Box
I also cut the label off the bag they come in and put that in the box with the bushings.
Just my .02 worth. I'm up to three boxes of these sets and may get a fourth one.
gordon
Click to expand...

Thanks for posting this, I just picked one up and only got one cause that's all they had in stock.

airborne_r6 said:
flyitfast said:
I have used these from Harbor Freight for years and never lost or un-ID'd bushings. Keep a spreadsheet of each bushing by pen and label the little inside boxes. If you knock it over or drop it, they don't get mixed up.
Pretty inexpensive for a 24 storage system and even cheaper with a coupon.
24 Container Storage Box
I also cut the label off the bag they come in and put that in the box with the bushings.
Just my .02 worth. I'm up to three boxes of these sets and may get a fourth one.
gordon
Click to expand...

Thanks for posting this, I just picked one up and only got one cause that's all they had in stock.
Click to expand...

I hope you will find it as convenient as I do. They should get some more in soon. They always seem to have them in our local store.
g.

flyitfast said:
airborne_r6 said:
flyitfast said:
I have used these from Harbor Freight for years and never lost or un-ID'd bushings. Keep a spreadsheet of each bushing by pen and label the little inside boxes. If you knock it over or drop it, they don't get mixed up.
Pretty inexpensive for a 24 storage system and even cheaper with a coupon.
24 Container Storage Box
I also cut the label off the bag they come in and put that in the box with the bushings.
Just my .02 worth. I'm up to three boxes of these sets and may get a fourth one.
gordon
Click to expand...

Thanks for posting this, I just picked one up and only got one cause that's all they had in stock.
Click to expand...

I hope you will find it as convenient as I do. They should get some more in soon. They always seem to have them in our local store.
g.
Click to expand...

The funny thing about this whole thread is I was just trying to come up with a decent solution last week. I purchased a bunch of little plastic bottles from Hobby Lobby to store my bushings in. I just haven't had time to make the carousel that is going to house them. I picked up the Harbor Freight box to try out both and see which I like better.

butchf18a said:
Now that everyone is curious as to what the only true right way is...well now you know. Want to know the correct, best CA application methodology? Just ask then we can stop revisiting that topic as well.
Click to expand...

I know this is a resurrection, but..

This is what I use as well. I picked up the drawer system from HF for something around $8 on sale. It had screws/nuts/washers in it, but I threw those into something else and labeled the drawers for bushings. Works great.
