Hello,

Here is my Barron in Aluminum-Bronze Alloy. Please tell me what you think.


Attachments

  • ALBR4.jpg
    37.5 KB · Views: 1,187
  • ALBR3.jpg
    29.8 KB · Views: 1,166
  • ALBR2.jpg
    29.8 KB · Views: 1,224
Signed-In Members Don't See This Ad
NO don't listen to Bruce, send it to me so I can claim it!!! It's extremely striking, well done in expertise mode!! I love the colors!

Stick Rounder said:
Hello,

Here is my Barron in Aluminum-Bronze Alloy. Please tell me what you think.
Click to expand...

Doug

Great job. Where did you get the material and what is it called or if it has a number??? How did you do the kit??? Did you glue in or is it drilled to kit size??? How did you turn it??? How did you finish it?? It looks like it has a mirror finish on it as opposed to a satin finish. Is it top coated. Thanks for the reply and for showing it.

How its made...

jttheclockman said:
Doug

Great job. Where did you get the material and what is it called or if it has a number??? How did you do the kit??? Did you glue in or is it drilled to kit size??? How did you turn it??? How did you finish it?? It looks like it has a mirror finish on it as opposed to a satin finish. Is it top coated. Thanks for the reply and for showing it.
Click to expand...

The rod was bought from www.speedymetals.com and is 3/4" CA 954 Aluminum Bronze. Much heavier than aluminum alone.

The rod was cut to length with my chop saw and drilled with cobalt bits. The pen tubes as it turned out where pressure fit into the holes.

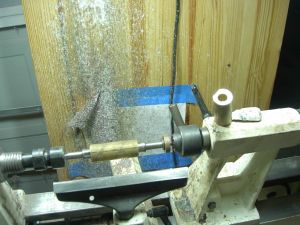

And now the turning tool. I turned a closed end aluminum Cigar Pen last week with regular turning tools and after cutting this alloy and drilling I knew there was no way I could use regular tools. So I made a tool to hold CNC turning inserts, don't laugh... It is three pieces of 1/4" flat plate welded together with a slot in the end and a 3/4" steel bar welded to the tool.



The turning tool insert has a Micro-100 Carbide tip. Cuts through the alloy like butter. After turning the blanks were then wet sanded 150-12K. I used Nuvite two part finishing paste for the finish. Got some other rods in the mail and will be turning those in the next few days. Thanks for asking.

Doug:
They say that mimicry is a form of flattery. Or something like that. Whatever. I'm planning on stealing your idea :). Unless you have any objections of course.
Thanks

Stick Rounder said:
The rod was bought from www.speedymetals.com and is 3/4" CA 954 Aluminum Bronze. Much heavier than aluminum alone.

The rod was cut to length with my chop saw and drilled with cobalt bits. The pen tubes as it turned out where pressure fit into the holes.

And now the turning tool. I turned a closed end aluminum Cigar Pen last week with regular turning tools and after cutting this alloy and drilling I knew there was no way I could use regular tools. So I made a tool to hold CNC turning inserts, don't laugh... It is three pieces of 1/4" flat plate welded together with a slot in the end and a 3/4" steel bar welded to the tool.



The turning tool insert has a Micro-100 Carbide tip. Cuts through the alloy like butter. After turning the blanks were then wet sanded 150-12K. I used Nuvite two part finishing paste for the finish. Got some other rods in the mail and will be turning those in the next few days. Thanks for asking.
Click to expand...



Doug excellent job. I hope to achieve something this worthy someday. I see you use cobalt drill bits Where can you get them in the odd ball sizes we use for our pens??? Are these the same bits you see in all the home centers or are they solid cobalt or a different material?? Thanks for the replys.

Big congrats on the cover shot Doug:biggrin: I'm glad your cool pen was chosen as I missed it somehow.

I'm esp intrigued about the tool you made though. I can understand the 3 plates and the slot, but I can't figure out how you held the bit in the slot:confused:

LOL:biggrin: I was pleased to see that your workbench looks JUST like mine normally does!!!!

skiprat said:
Big congrats on the cover shot Doug:biggrin: I'm glad your cool pen was chosen as I missed it somehow.

I'm esp intrigued about the tool you made though. I can understand the 3 plates and the slot, but I can't figure out how you held the bit in the slot:confused:

LOL:biggrin: I was pleased to see that your workbench looks JUST like mine normally does!!!!
Click to expand...

It is a pressure fit. I actually had to grind the bit down a hair. Since the bit is the first thing that heats up it doesn't move.
