Alcohol Ink UVResin Finished Tamarind Pen (no sanding)

[Bob in SF]

I thought I'd give this a try.

Hoping the "(no sanding)" part of the thread title might catch a few eyes.

Steps:
Tamarind wood turned with carbide tools and a skew (no sanding).
Lightly sealed with an initial thin air-dried CA layer, followed by a medium air-dried layer (no sanding).

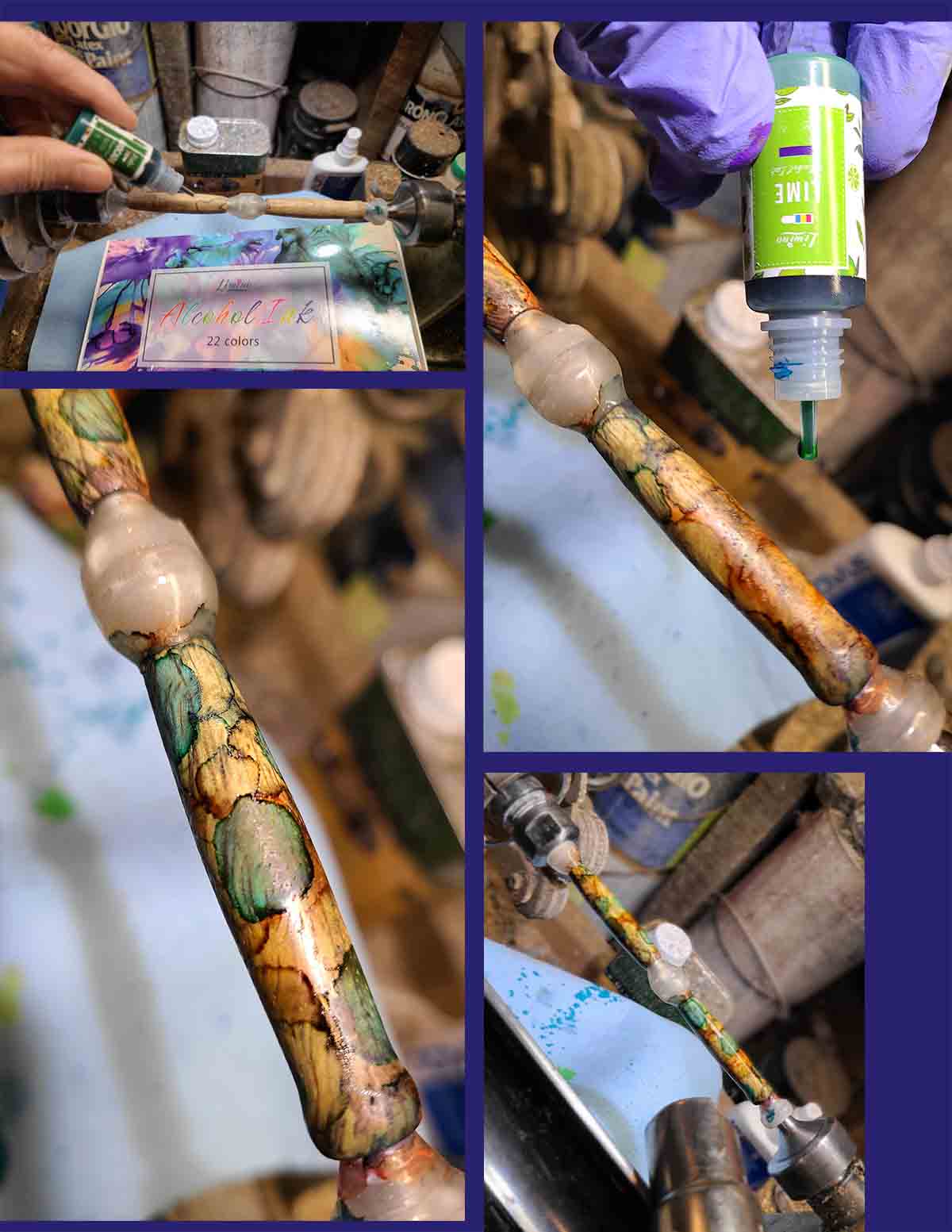

Alcohol inks dripped onto the barrels, then heat-dried gently with a heat gun.
AlumiUV epoxy resin slowly brushed onto the barrels with an inexpensive (throw away) brush.
Coated barrels gently heat-gunned to warm the resin and barrels while slowly hand-rotating the lathe.

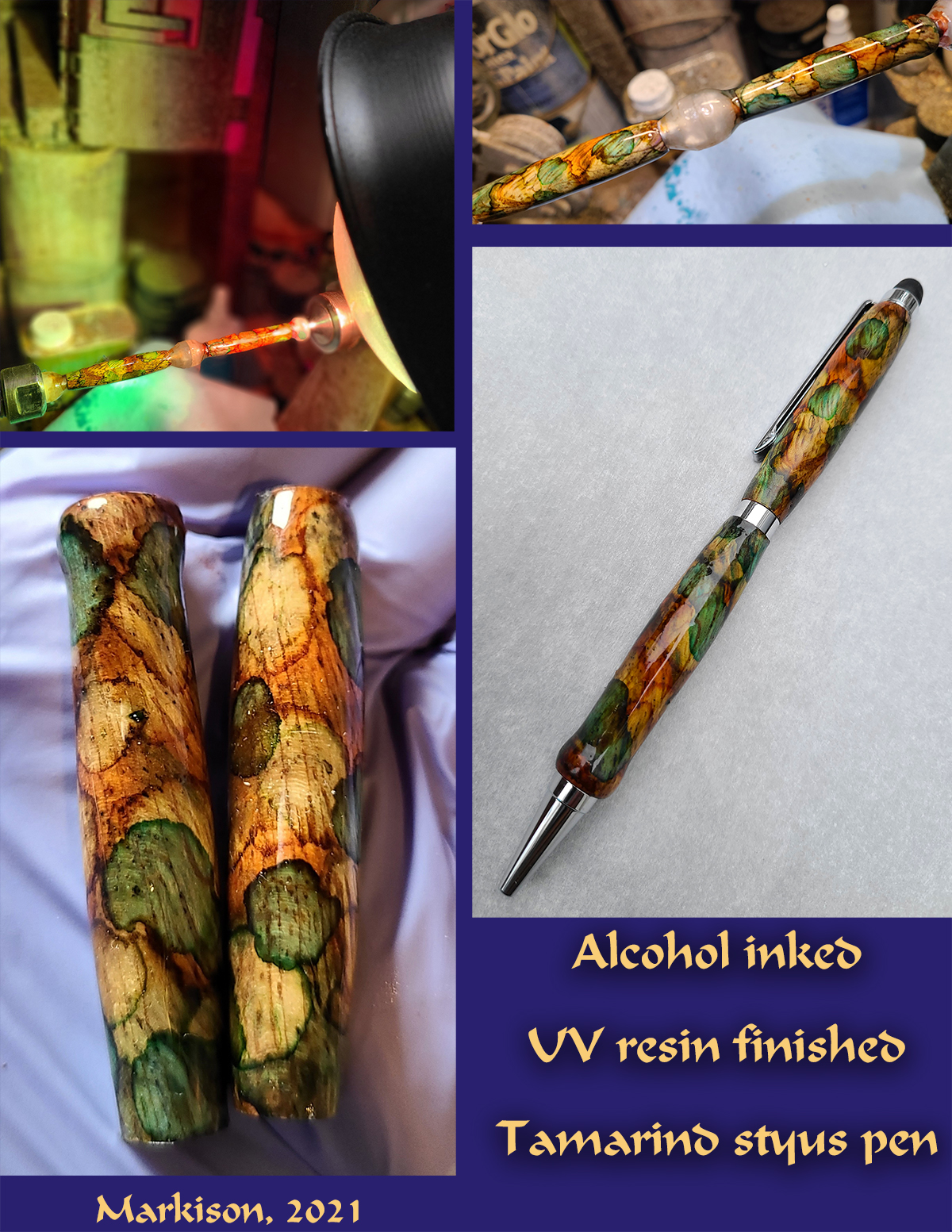

UV cured with a 365nm (nanometer) bulb x 2 minutes, about 6-8 inches from the barrels (no sanding).

Handheld UV Curing Spotlight with UV-A Lamp

Your path never looked brighter! Never be in the dark again 250 watt UVA self ballasted lamp lighting your way This item has been discontinued Key Features: 250 watt UVA self ballasted lamp Compact in size and easily manageable Screw into housing and lamp shield with handle High level industry...

www.cureuv.com

Amber UV glasses
Barrels cooled for a few minutes, then UV curing repeated x 1 minute for good measure (no sanding).

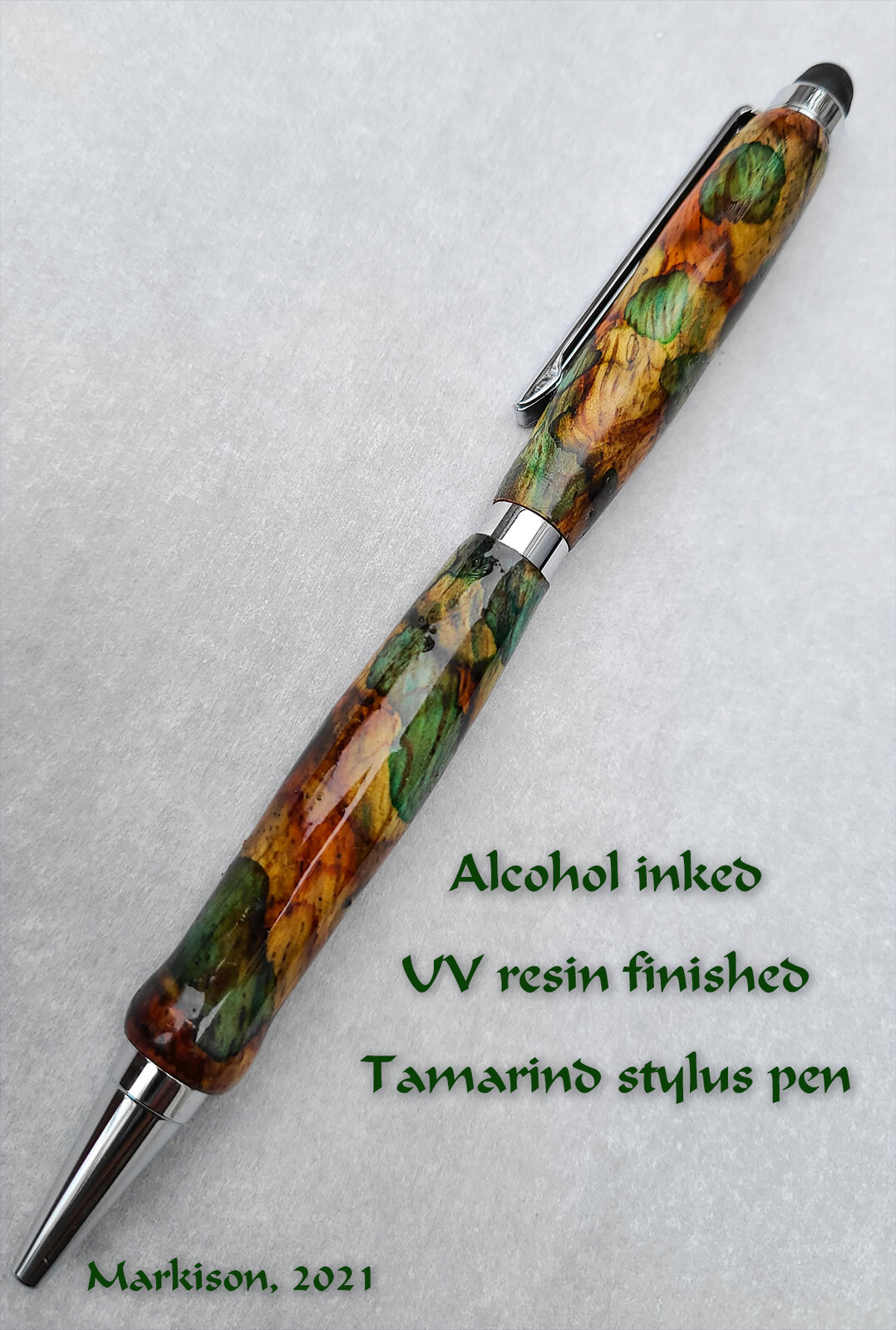

Filed the barrel ends, assembled pen.

Thoughts:
Tamarind is porous, so I'll probably do a few more layers of CA before inking on the next run - or I'll try some olive wood or other smoother wood next time.

I'll be refining the method on some game calls this week (stay tuned - more fun ahead).

Warm regards to all - and Happy Valentines Day! - Bob



[wolf creek knives]

Don't know about the process steps Bob, way over my head. But the end result is beautiful!!!



[Brandy]

I love how that looks!



[Jon Nutting]

Very cool, nicely done!



[magpens]

That is an extremely nice result, Bob !!!

Very creative !!!

Thank you for showing !!! . Will be watching for more !!!



[Marko50]

Once again, you nailed it Bob. Outstanding work!



[1080Wayne]

Doesn`t look like much refinement need , to me ! Surprised at the sharp boundaries you achieved with the ink . I would have expected it to run all over the place on top of the CA .



[TDahl]

Beautiful pen. Well done!



[nobodyparticular]

Interesting concept and very rewarding results - thanks for sharing!



[TonyL]

Awesome! Just received my light from them.



[mark james]

Lovely colors! Thanks for sharing the process.



[LouCee]

That looks great, nice work!



[Cwalker935]

Very neat, thanks for sharing your process.



[Jim15]

Great work.



[walshjp17]

Gorgeous work, Bob. I may have to think about trying this.



[KenB259]

I love the colors.



[Bob in SF]

Many thanks for the kind comments!

This is a fun and versatile technique - full of surprises, and I encourage you to experiment with it.

I'll post some pix of alcohol-inked UV resin finished game calls next week.

Warm regards to all.

Gratefully - Bob



[Pierre---]

Using UV epoxy is interesting. Before, if the ink works, do you mean you sort of sealed the wood with CA, without really sealing it?



[Bob in SF]

Hi Pierre - You asked:
"Before, if the ink works, do you mean you sort of sealed the wood with CA, without really sealing it?"

The light coating of CA glue keeps the alcohol ink from soaking into the wood, thereby permitting color mixing on the surface of the air-dried CA. You can then try various color combinations by wiping off the inks with isopropyl alcohol between tries until you like what you see. Then do the UV resin finish.

Hope this helps - and best regards - Bob
