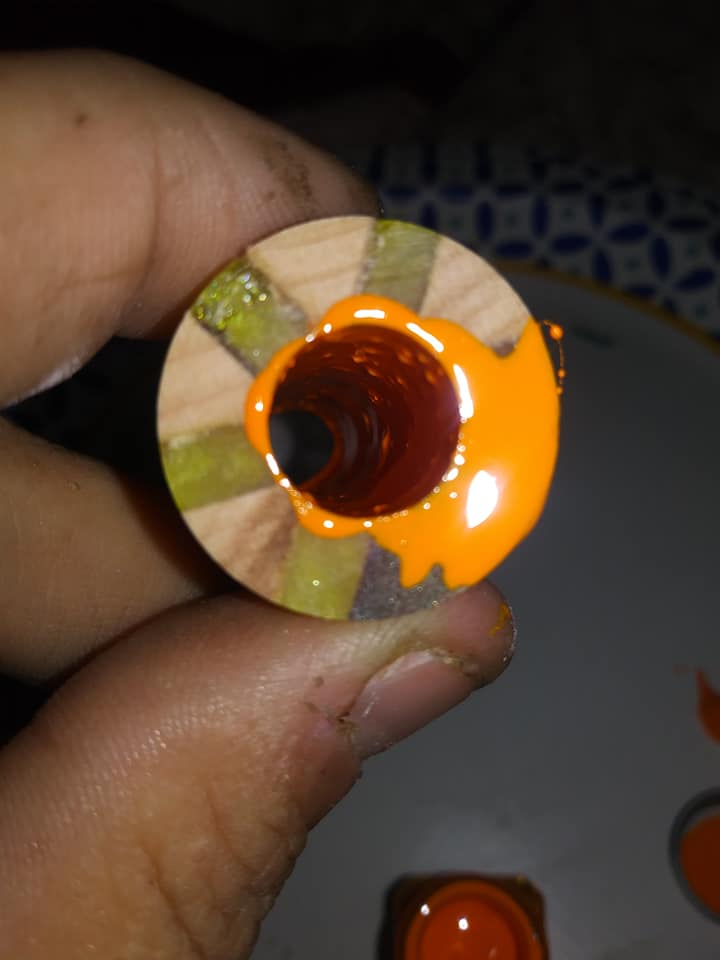

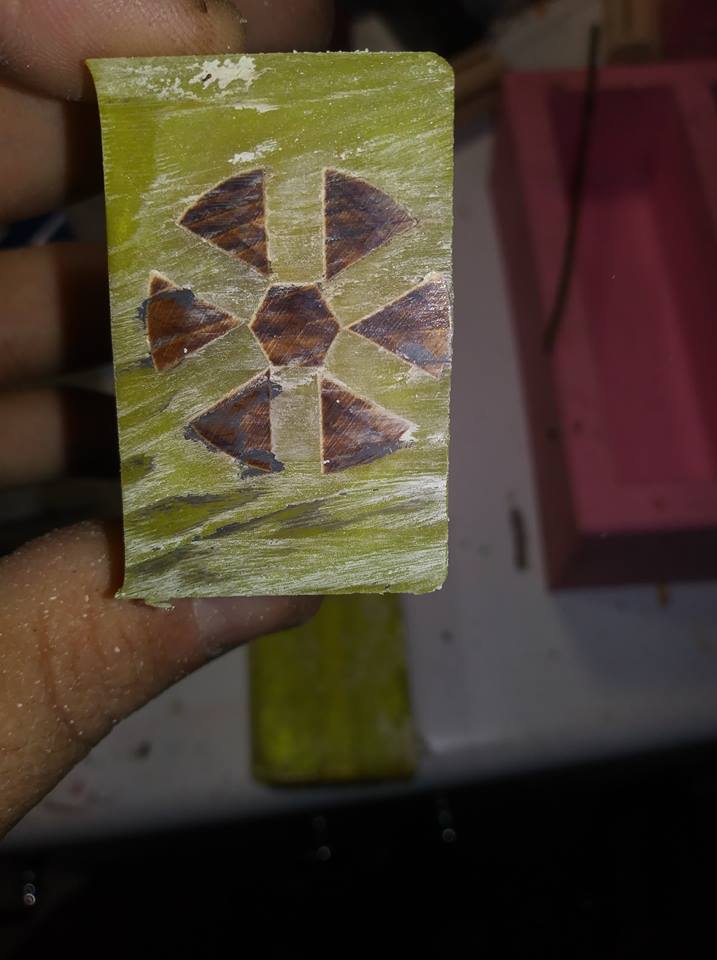

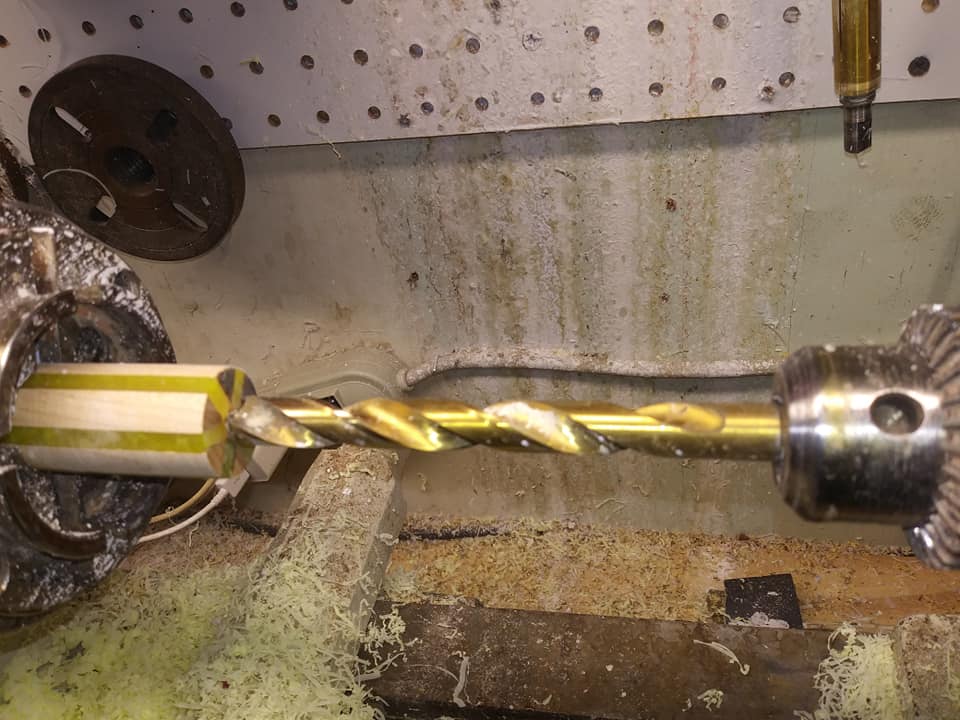

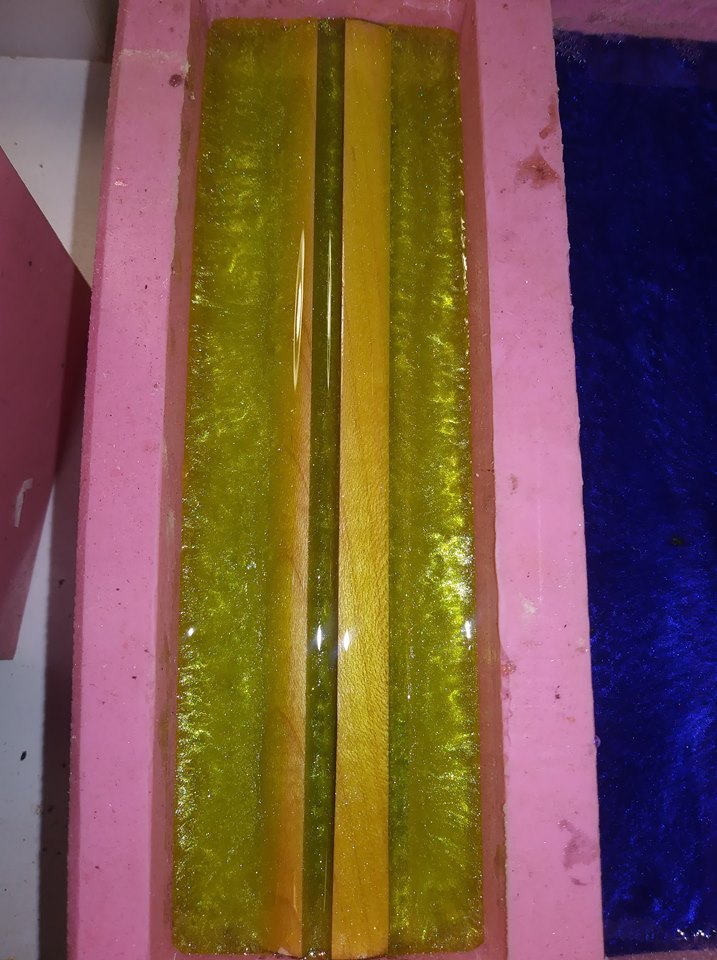

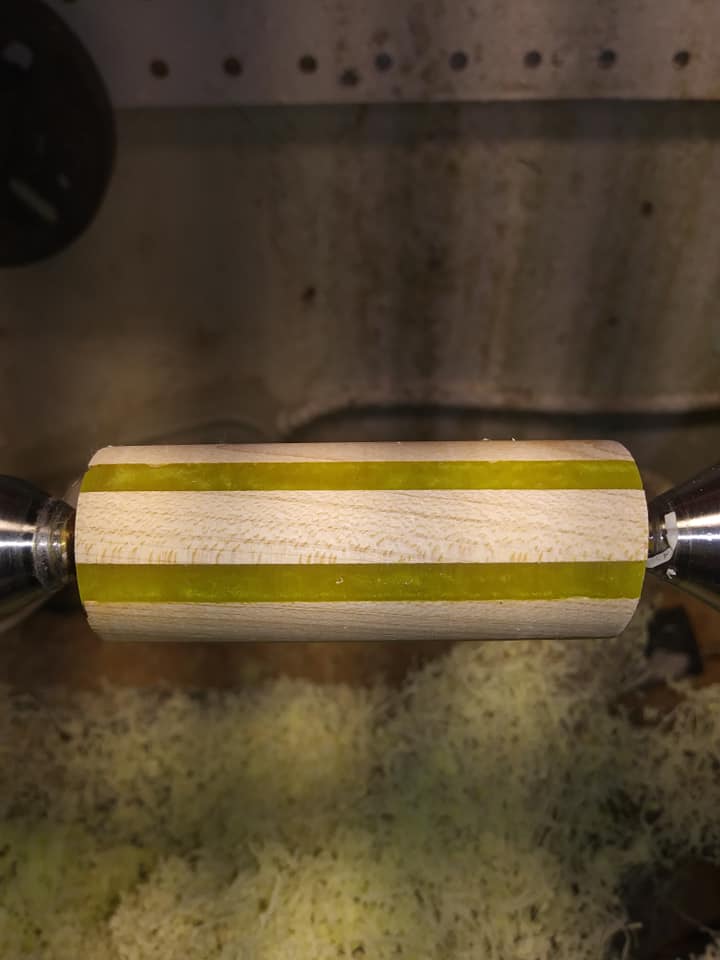

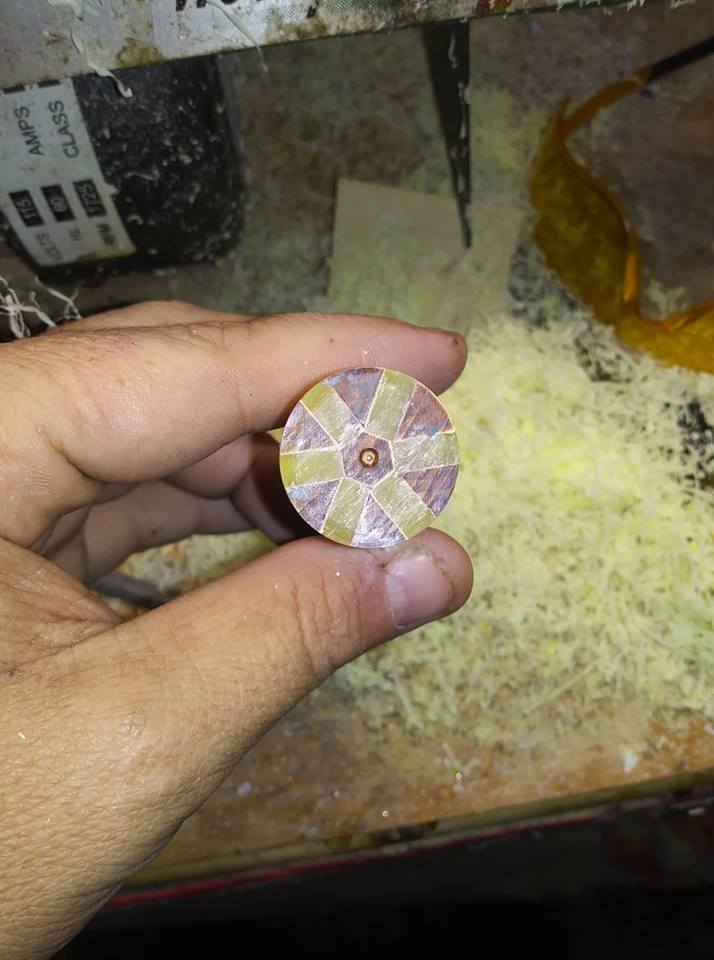

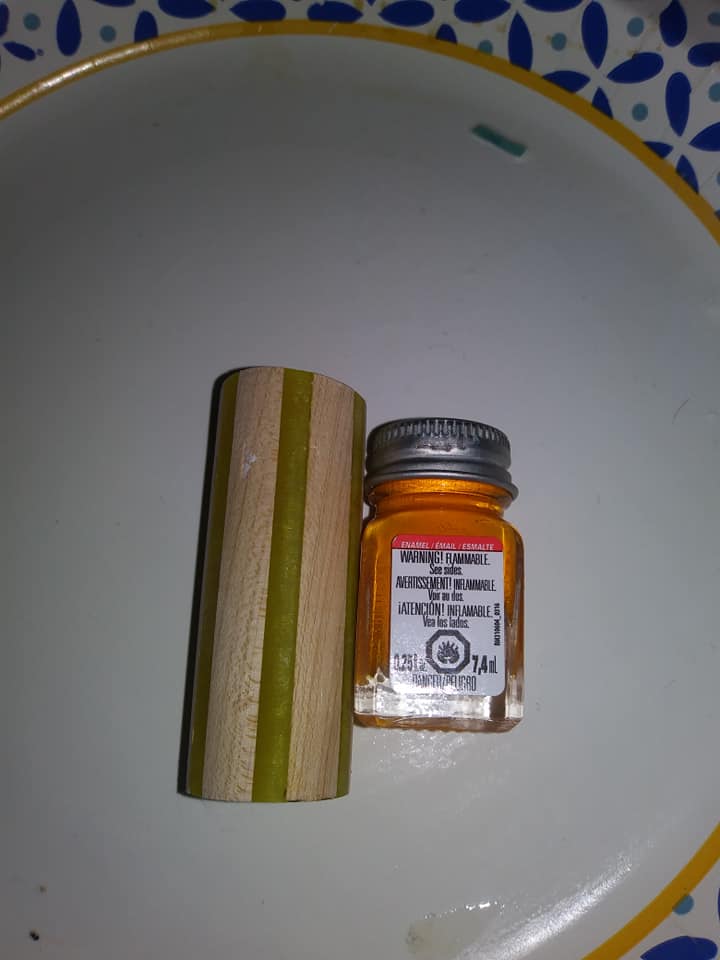

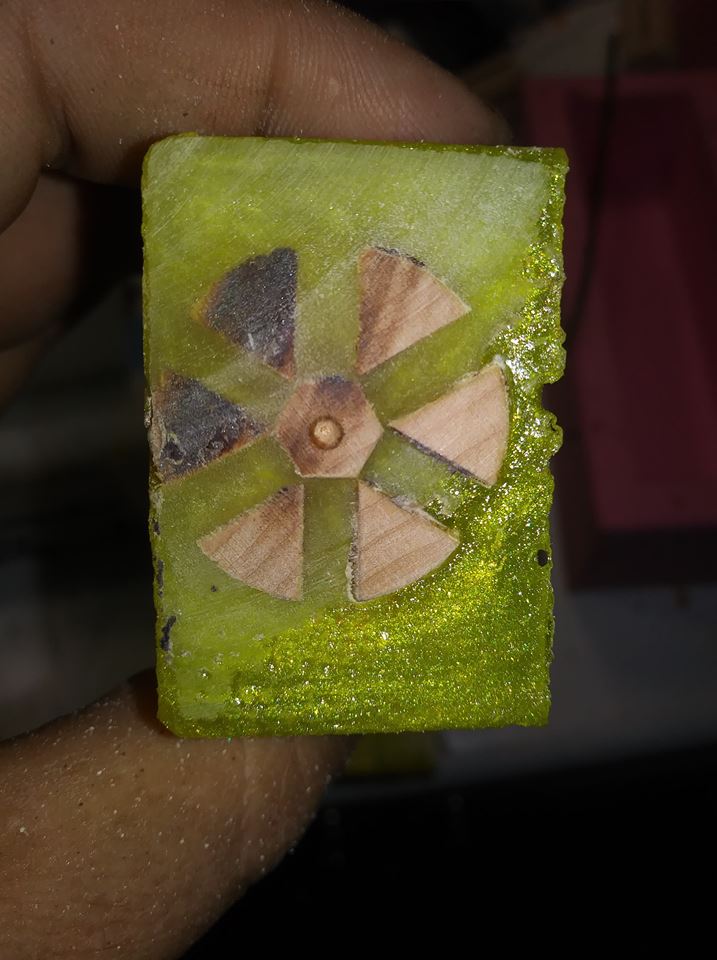

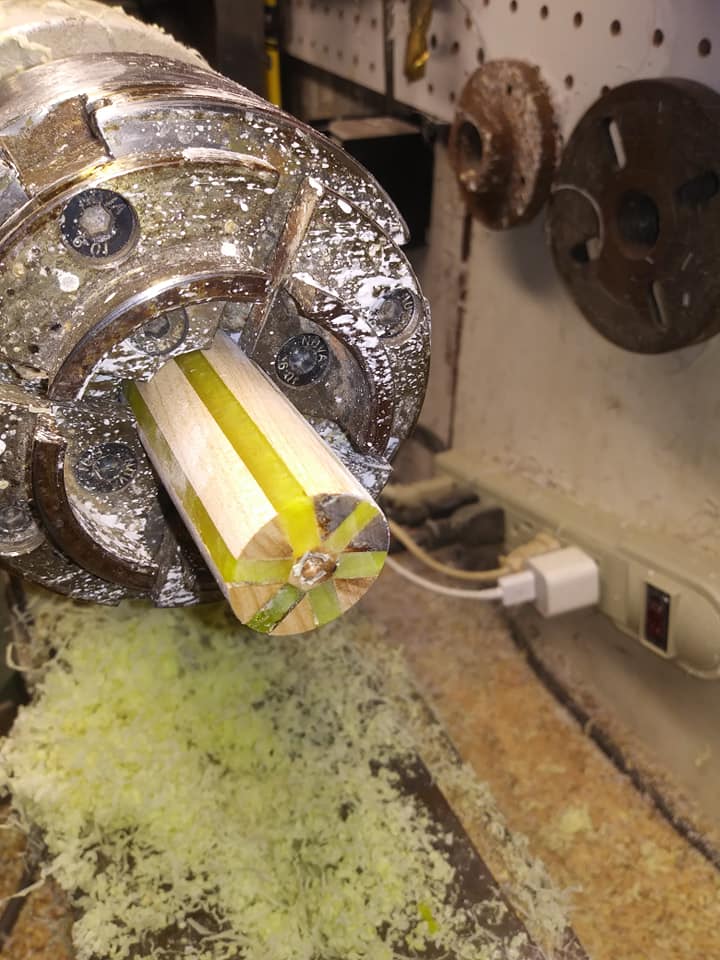

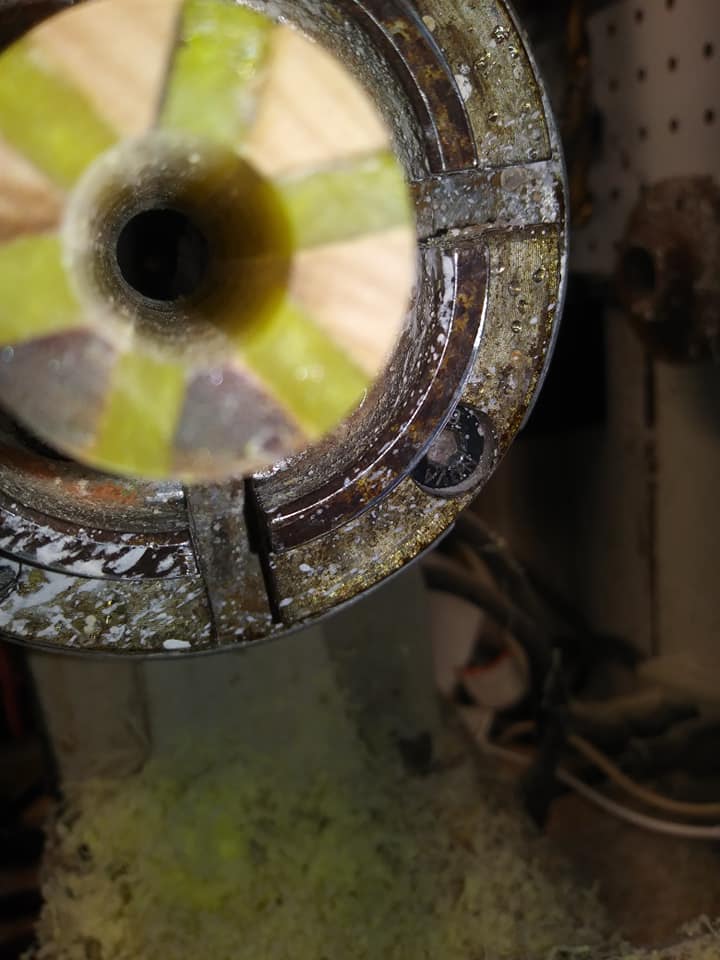

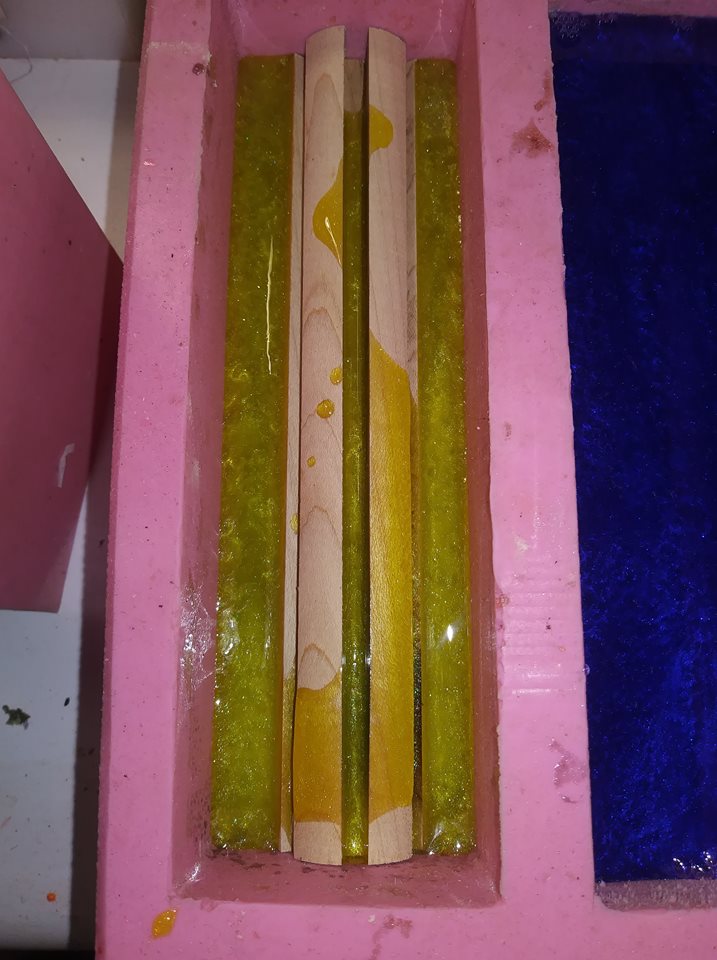

A few months ago I called Mark James with an idea. He had been making ring blanks with segmented wood. I told him to make me a few but leave the grooves empty, as I wanted to try and cast resin into it. We tried a few things, but could never get full coverage. So Saturday, I had a crazy plan. With a little calculation, i made a jig to cast them in, and achieved full coverage. So every groove is full of resin. I turned it round so I could mount it in my chuck. That way i could drill dead center. I drilled this for a sierra. The blank is painted and I'll glue the tube in the morning. Hopefully i'll have a completed pen by Tuesday. I'm leaving to visit Mark on Thursday. May have to finish it there.

Well, here's some pics. Step by Step. Mark did the dowels, i did the casting and turning. Comments accepted, good or bad.

Also, this is PR

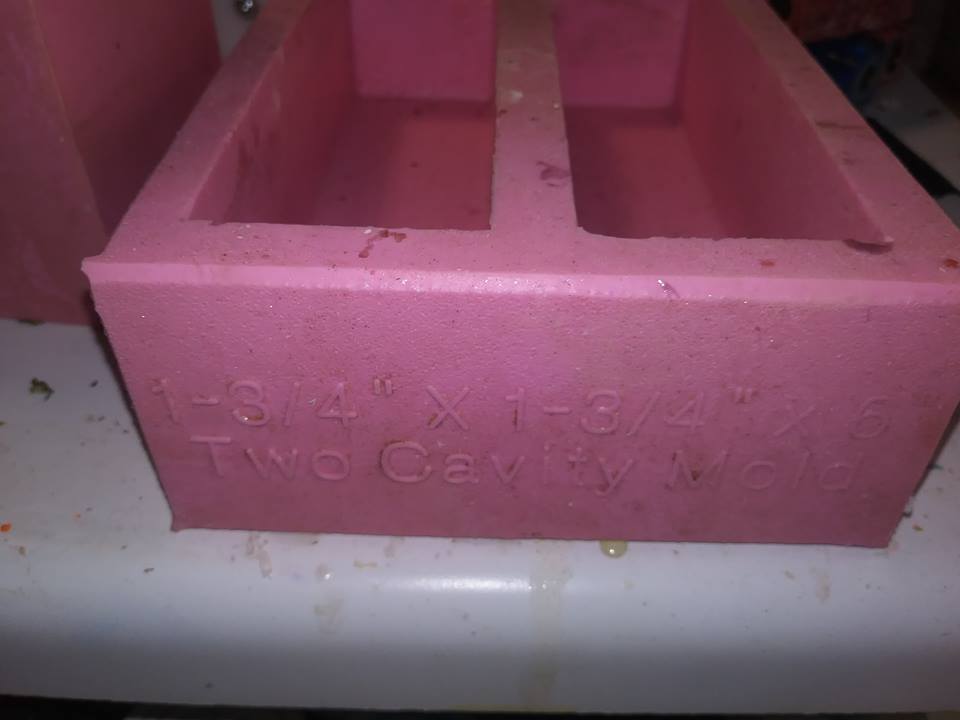

I know it would be easier with pvc, but it was late and I had none. So I made my molds work



[SteveJ]

Looks good. I look forward to seeing the final result.

Sent from my SM-G935V using Tapatalk



[Dalecamino]

I think it looks great. Cool idea.



[mark james]

Looking nice Ernie.

I will be great to see it turned. I'm curious how the translucent cast will look and wonder if a darker (more solid) shade will be needed.

I can make these by the dozens, so an infinite variety is possible.



[mbroberg]

Very Cool!:good:



[EBorraga]

Looking nice Ernie.

I will be great to see it turned. I'm curious how the translucent cast will look and wonder if a darker (more solid) shade will be needed.

I can make these by the dozens, so an infinite variety is possible.

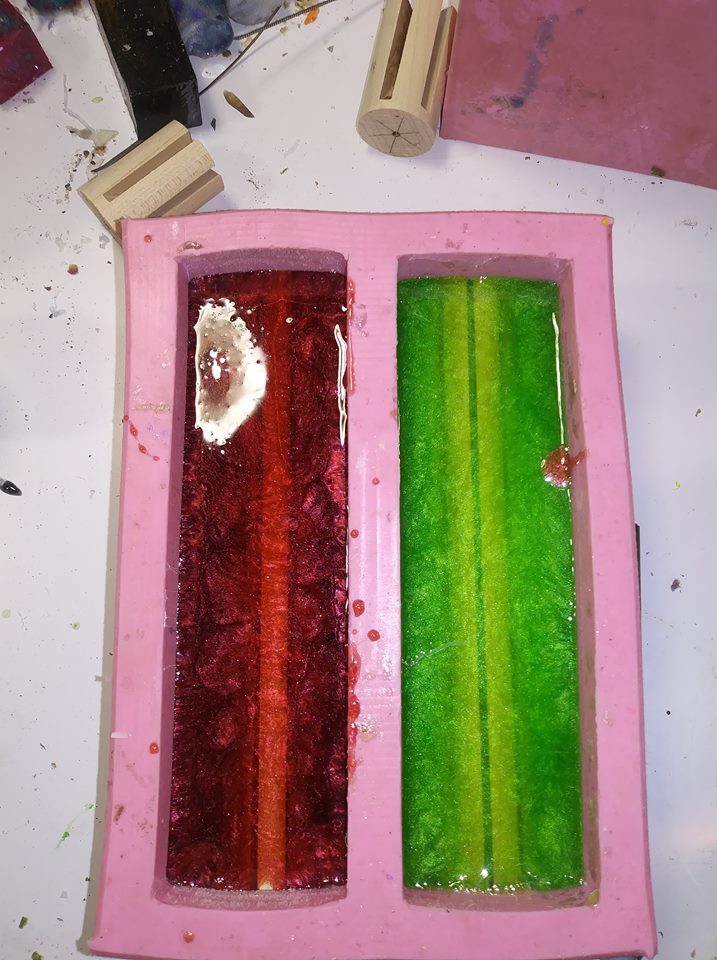

Well, I have a red, blue, and green blank ready to turn. I think I cast 15 of them yesterday



[mark james]

Looking nice Ernie.

I will be great to see it turned. I'm curious how the translucent cast will look and wonder if a darker (more solid) shade will be needed.

I can make these by the dozens, so an infinite variety is possible.

Well, I have a red, blue, and green blank ready to turn. I think I cast 15 of them yesterday

"I say there, I say there boy... I wondered where all my slotted blanks went!"



[Charlie_W]

Very Cool....watching and waiting!



[Dalecamino]

Foghorn would say....

"You're doin'...ah say, you're doin' it all wrong son. That'll never make a pen":biggrin:



[EBorraga]

Very Cool....watching and waiting!

I'll turn it tuesday night. Gonna glue the tube when i get home tonight, and then turn tomorrow after work



[More4dan]

Following, hurry up and turn a few.


Sent from my iPhone using Penturners.org mobile app



[mark james]

Following, hurry up and turn a few.


Sent from my iPhone using Penturners.org mobile app

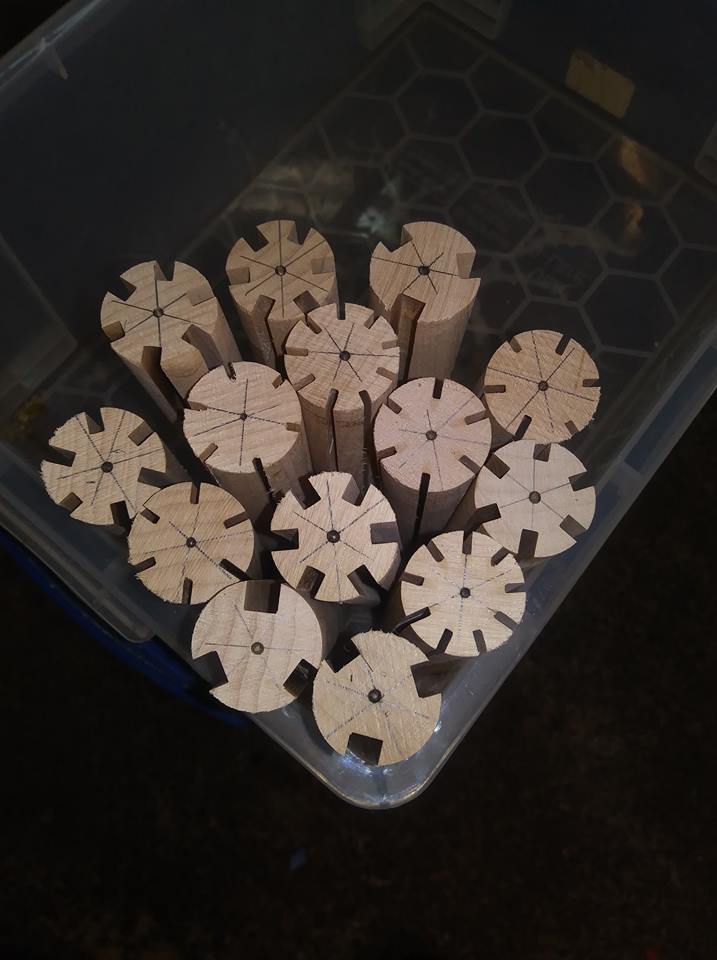

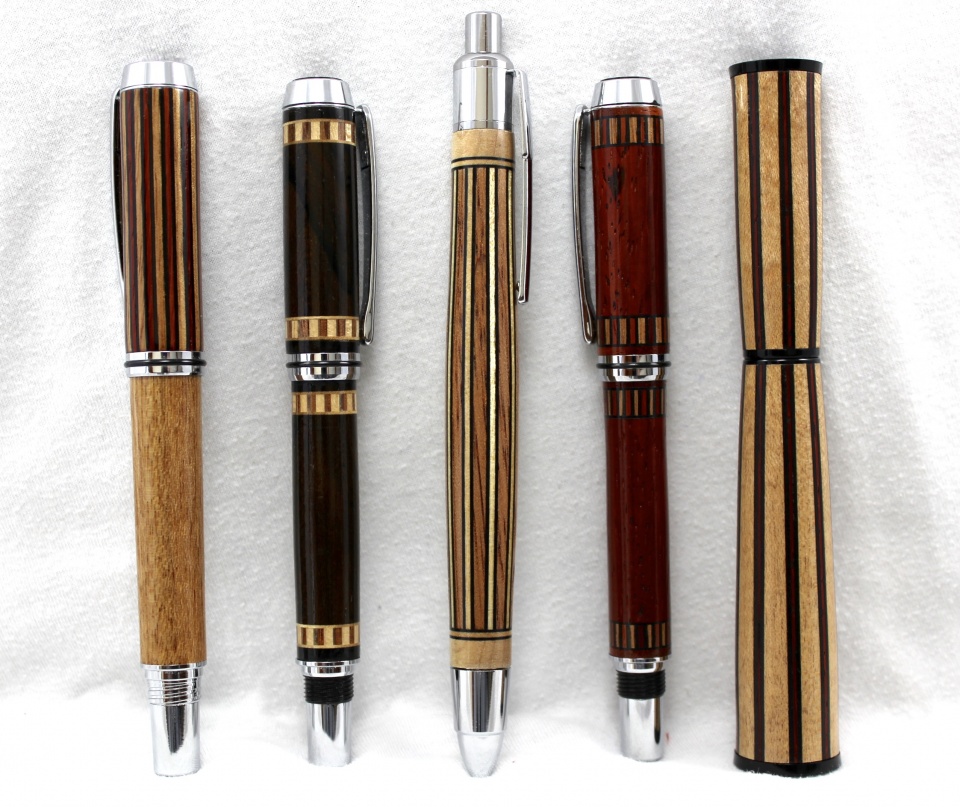

While Ernie is getting his beauty sleep, he obviously cast his, but they will be similar to these, just with single colors and different slot confirurations.



[EBorraga]

Following, hurry up and turn a few.


Sent from my iPhone using Penturners.org mobile app

Dan, I only have 1 ready to turn. I'll turn it tonight after I pack. I'm headed to Mark's Thursday morning for the weekend. I have 4 other colors i'l glue up and turn while there. So hopefully 1 pic tonight and the rest Sunday once I get home!!



[D.Oliver]

Dan, I only have 1 ready to turn. I'll turn it tonight after I pack. I'm headed to Mark's Thursday morning for the weekend. I have 4 other colors i'l glue up and turn while there. So hopefully 1 pic tonight and the rest Sunday once I get home!!

You're going to visit for the entire weekend.......Man that judge was hard on Mark!:laugh:



[EBorraga]

Dan, I only have 1 ready to turn. I'll turn it tonight after I pack. I'm headed to Mark's Thursday morning for the weekend. I have 4 other colors i'l glue up and turn while there. So hopefully 1 pic tonight and the rest Sunday once I get home!!

You're going to visit for the entire weekend.......Man that judge was hard on Mark!:laugh:

Me, Stonepecker, and Dalecamino!!! Plus a whole slew of Ohioan's! I here Jeff may even stop by



[D.Oliver]

You're going to visit for the entire weekend.......Man that judge was hard on Mark!:laugh:

Me, Stonepecker, and Dalecamino!!! Plus a whole slew of Ohioan's! I here Jeff may even stop by

What kind of heinous crime did he commit to deserve a punishment like that?!:bulgy-eyes: Give them all my regards!



[EBorraga]

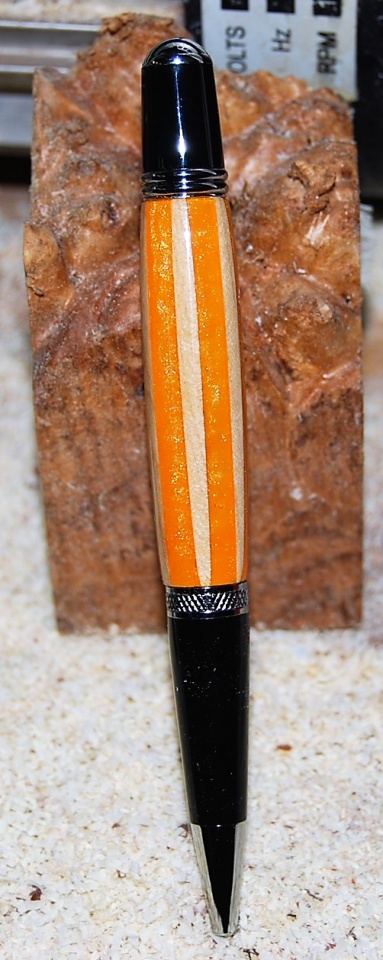

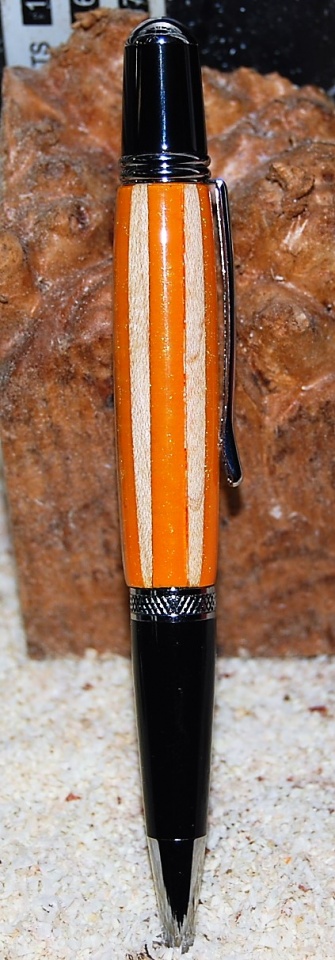

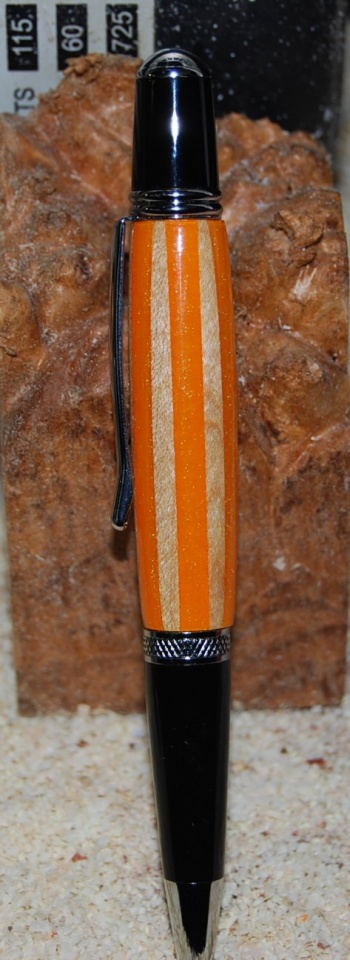

Here you go boys and girls. Again, it's not perfect, but it was fun as hell experimenting!! I'm calling it "El Collabo"!!



[dogcatcher]

Now try it with a resin cast blank instead of a wood one.



[Dalecamino]

You guys did a good job. I like it!



[EBorraga]

Now try it with a resin cast blank instead of a wood one.

That's funny. When I finished the pen. I sent Mark a pic. I also told him the next one will be cast blank not a wood dowel!
