Can anyone point me to or sell me the 3D file for the honeycomb insert or really anything else for inside a cast pen? Any ideas are welcomed....I am new to casting and new to 3D printing. I have a Bambu A1 carbon printer.....



[hooked]

You can search multiple sites for 3D files from thangs.com. I searched pen blanks and found many files.

Zac Higgins also sells files for printing:

3D Print Files

3D Print files to print on your own 3D printer. Files come in .stl format. File is for your own personal use to print, please do not share and DO NOT RESELL FILES

resinwerksstudio.com



[leehljp]

Mike, I can't help with that but did want to clarify your search: Are you looking for the one that the honeycomb radiates outward from the center all the way around, Correct? I have two but don't remember where I got them. I have thought it sure would be nice to have that 3D file. I will be watching this thread.



[moke]

Thanks Hank & Hooked...yes I was looking for that file in particular, but the other files resin works sells are interesting too. I am curious Hooked, these are suitable for filment printed items too?



[hooked]

I download files from Thangs/thingverse all the time for my filament 3D printer. I have also purchased designs from Zac that work well on my Creality filament printer.



[moke]

Thanks Hooked...that is good to know! I have only used Makers World so far....



[anthonyd]

Hi Mike,

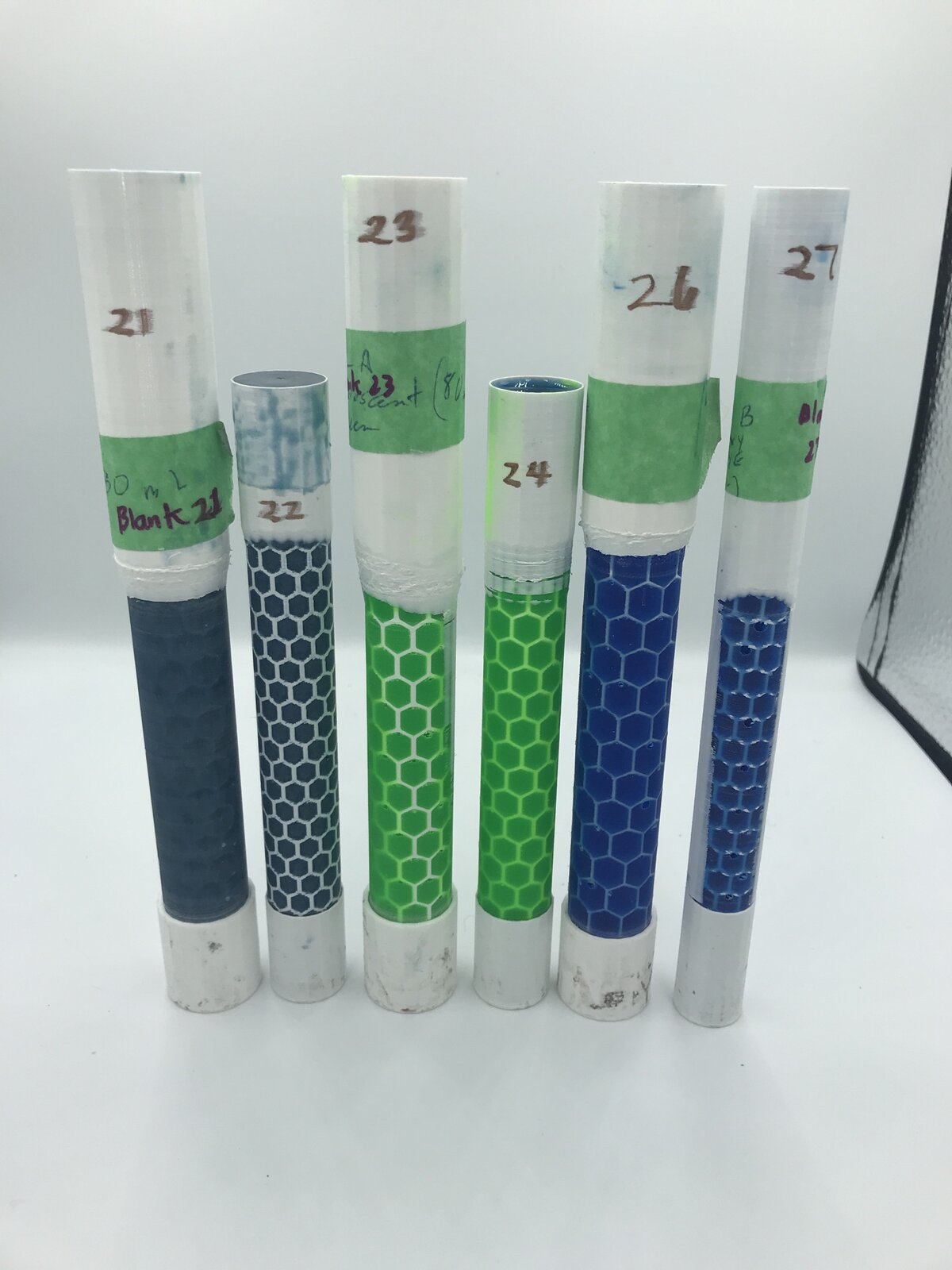

Here are some STL files for some round hex skeletons that you can cast. Print them in PET-G because it is more temperature resistant when machining. PLA will work but you have to be careful when drilling. You can modify these in Tinkercad. I printed my own outer molds as you can see in the attached photograph. Don't print the molds too tight or you will trap air bubbles on the outer surface. When vertical pouring make sure to fill the mold halfway and then rotate the skeleton as you push it down in the mold or you will trap air bubbles.



[anthonyd]

For some reason the files duplicated. There are only two STL files.



[moke]

Anthony....that is just awesome! THank u.....those look great...hoping I can do as well as you did.



[anthonyd]

You are welcome.



[SteveJ]

I thank you also. I'm pretty new to 3D printing and haven't been able to create a file like this.
