2nd Kitless Rollerball

Signed-In Members Don't See This Ad
See more from keithbyrd

K

keithbyrd

Member
Joined
Sep 2, 2011
Messages
2,526
Location
Mount Wolf, PA

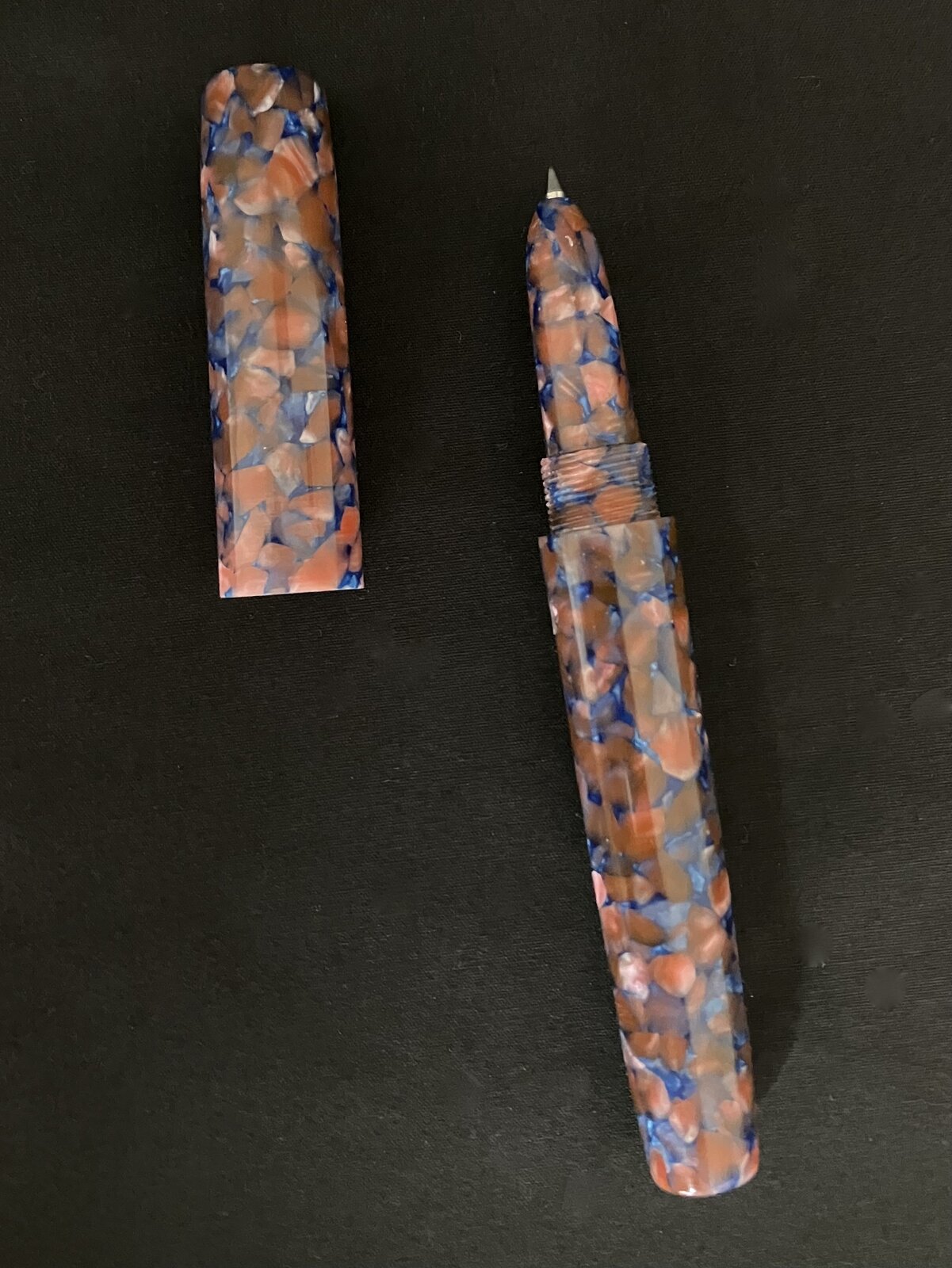

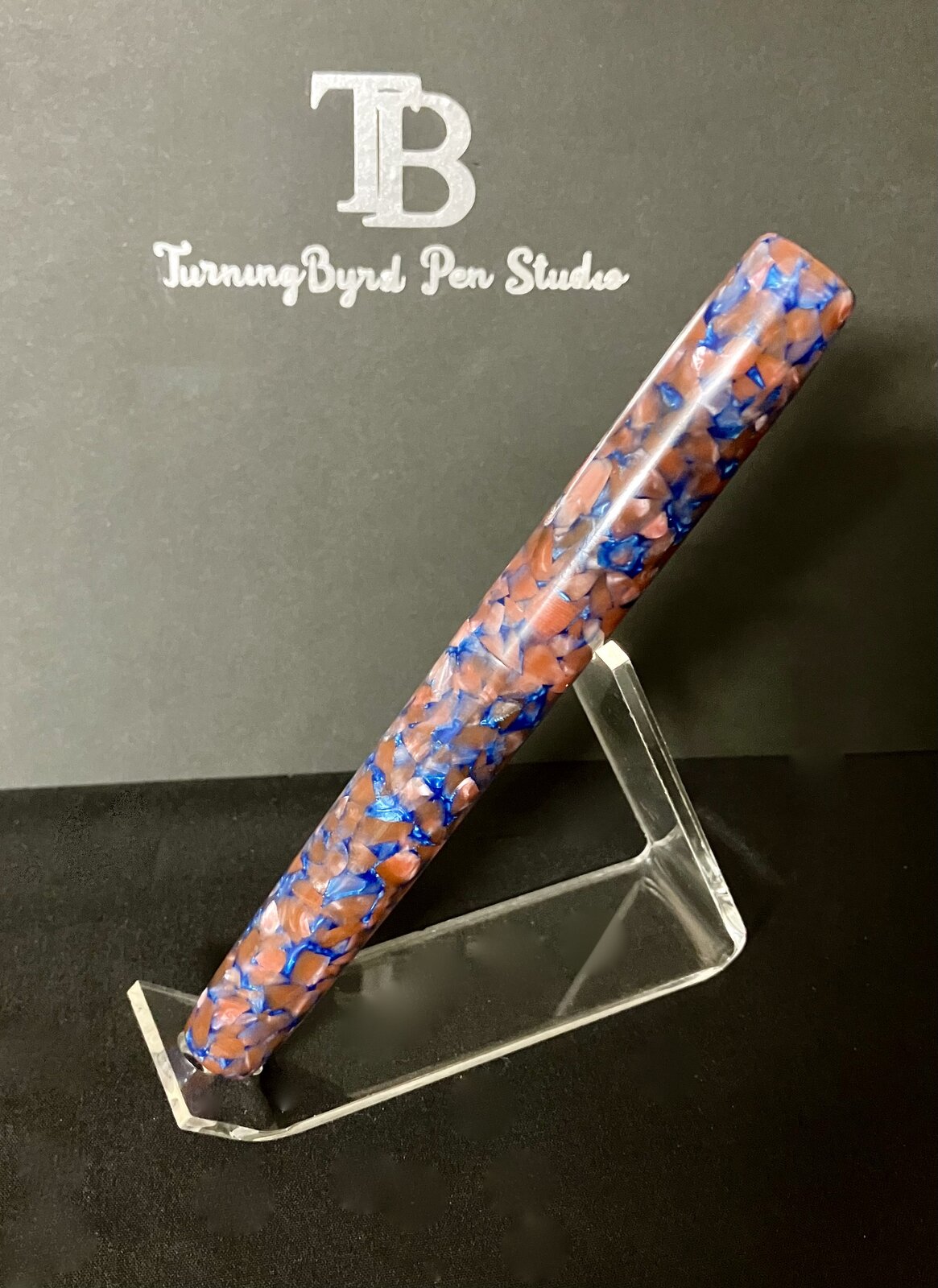

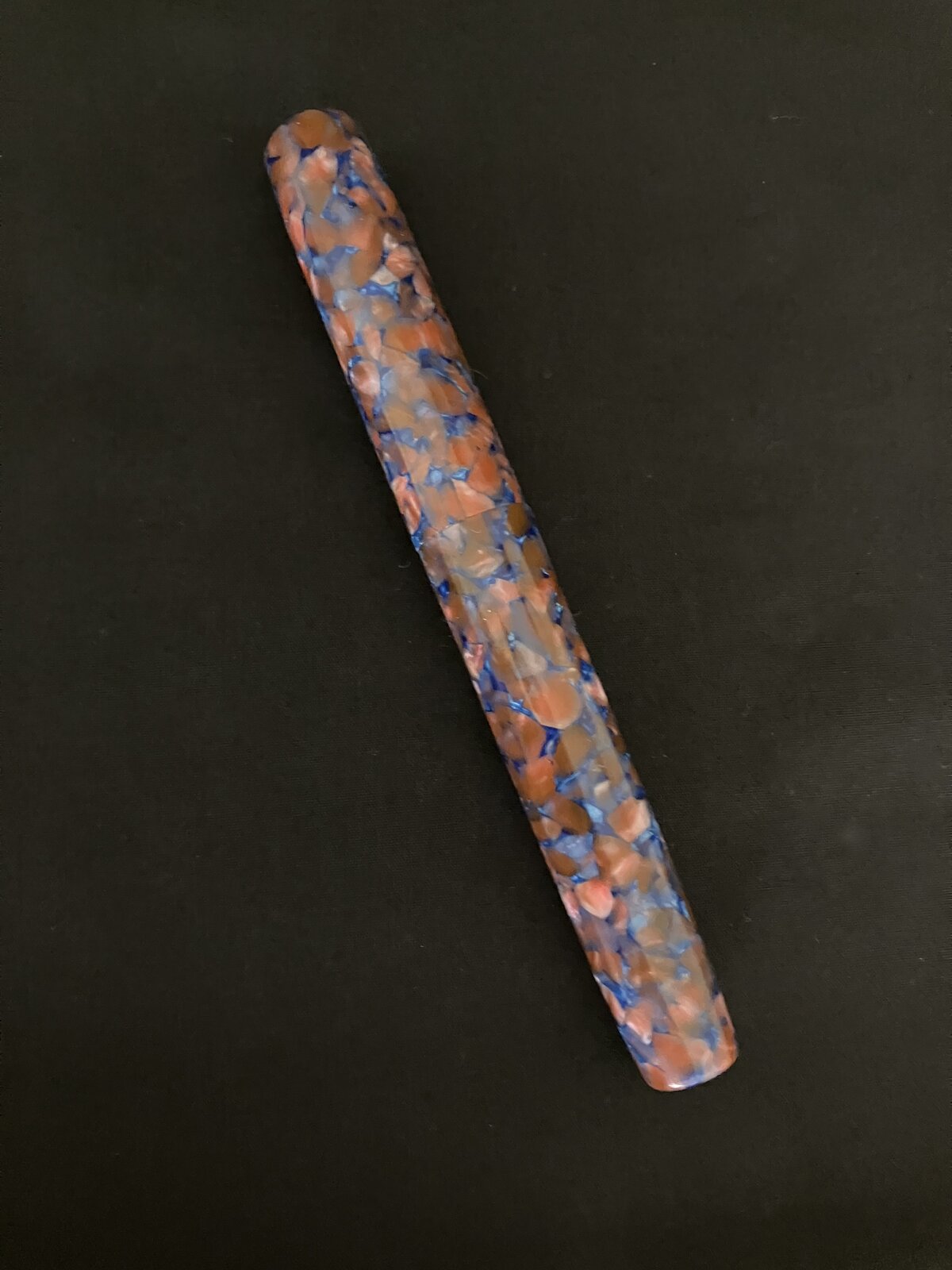

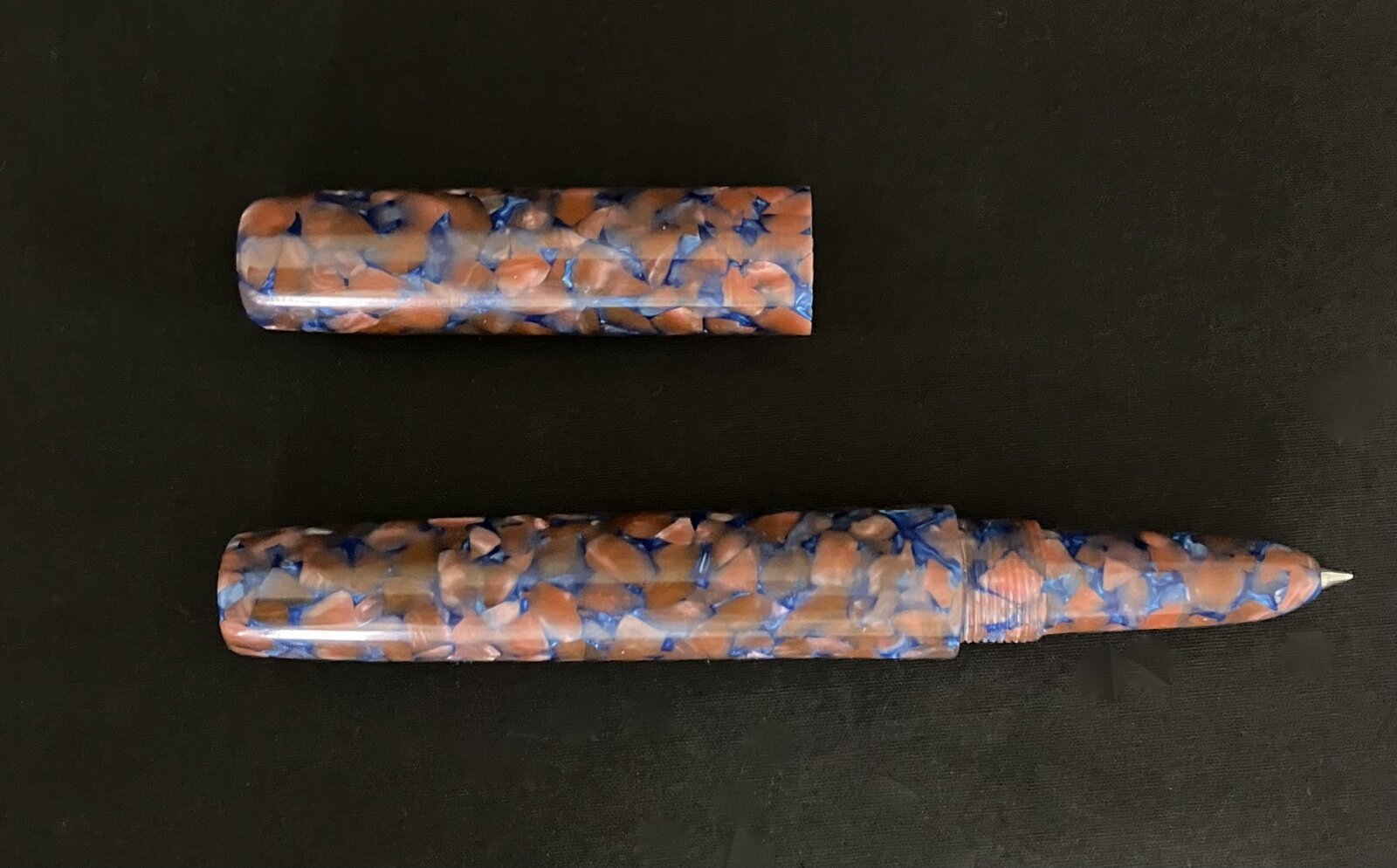

Second one - I used and M13 for the cap threads and an M9 for the section threads. First one I used M9 and M11 and felt it was pretty fragile!
5 1/8 long, cap 15.6MM, body 15.6MM, section 10.3MM. I think I still need to work on the section design.
Constructive criticism welcome!


Attachments

  • K-RB-101-1023 4.jpeg
    K-RB-101-1023 4.jpeg
    153.1 KB · Views: 180
  • K-RB-101-1023 5.jpeg
    K-RB-101-1023 5.jpeg
    297.8 KB · Views: 168
  • K-RB-101-1023 6.jpeg
    K-RB-101-1023 6.jpeg
    208.5 KB · Views: 173
  • K-RB-101-1023.jpeg
    281.7 KB · Views: 159
Signed-In Members Don't See This Ad

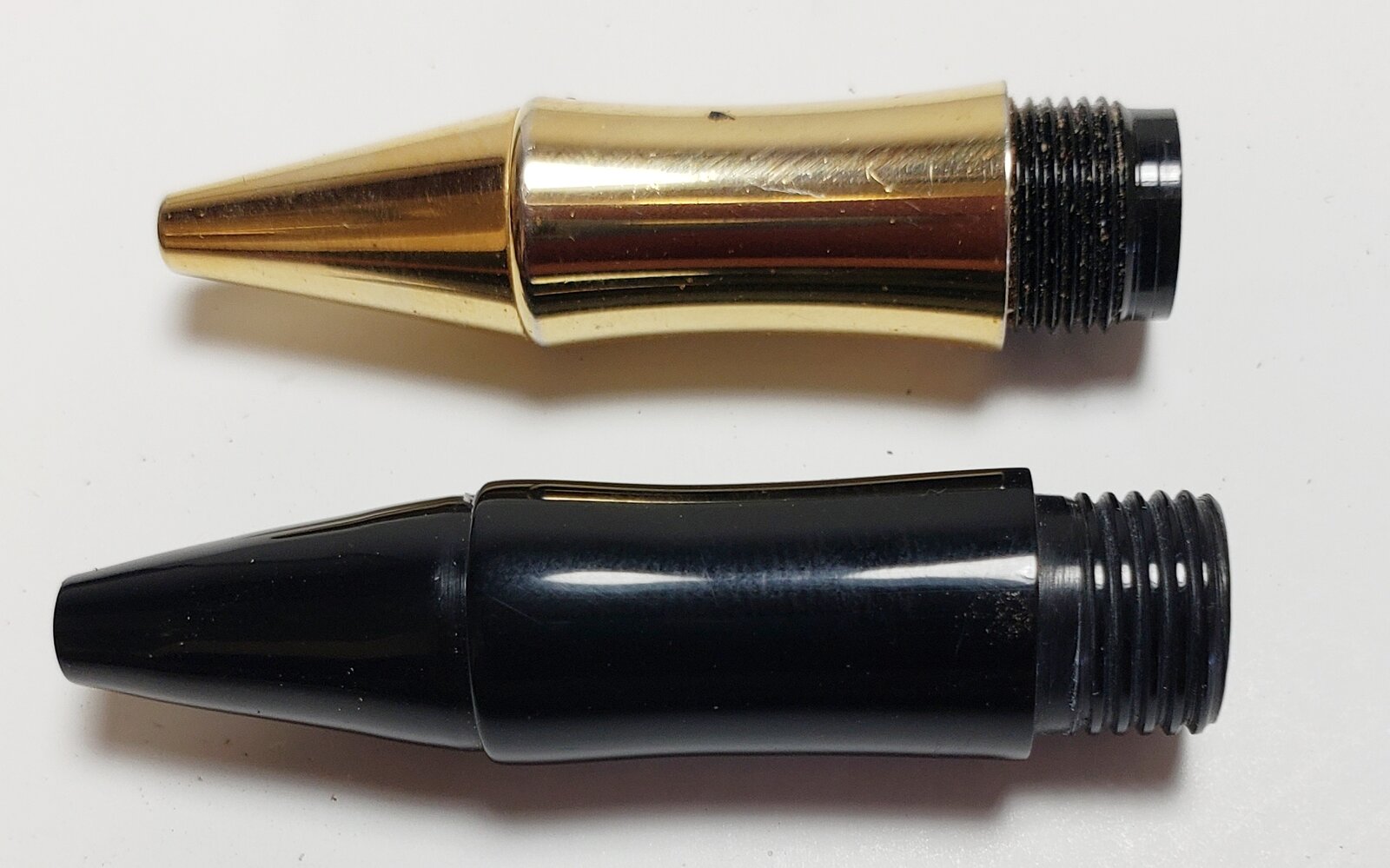

Nice work on the rollerball. Rollerball sections have been an issue with me also. I have, for now, settled on this design copied from a kit section. It is working well for me so far. You might consider it.

Thanks for sharing and for the dimensions. Good luck on your section search.
Do a good turn daily!
Don


its_virgil said:
Nice work on the rollerball. Rollerball sections have been an issue with me also. I have, for now, settled on this design copied from a kit section. It is working well for me so far. You might consider it.

Thanks for sharing and for the dimensions. Good luck on your section search.
Do a good turn daily!
Don

View attachment 362191
Click to expand...
Thanks Don - great idea on copying the design! will work on that!

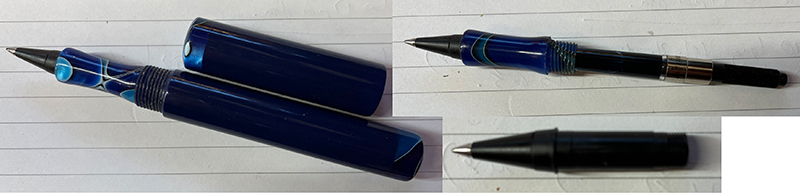

Not wishing to decry your very good efforts at making a Rollerball, I have also been down that rabbit hole. Have you seen a Schmidt Rollerball insert? I came across them at Beaufortink.co.uk - and they are really quite good. I use them in my workshop pens, and a major advantage is that they don't dry out when un-capped. Further, I don't need to alter the design of my basic fountain pen to use the rollerball section.

Regards,
Chriscb

231031_RB example.jpg

Chriscb said:
Not wishing to decry your very good efforts at making a Rollerball, I have also been down that rabbit hole. Have you seen a Schmidt Rollerball insert? I came across them at Beaufortink.co.uk - and they are really quite good. I use them in my workshop pens, and a major advantage is that they don't dry out when un-capped. Further, I don't need to alter the design of my basic fountain pen to use the rollerball section.

Regards,
Chriscb

View attachment 362732
Click to expand...
Chris, I looked all over Beaufort ink website and could not find these

keithbyrd said:
Chris, I looked all over Beaufort ink website and could not find these
Click to expand...
Just search Rollerball Nibs.

Refillable rollerball nib - black

Refillable rollerball nibs for kitless pens,Refillable rollerball nib - black
www.beaufortink.co.uk www.beaufortink.co.uk

Starter thread tap for Refillable Rollerball nib

Starter thread tap (US - Taper tap) for Refillable Rollerball nibs. Made by TapCo from M2 HSS steel, the thread size is 6.5 x 0.5 and we recommend a drill size of 6.0mm Intermediate and Plug taps (U...
www.beaufortink.co.uk www.beaufortink.co.uk
