Wooden USB Flash

Signed-In Members Don't See This Ad
See more from Alejanders

Alejanders

Alejanders

Member
Joined
May 7, 2011
Messages
152
Location
Moscow, Russia
It is not "other thing I made", because I just plan to make wooden pen.
But maybe it will be interesting.

Here is best ones.

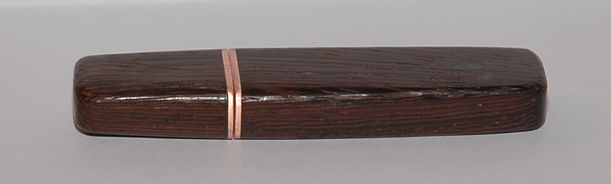

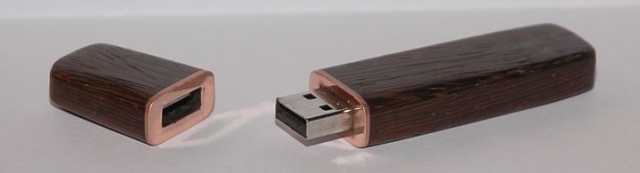

Wenge, copper bolster:
s640x480


Carnaгba wax finish.
0001dghk

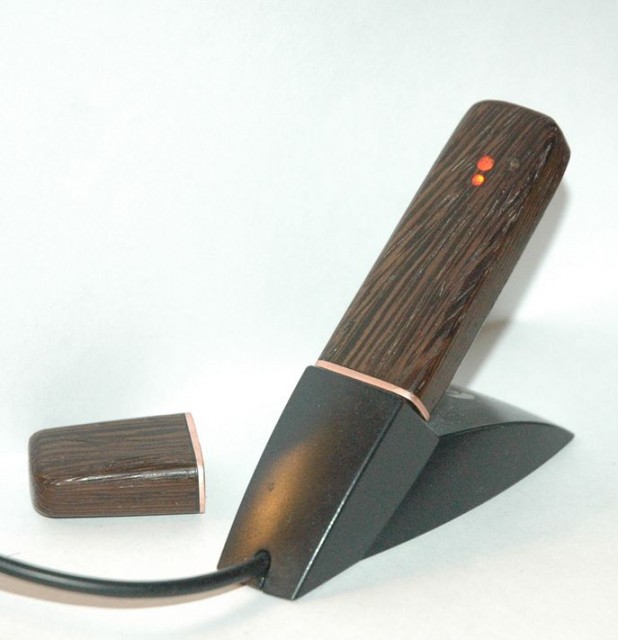

LED works too:
s640x480

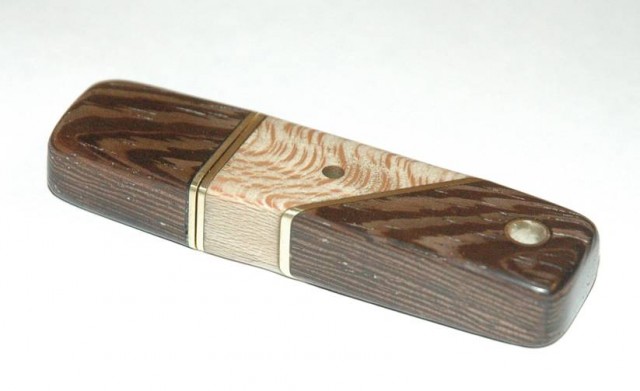

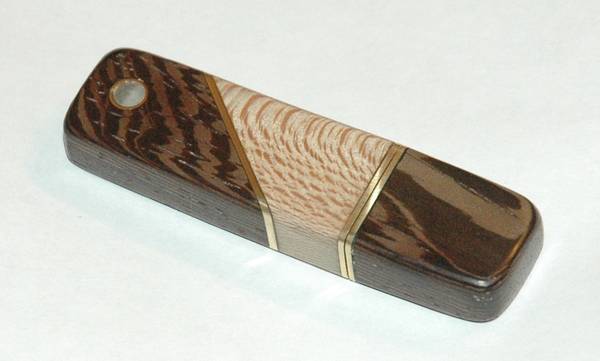

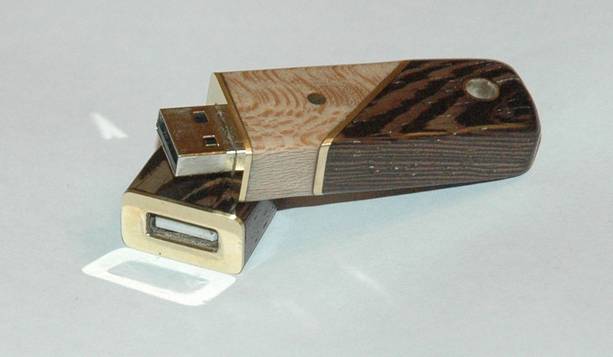

Wenge and platanus.

s640x480

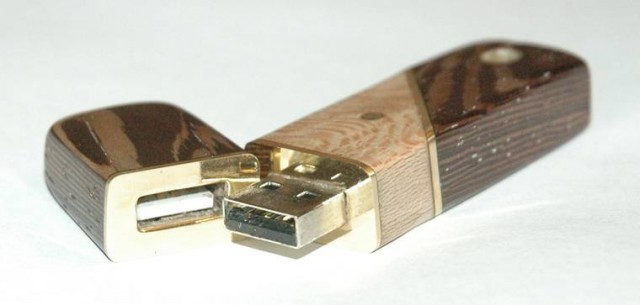

Brass bolster:
0001yyh5

0001zqac

s640x480

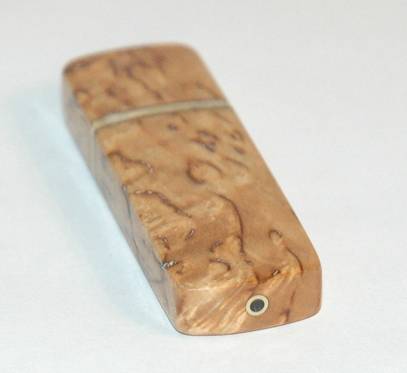

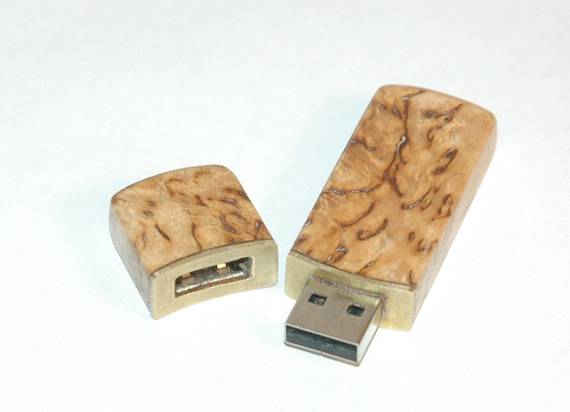

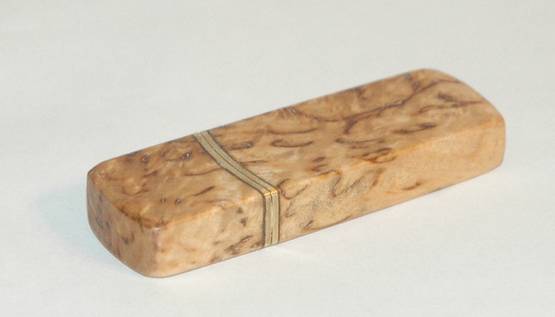

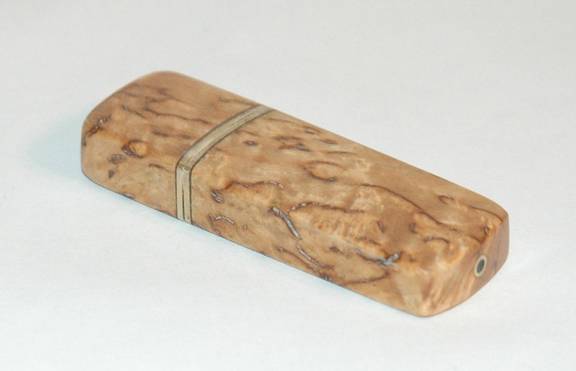

Birch burl, brass, danish oil with carnauba wax.
0004kw6e


0004p6c4

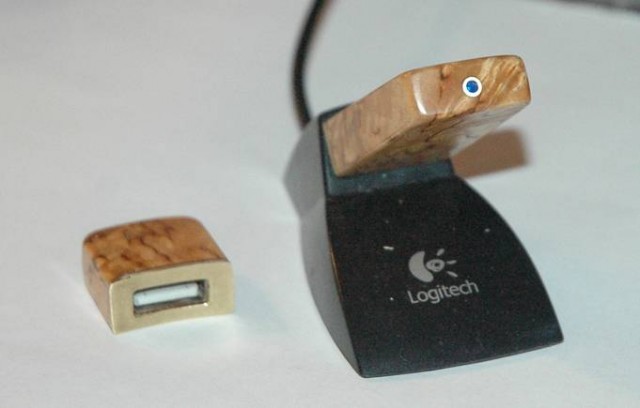

LED in brass tube:
0004qeg2


0004rg9q


s640x480

Signed-In Members Don't See This Ad
Those are really nice. All the USB Memory designs I have seen were round, and none had the LED visible. These are quite unique and very well done as well.

Those are terrific! Some of the color combinations, okay, all of them are really striking. Looking forward to seeing you apply your thinking to a pen.

Mike

Nice work!

Unless it plugged into me though I would probably forget where I left it :eek: and it would be lost until the technology was no longer used. :frown:

Pete

Those are Awesome! I've done a couple of the round kits, but they're too big and bulky and Nothing so elegant as these!

Welcome, and I look forward to seeing your pen ideas...and maybe a tutorial on how you did these USBs! :cool:

Thanks!

I will do complete how-to later.

There is brief how-to.

First, you need wood scale with thickness at least 9mm and width at least 20 mm. Length depends from chip size.
There is palisander.


Then you need two bolsters with rectangular hole 12х4,5 mm. You may use copper, brass, nickel-silver, leather, verneer, etc... Drill several holes make rectangular hole with needle file. You may use USB jack for reference.
I have used brass 1mm thickness.


Glue bolster to flash and socket. Usually I use CA, because it firms very fast and can be disassembled later.



Then you need cut wood scale for two pieces (one for cap and one for chip), and make holes in scales. Same as with bolster - drill several holes and use nail file to fit.





Then glue socket to cap. I use epoxy with wooden dust, but CA can be used as well.


Then you need find place for lamp hole, drill hole and glue case to chip.
And fill lamp hole with epoxy or CA.



Then you need take needle file and cut excess bolster. Or use machine sander, sandpaper for it.


Drill hole for lanyard and glue tube for it. You can made lanyard hole on cap or on side.

Then make desired shape:


As you see, flash is very small. Case thickness about 1mm. It can be used even in notebooks with closely spaced sockets.





Good luck!

Usually I buy brand new Kingston or Transcend (not noname) thumbdrives and disassemble with needle file.
You may use your old thumbdrive, but now flash drives are inexpensive and will hurt if the old thumbdrive fails.

By the way, you may find thumbdrive with suitable LED color and position for desired design.

I am sorry, I has incorrectly translated wood title.

This is not birch birl, it is karelian birch (also calls curly birch). Sometimes birch burl call karelian birch, but it is different wood types.
0004kw6e
